The Egg-bot is an open-source art robot that can draw on spherical or egg-shaped objects from the size of a ping pong ball to that of a small grapefruit. Or roughly 1.25 to 4.25 inches in diameter (4 - 10 cm). The gantry is adjustable and designed to draw on all kinds of things that are normally difficult to print on, like eggs! Eggbot can print on other spherical orĀ elliptical objects such as golf balls, light bulbs, holiday ornaments and the like. This is an excellent kit project for kids and adults. Learn the basic principles of motion control. Or converting and image into machine code thus resulting in robotic action. I believe there may be a similar open source kit floating around called the SphereBot or Sphere-O-bot. This one runs on a standard Arduino.

Assembly of this machine was our very first workshop meetup at Tinkersmiths Makerspace. A dozen people showed up to kick off what had become a thriving culture of over 900 makers. Tinkersmiths is since shut down but was the most fun and learning experience imaginable.

Click here to see other CNC machinery we have design and or built.

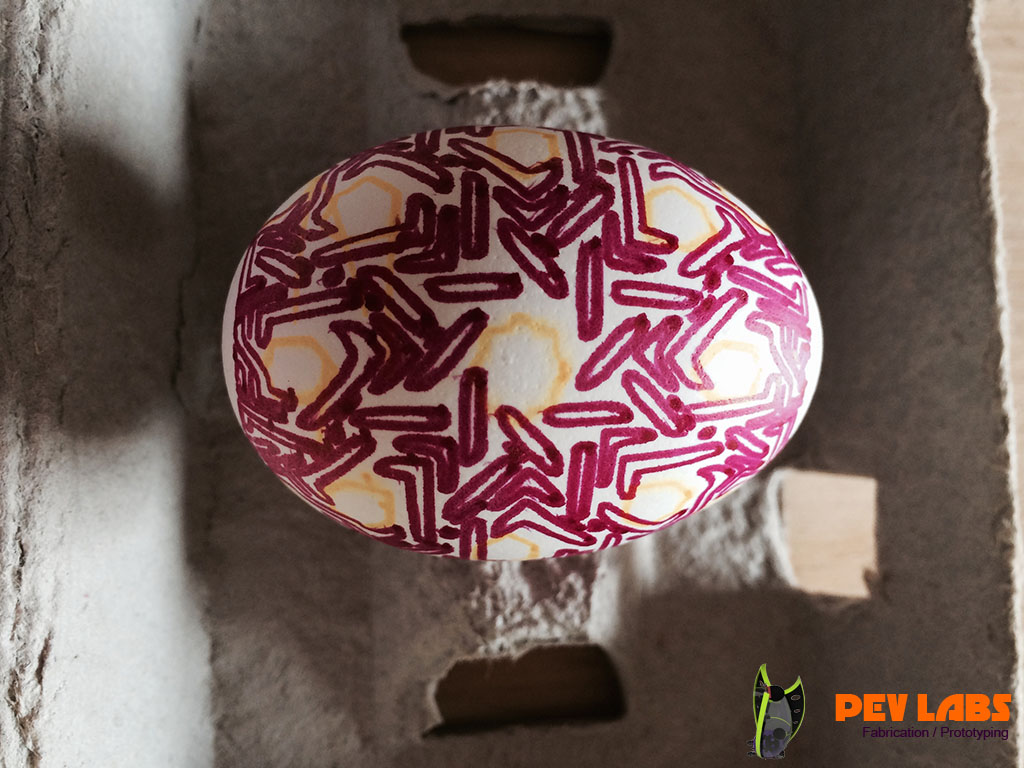

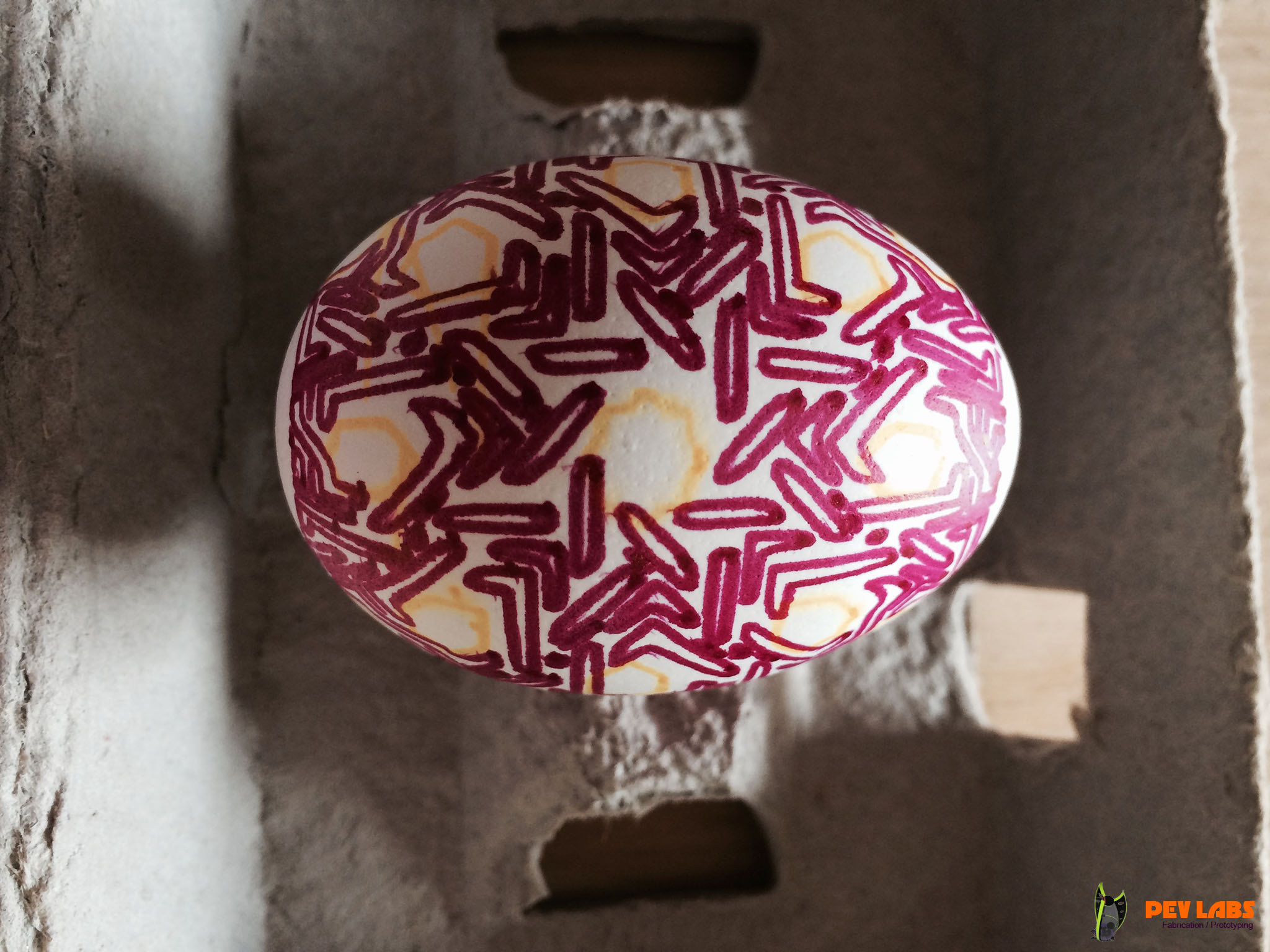

Egg-bot Decorated Egg 1
Egg-bot Decorated Egg 1

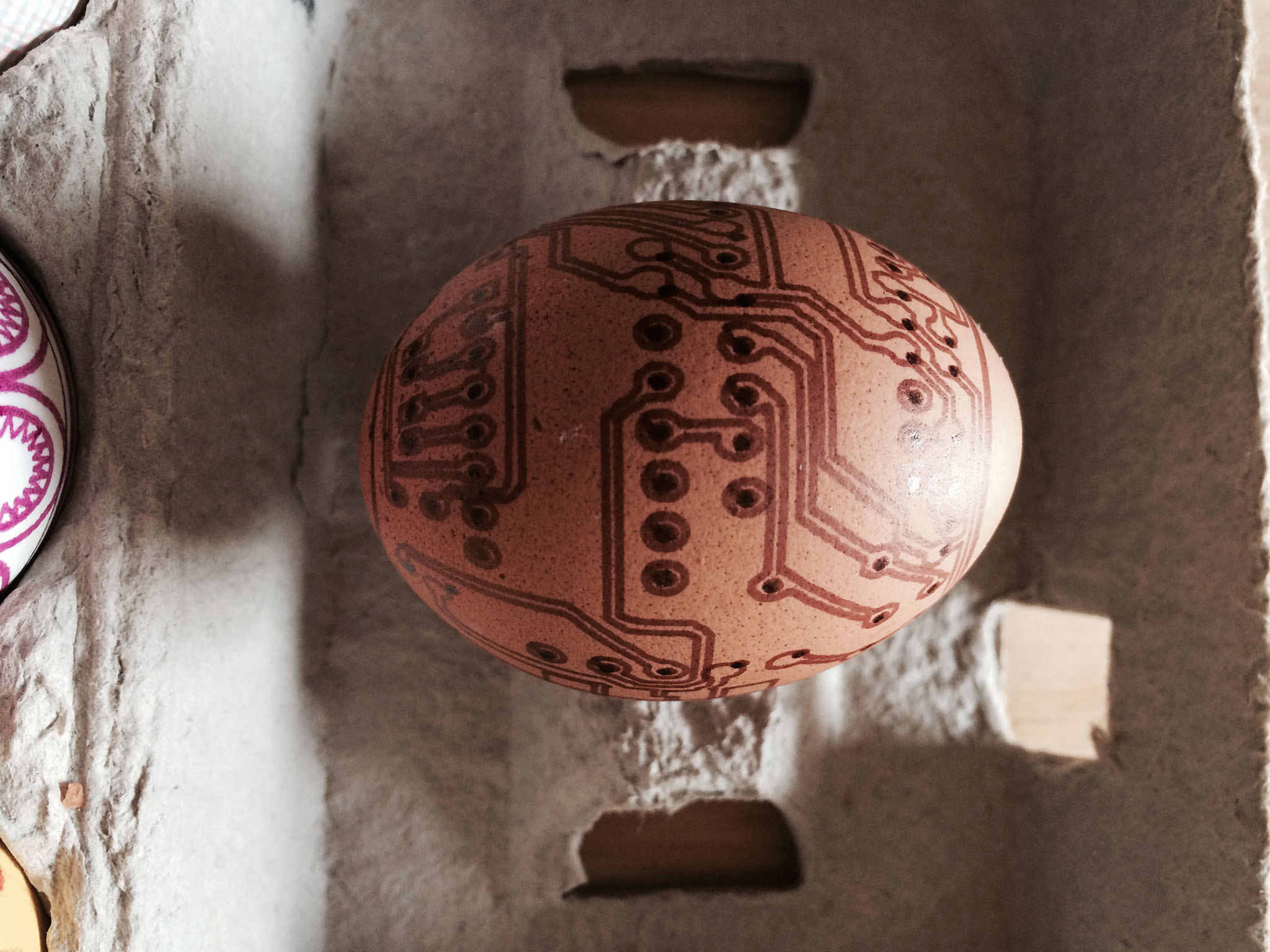

Circuit Board Egg
Circuit Board Egg by Mike Powers

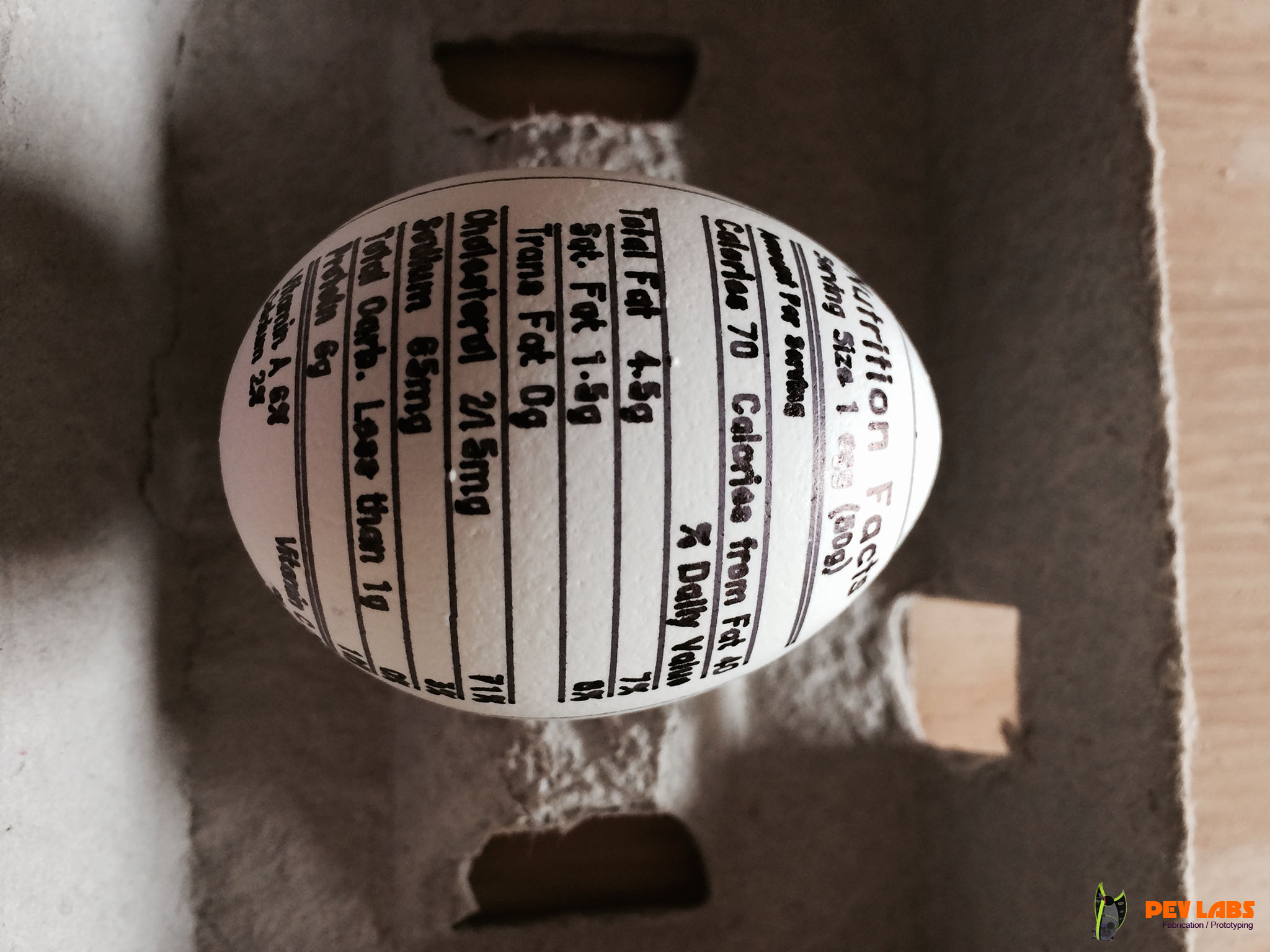

Egg With Printed Nutrient Label
Egg With Printed Nutrient Label

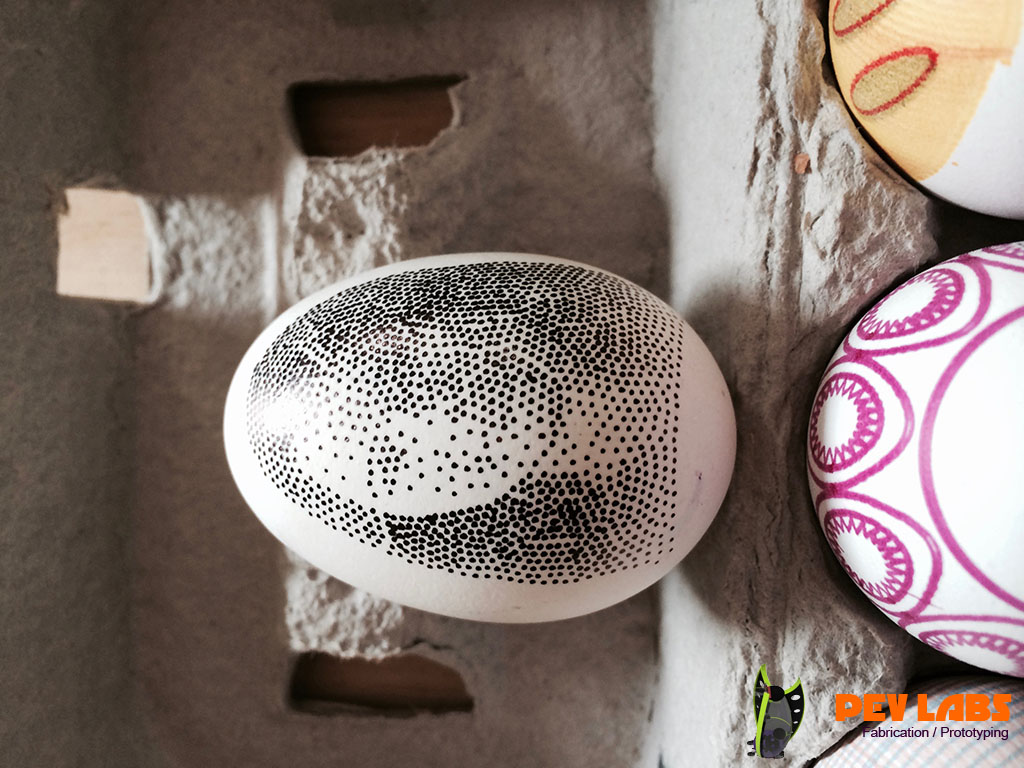

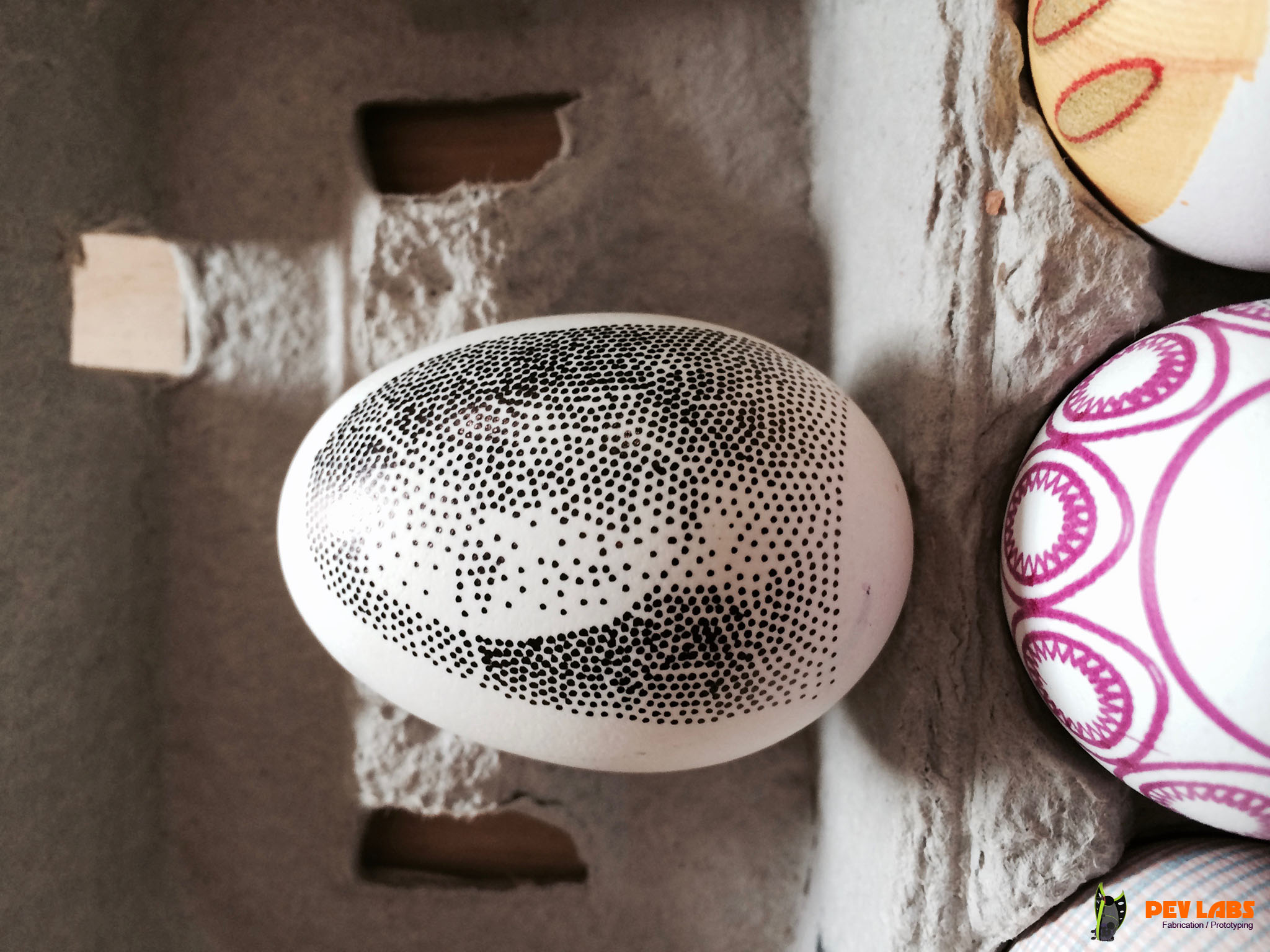

Eggbot Pointillist Mona Lisa Egg
Eggbot Pointillist Mona Lisa Egg

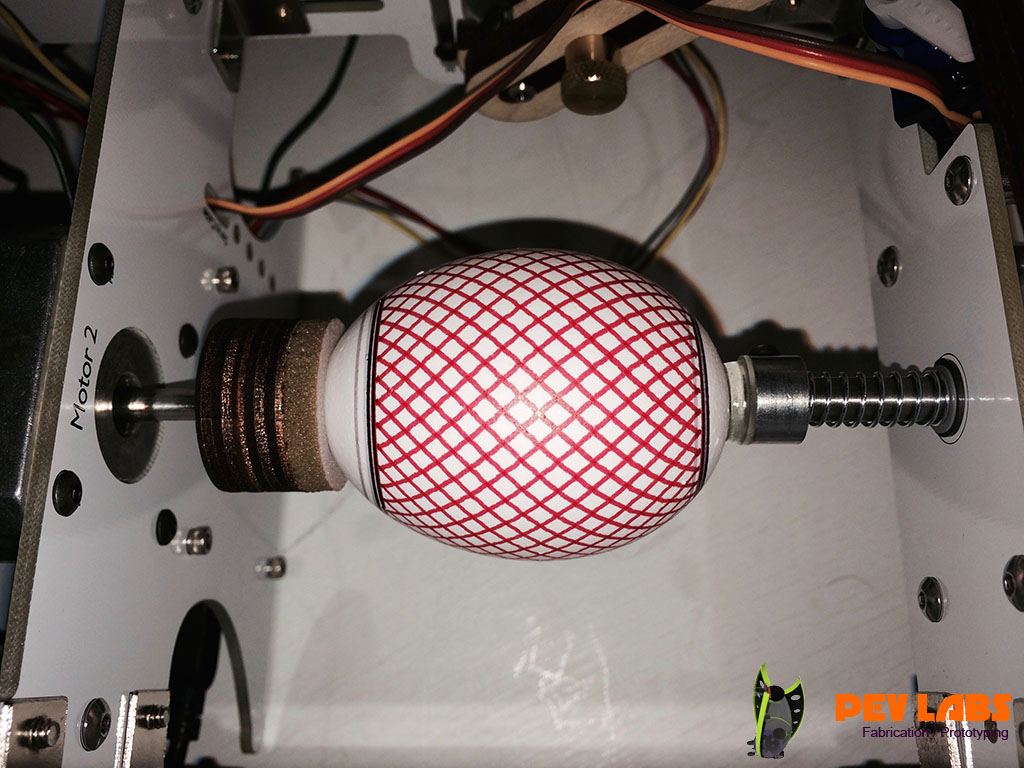

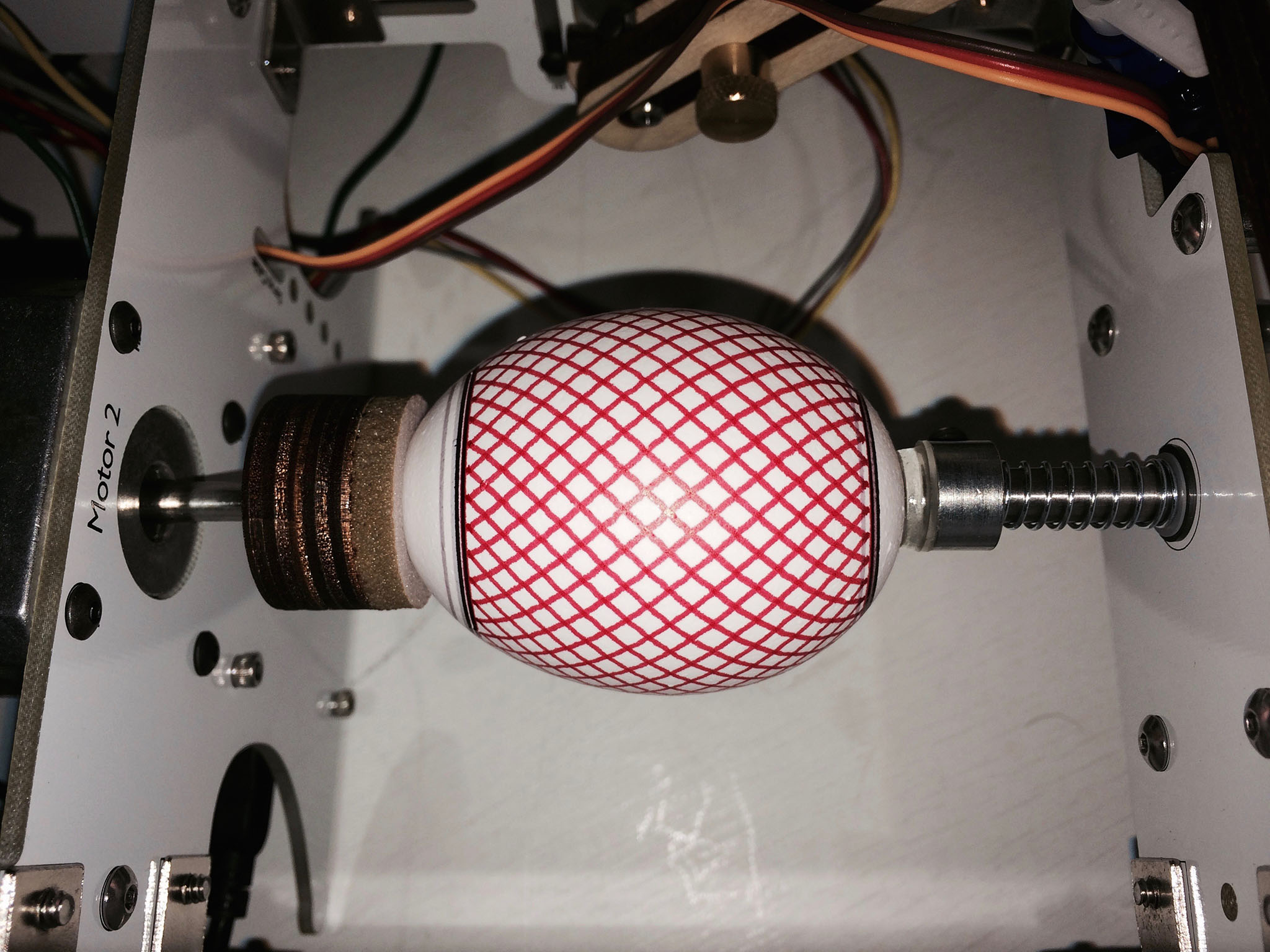

Egg-bot Decorated Egg 3
Egg-bot Decorated Egg 3
Egg Design by Brian Williford
Egg Design by Brian Williford

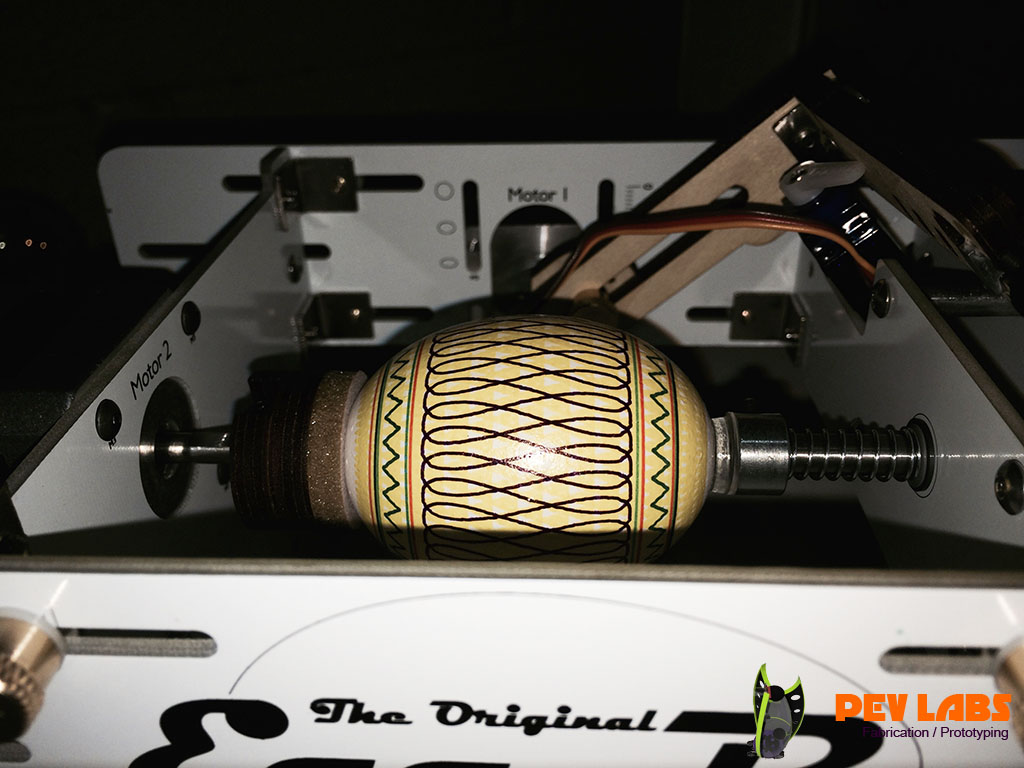

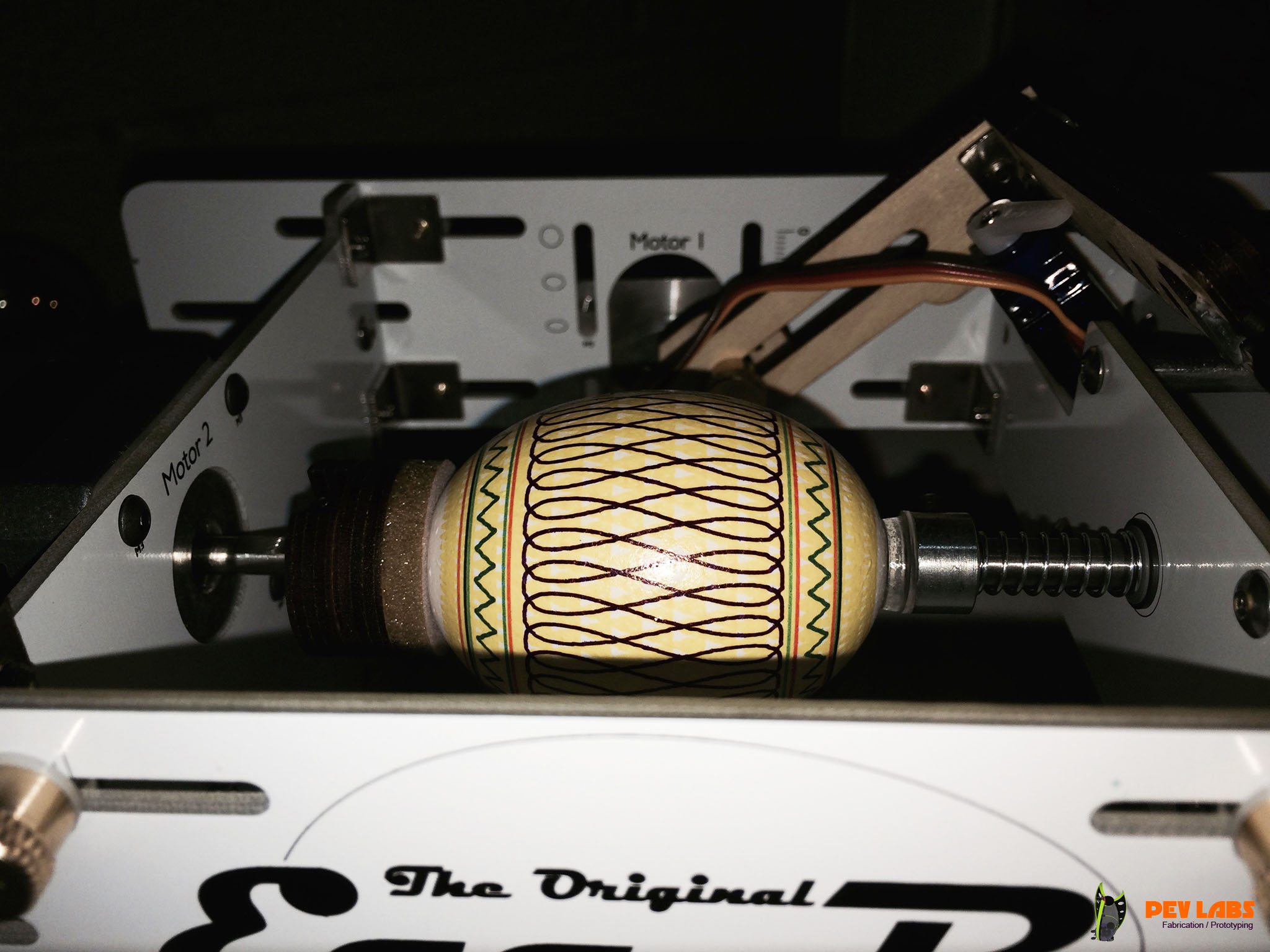

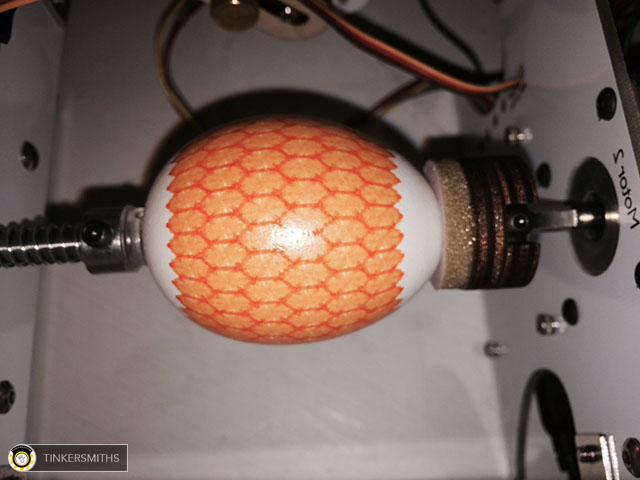

Egg-bot CNC Egg Closeup
Egg-bot CNC Egg Closeup

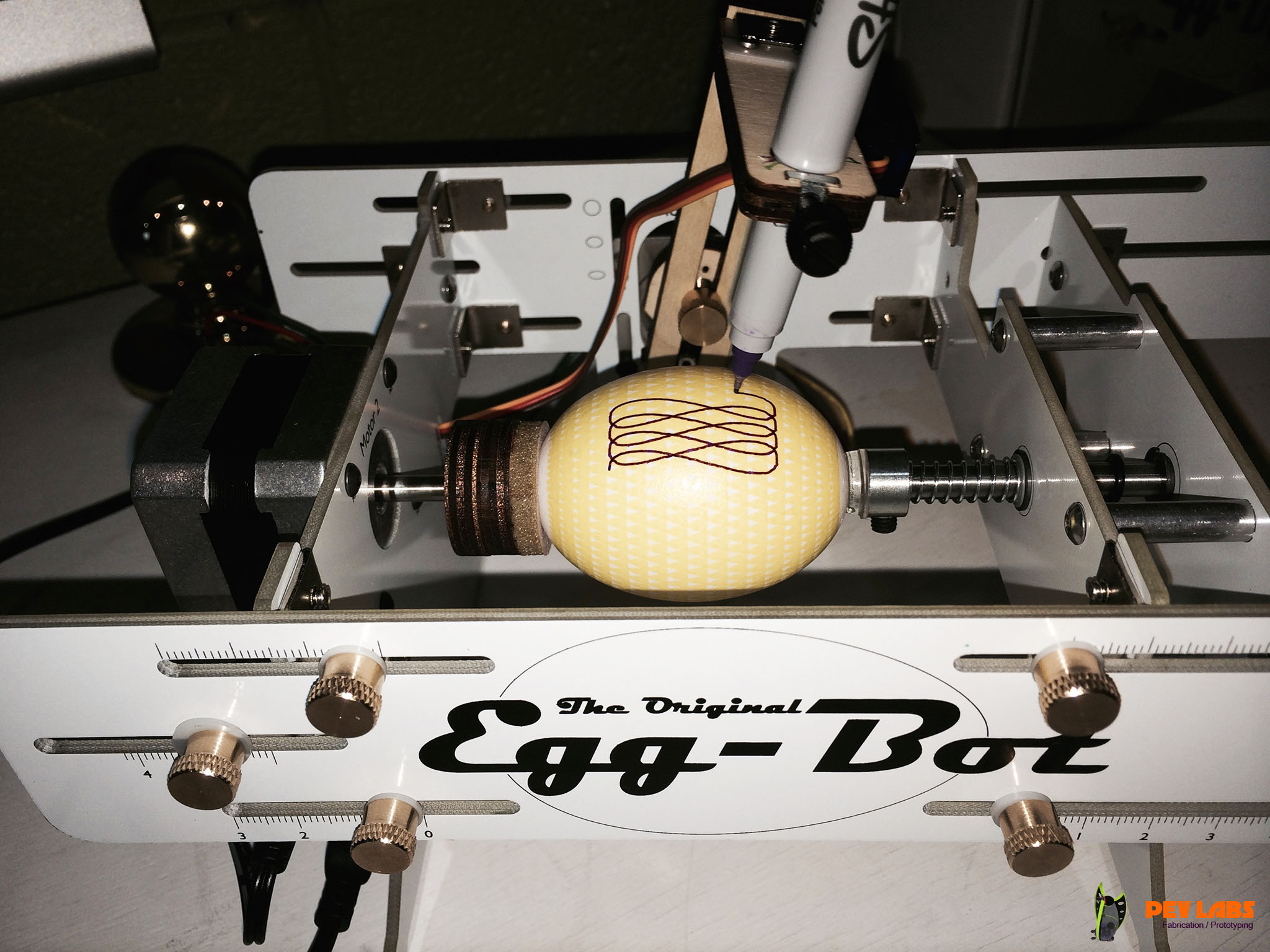

Drawing Double Pattern on Egg
Drawing Double Pattern on Egg

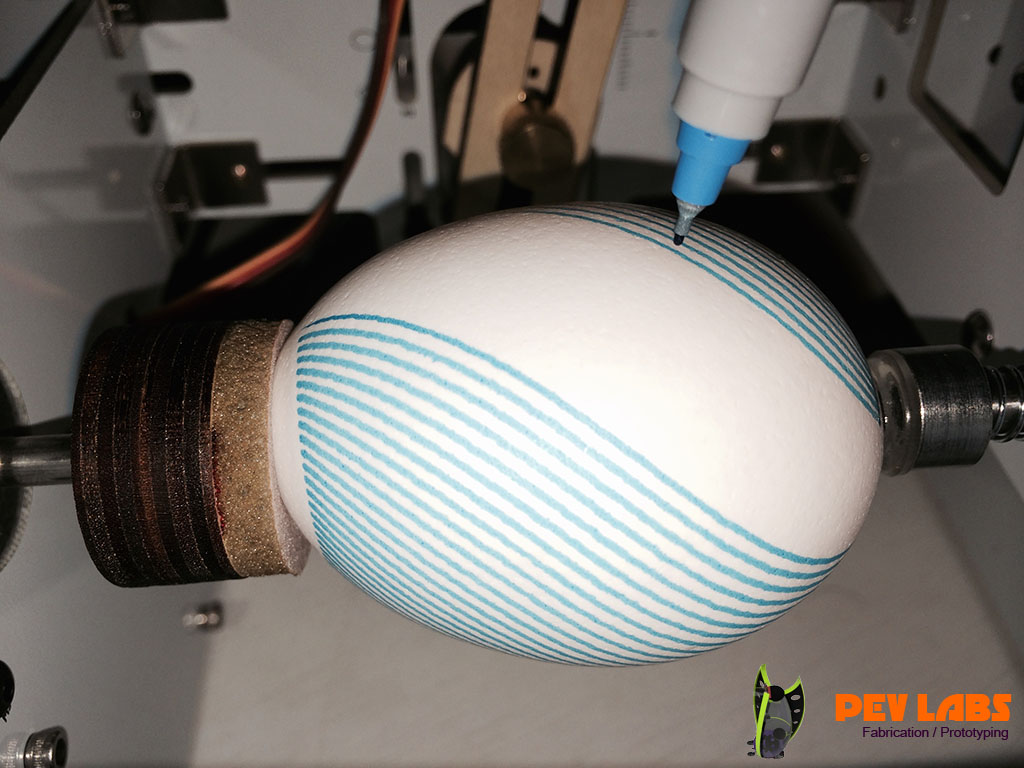

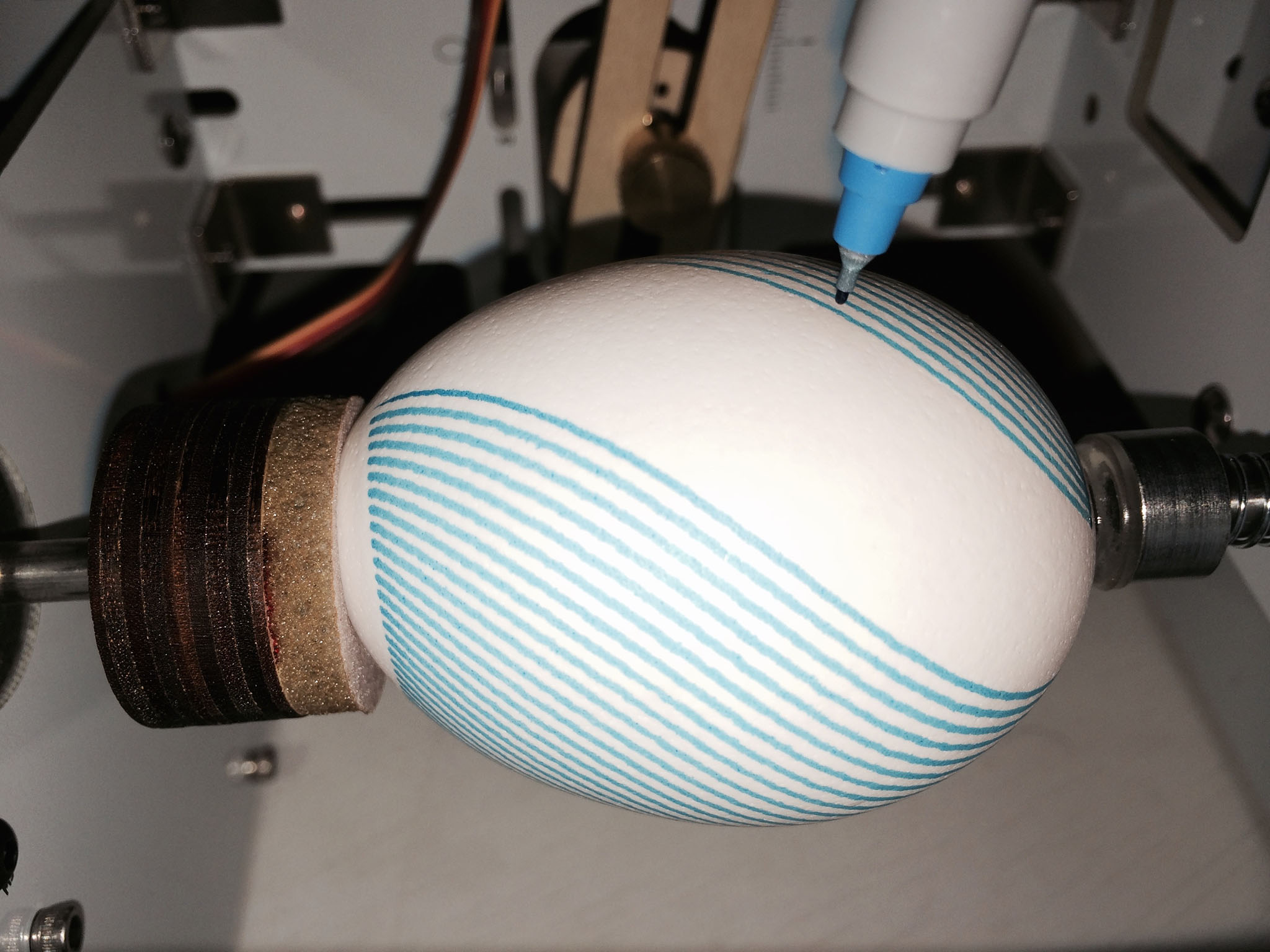

Egg-bot Decorated with Spiral Pattern
Egg-bot Decorated with Spiral Pattern

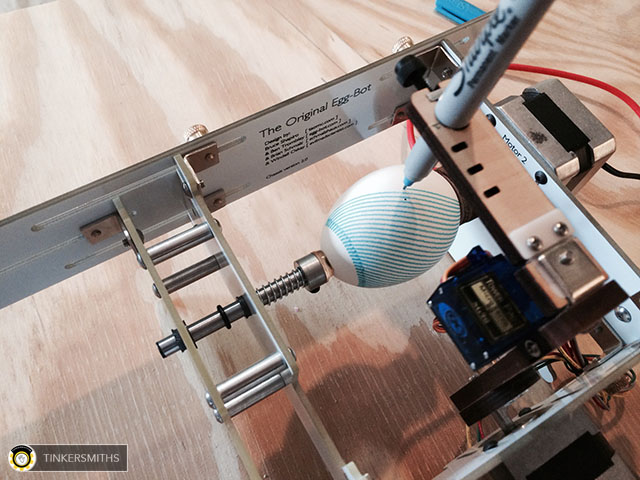

Egg-bot in Action
Egg-bot in Action

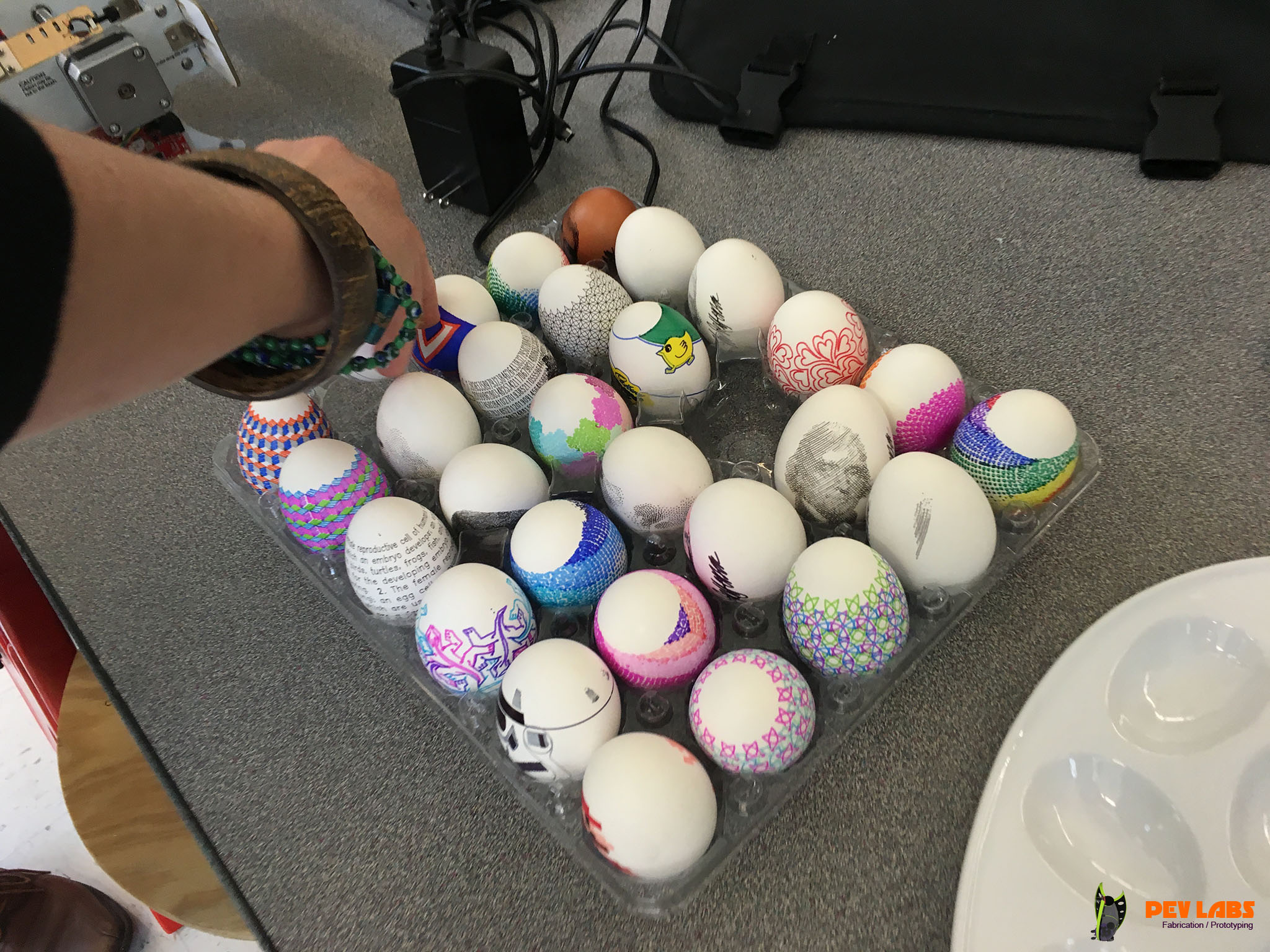

Digitally Designed Eggs
Digitally Designed Eggs


The Egg-bot Build

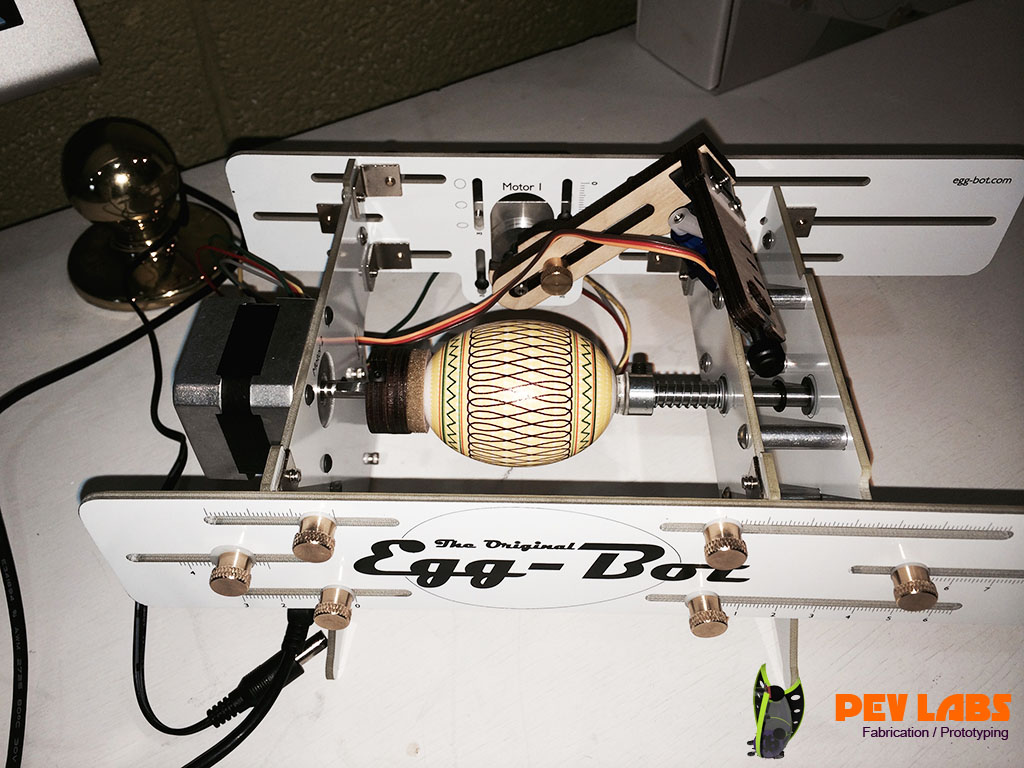

CNC Egg-bot Kit Assembled

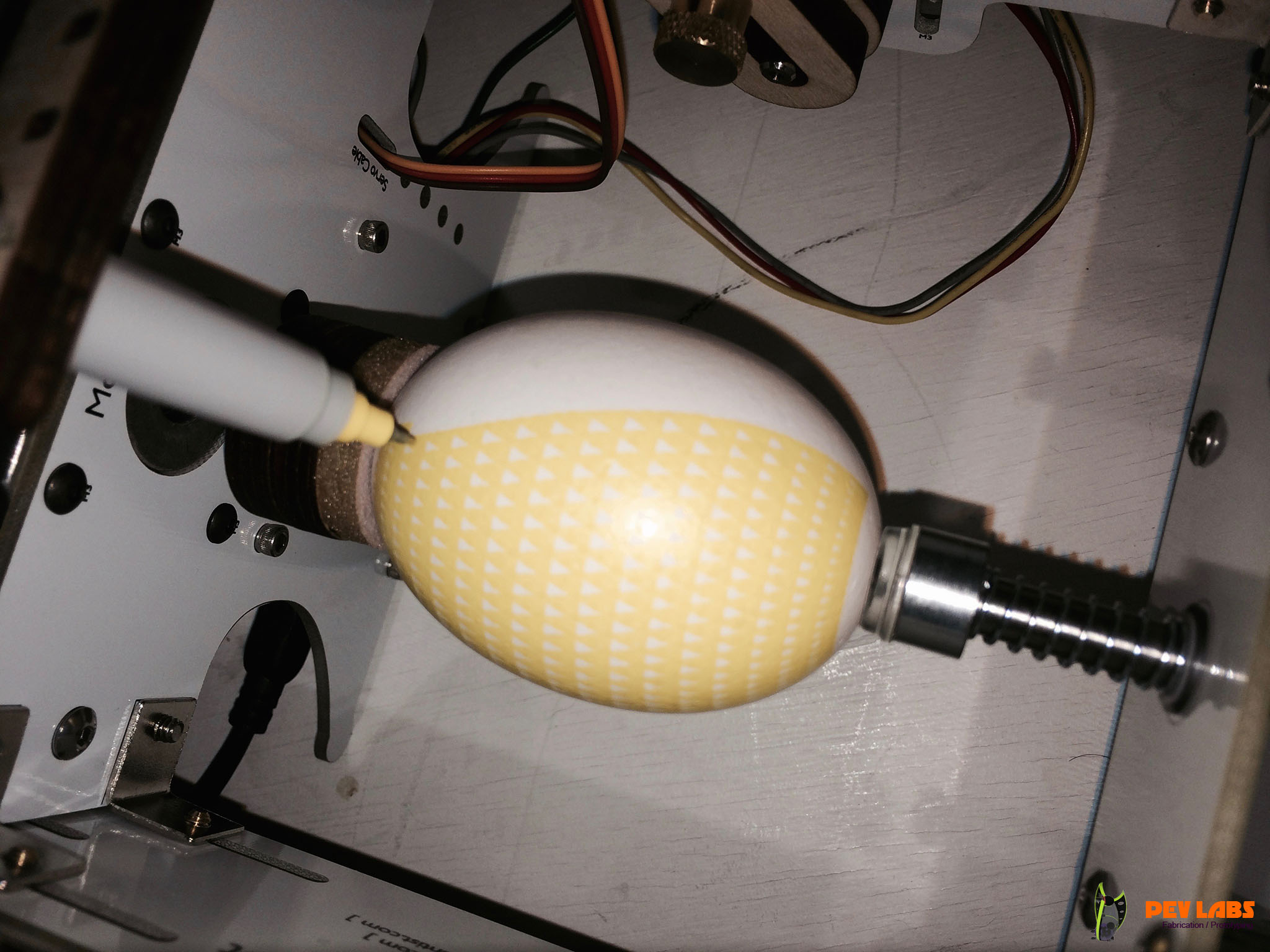

Eggbot CNC Drawing on Egg

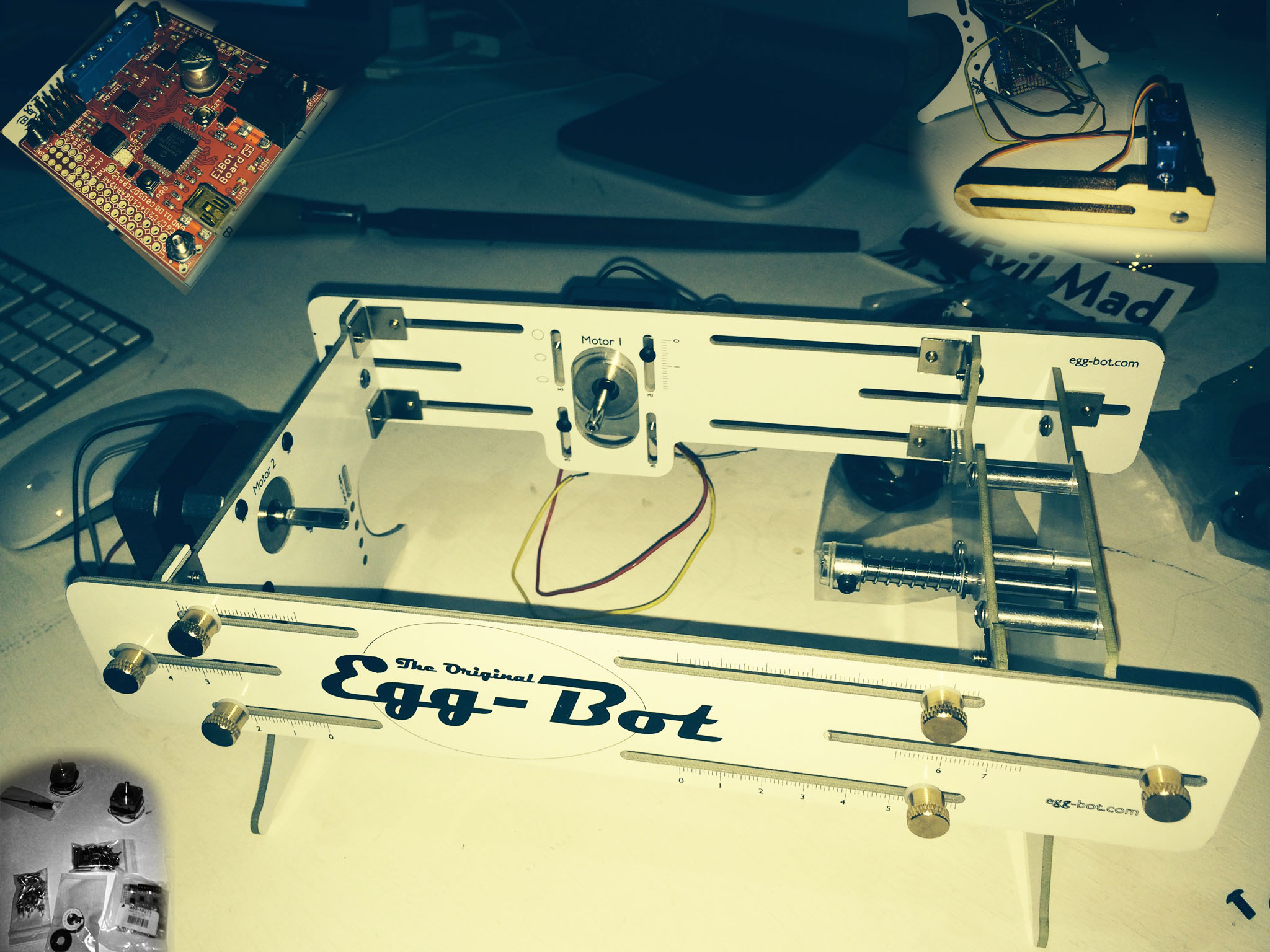

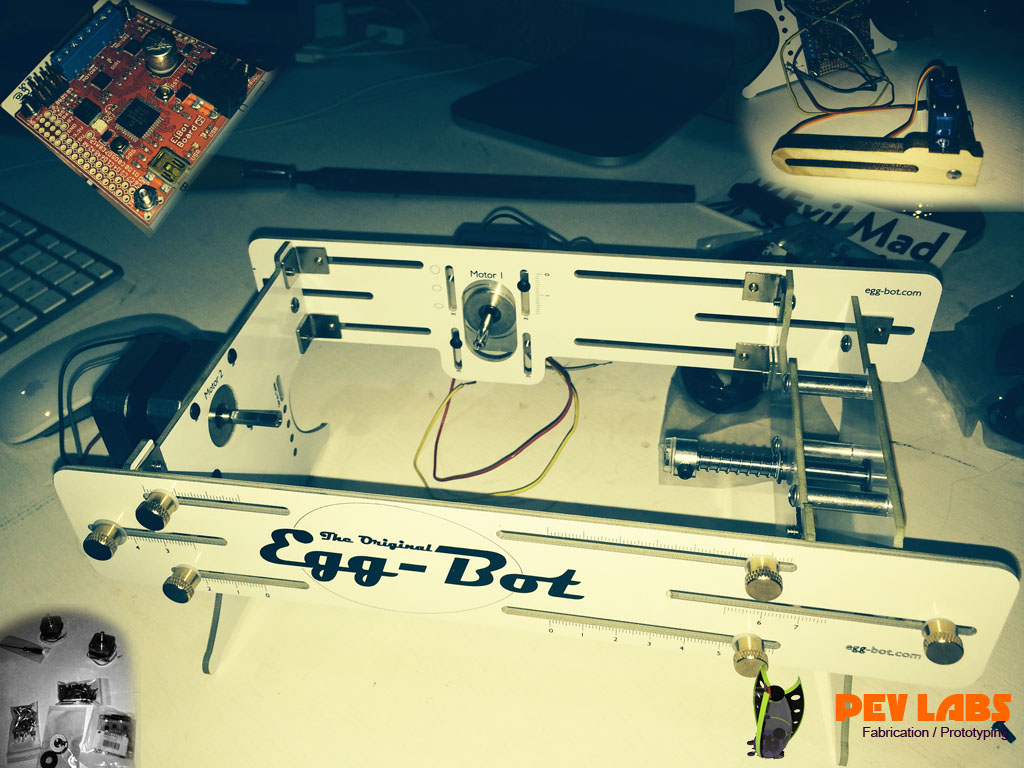

Egg-bot Kit
Egg-bot Kit in Build Process

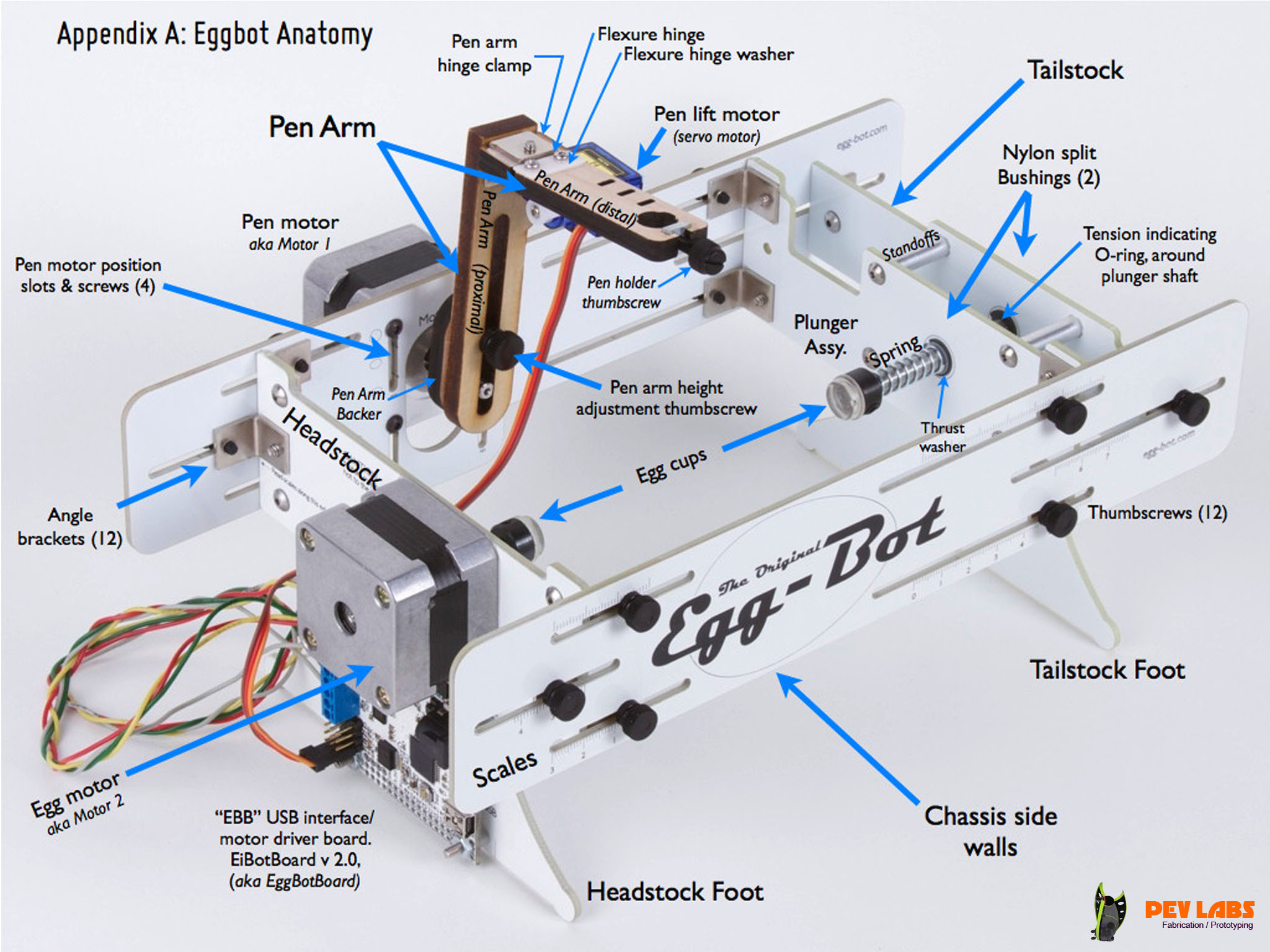

CNC Eggbot Anatomy
CNC Eggbot Anatomy



Egg-bot Drawing Double Pattern - More Digital Fabrication Videos >


Egg-bot Setup Video:
http://youtu.be/3zsbW9qmZk4

Egg-bot Assembly Instructions:
http://shop.emscdn.com/KitInstrux/eggbot/ebk_html_21b_2/index.html

Egg-bot Extensions and Code:
http://code.google.com/p/eggbotcode/downloads/list

Updating Firmware:
http://wiki.evilmadscientist.com/Updating_EBB_firmware
Trouble shooting:
http://wiki.evilmadscientist.com/Eggbot_Troubleshooting
