Custom Kiosk Prototype Project in Color-Core MDF : Digital Design Fabrication

Industrial design and digital fabrication of a modern kiosk prototype for a client. This project was design to utilize color core medium density fiberboard manufactured by ForesCOLOR. This product has a consistent solid color all the way through the product. Also known as Through-Core material does not require any post finishing such as painting. If the product gets scratched the material exposed is exactly the same as the surface. We have found this higher density MDF / HDF bends nicely for laminating which makes for aesthetically please product designs. When milling MDF we use a .25" compression end mill. Lamination multiple layers with CNC cut ways can offer a unique multi-colored modern design for residential, commercial and retail spaces. Here we used black and red. Material was a please to work with and we would welcome any other projects that can make use of it.

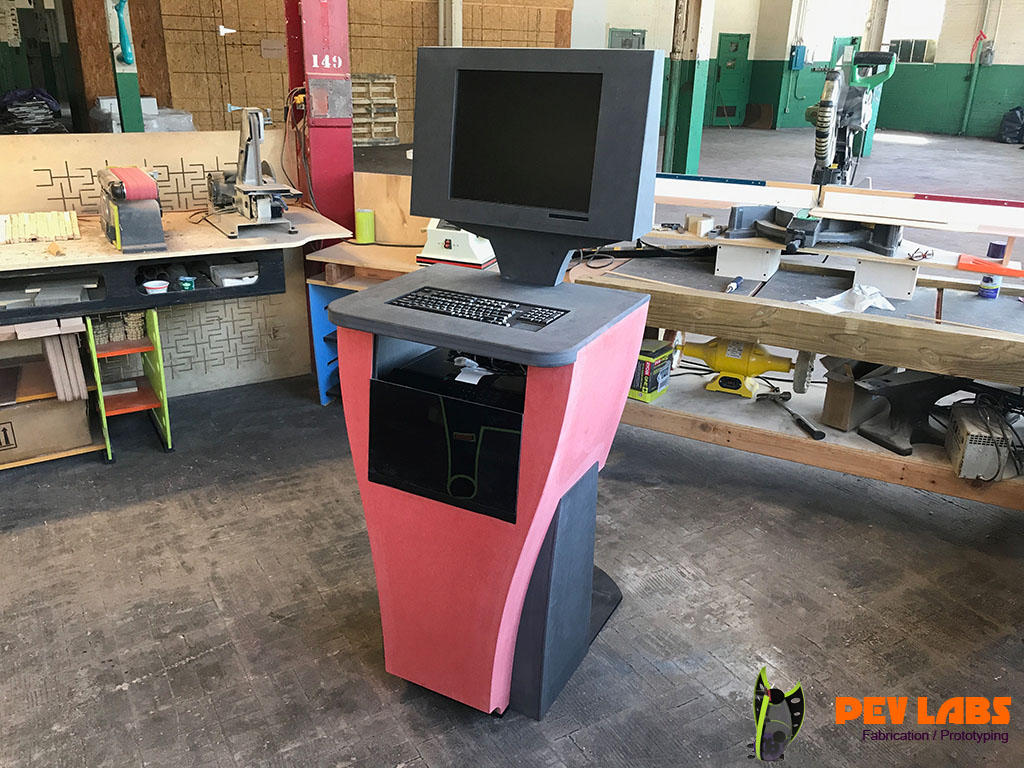

Computer Kiosk
Computer Kiosk Printer Door

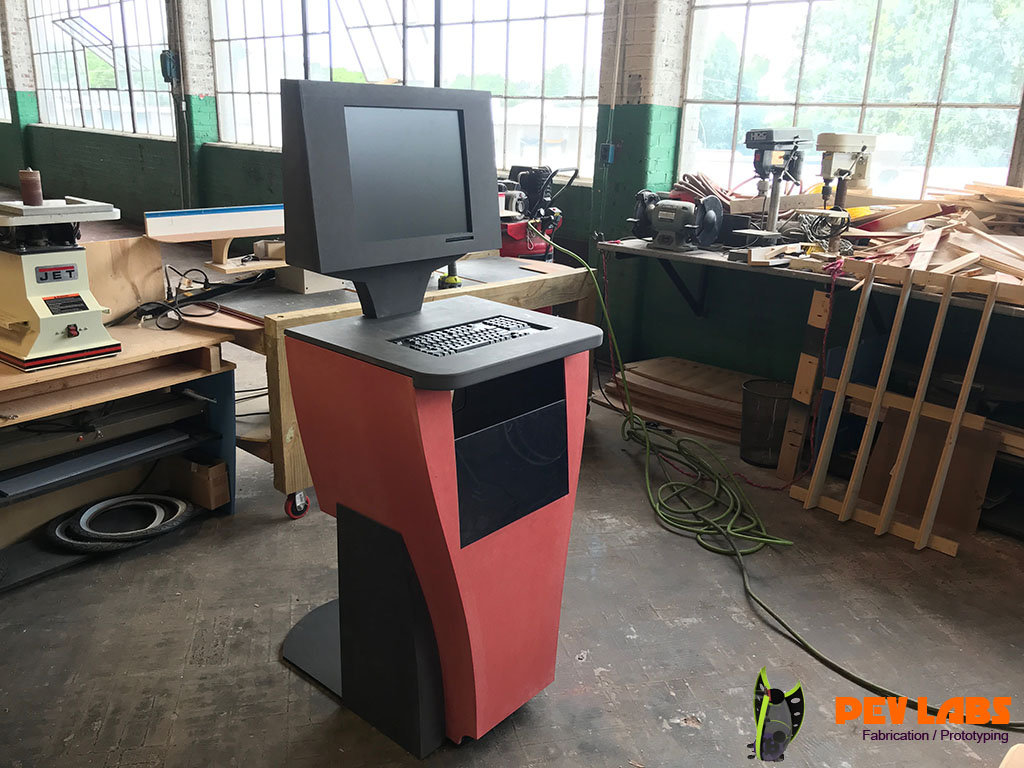

Custom Designed Kiosk in Color-Core MDF
Custom Kiosk in Color-Core MDF

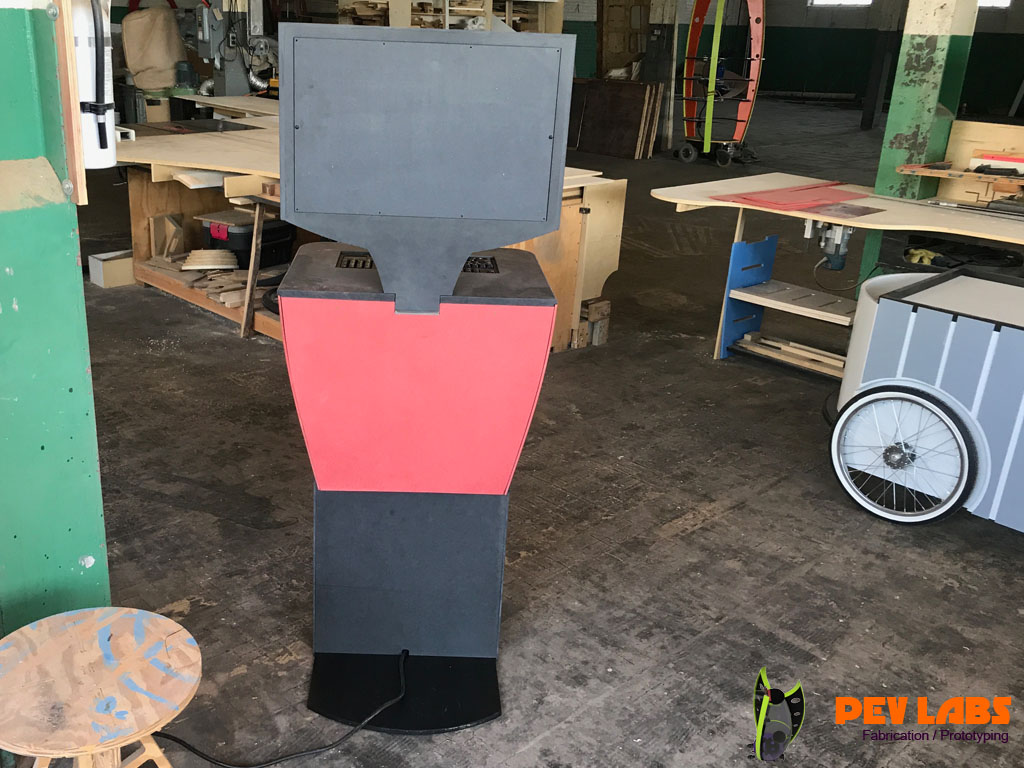

Custom Kiosk Back Side
Custom Kiosk Back Side

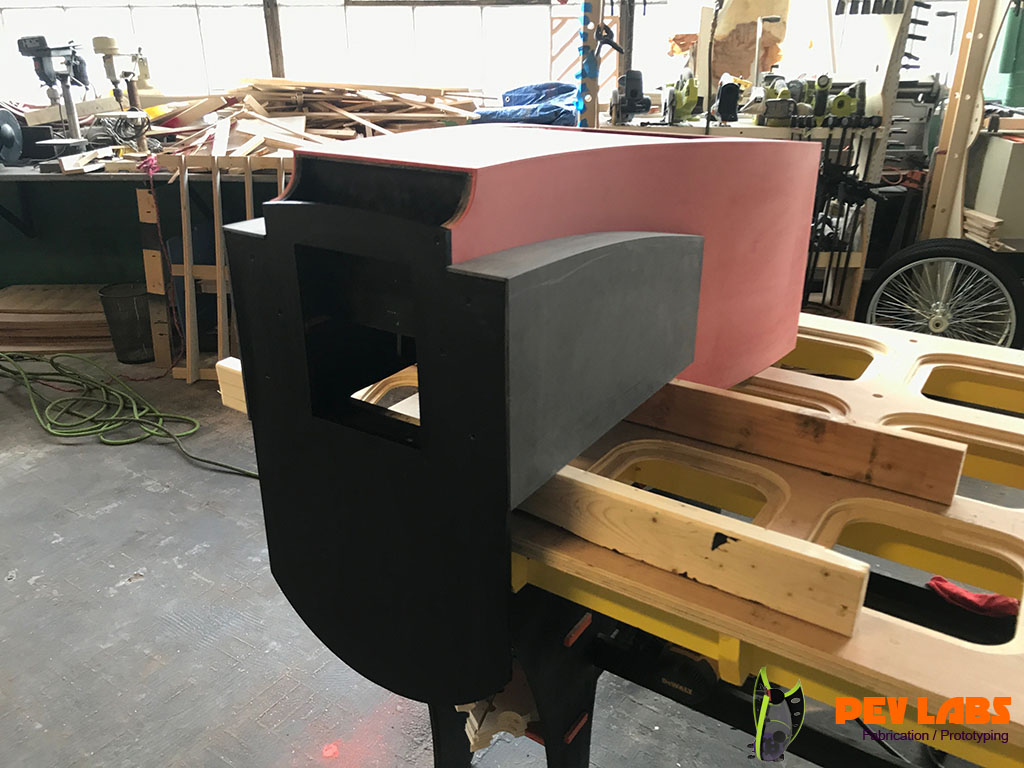

Custom Kiosk Base Plate Installed
Custom Kiosk Base Plate Installed

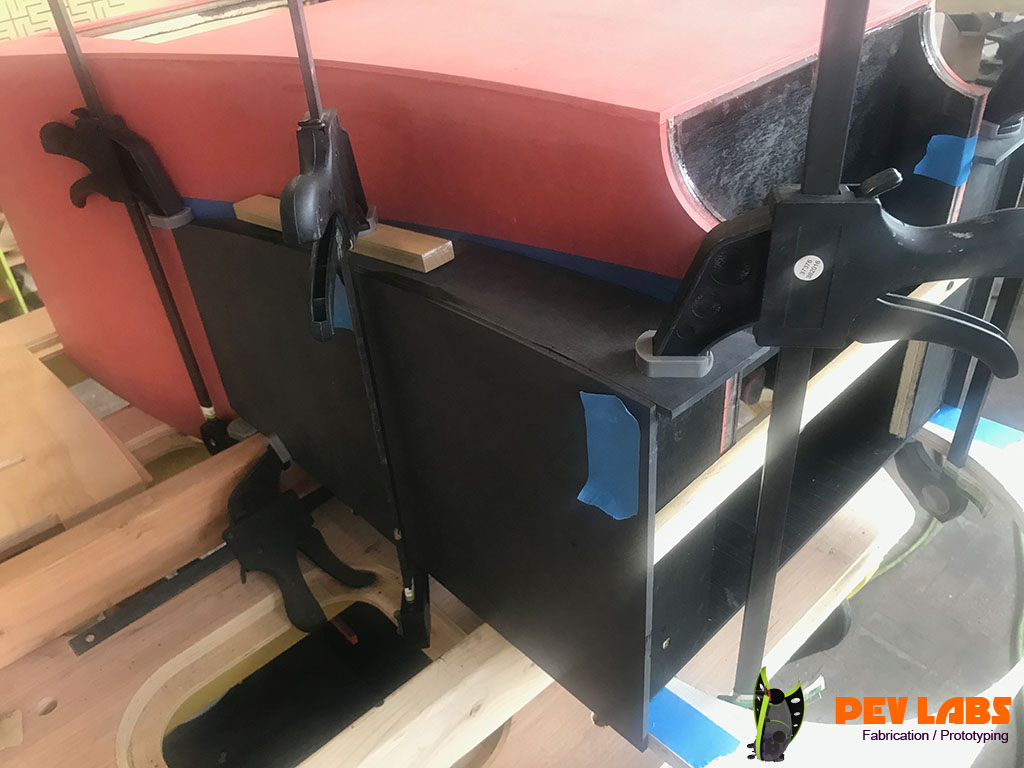

Clamp and Glue Front Base Curve
Clamp and Glue Front Base Curve

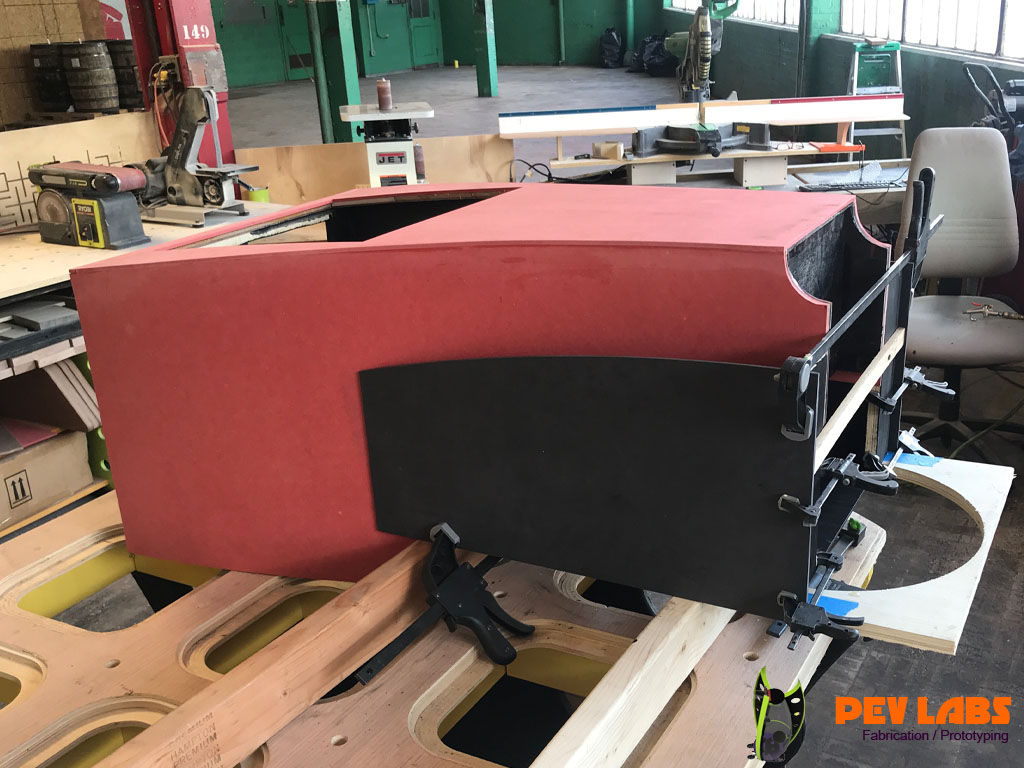

Kiosk Lower Rear Assembly Glue Up
Kiosk Lower Rear Assembly Glue Up

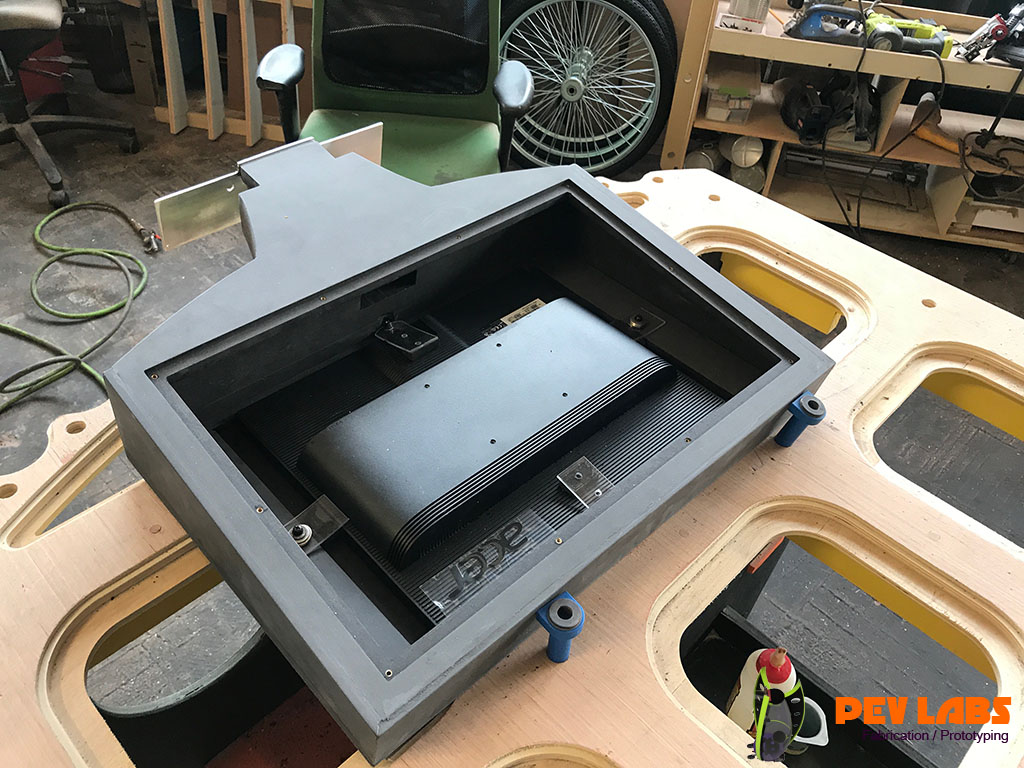

Installing Monitor Electronics in Kiosk
Installing Monitor Electronics in Kiosk

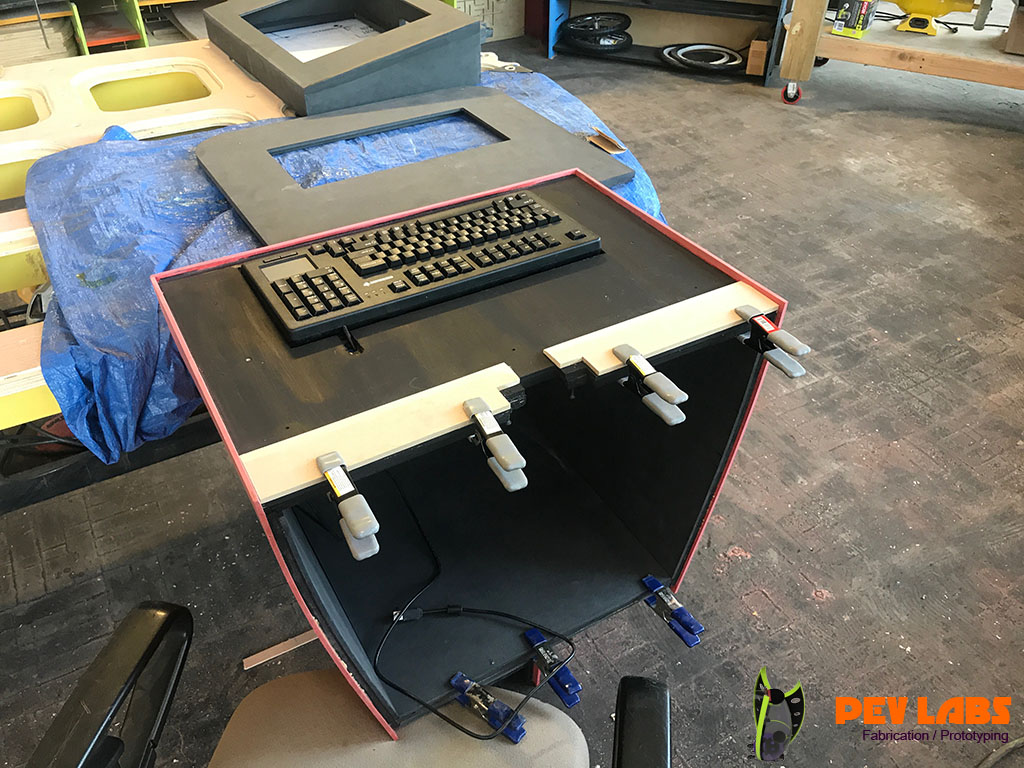

Kiosk Keyboard Ergonomics Angle
Kiosk Keyboard Ergonomics Angle

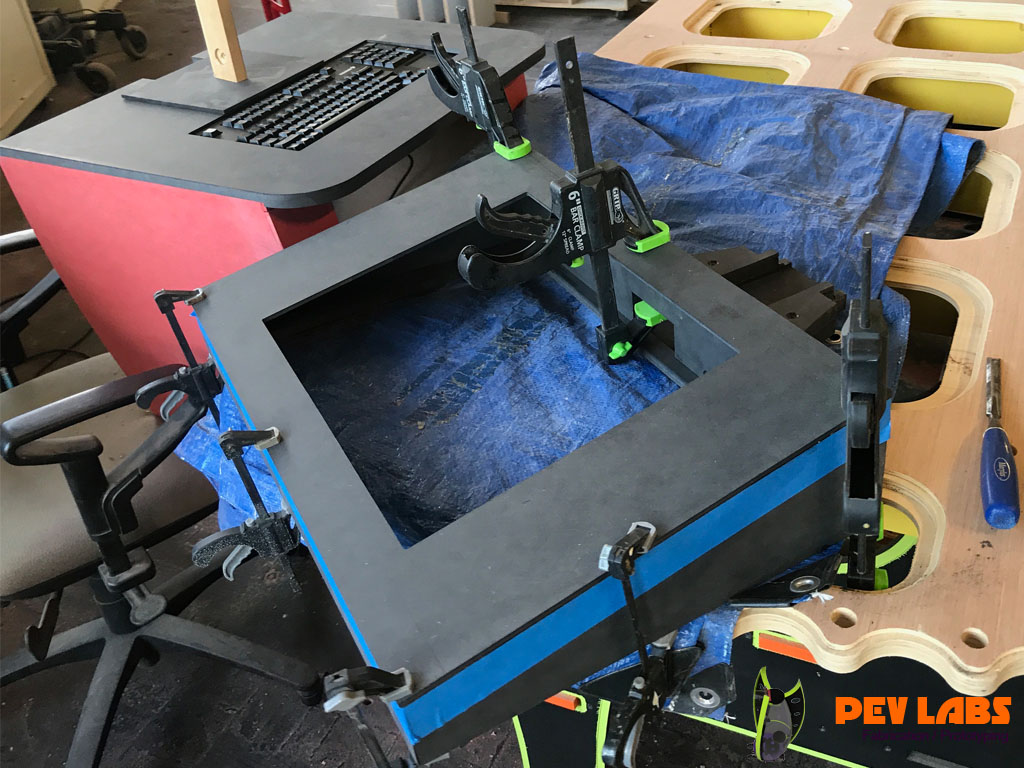

Kiosk Face Panel Gluing
Kiosk Face Panel Gluing

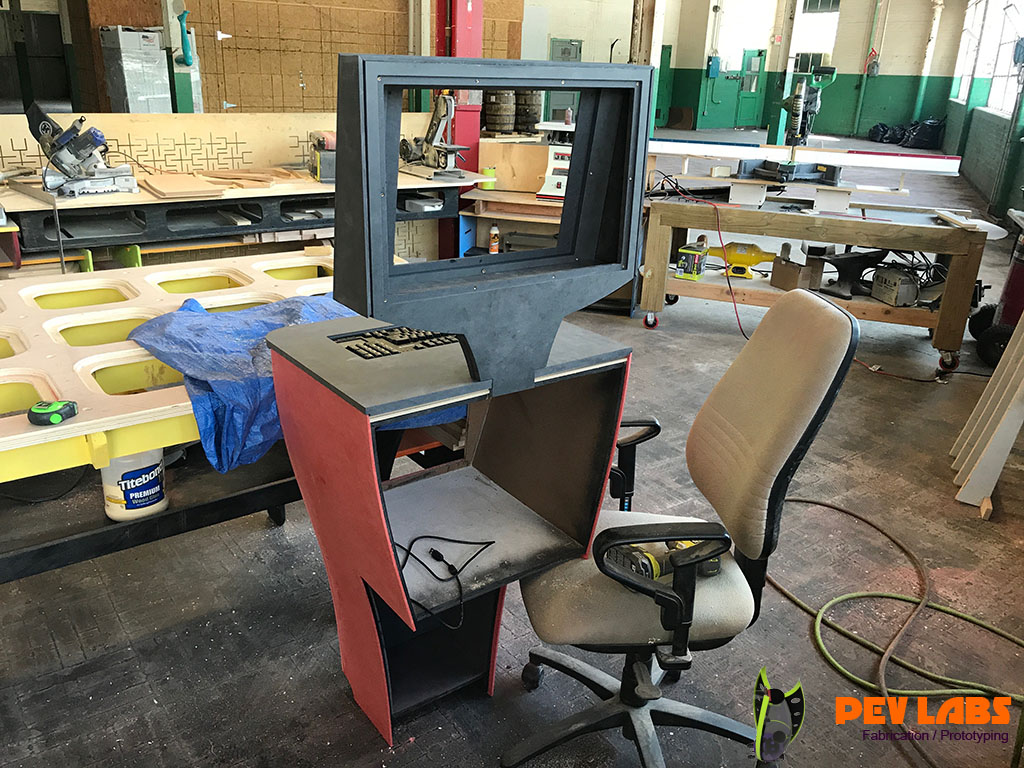

Kiosk Rear Side Assembly
Kiosk Rear Side Assembly

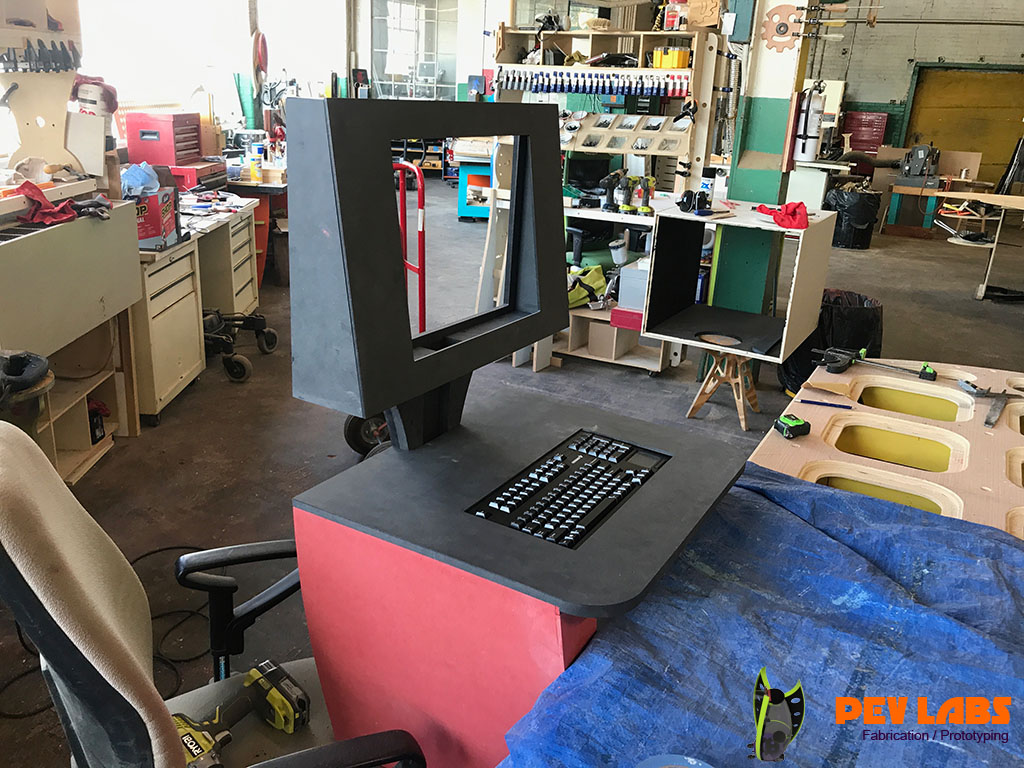

Kiosk Prototype Taking Form
Kiosk Prototype Taking Form

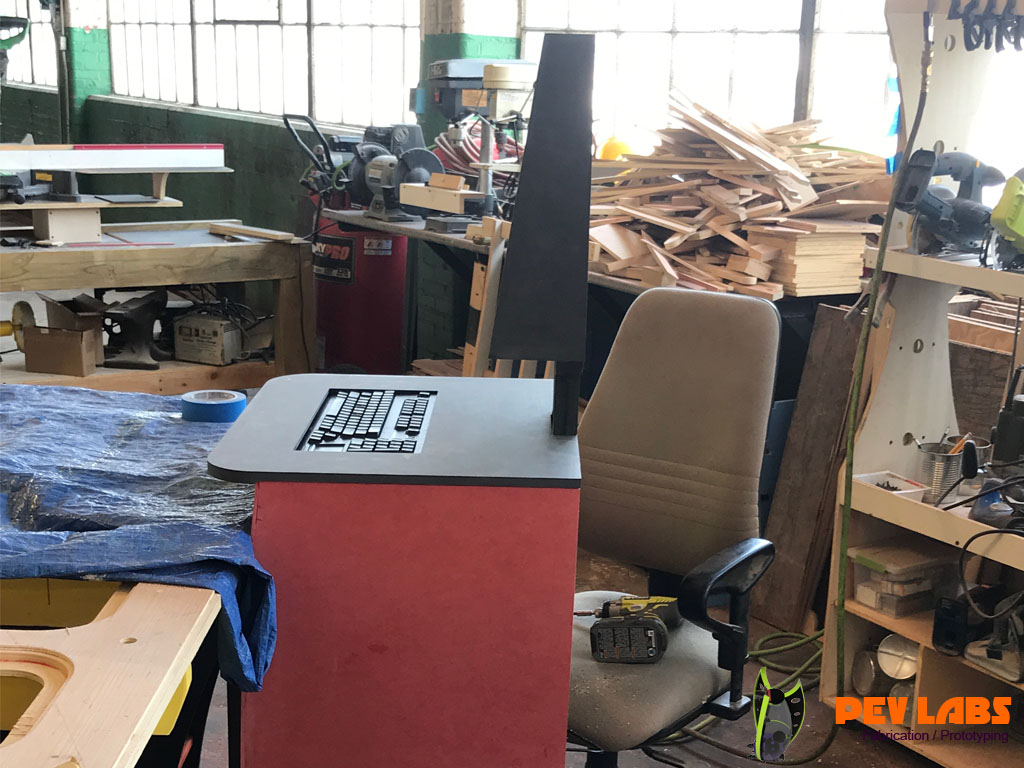

Test Fit Monitor Shell on Kiosk
Test Fit Monitor Shell on Kiosk

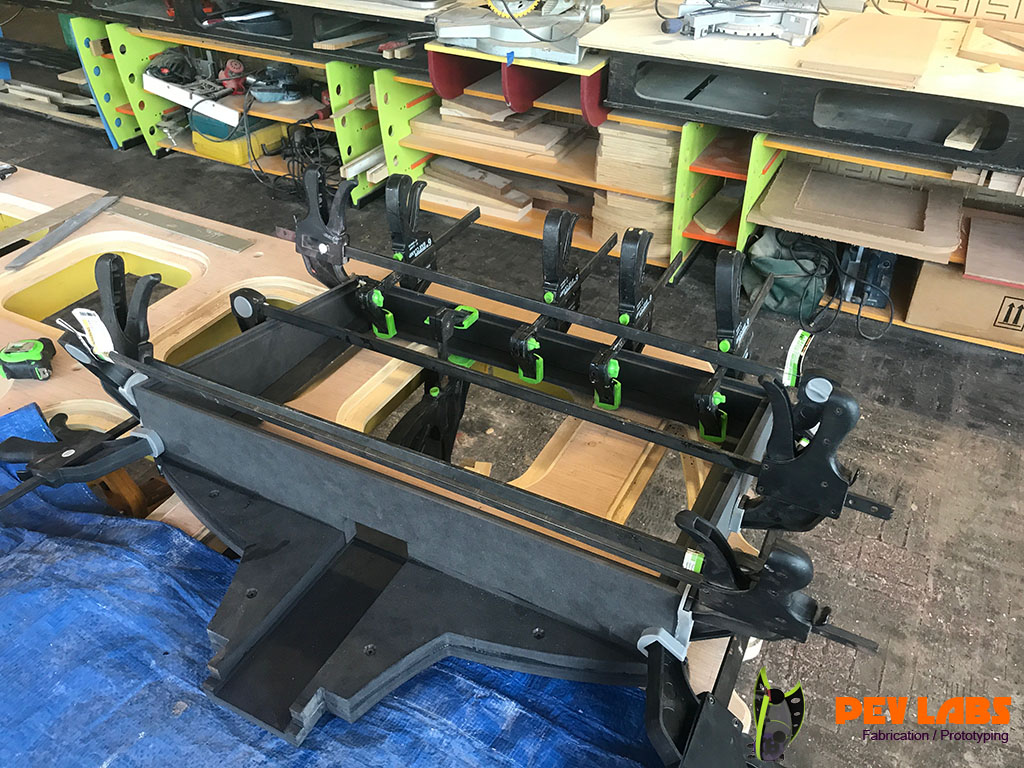

Clamping Monitor Shell Assembly
Clamping Monitor Shell Assembly

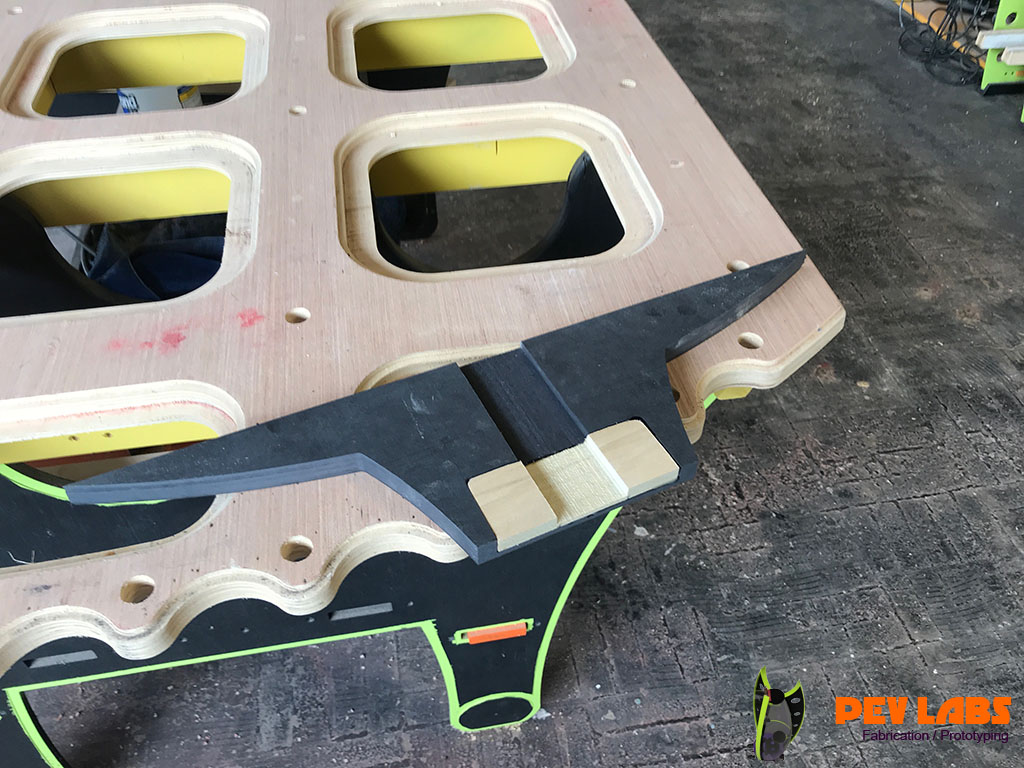

>Wood MDF Combination
Wood MDF Combination

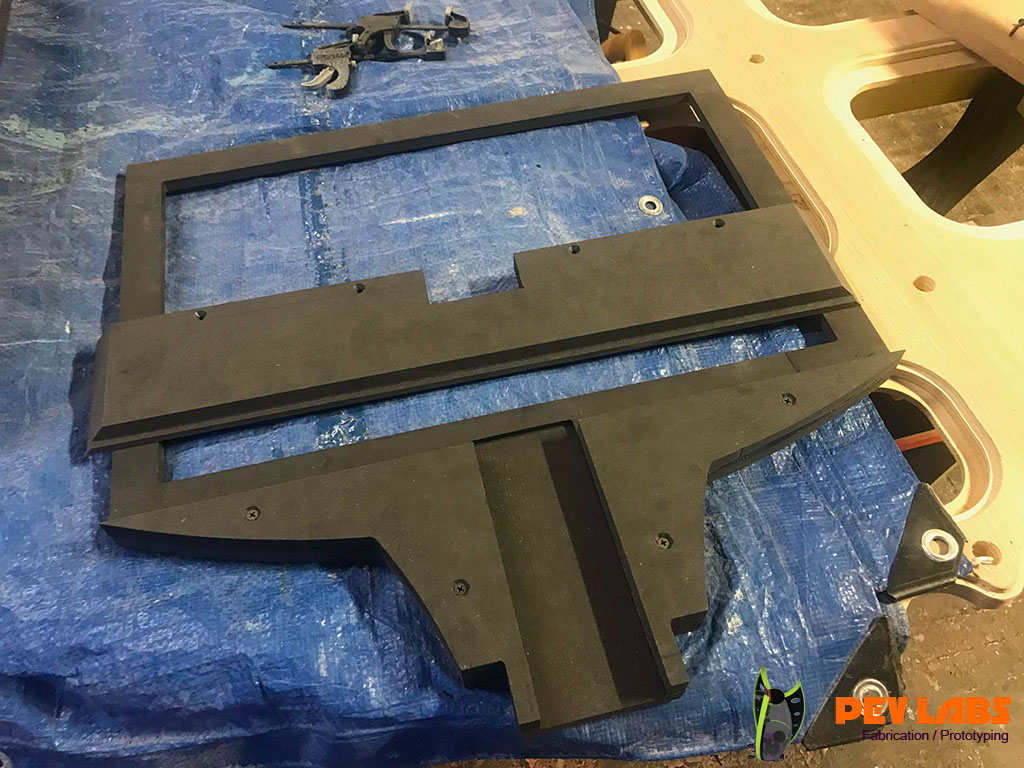

Monitor Shell Beginning
Monitor Shell Beginning

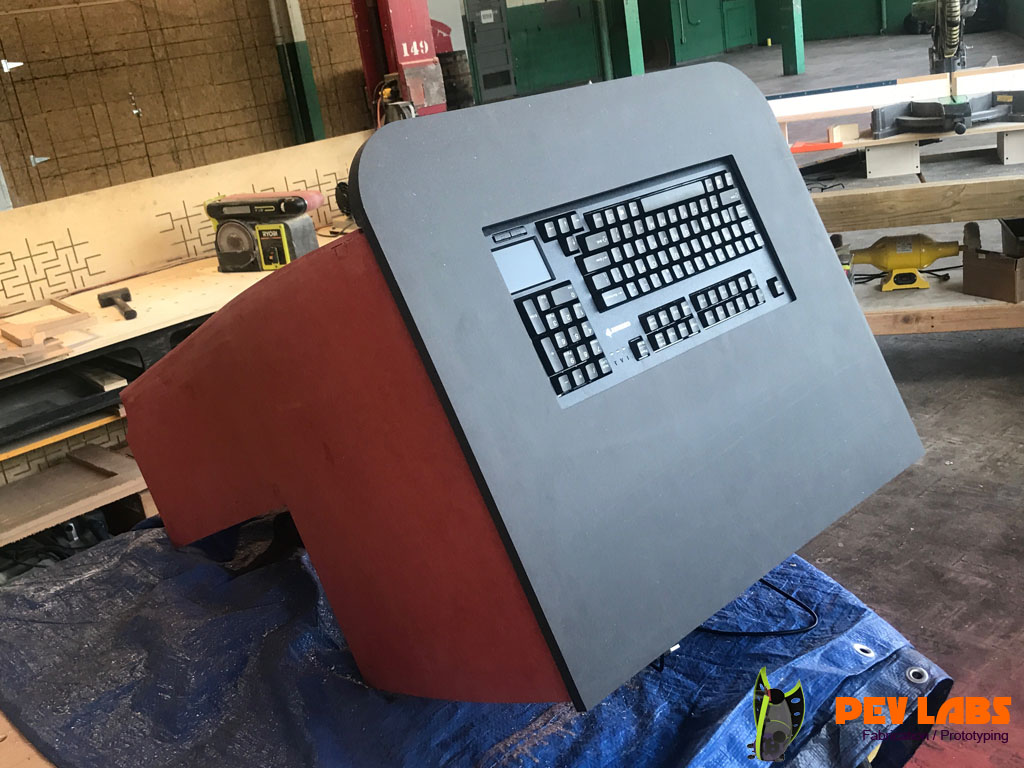

Black MDF Keyboard Panel
Black MDF Keyboard Panel

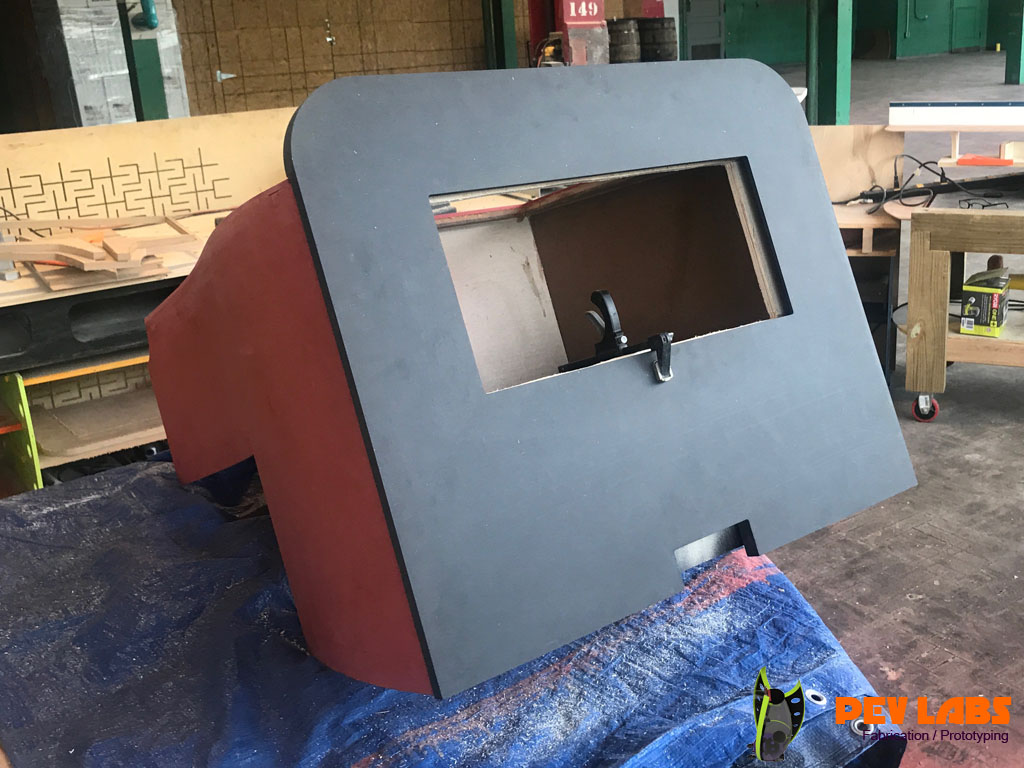

Test Fit Kiosk Keyboard Shelf
Test Fit Kiosk Keyboard Shelf

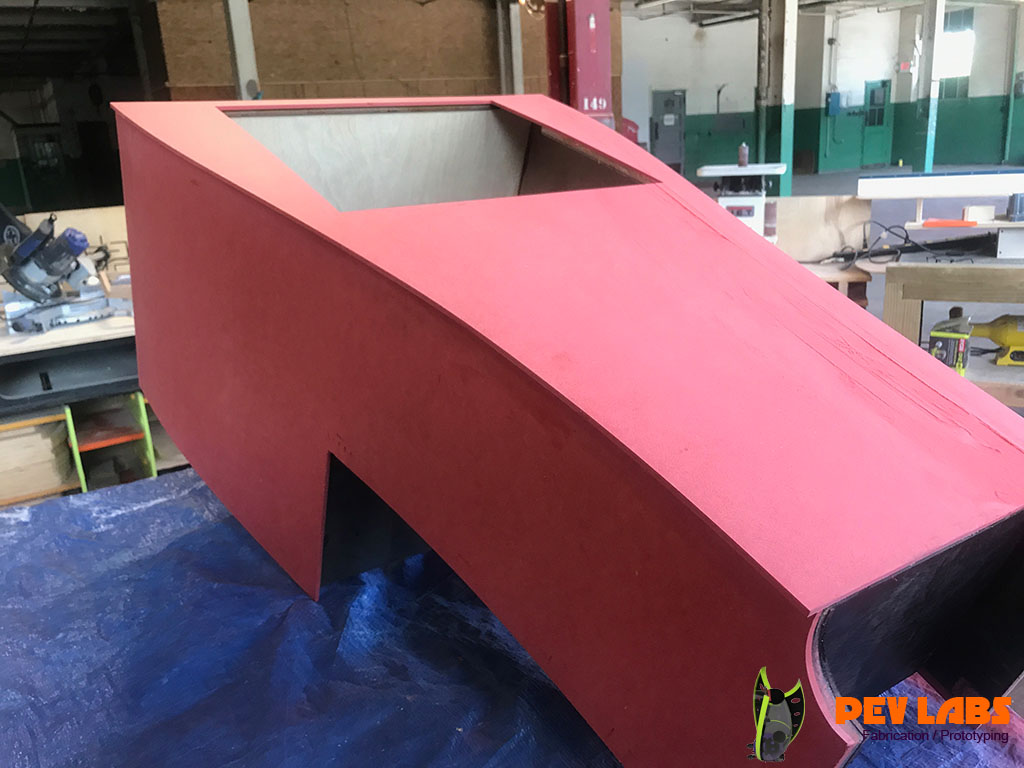

MDF Panel Flush Trimmed
MDF Panel Flush Trimmed

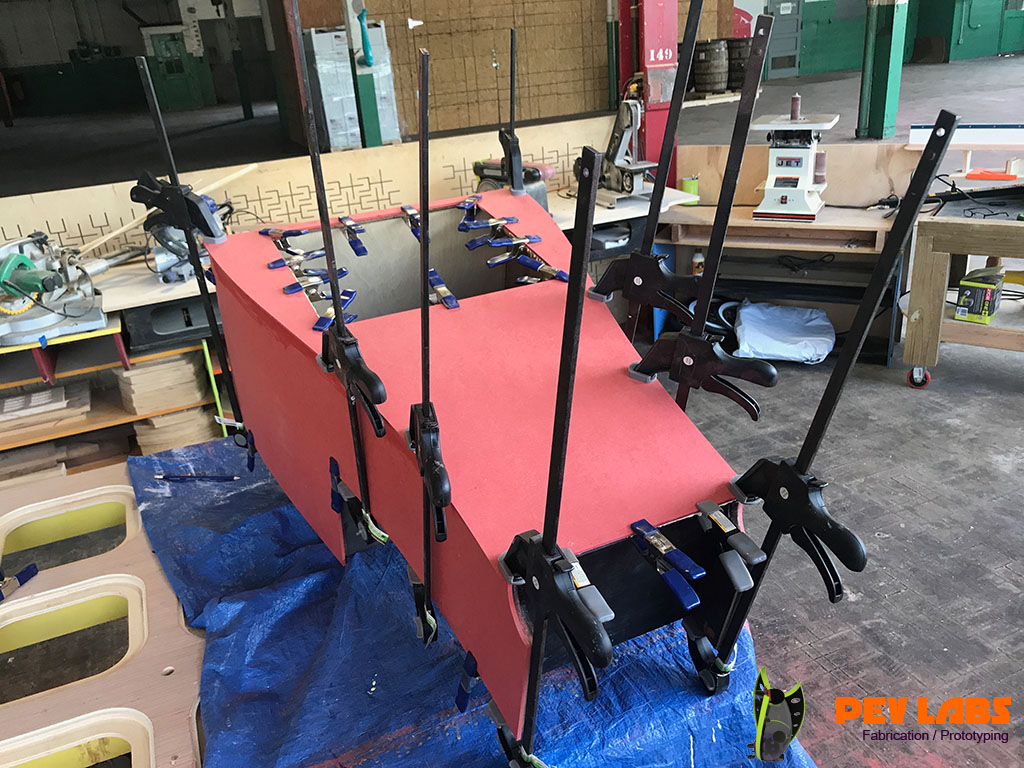

Panel Applied and Clamped
Panel Applied and Clamped

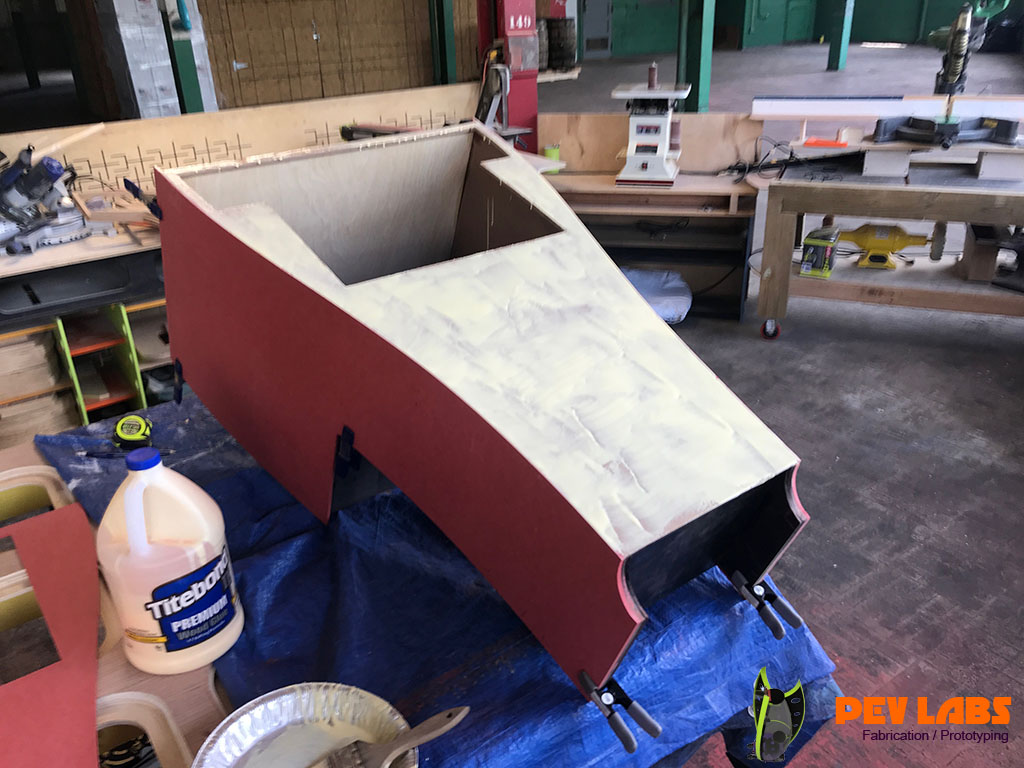

Applying Glue for Panel Lamination
Applying Glue for Panel Lamination

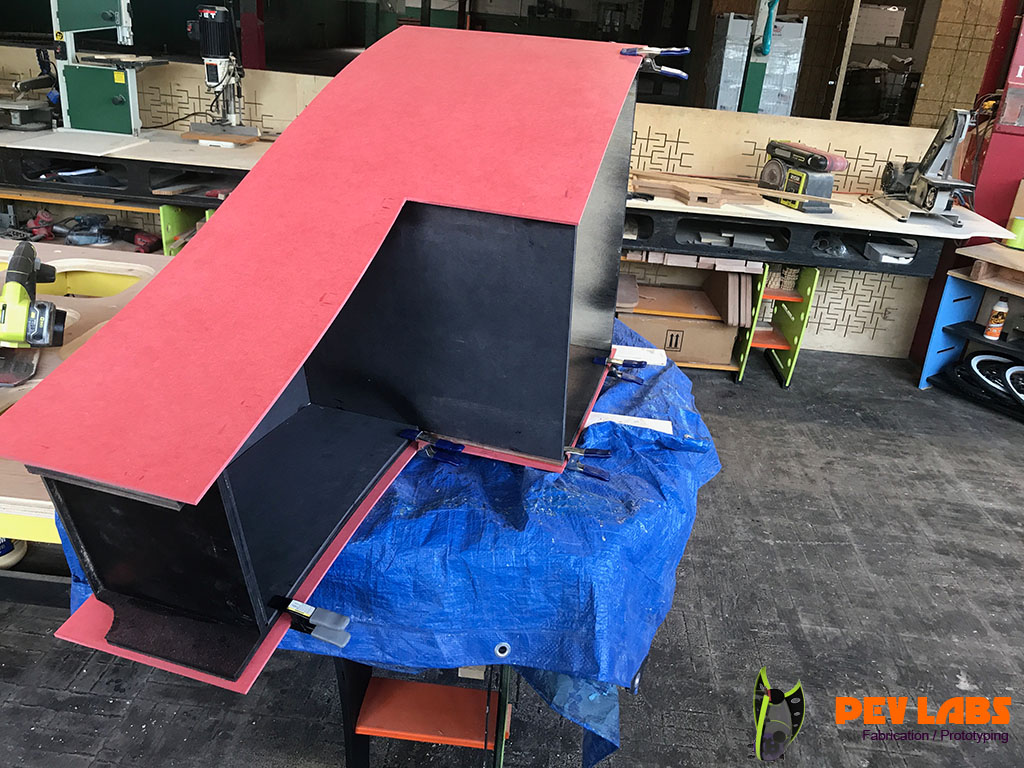

Color Core MDF Panel
Color Core MDF Panel

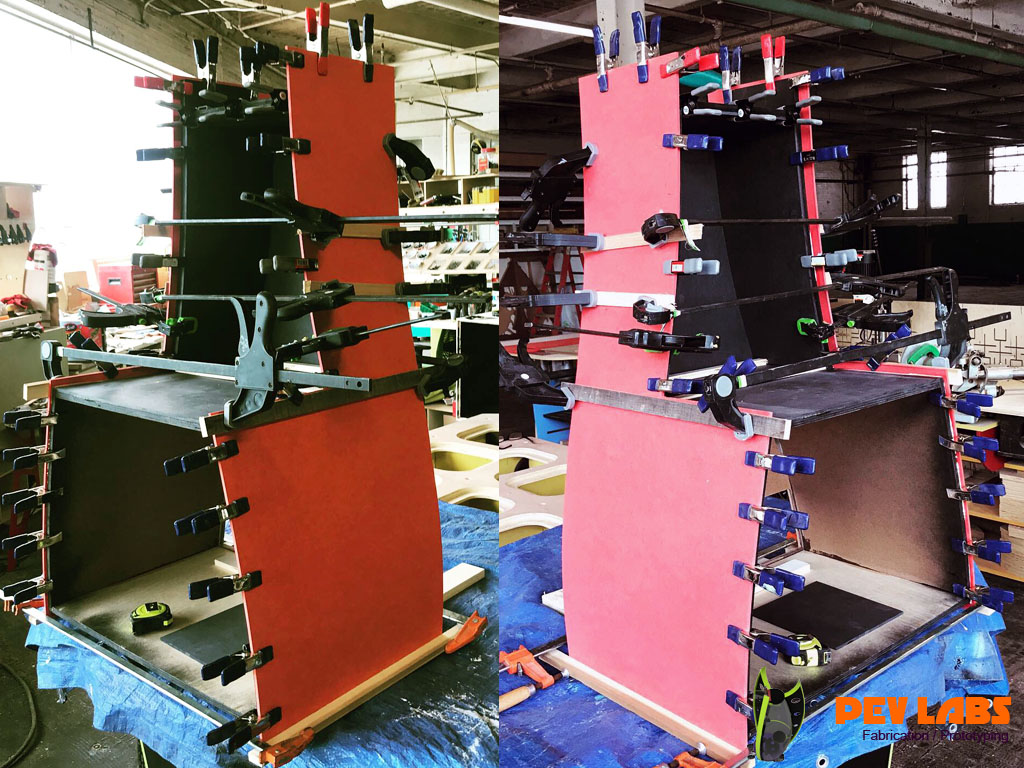

Kiosk Prototype Shell Glue Up
Kiosk Prototype Shell Glue Up Rear

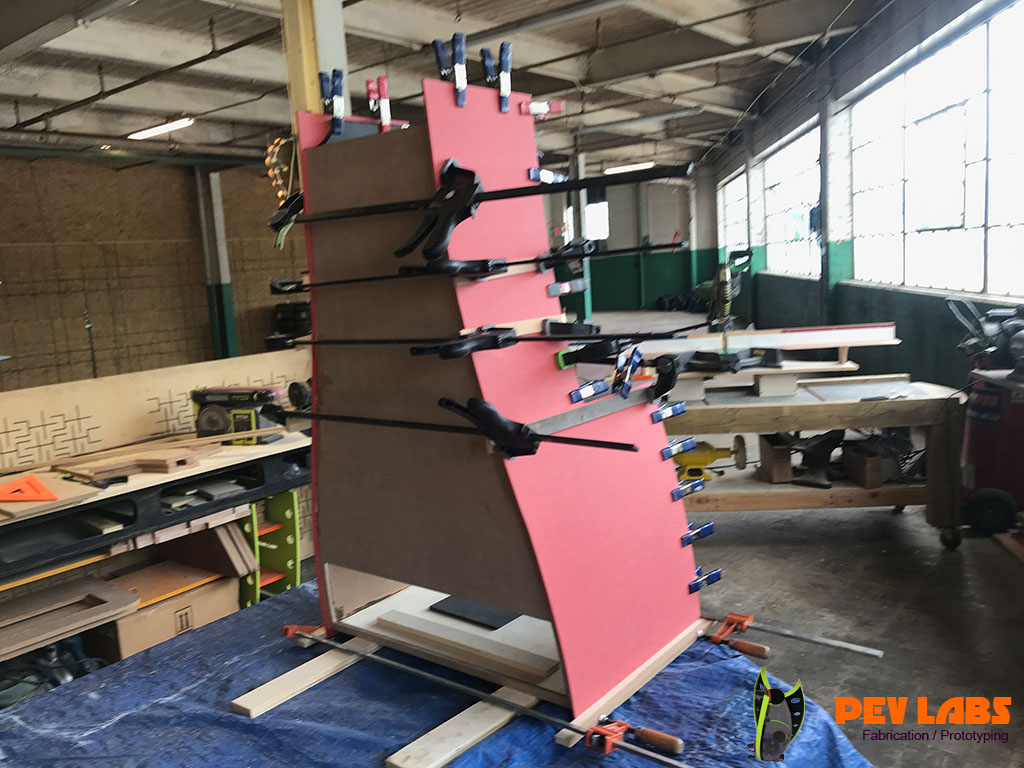

Laminating Color Core MDF
Laminating Color Core MDF Front

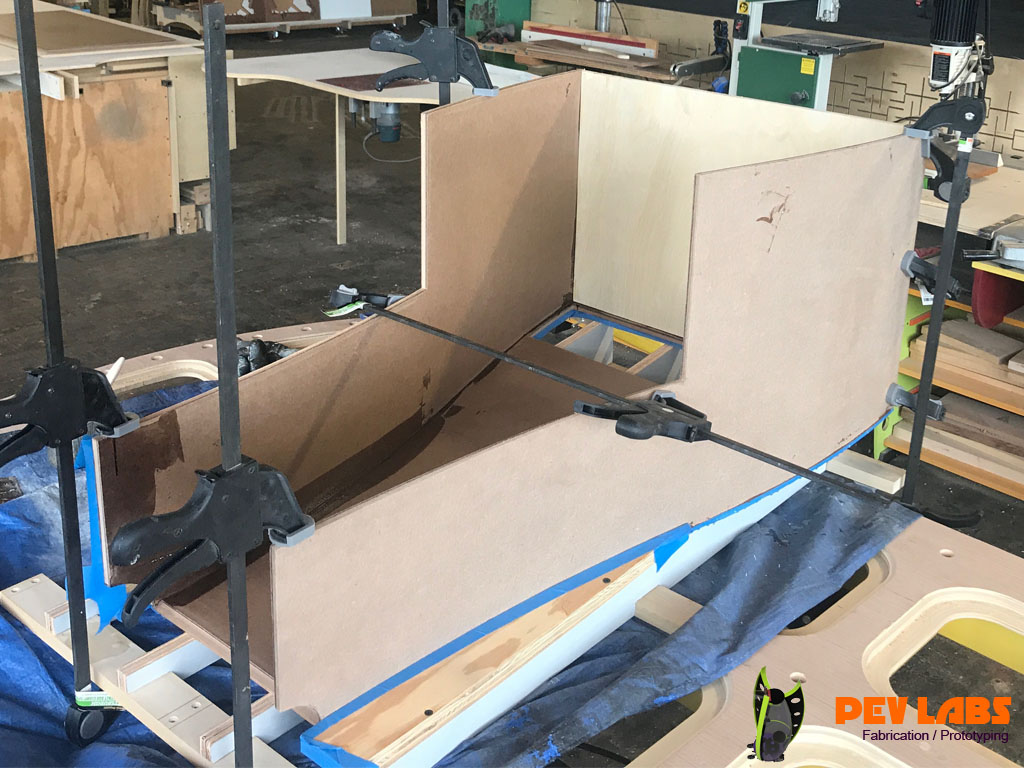

Kiosk Attaching Side Panels
Kiosk Attaching Side Panels

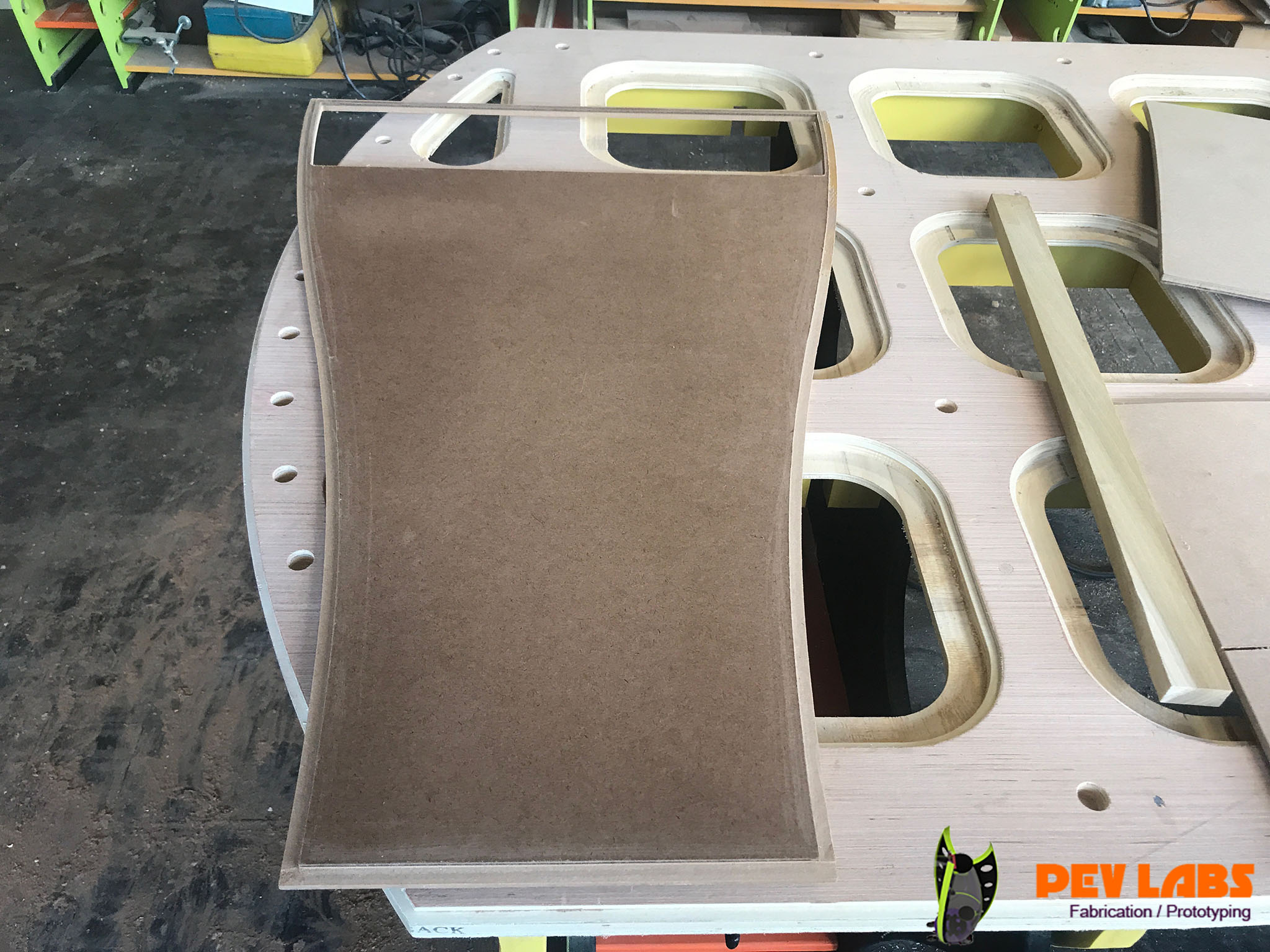

Front Panel Sides Dados
Front Panel Sides Dados

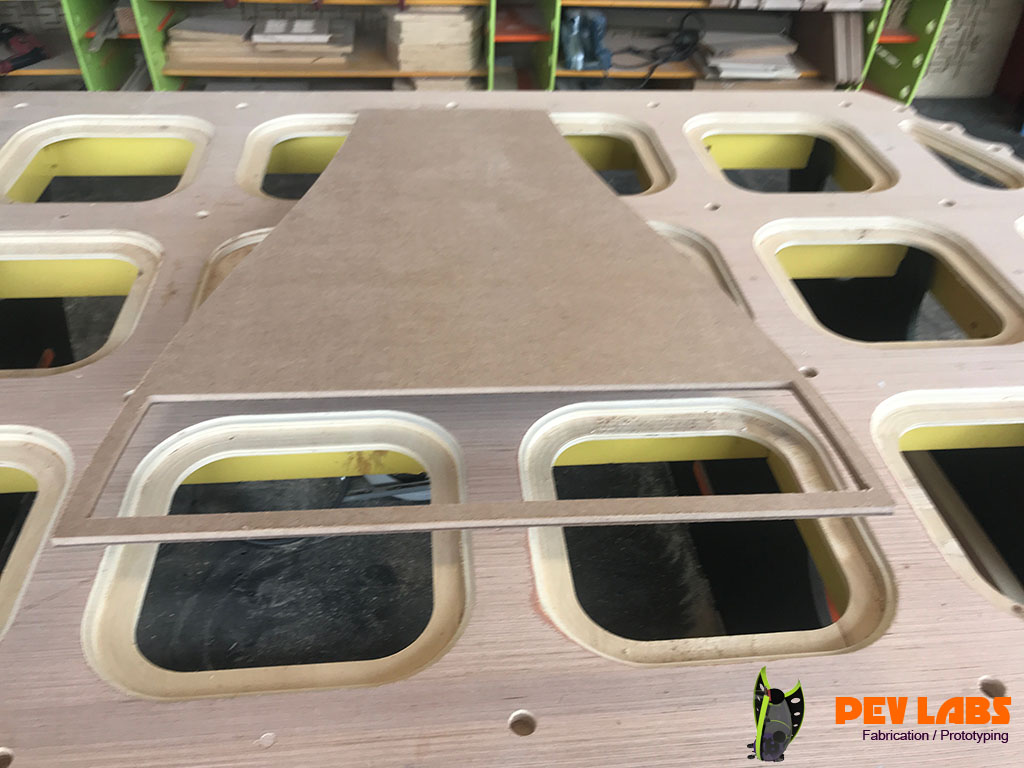

Front Sub Panel Formed
Front Sub Panel Formed

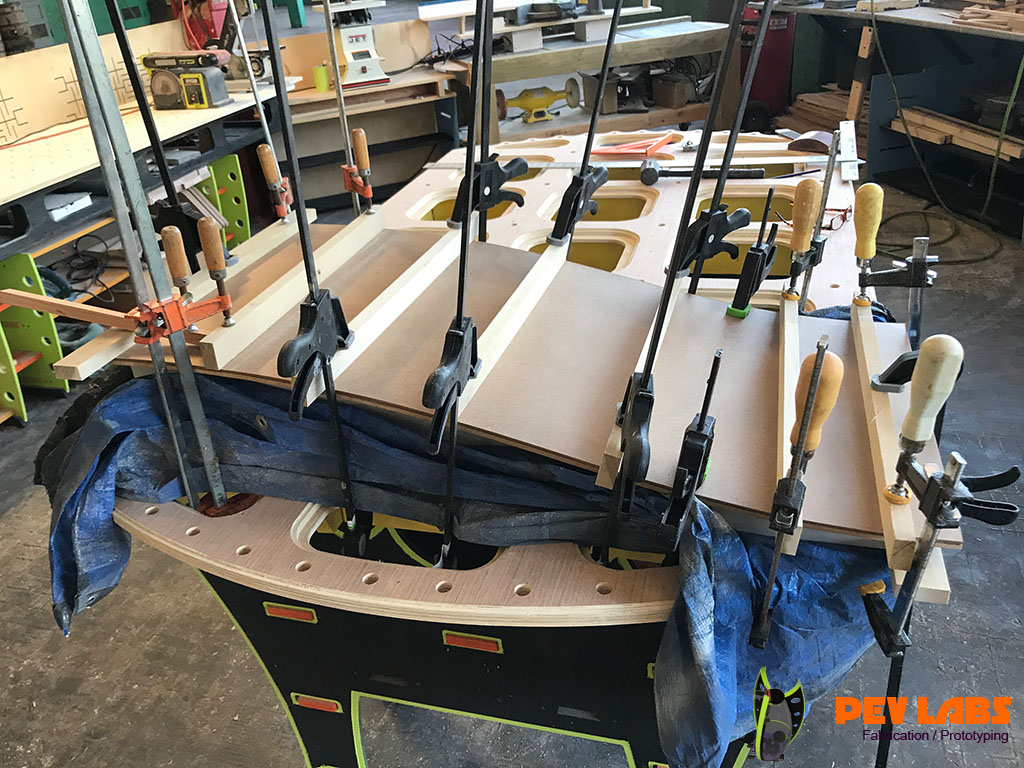

Panel Glue Up on form
Panel Glue Up on Form

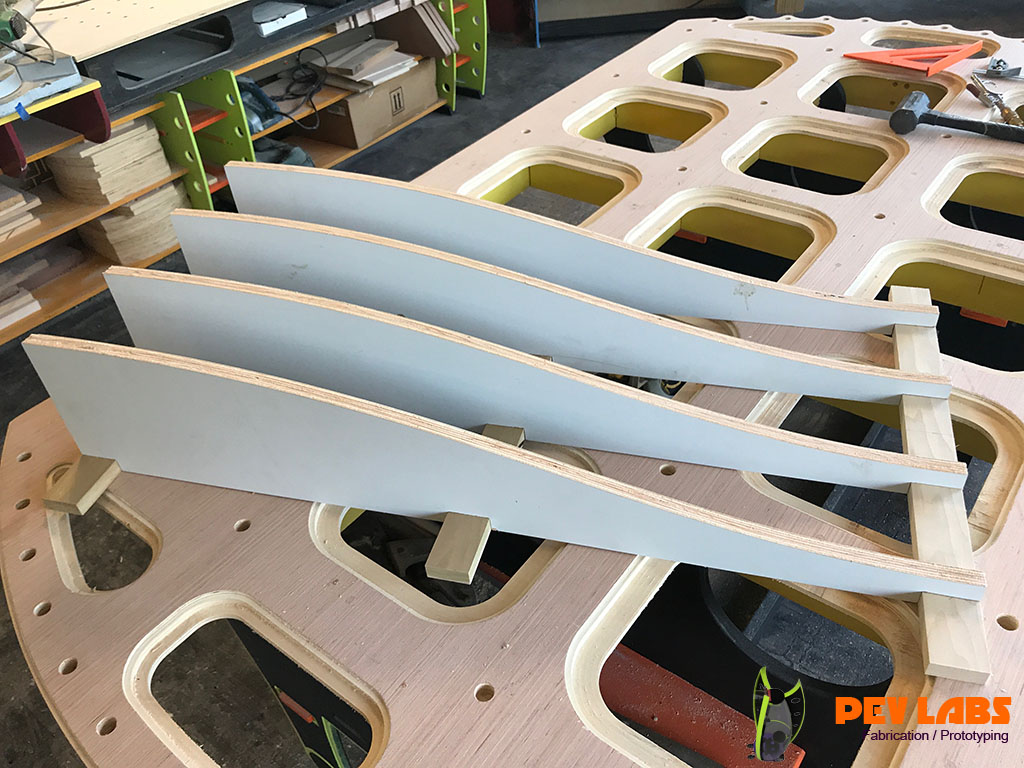

anel Gluing Jig
Panel Gluing Jig

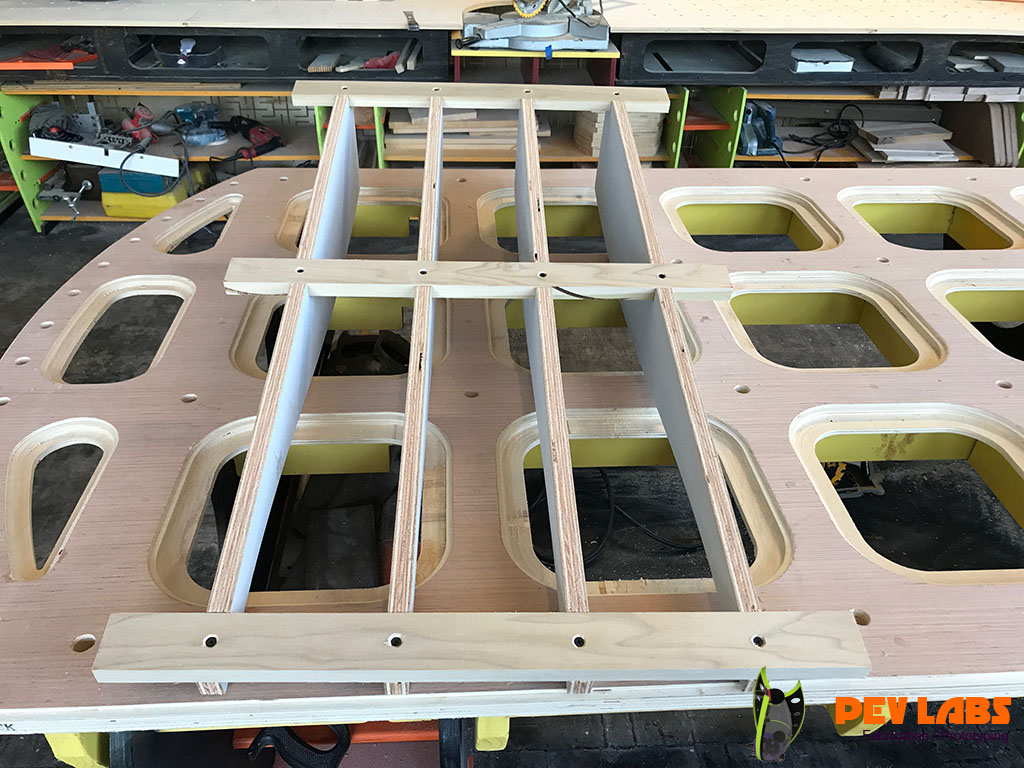

Kiosk Assembly Jig Bottom
Kiosk Assembly Jig Bottom

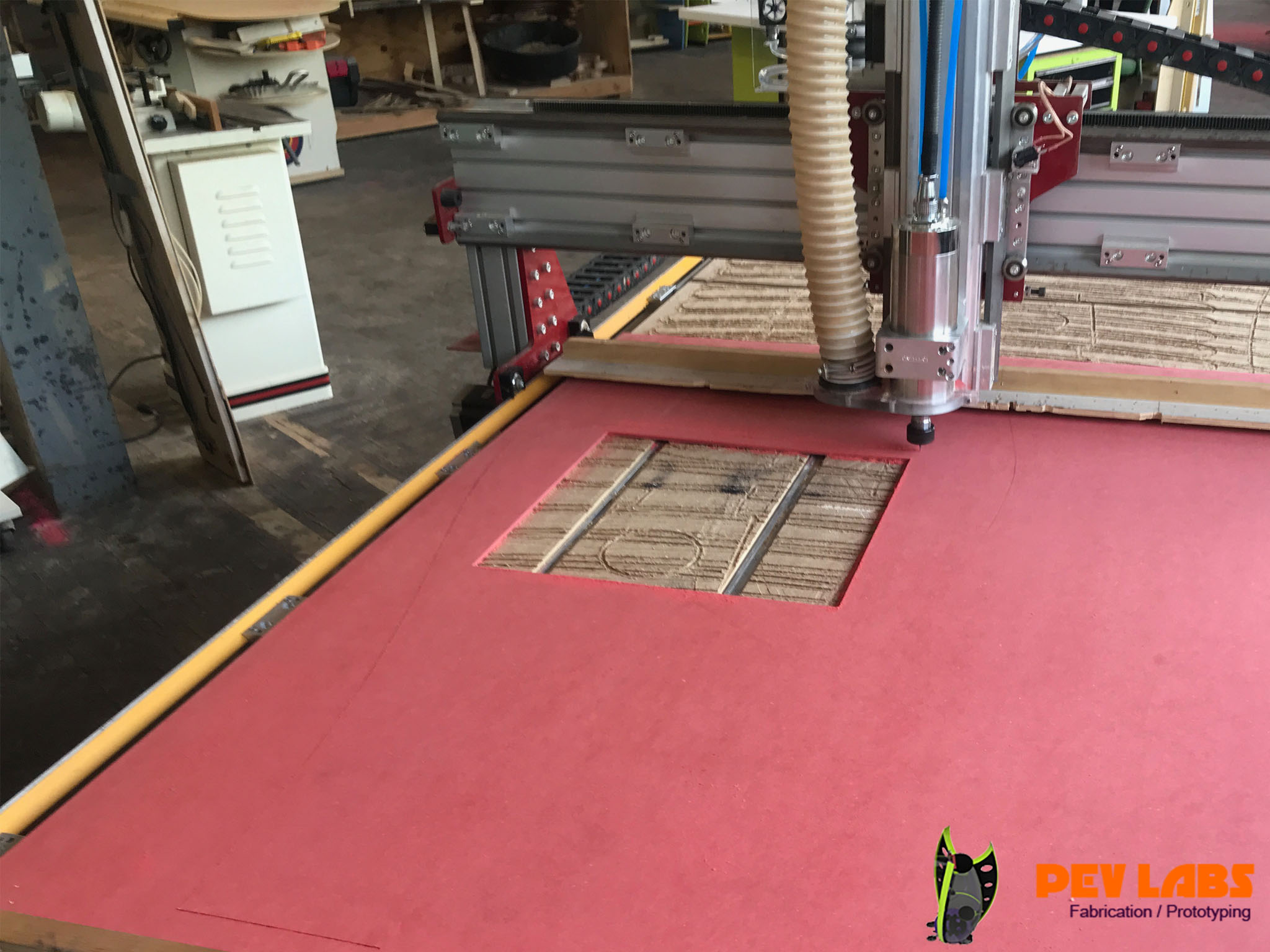

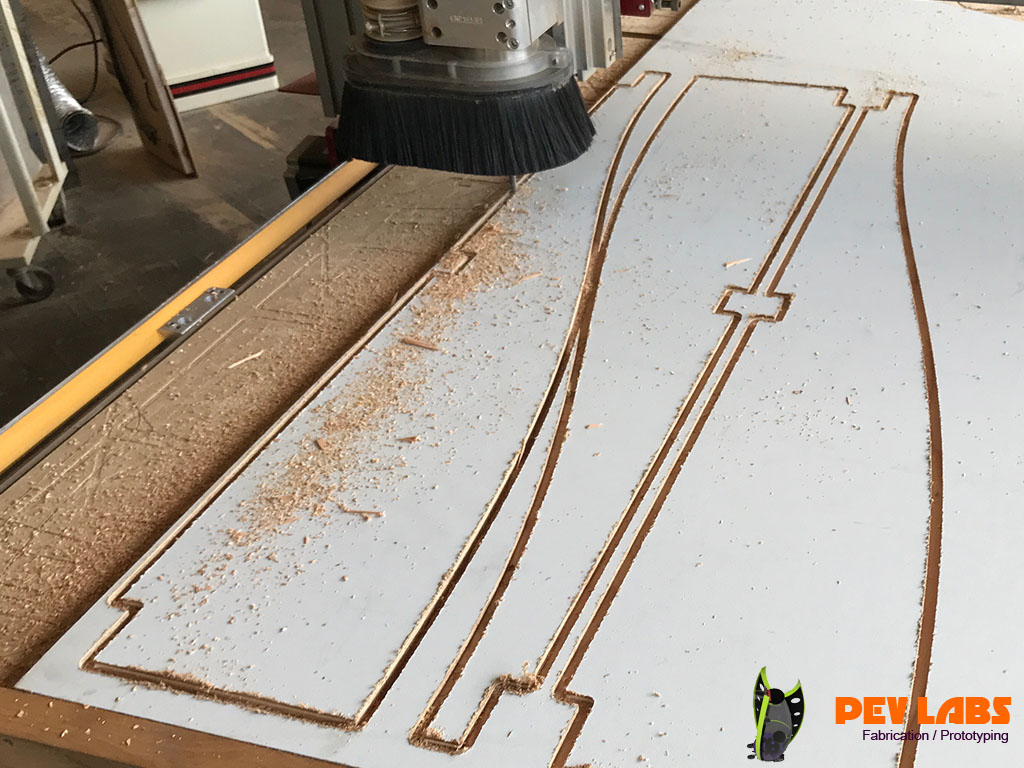

CNC Milling Assembly Jig Parts
CNC Milling Assembly Jig Parts

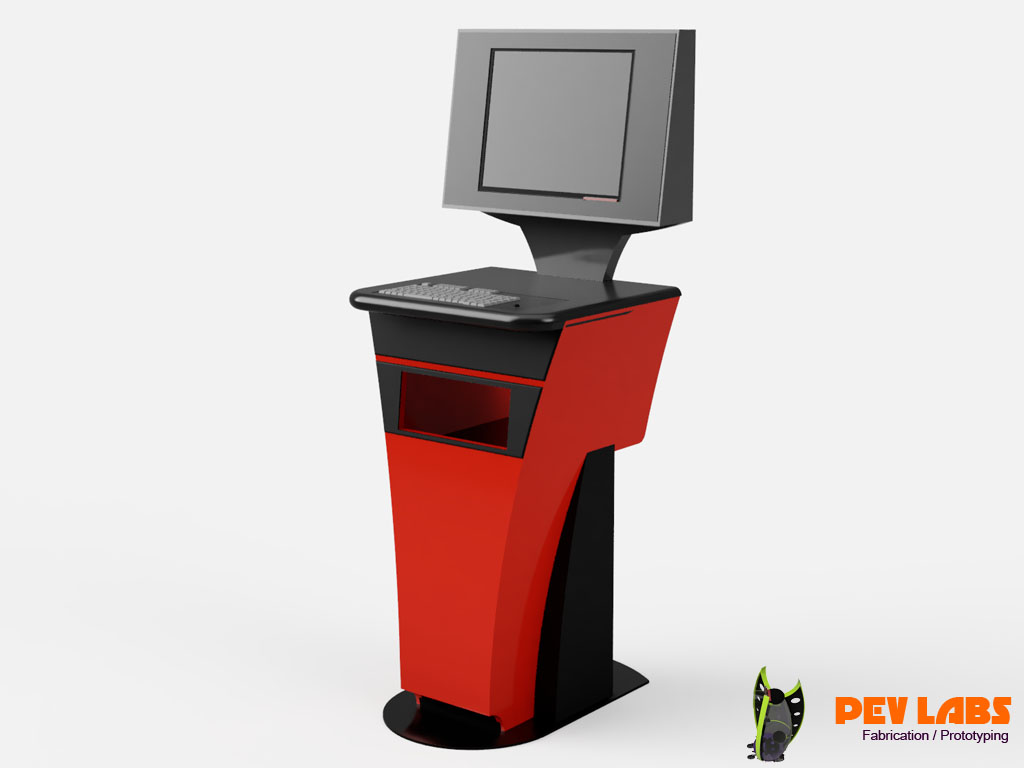

colorcore Kiosk Prototype Design
colorcore Kiosk Prototype Design
