Industrial Design and Digital Fabrication of a trade show booth for a Virginia based solar supplier and installation company Sunday Solar. Flat Pack design allow for this Charlottesville Virginia based solar installation group will be able to tightly pack this display booth in a van for easy transportation to exhibitions and events. Once on site they can quickly assemble due to the mortice and tenon flap panel design. Same goes for disassembly. At the end of the day they can very easily tear it down for a return trip to the shop. z Flat Pack event booths simplify transportation and storage issues over more complicated designs which can take a day to set up. 250W Panel, 50 Mono-crystalline Cells with 25% of Transparency is used for the booth roof. Keeps the attendees in the shade while showing off a flagship product offering. We had planned to hook the solar panel up to some LED lighting but time ran out on delivery before we could add that feature.

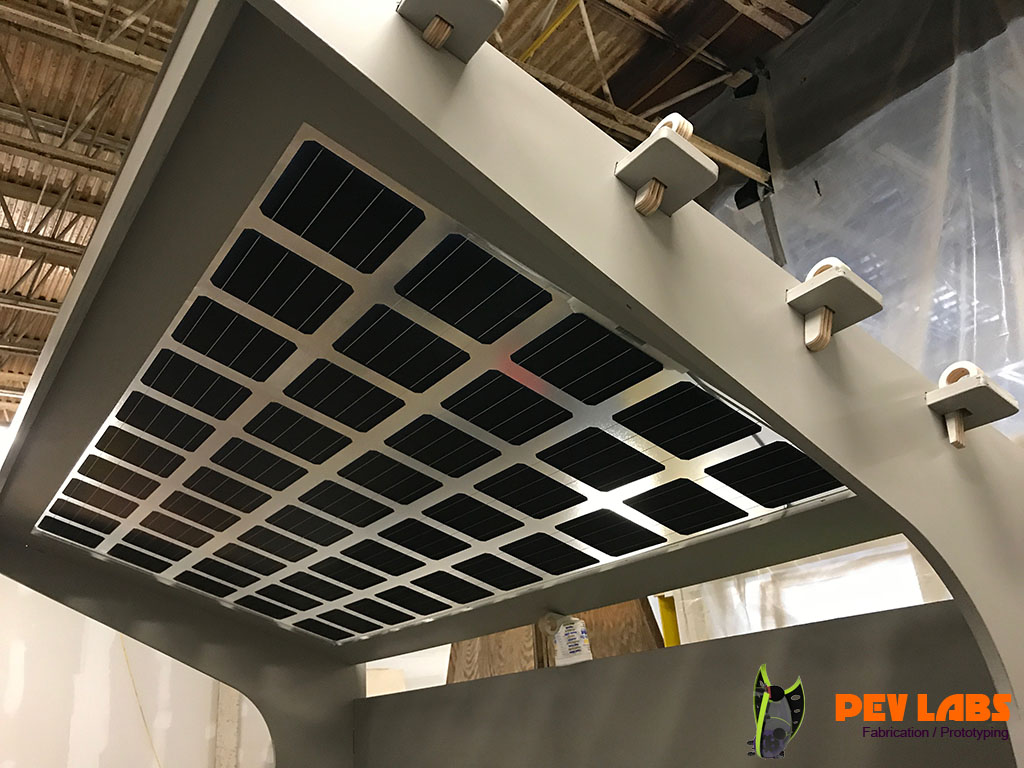

Transparent Solar Panel Roof Virginia
Transparent Solar Panel Roof

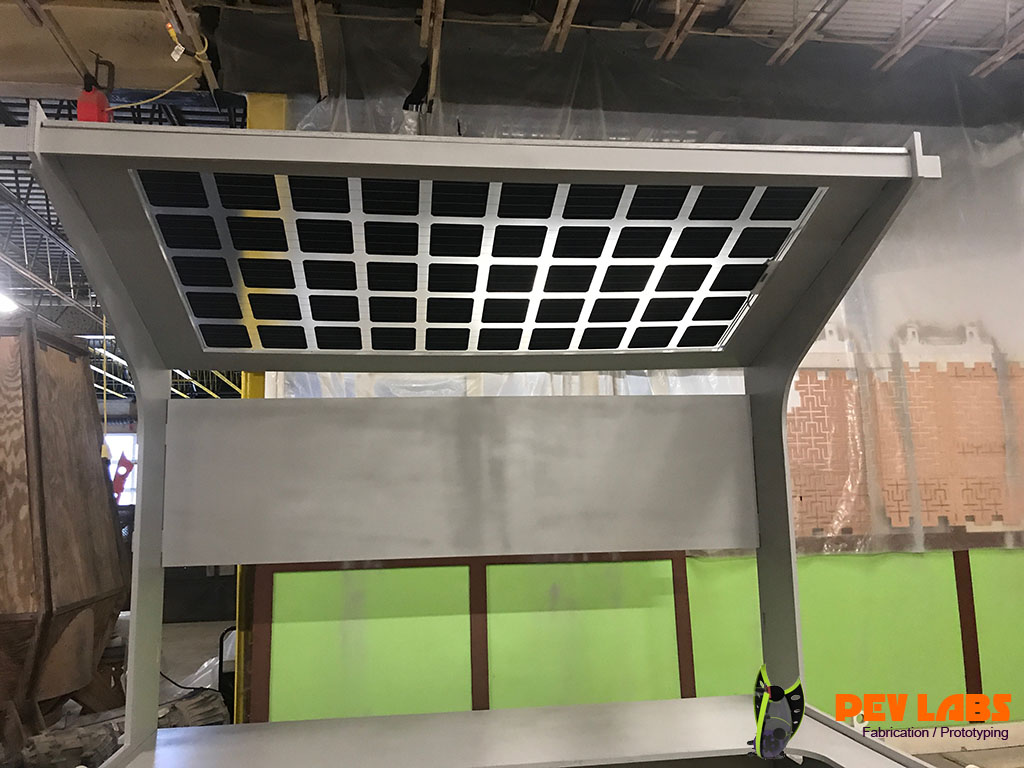

Translucent Solar Panel for Awning
Translucent Solar Panel for Awning

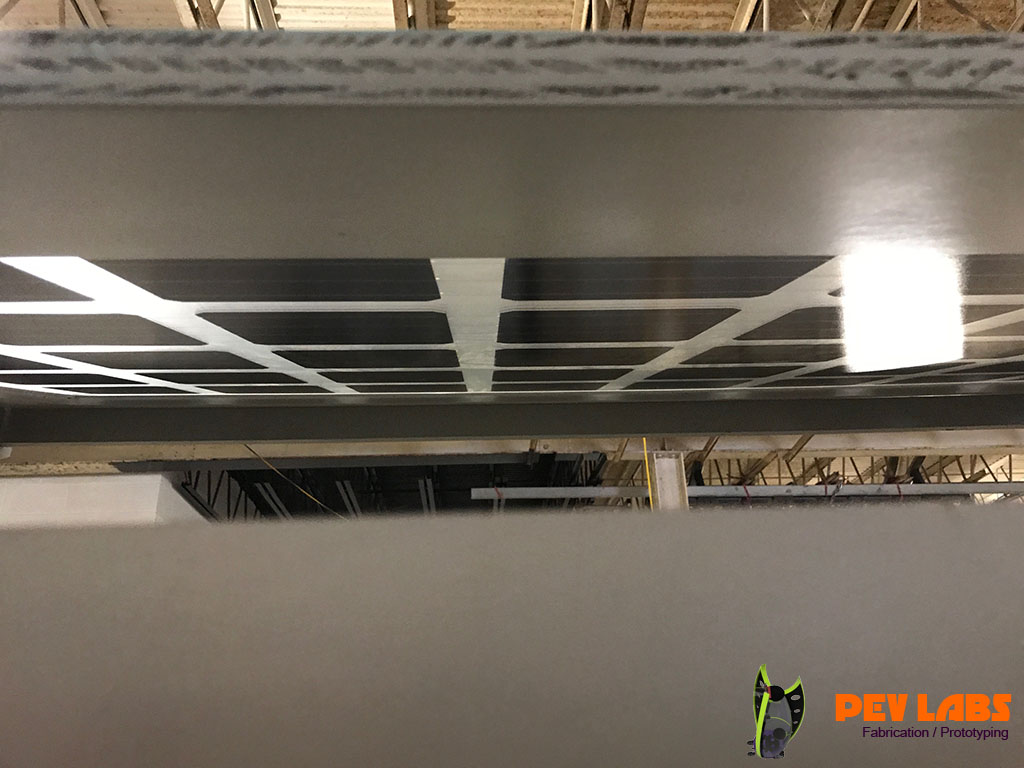

Monocrystalline Solar Cells
Monocrystalline Solar Cells
Right Iso Solar Company Event Kiosk
Right Iso Solar Company Event Kiosk

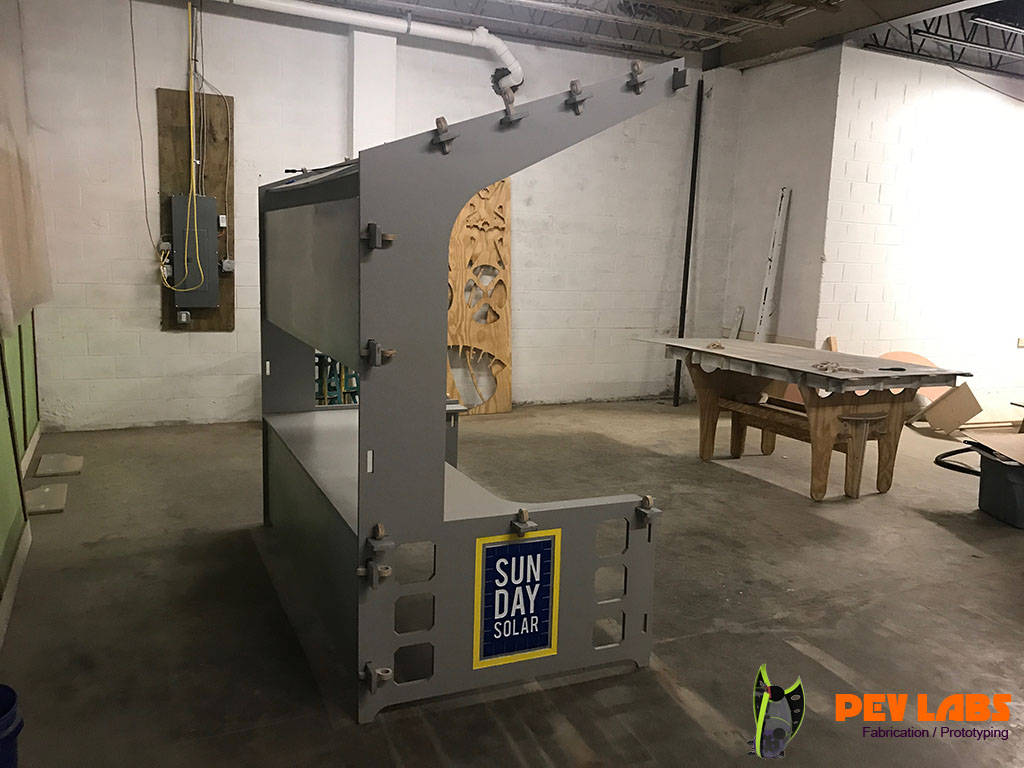

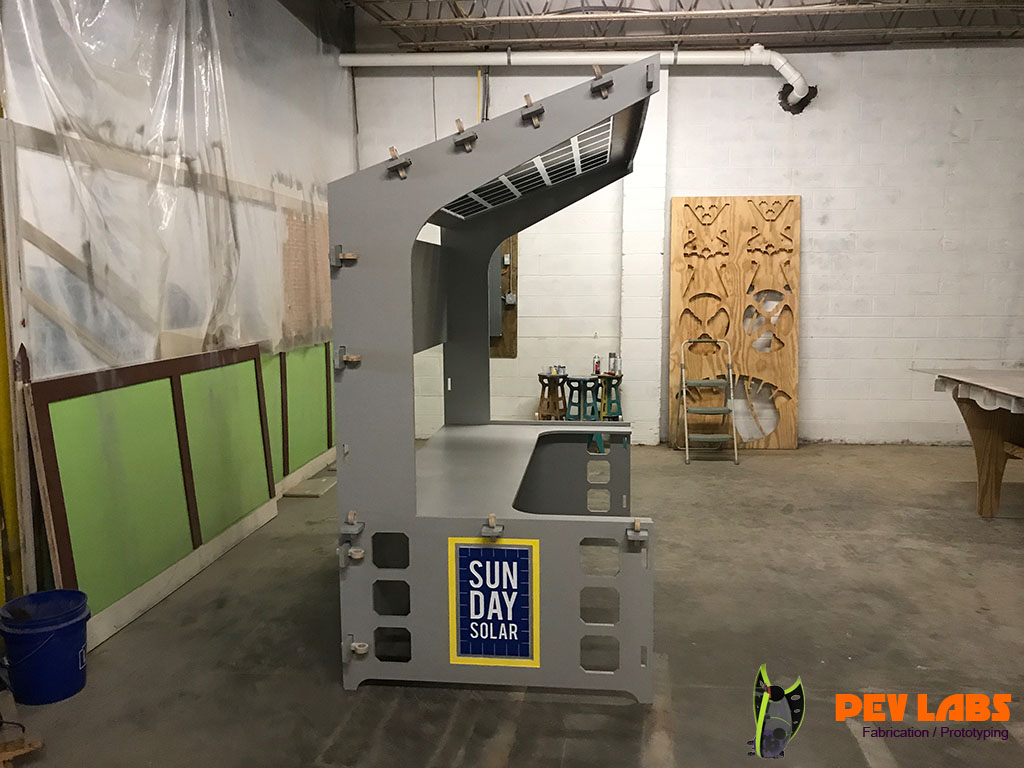

Left Side Trade Show Display Booth in Virginia
Trade Show Display Booth in Virginia
Solar Company Trade show Kiosks
Solar Company Trade show Kiosk

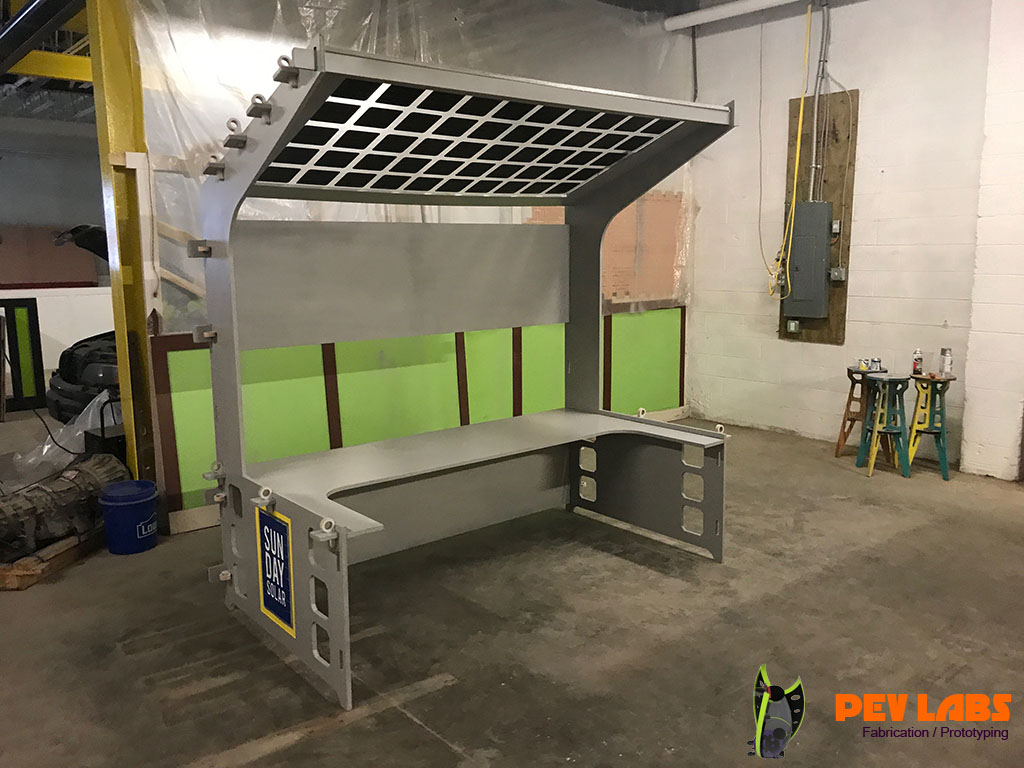

Left Iso Solar Panel Display Kiosk
Left Iso Solar Panel Display Kiosk
Left Iso View of Solar Company Event Kiosk
Left Side Solar Company Event Kiosk

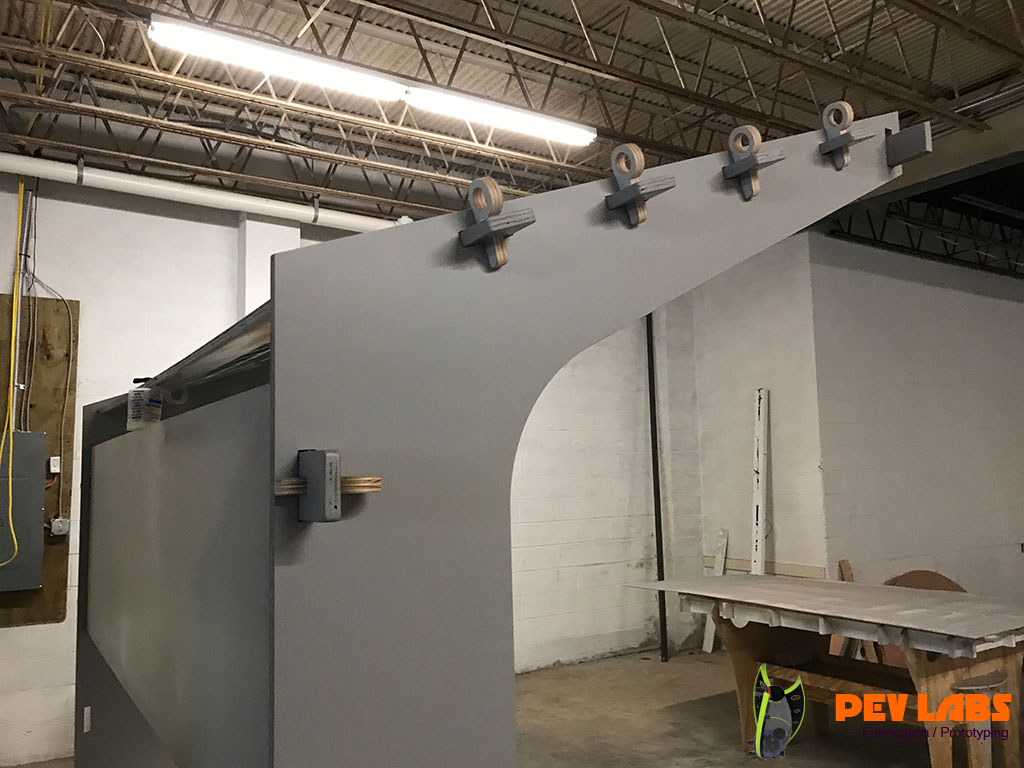

Ceiling Attached with Tenon Pegs
Ceiling Attached with Tenon Pegs

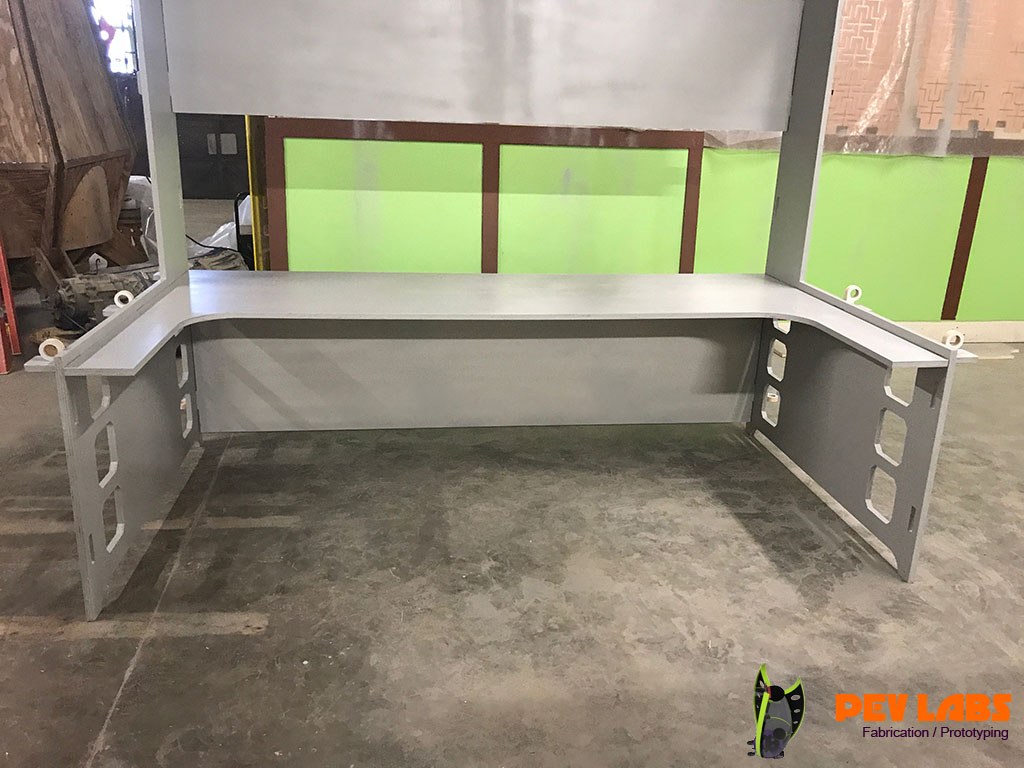

>Desk of Kiosk Front View
Desk of Kiosk Front View

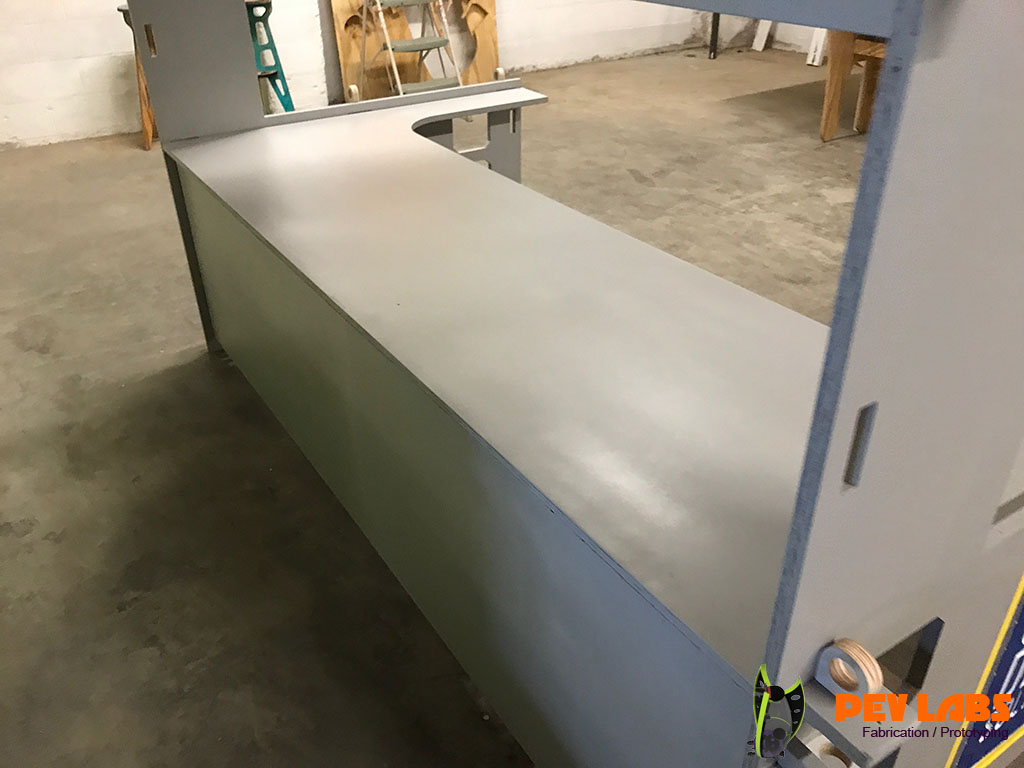

Event Booth Desk Area
Event Booth Desk Area

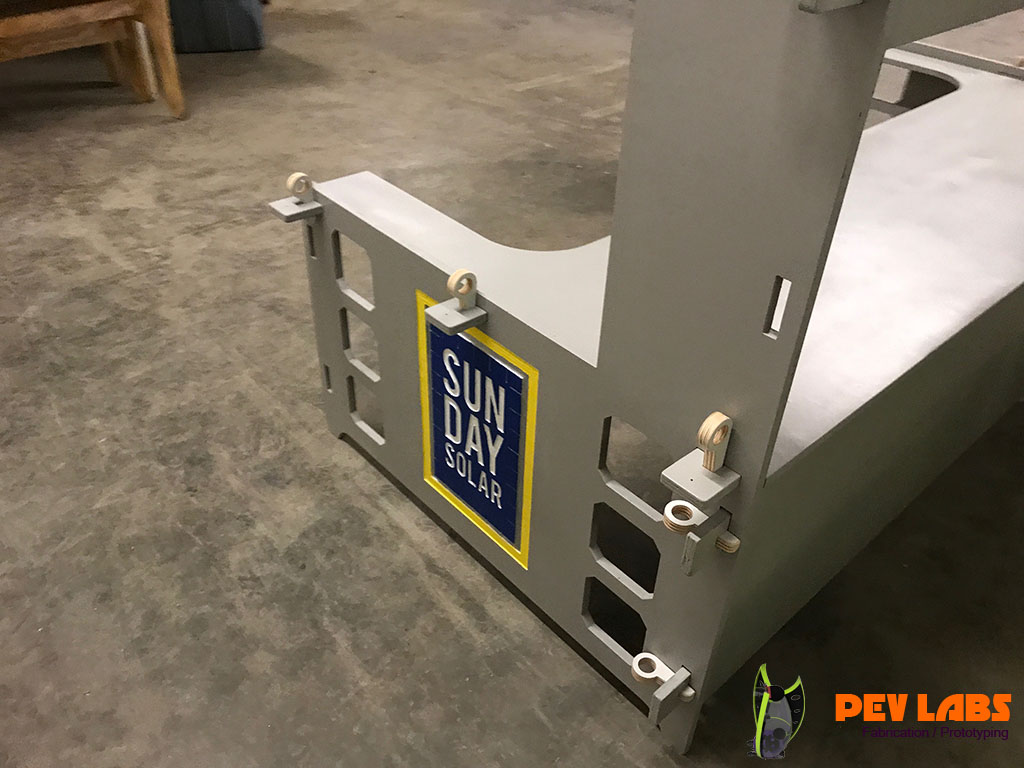

Flatpack Mortice Tenon Assembly
Flatpack Mortice Tenon Assembly
Kiosk Side Panel Logo Closeup Waynesboro Virginia
Kiosk Side Panel Logo Closeup
Kiosk Panels with a Little Wabi-Sabi
Kiosk Panels with a Little Wabi-Sabi

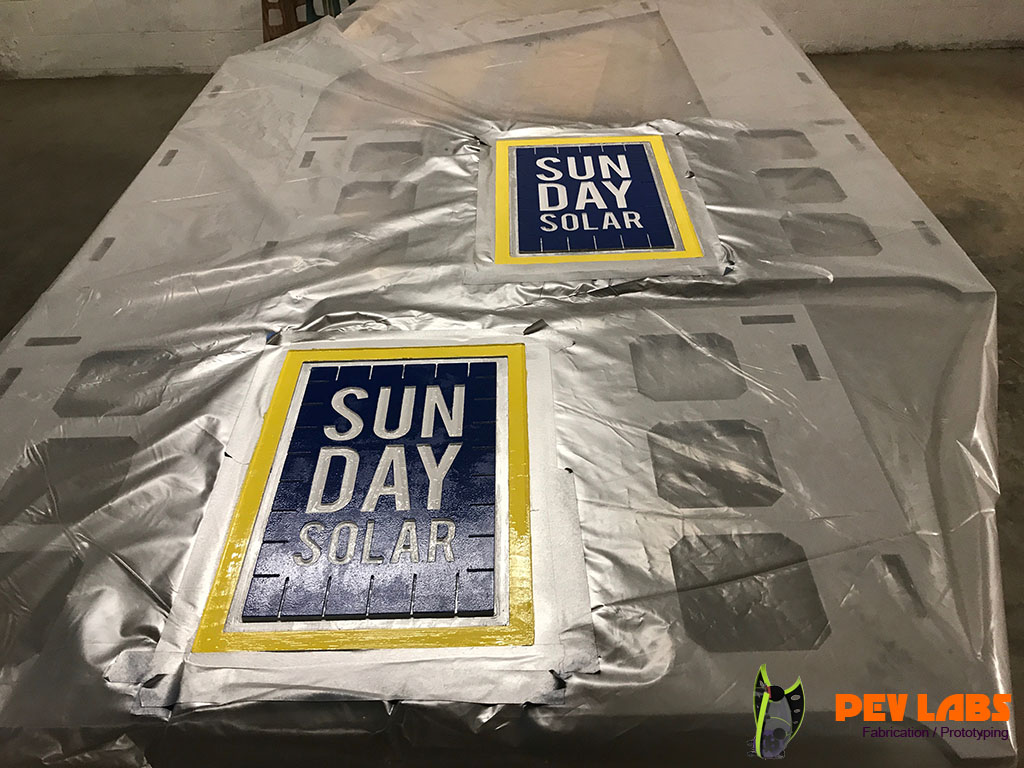

CNC Milled Brand Identity Painted
CNC Milled Brand Identity Painted
Hand Painting Logo Borders and Letters
Hand Painting Logo Borders / Letters
Relief Logo Painting and Masking
Relief Logo Painting and Masking
Sunday Solar Trade Show Booth
Sunday Solar Trade Show Booth

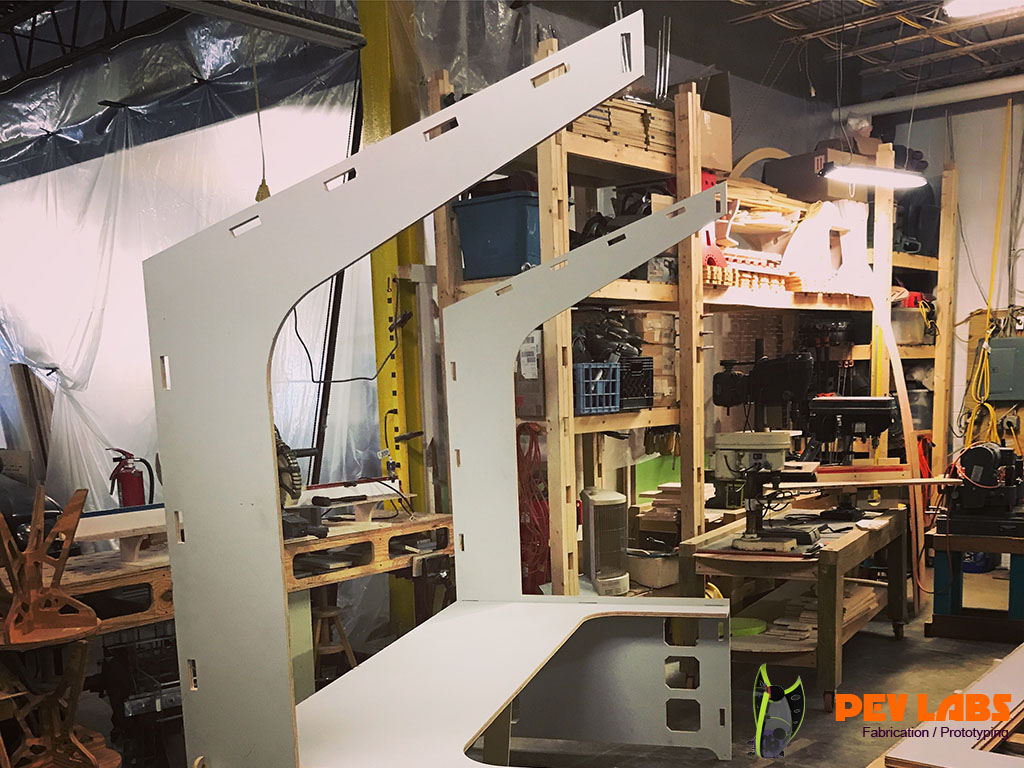

Trade Show Booth Dry Fitting
Trade Show Booth Dry Fitting

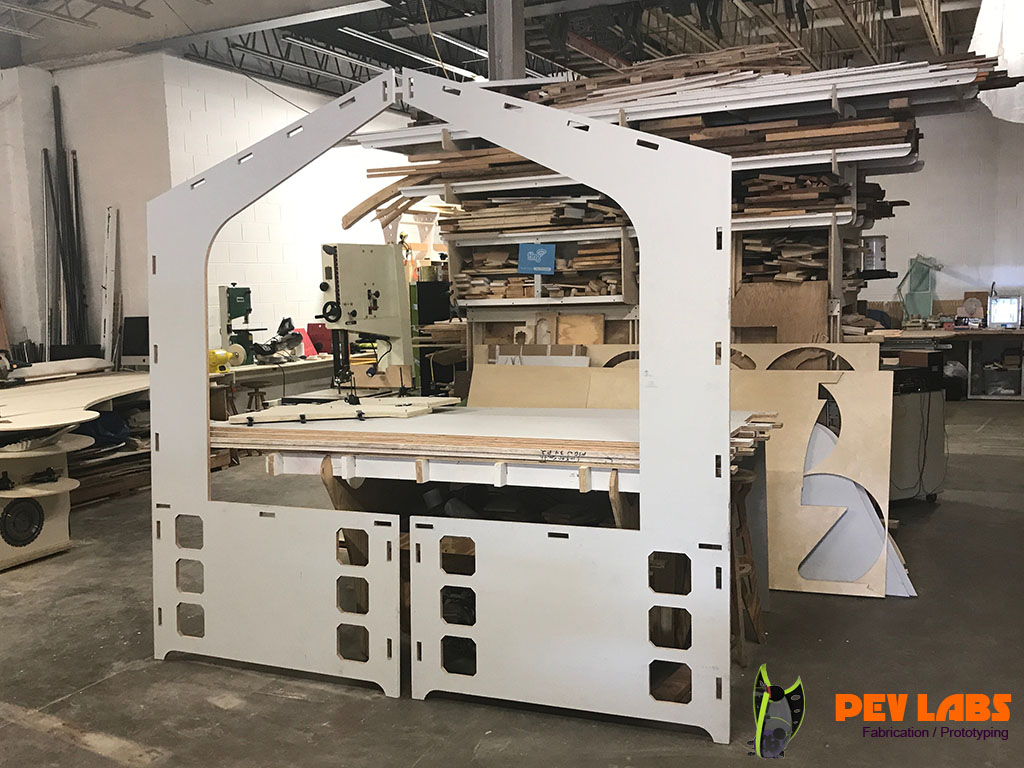

CNC Milled Side Pieces for Flatpack Display Booth
CNC Milled Sides for Display Booth

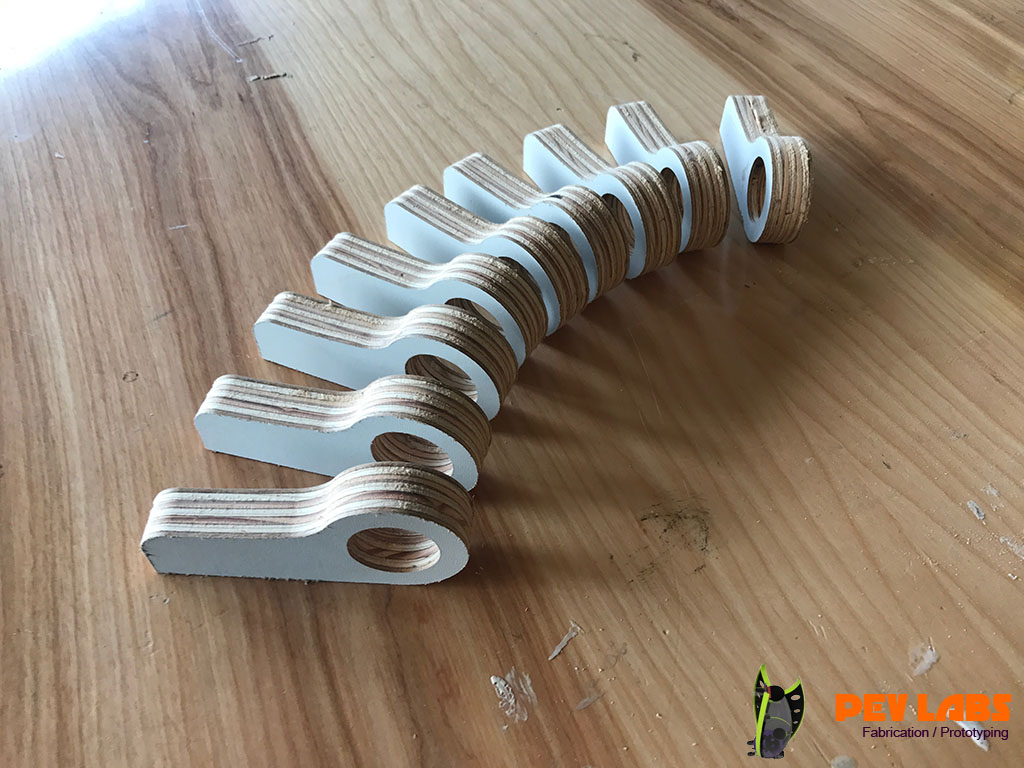

>Quick Release Mortice Tenon Pegs
Quick Release Mortice Tenon Pegs

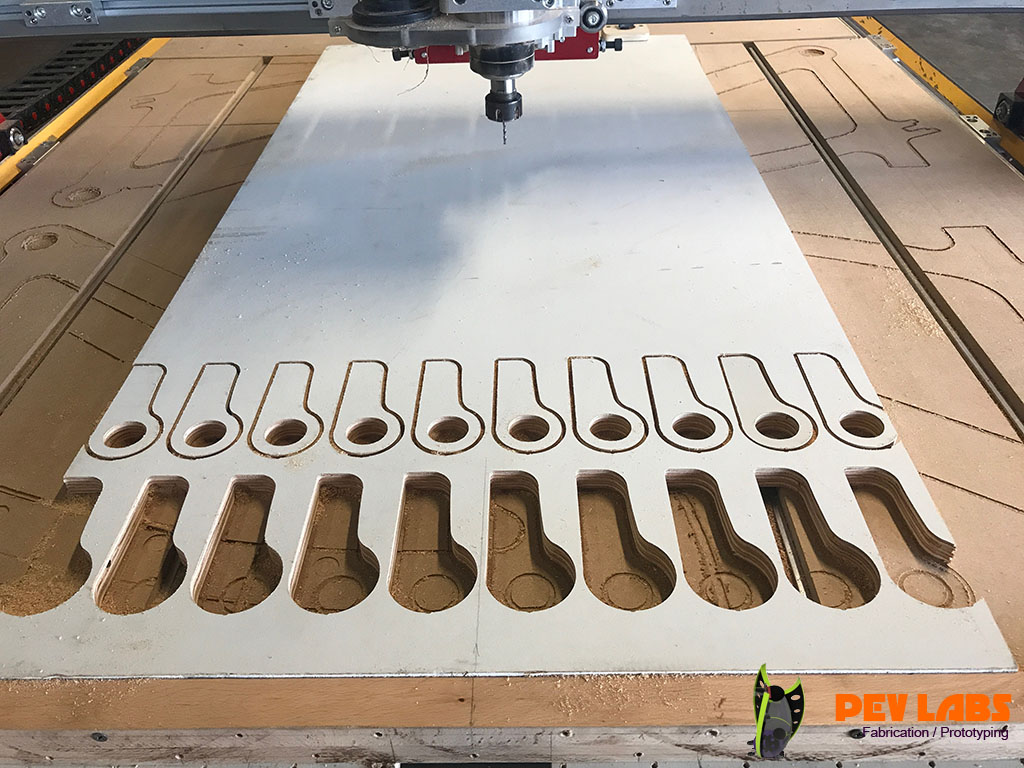

Tenon Pegs Digitally Manufactured
Tenon Pegs Digitally Manufactured

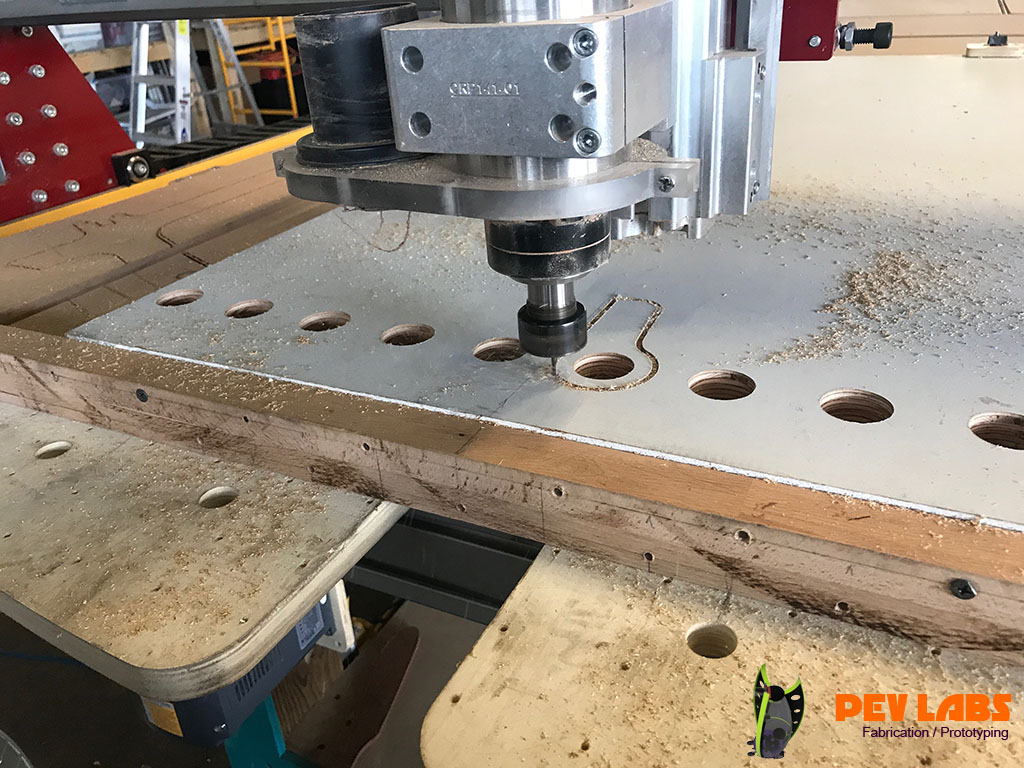

CNC Milling of Tenon Pegs
CNC Milling of Tenon Pegs

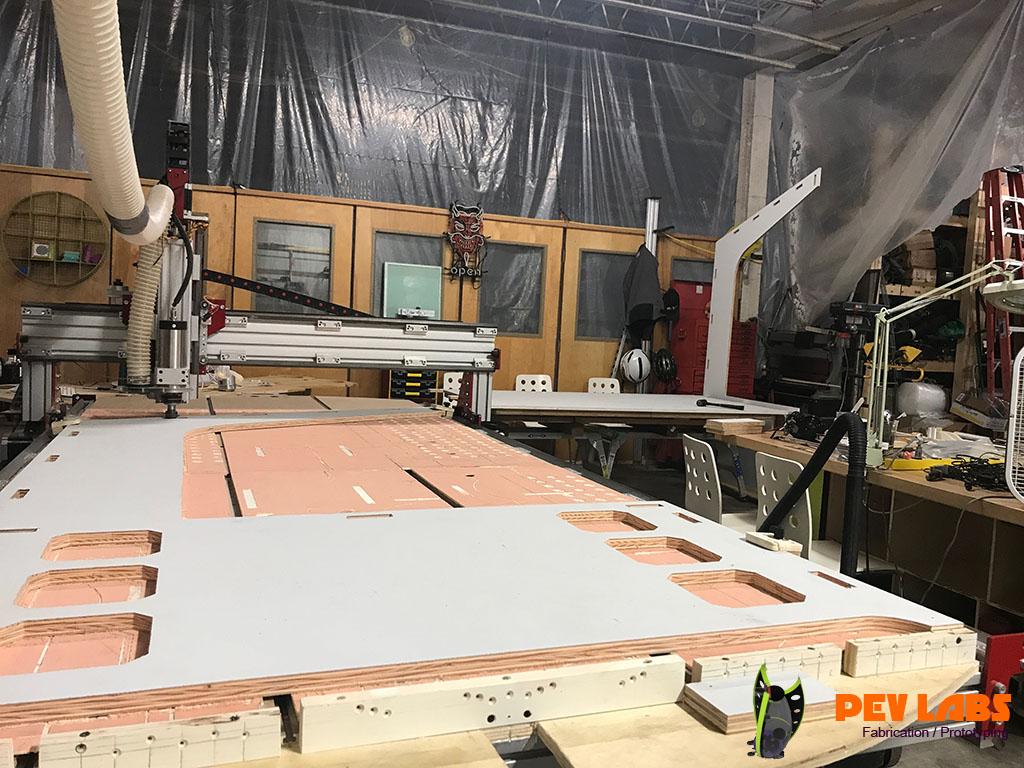

CNC Milling of Flatpack Booth Panels

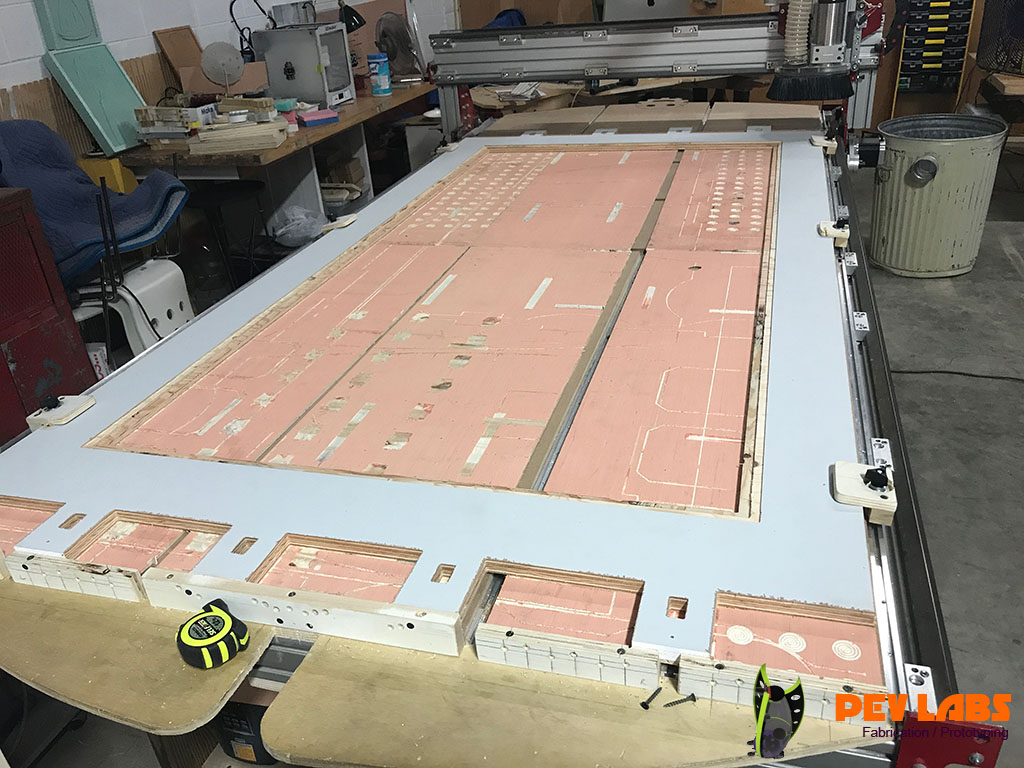

CNC Milling of Flatpack Booth Top
CNC Milling of Flatpack Booth Roof

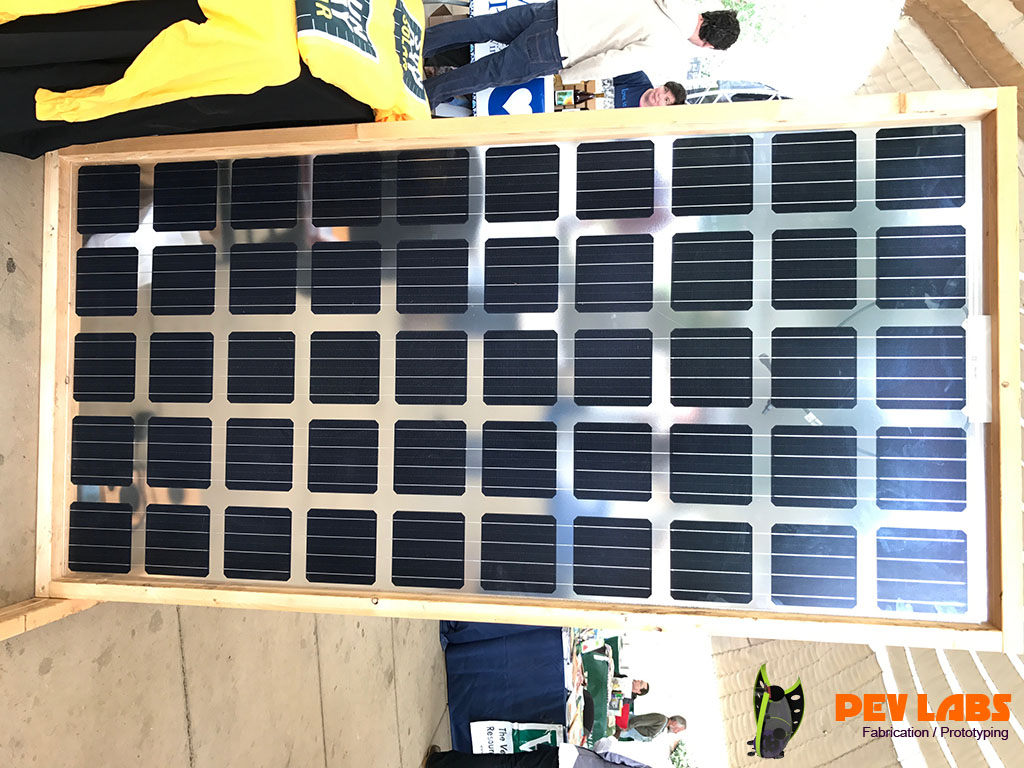

Transparent Solar Panel for Display Booth
Transparent Solar Panel for Booth

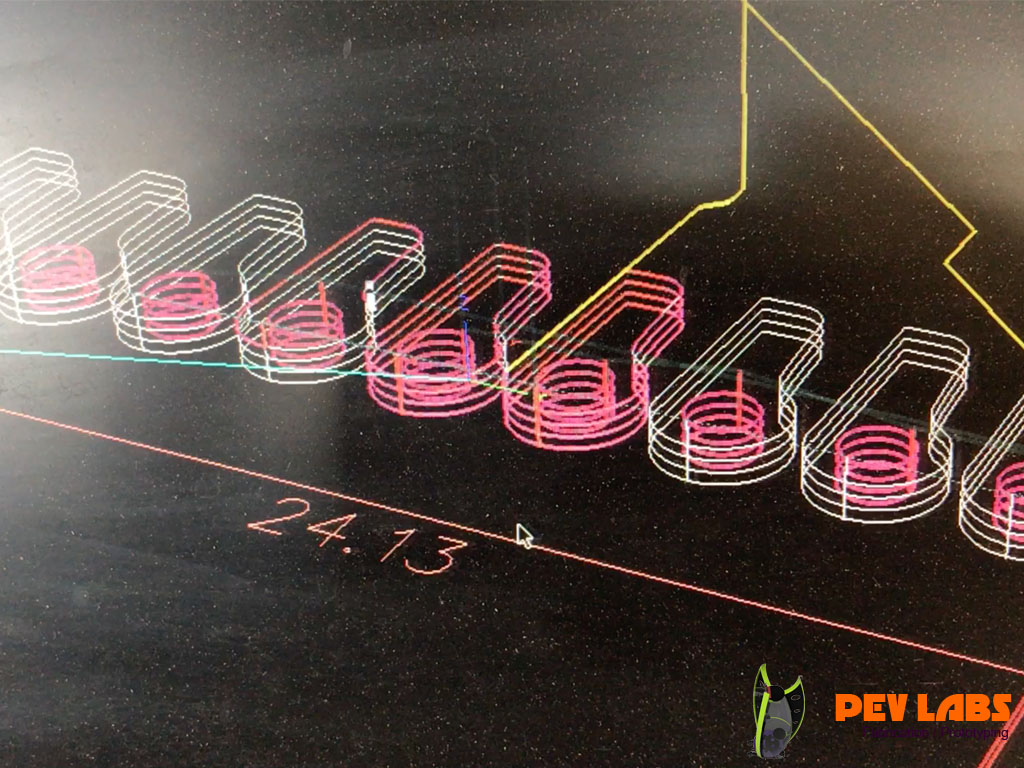

Computer Aided manufacturing
Computer Aided manufacturing (CAM)
Solar Company Kiosk Design
Solar Company Kiosk Design (CAD)

Mortice and Tenon Quick Release Pegs CAM (Computer Aided Manufacturing)

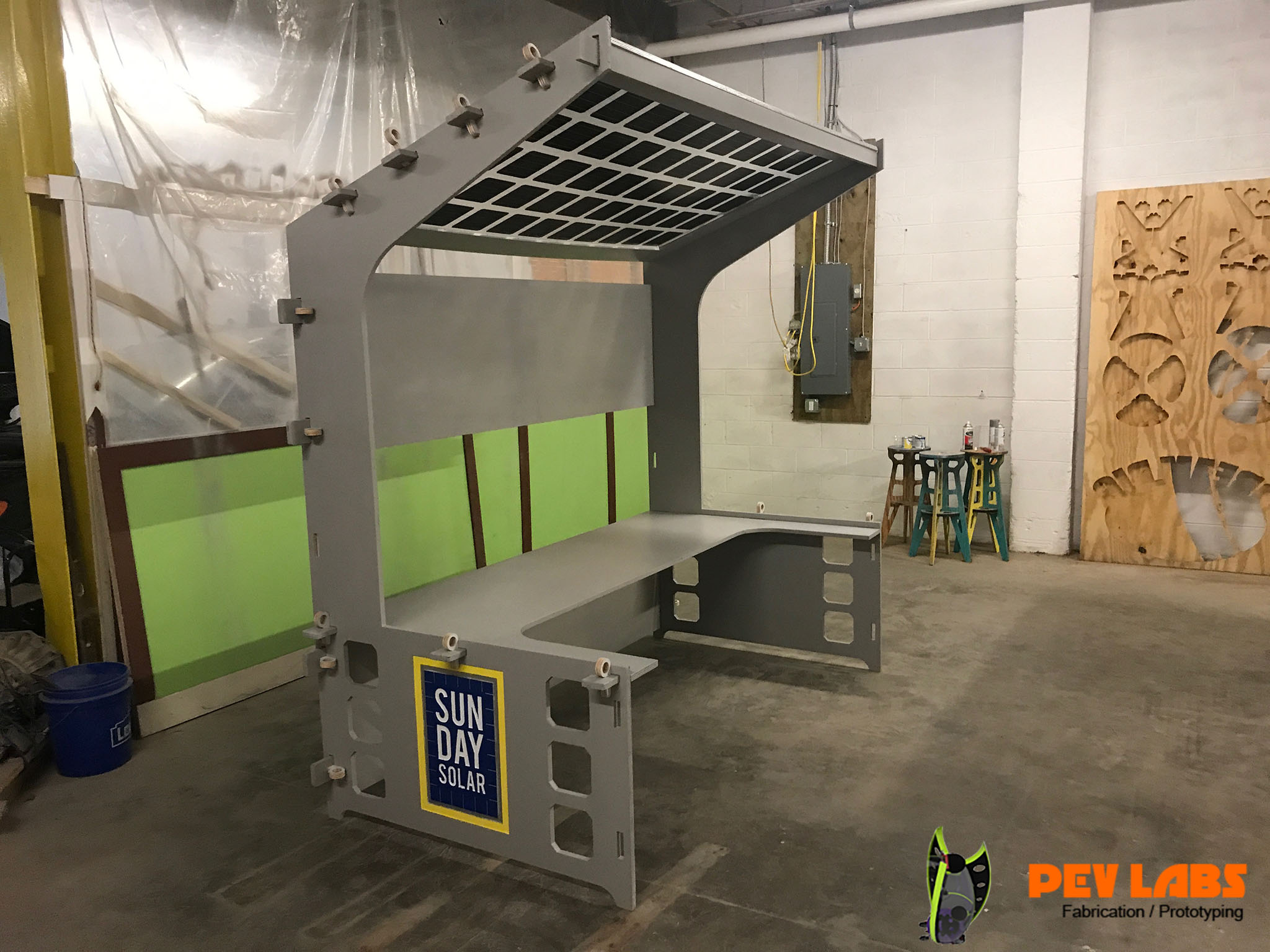

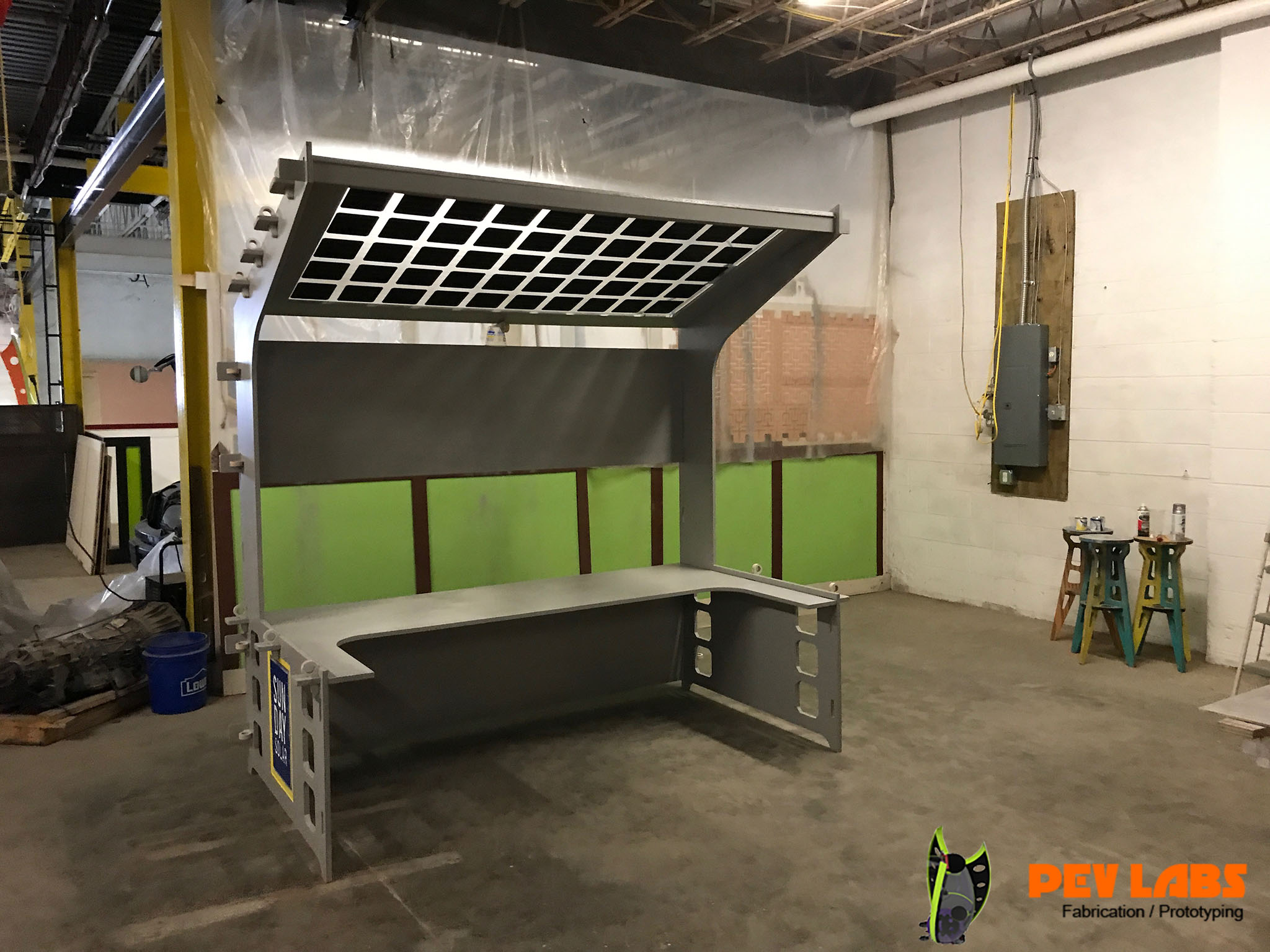

Event Trade Show Booth Kiosk with Transparent Solar Panel Roof
Fabrication Skills Involved
