Wake Shaper : CNC Parts Milling for Small Production Runs

The Wake Shaper is a small device that attaches to the side of a jet ski to create a wake, or surf-able wave for water boarding, or water skiing. The suction cup attaches the device to the side of a jet ski with relative ease along with holding quite securely. Created by Brock Endeavors, PEV Labs CNC milled all of the HDPE parts along with created a milling jig for the suction cup device to to create the mounting holes in them. This unit has two sides which attache to the suction mounting unit and one panel which sits in the water to create the wake. We ran three product iterations for testing. Once the client was satisfied with their design we produced a small production run of 60 units which we sent off to the Amazon fulfillment center. CNC Parts Milling for Small Production Runs is a regular task for us.


Wake Shaper Assembled
Wake Shaper Assembly
Wake Shaper Assembly

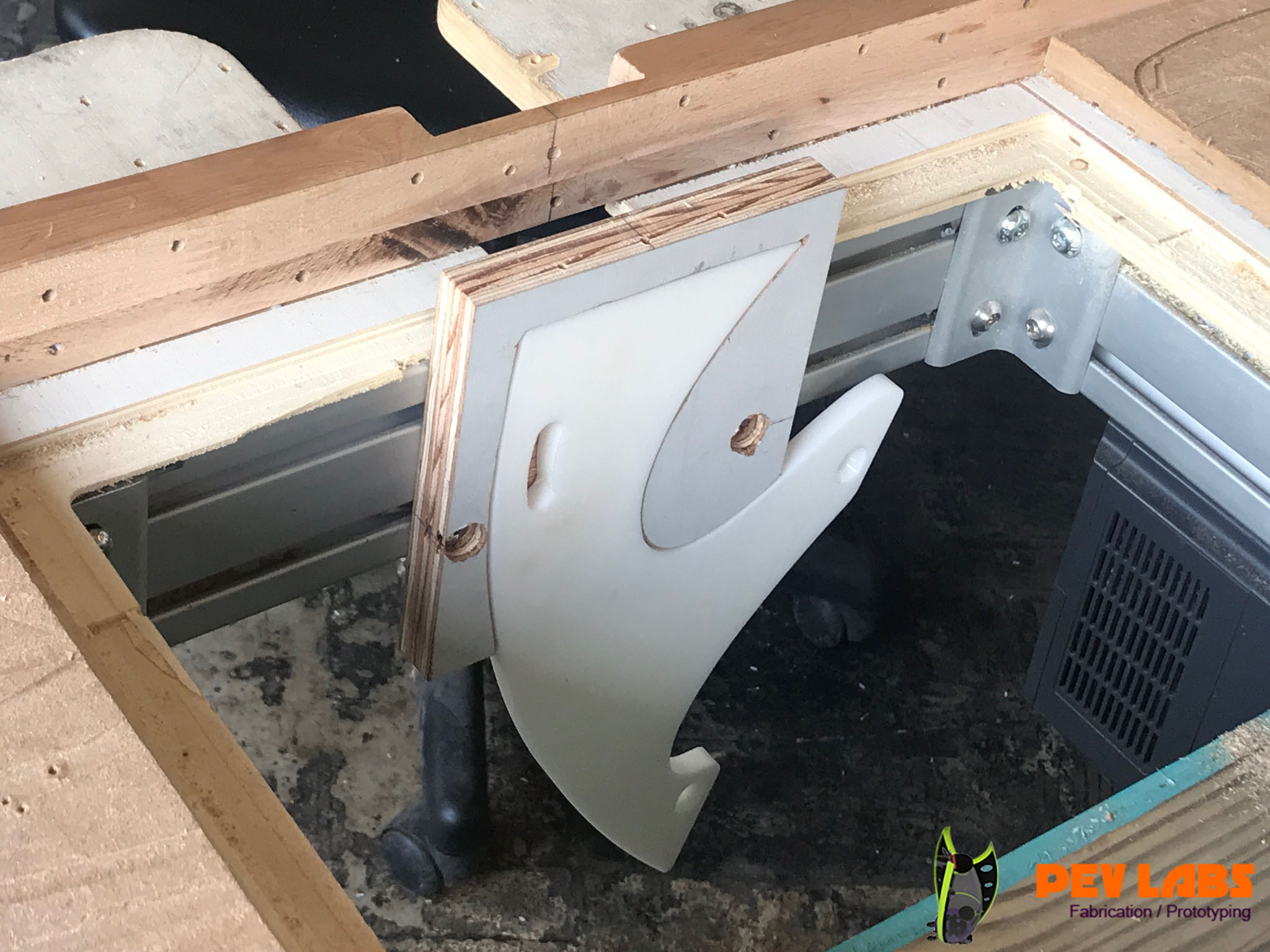

CNC Milling Part on Jig
CNC Milling Part on Jig

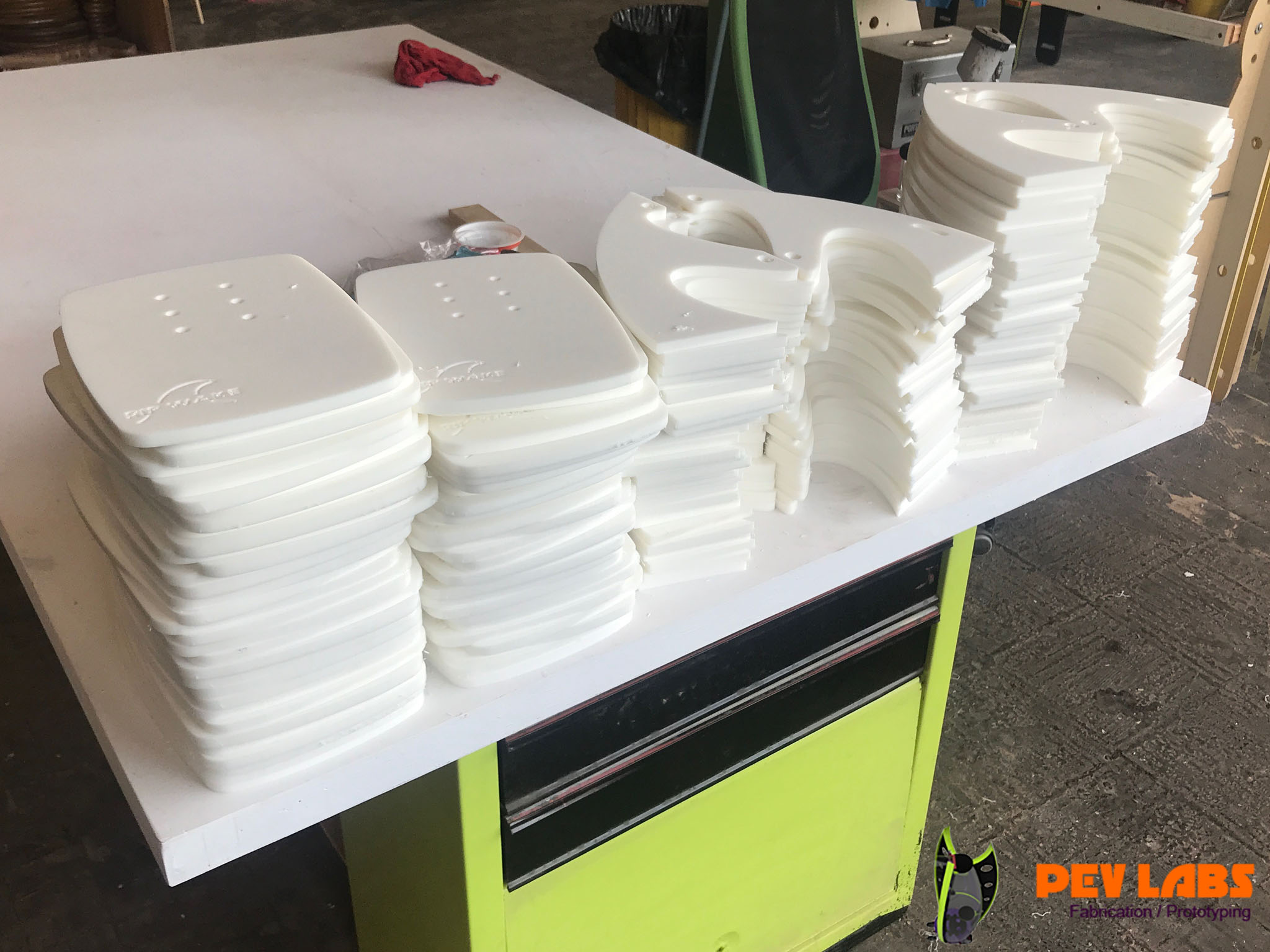

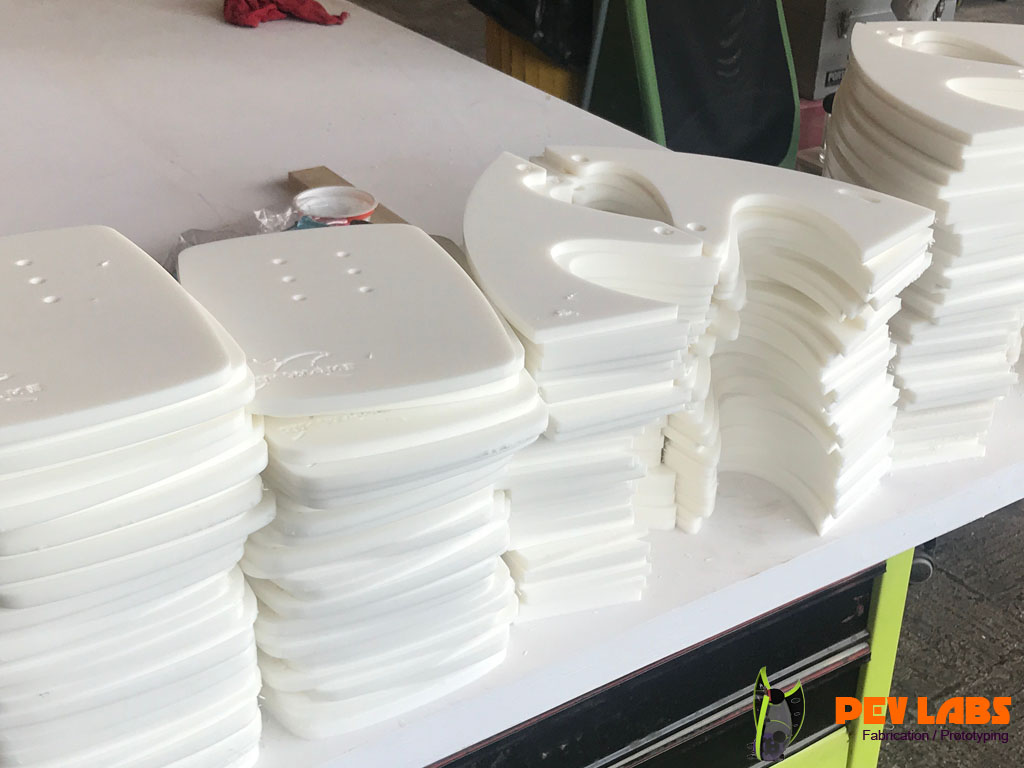

HDPE CNC Parts Milled

Engraving Logo in HDPE

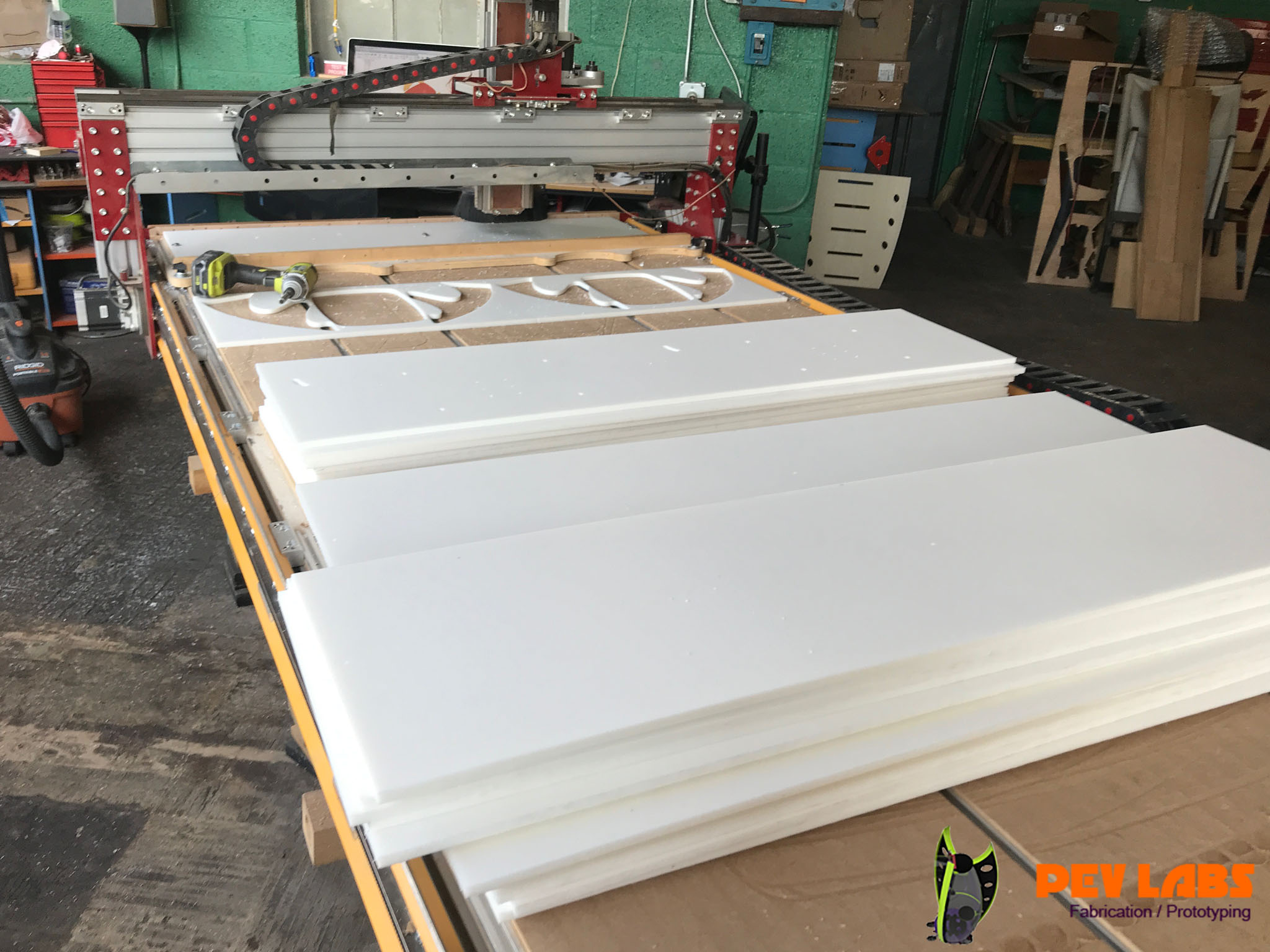

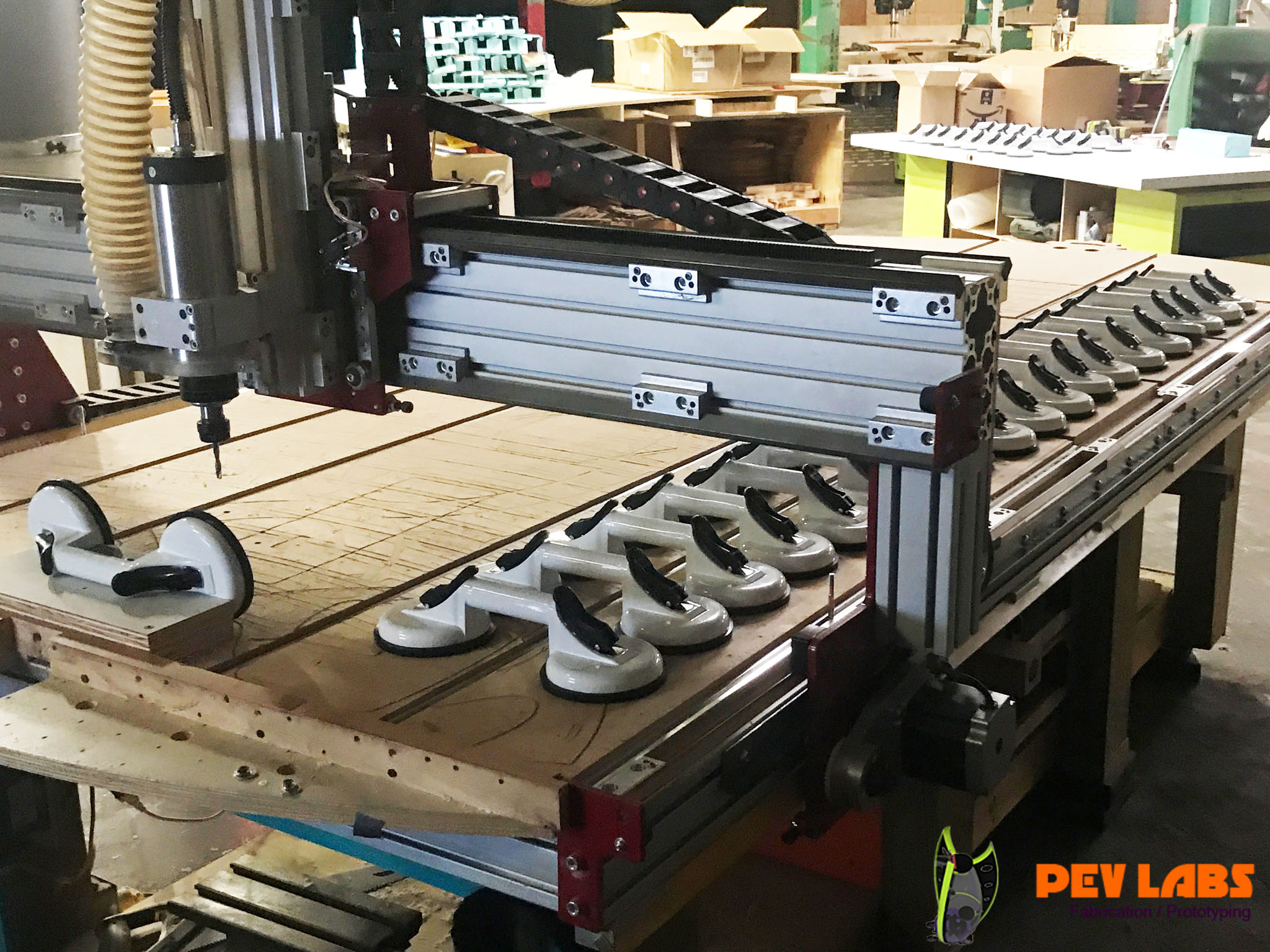

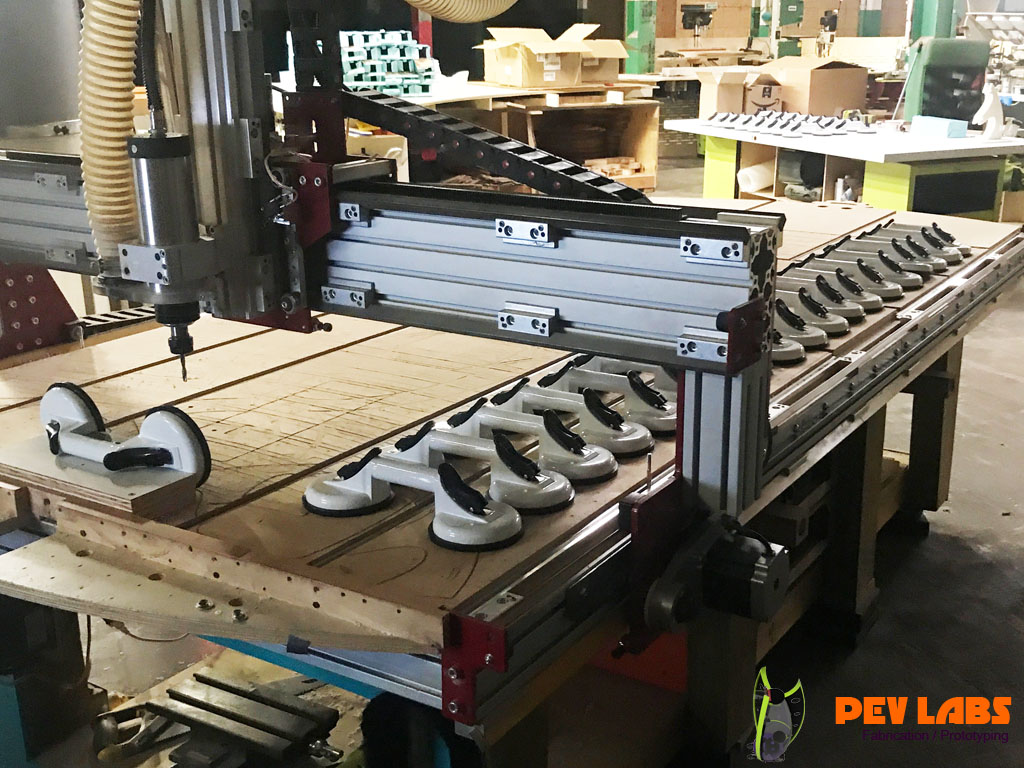

CNC Production Line Virginia
CNC Production Line Virginia

Waker Shaper Suction Arm

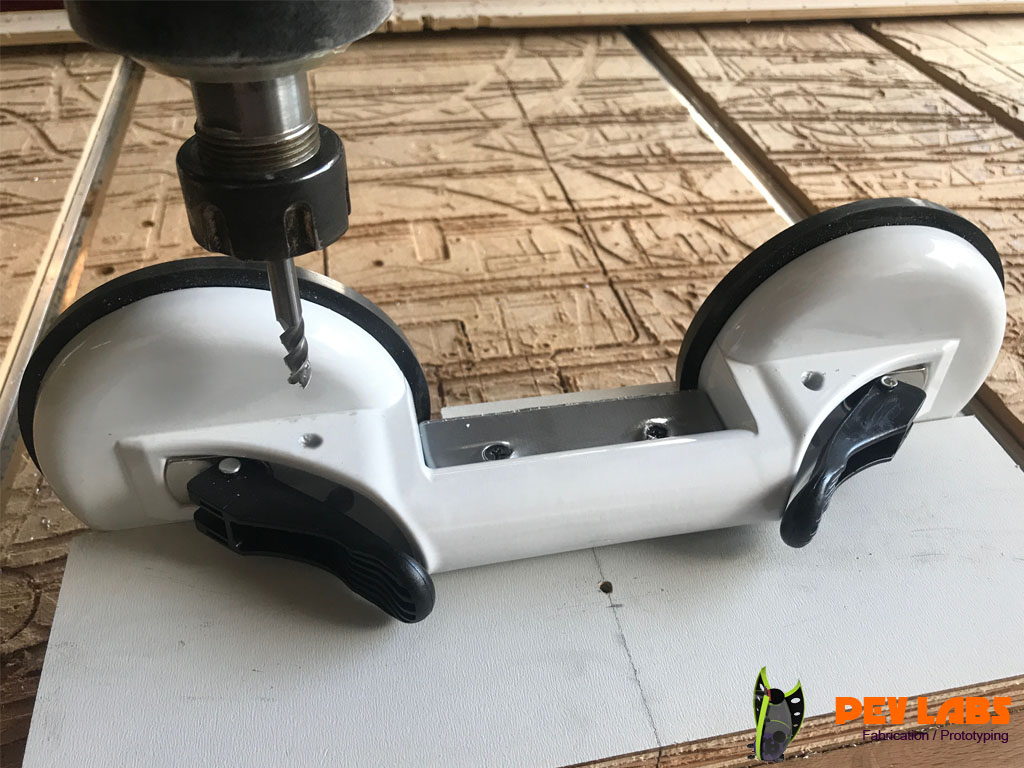

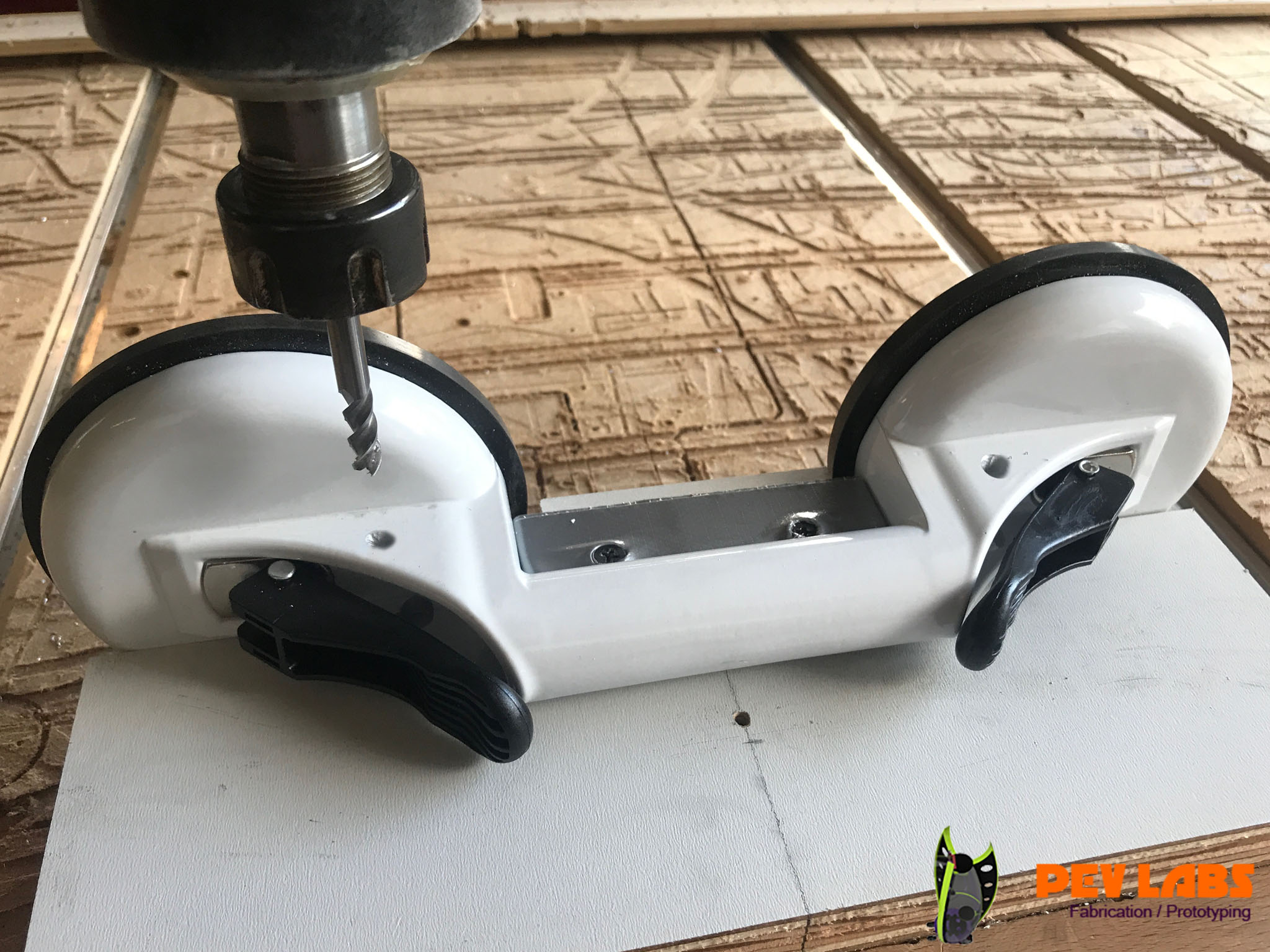

CNC Boring Part Jig
CNC Milling with Tool Change
CNC Milling with Tool Change

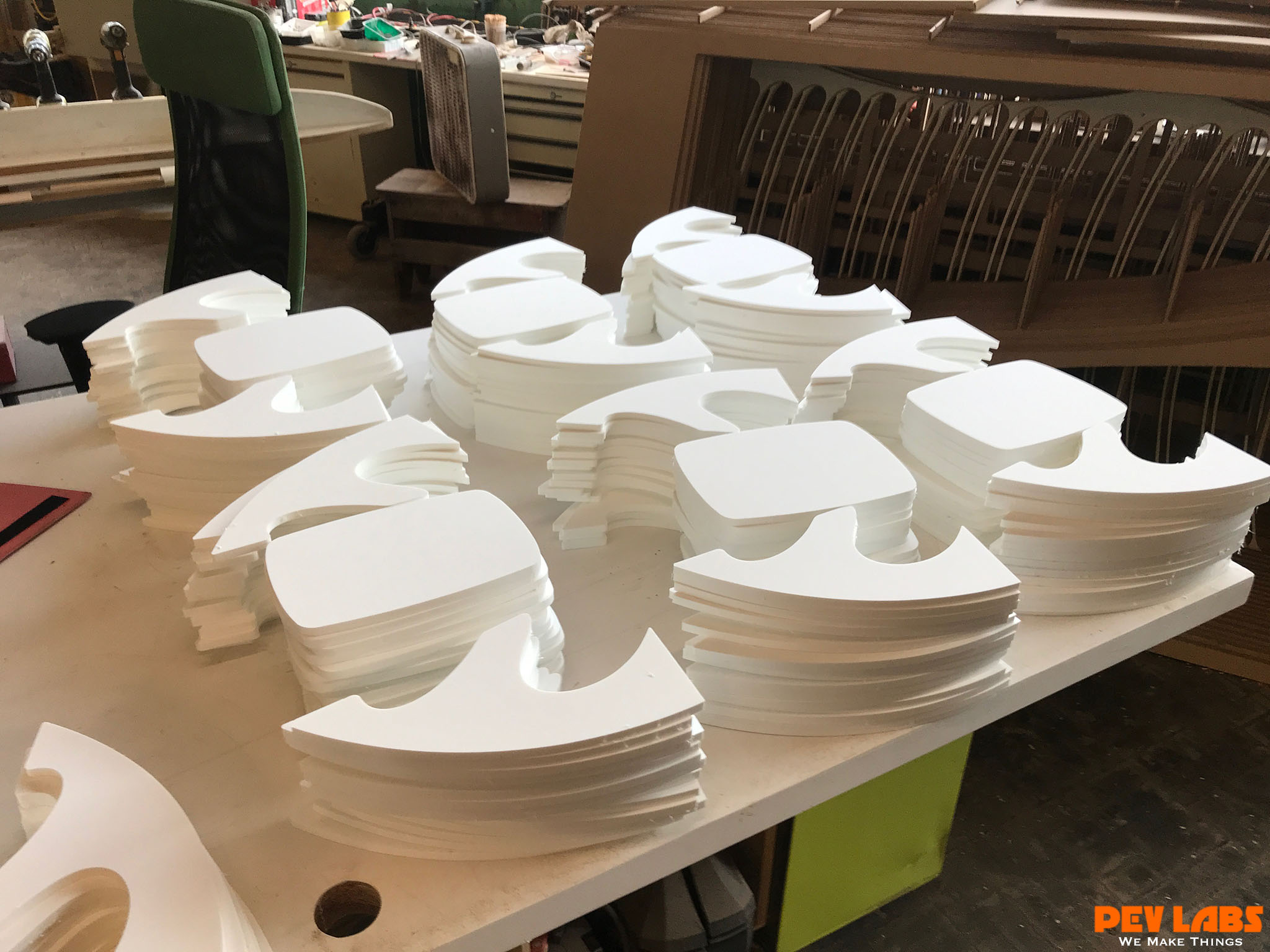

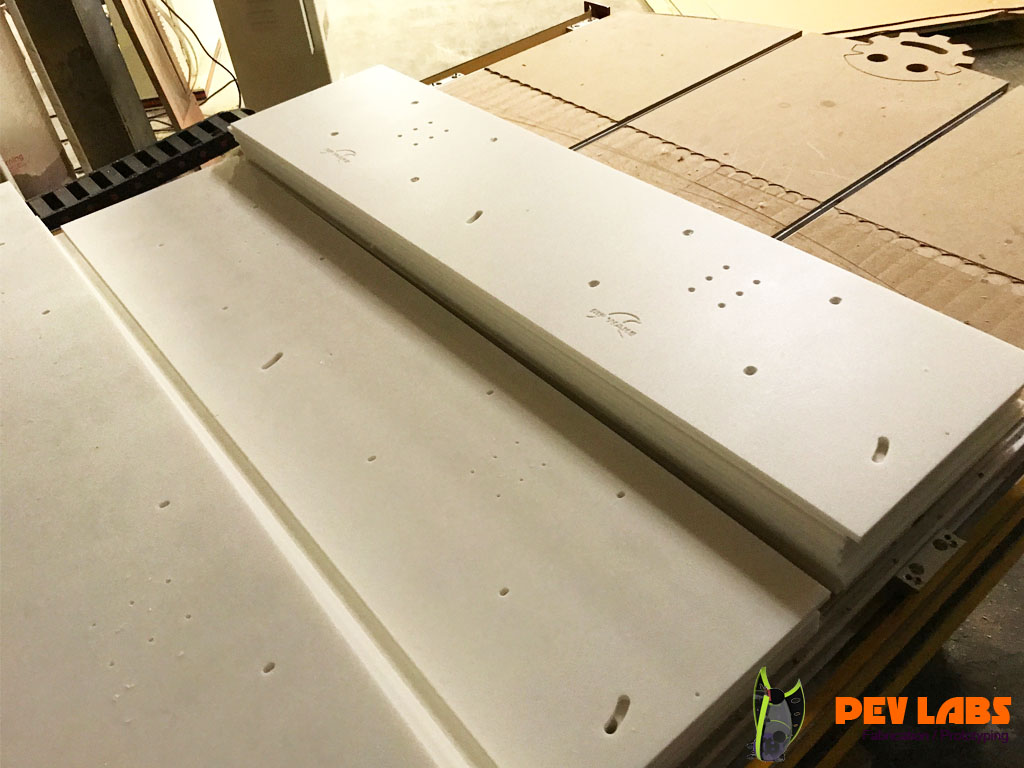

HDPE Material Milling Stages
HDPE Material Milling Stages

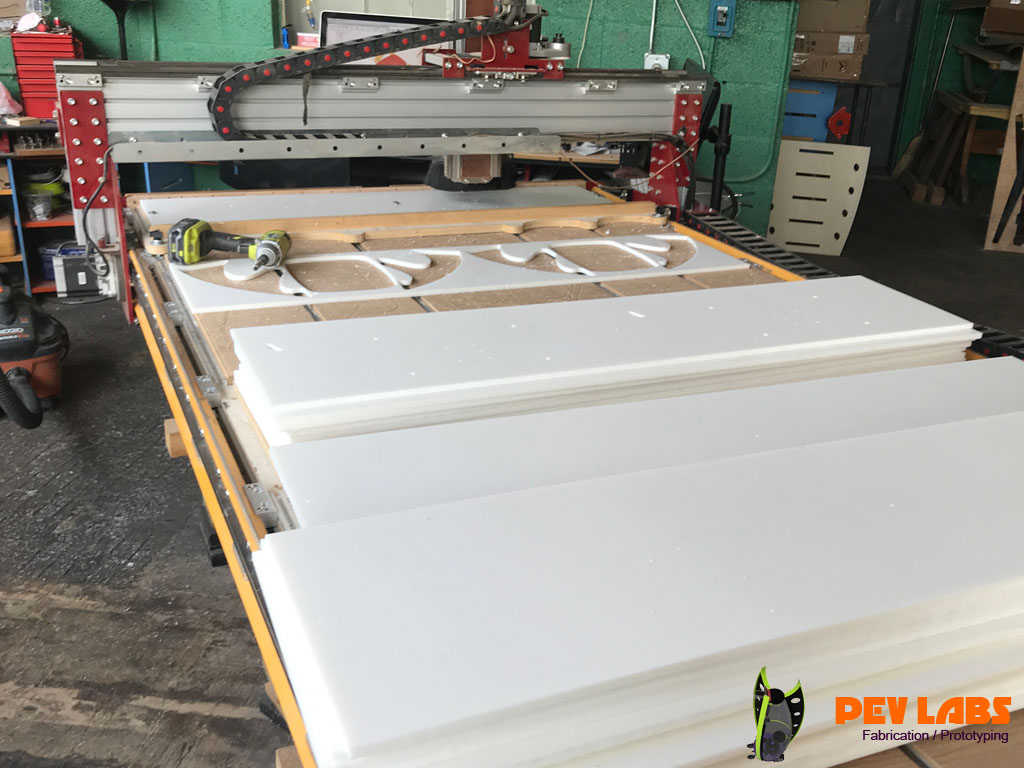

CNC Production Run Charlottesville

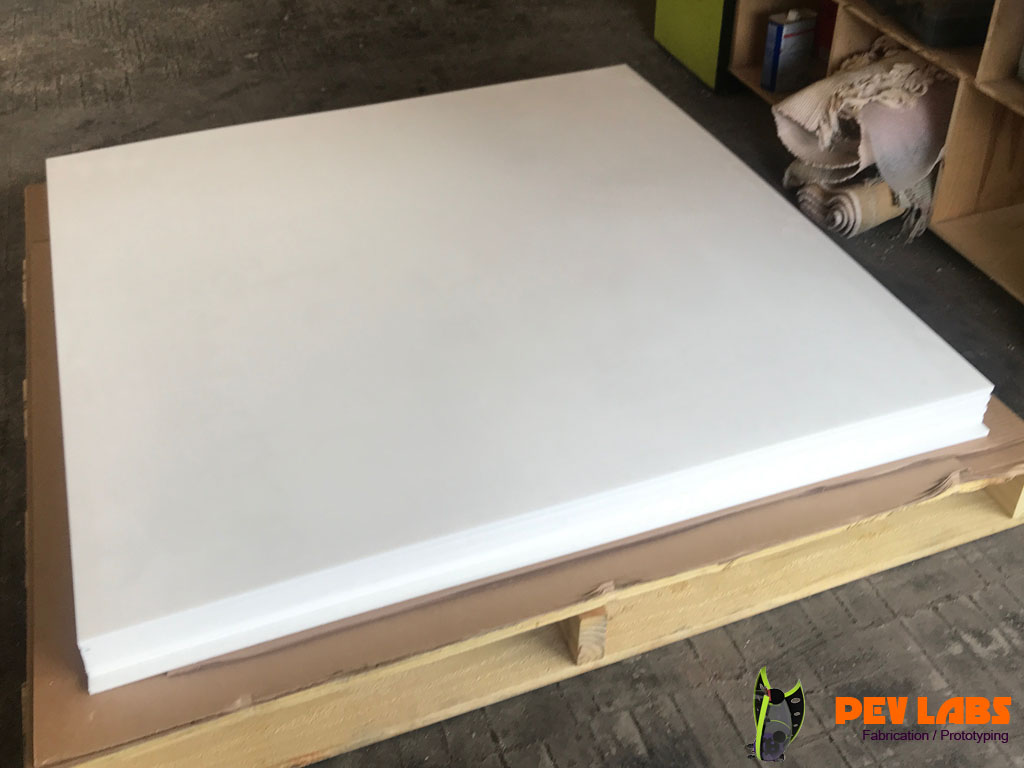

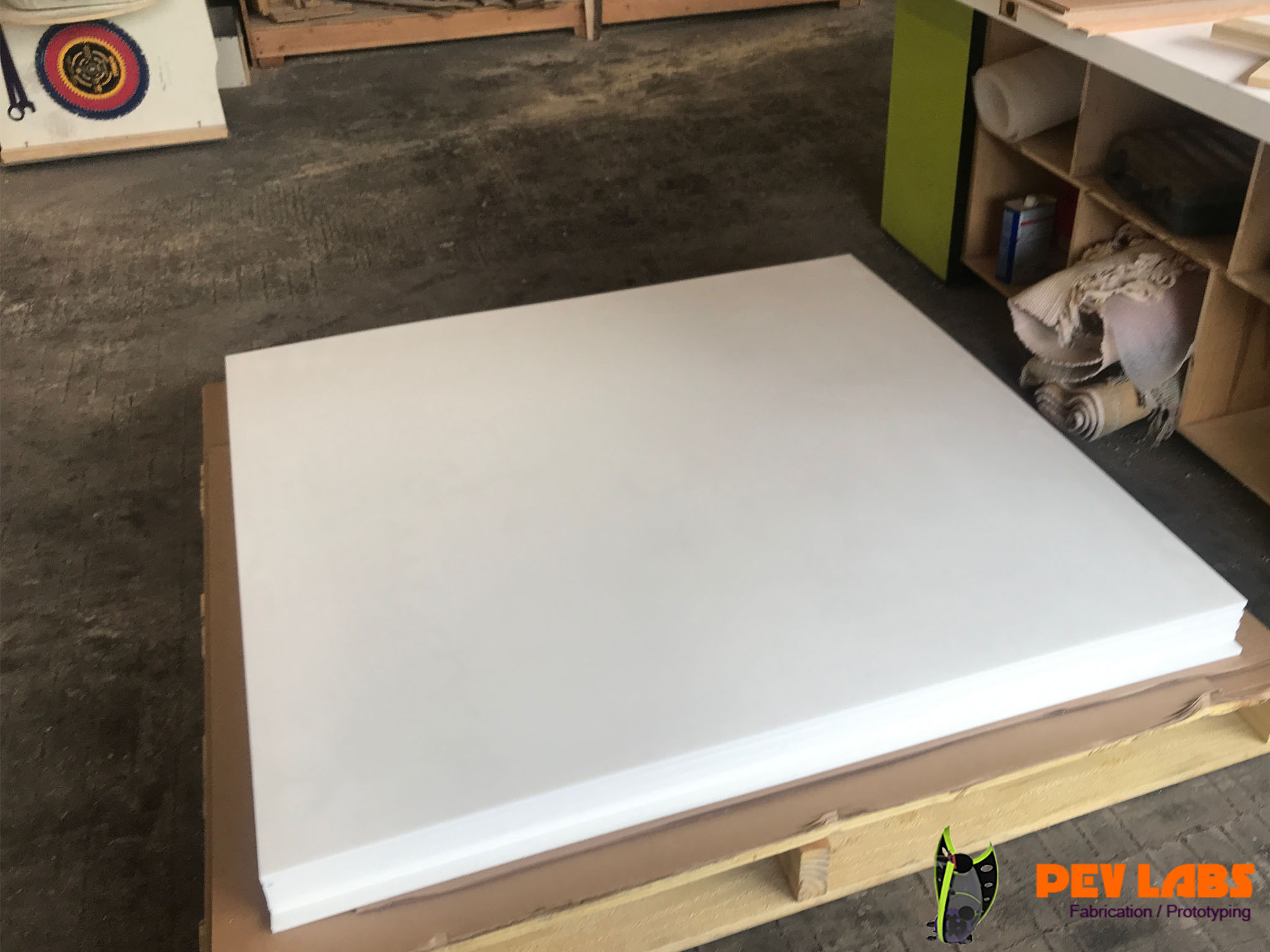

Pallet of HDPE
