Our high wattage laser project electronics and mechanical assembly has begun. We refer to this as mechatronics Base cabinet will house some of the electronics and cooling system for the laser chassis that will sit a top. The stepper motors, linear slides, belts and pulley systems will all be in the upper laser chassis. We have the lead screws loosely sitting in place so we can move them to fit obtainable close loop belt(s). The Z-Bed is will be autofocus. It is raised and lowered with a single NEMA-23 stepper motor. The X-axis slides on the aluminum extrusion V-slot though we are seriously thinking about upgrading that to linear slides. This is moved with two NEMA-17 stepper motors. The Y-Axis will be on a liner slide and is moved with a single NEMA-17 motor.
DIY Laser Engraver Project Main Page

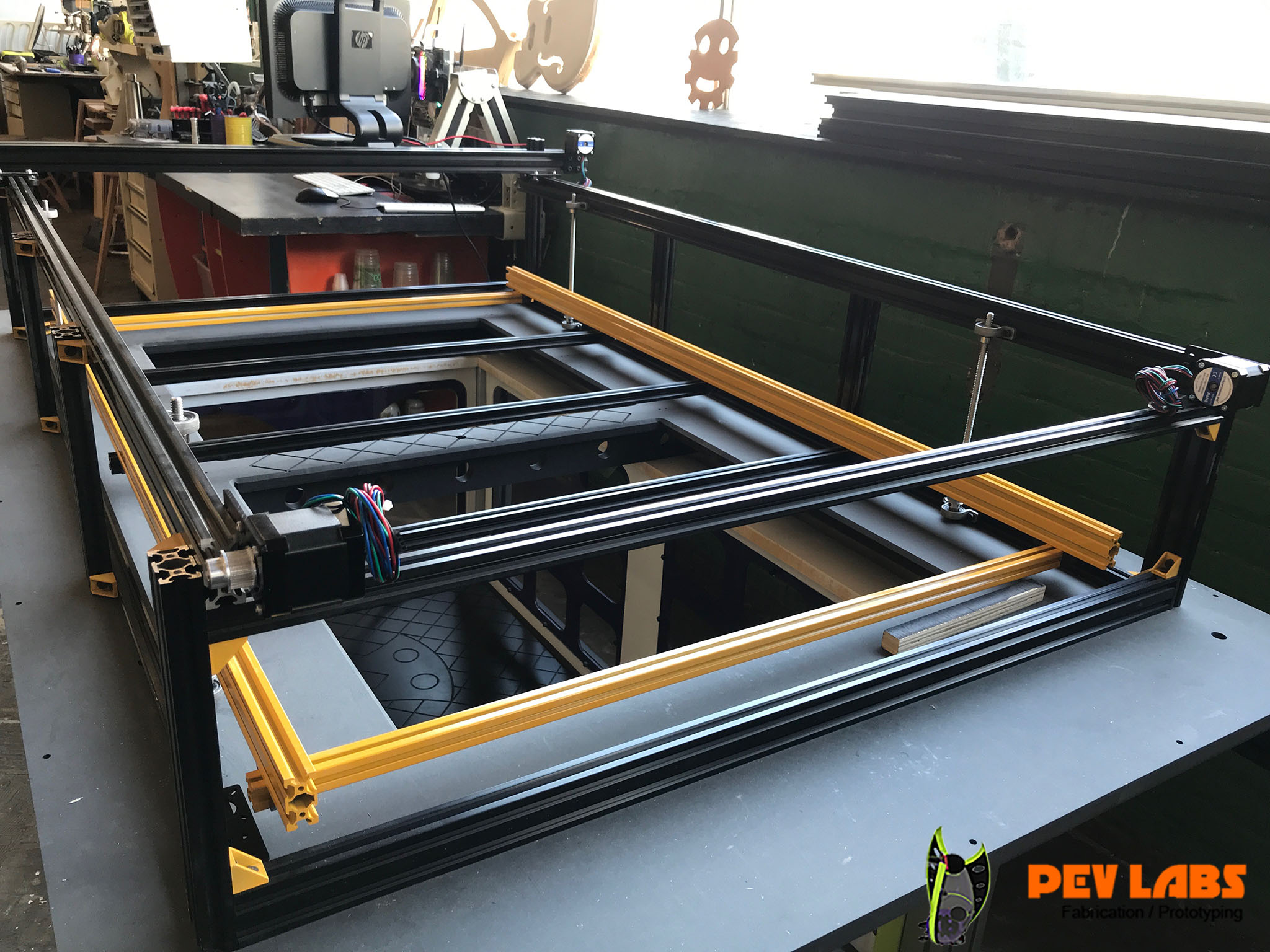

Laser Frame with Steppers Motors
Laser Frame with Steppers Motors
NEMA-17 Stepper Motors for - X Axis Travel
NEMA-17 Stepper Motors for - X Axis

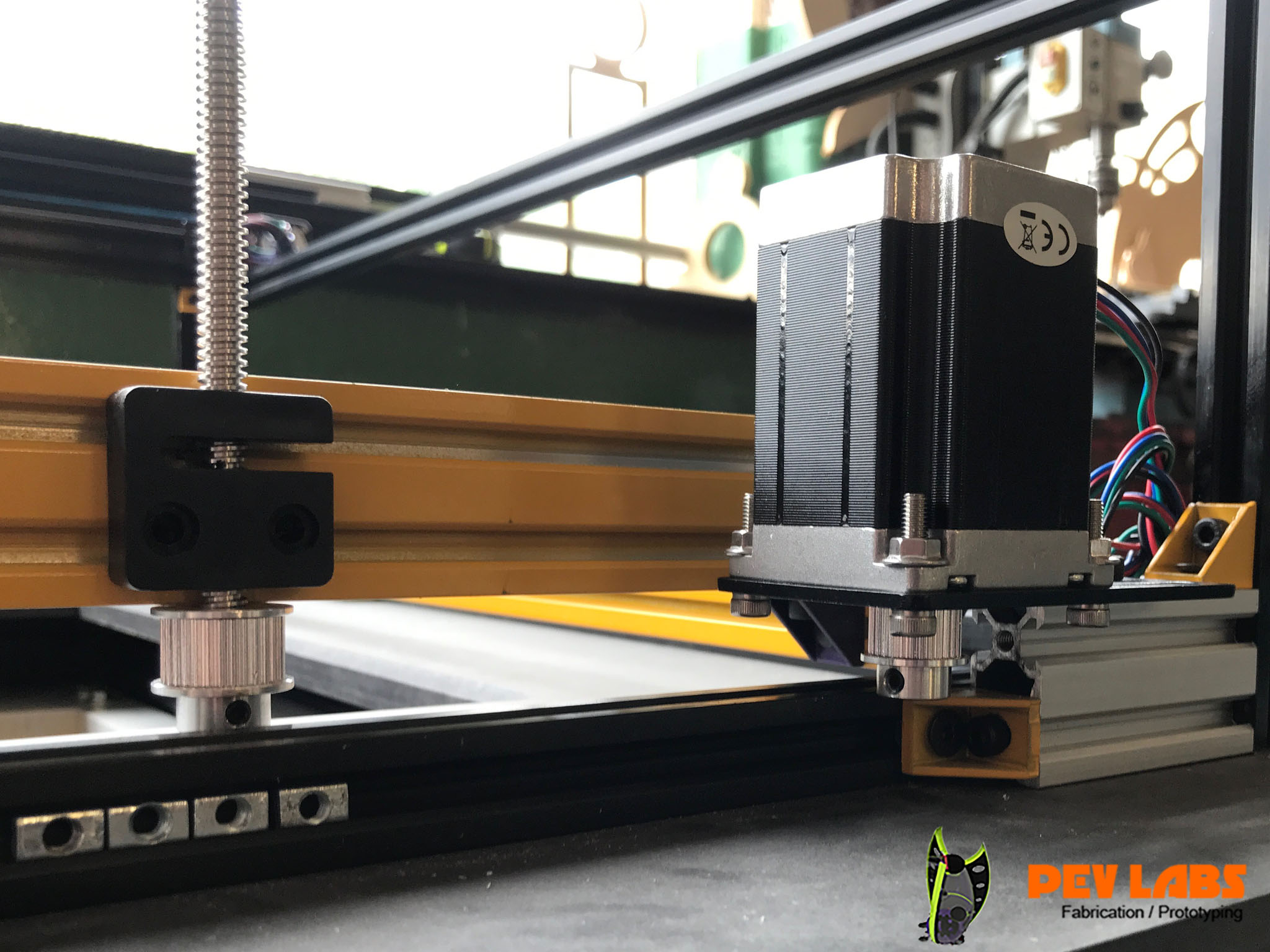

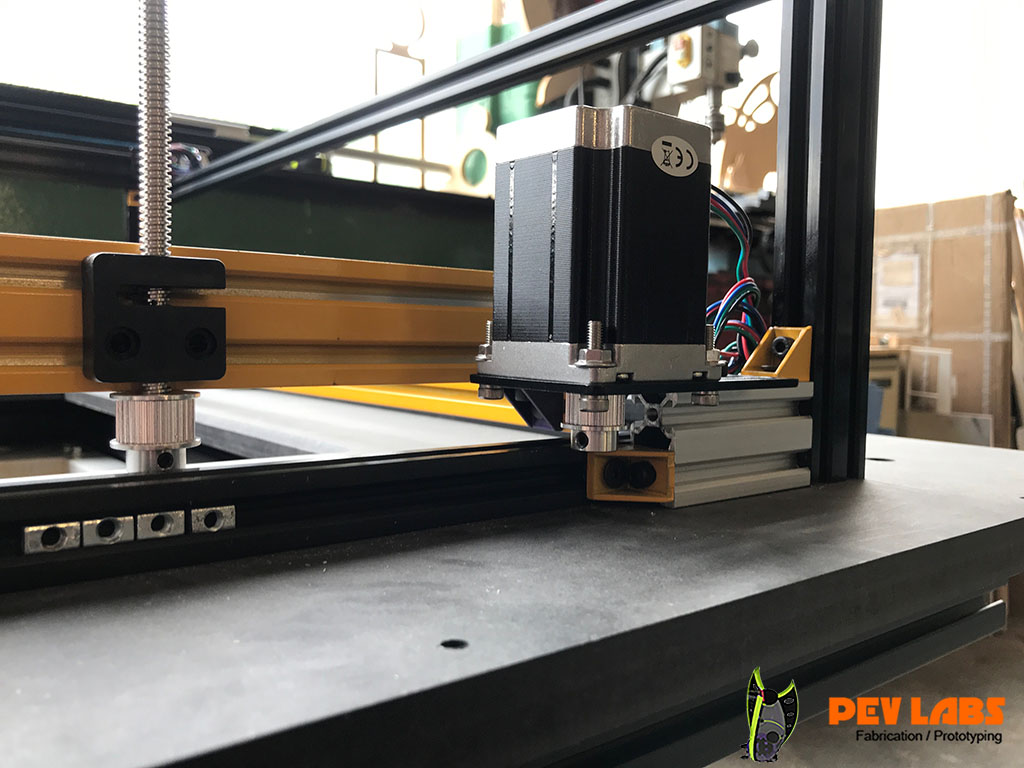

NEMA-23 Stepper Motor for Z-Bed Movement
NEMA-23 Stepper Motor for Z-Bed

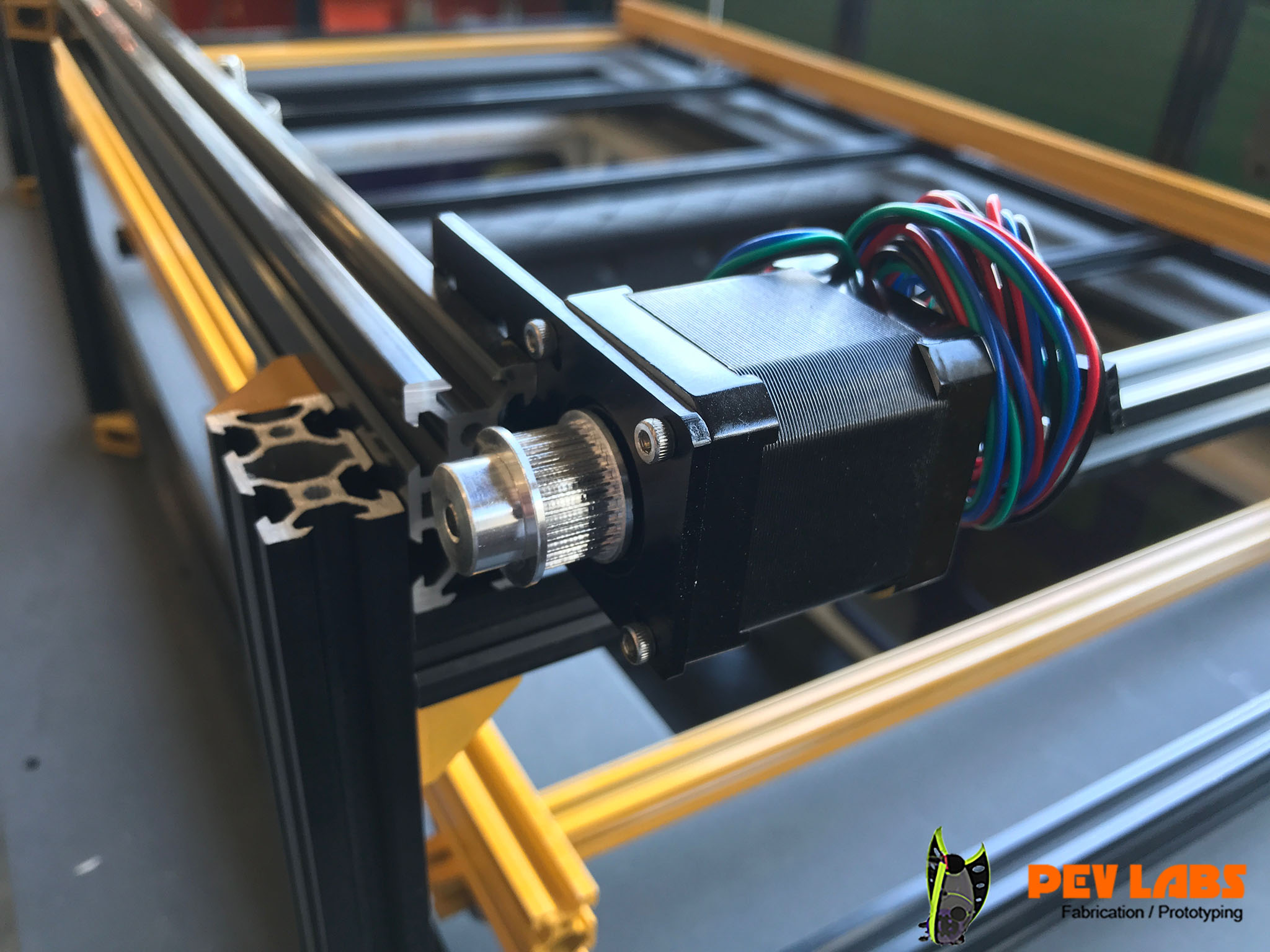

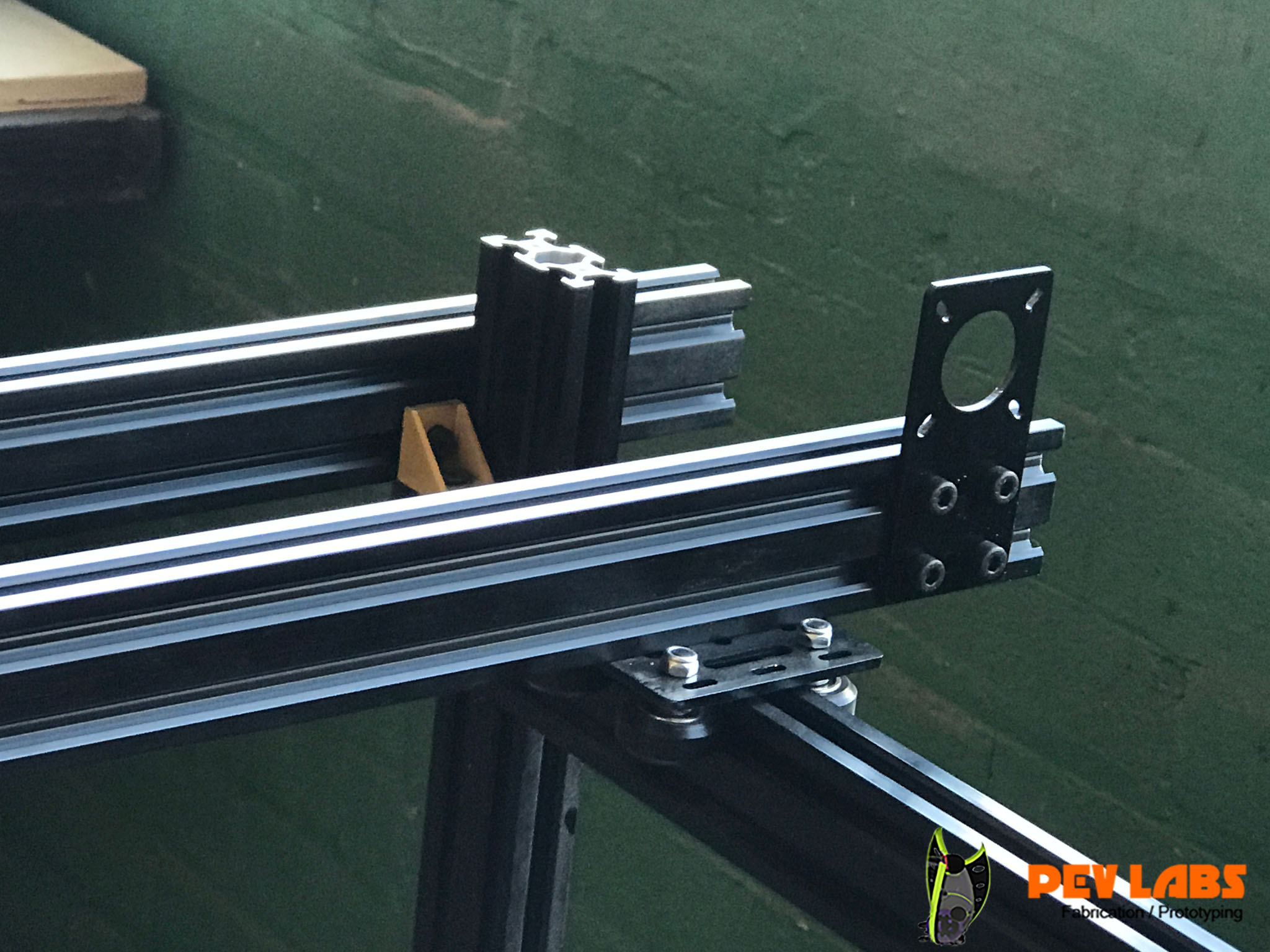

DIY co2 Laser Gantry Stepper Motor Mount
DIY Gantry Stepper Motor Mount

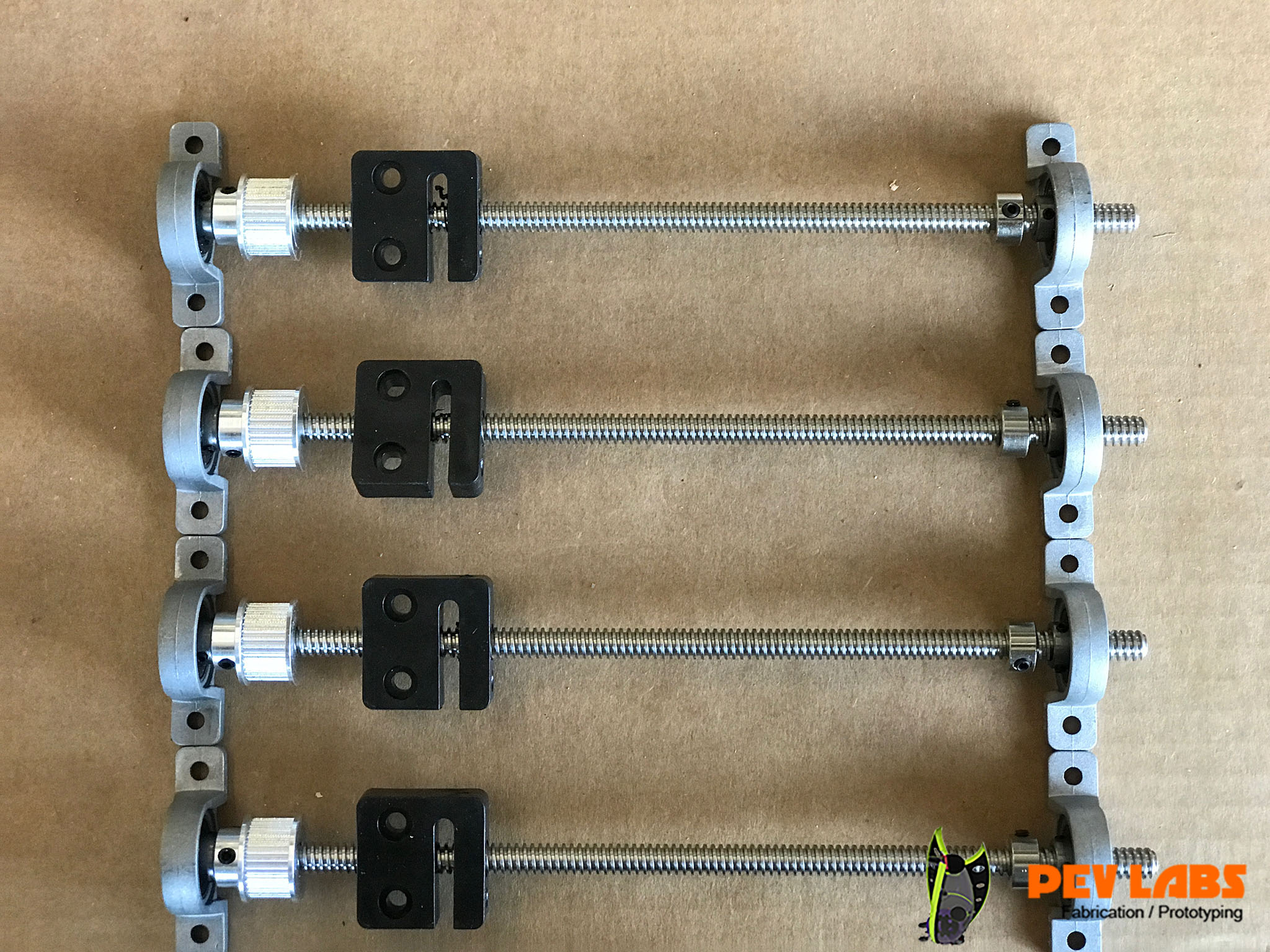

DIY Laser Lead Screw Assembly
DIY Laser Lead Screw Assembly

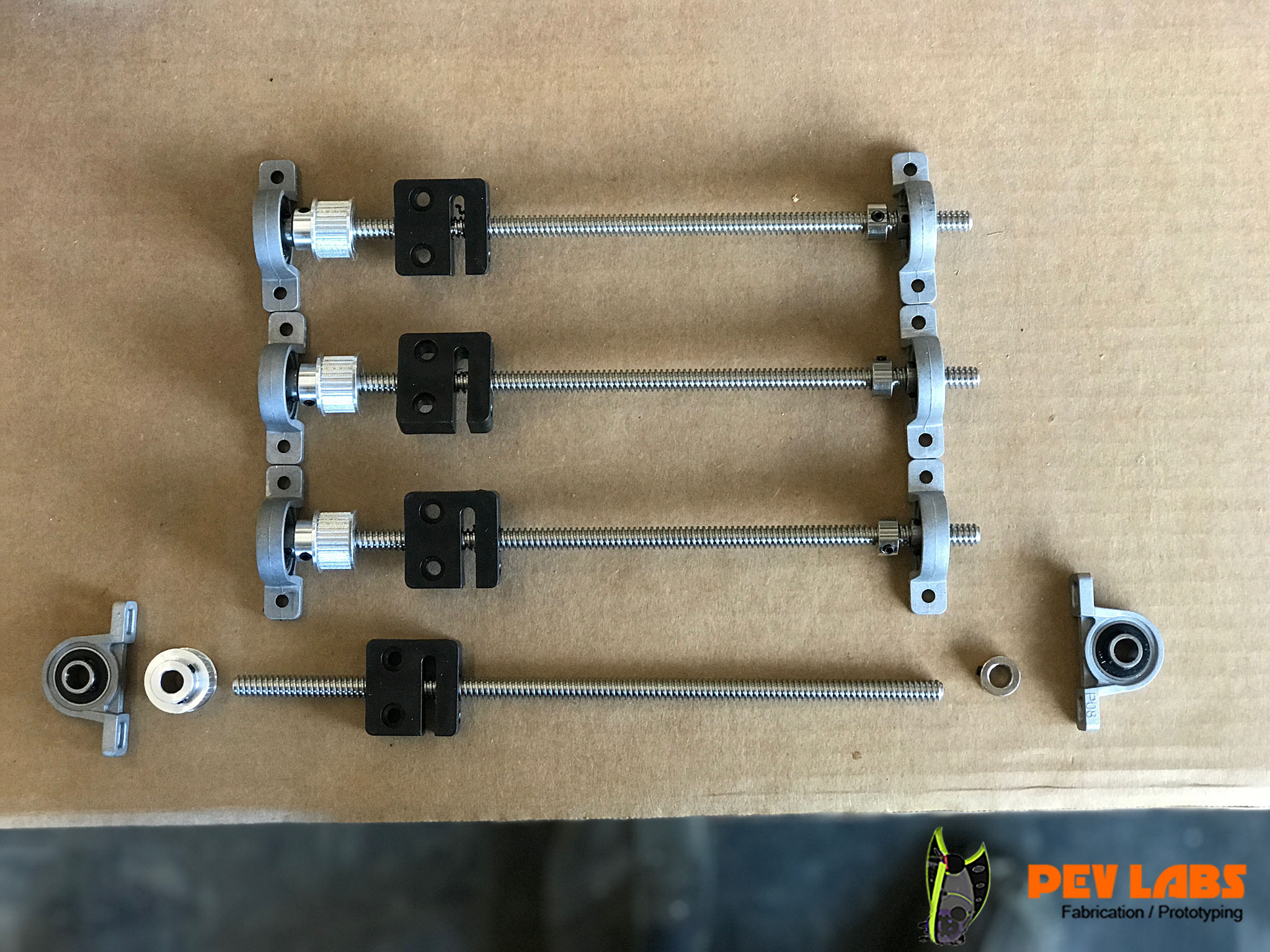

Pillow Block Toothed Pulley Leadscrew Nut Block Collar
Pillow Block Toothed Pulley Nut Block

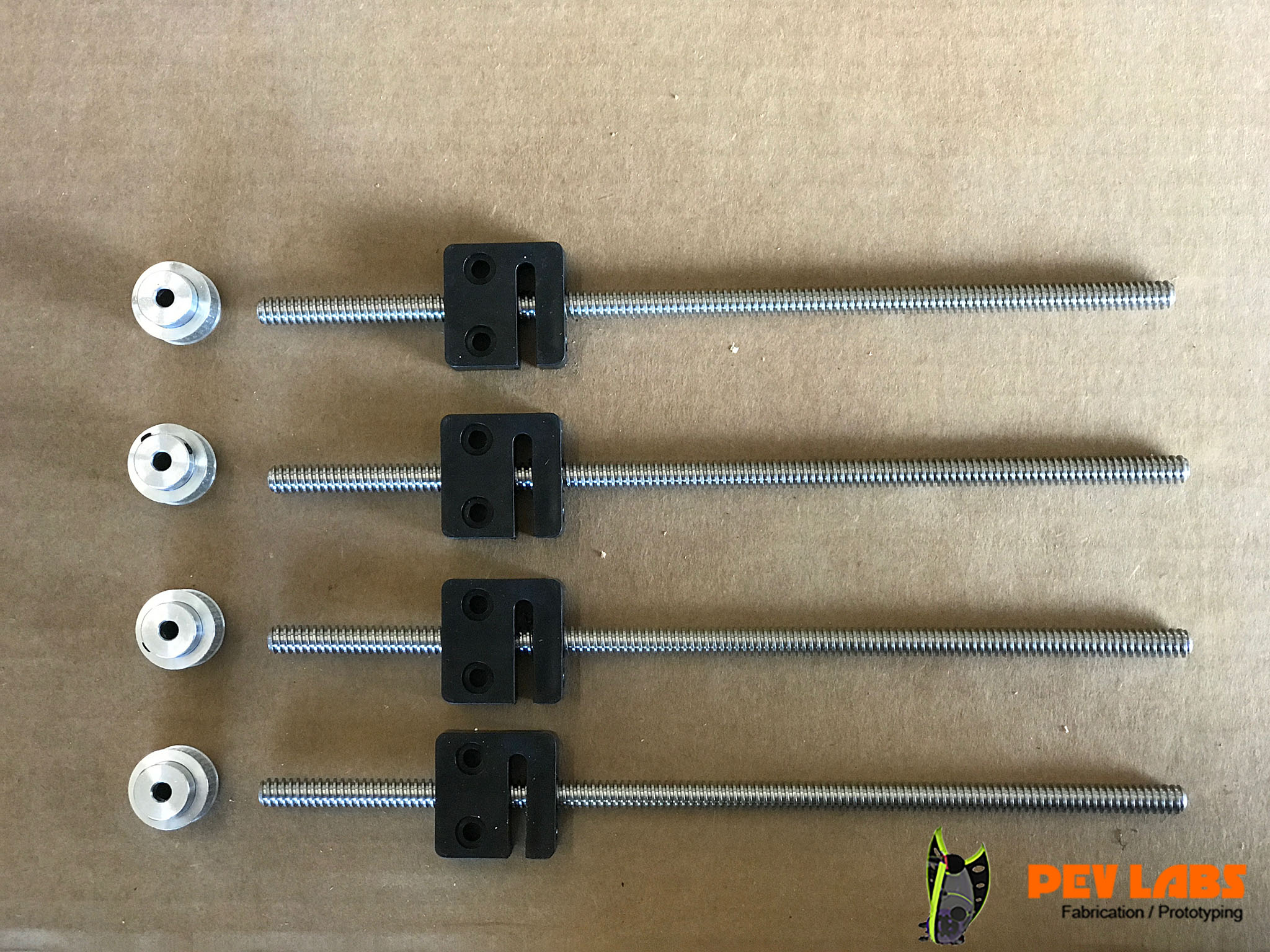

Toothed Pulley Leadscrew Nut Block
Toothed Pulley Leadscrew Nut Block

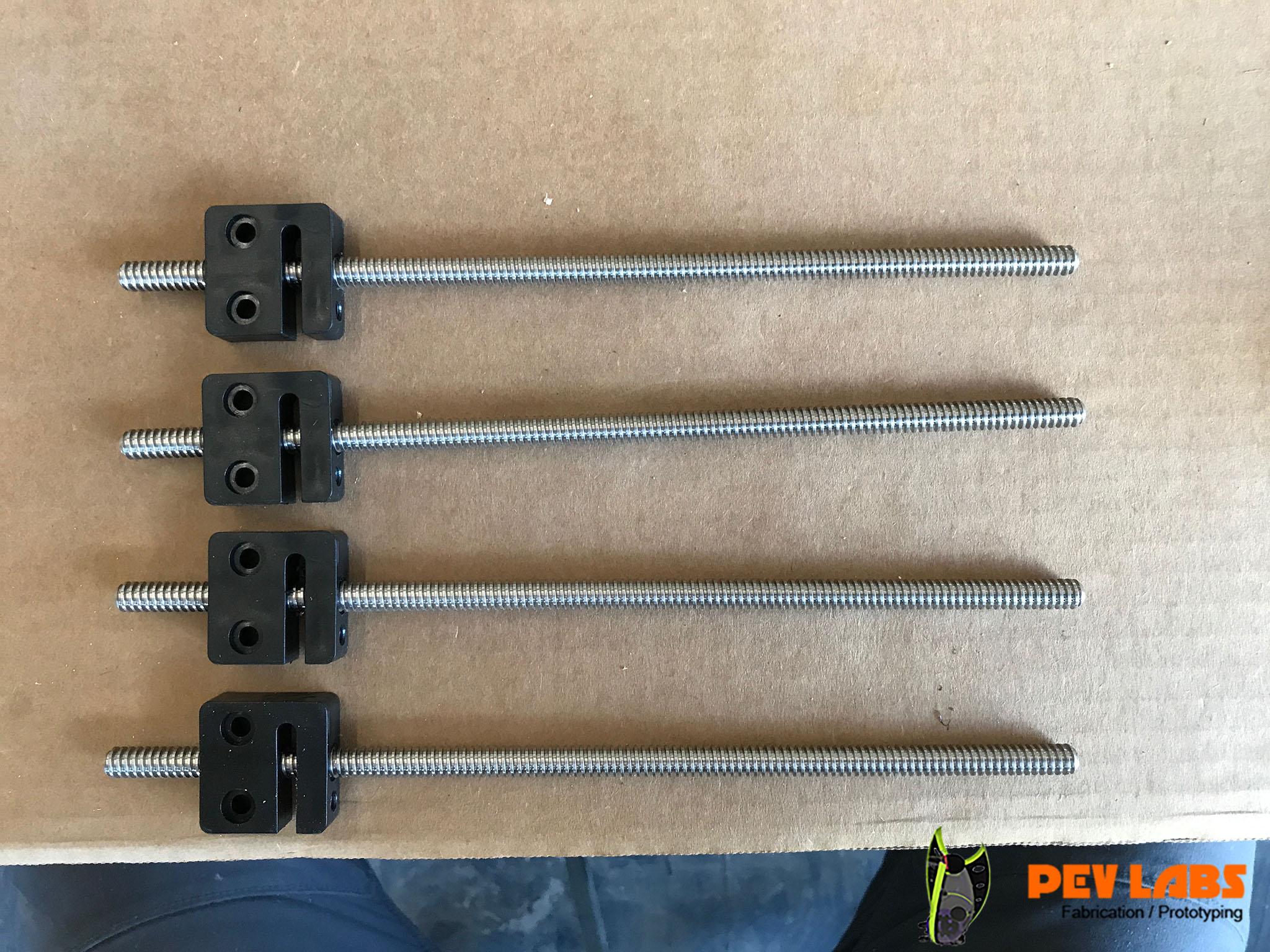

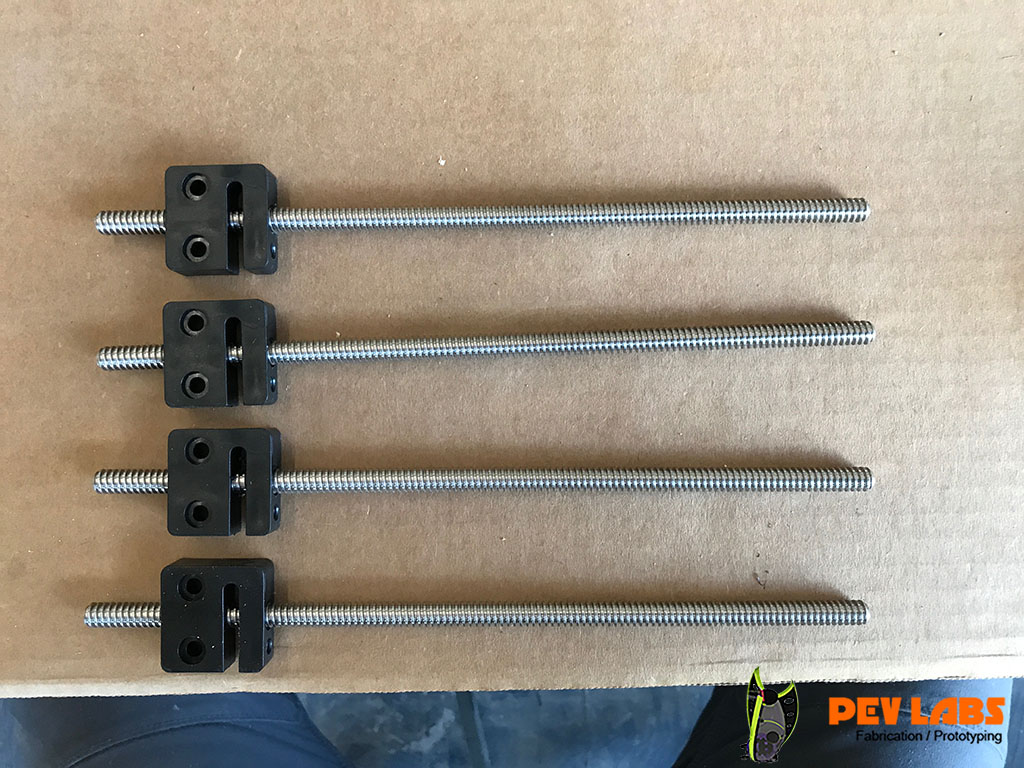

Lead Screw Nut and Block
Lead Screw Nut and Block

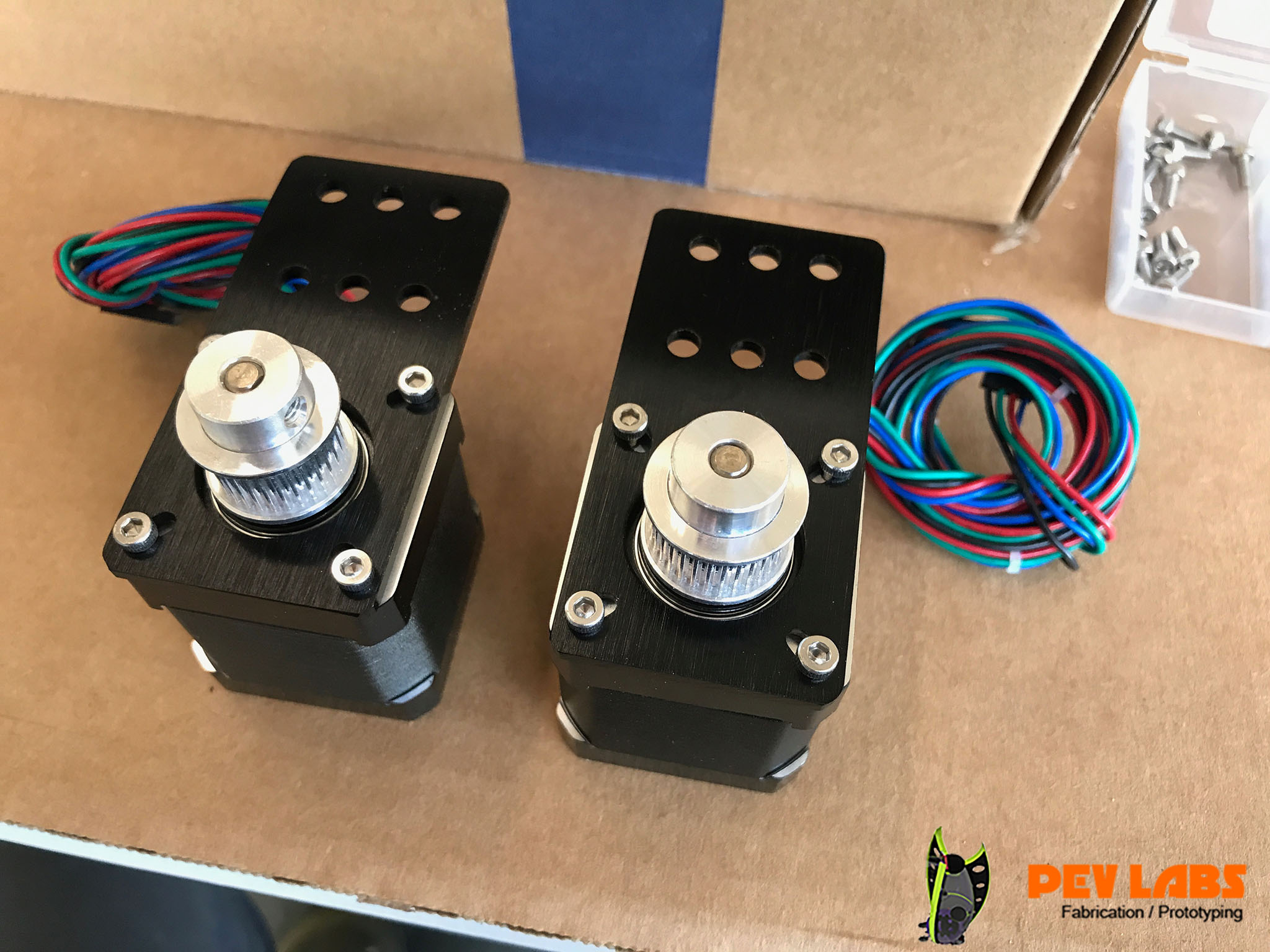

Nema 17 Stepper Motor Assemblies
Nema 17 Stepper Motor Assemblies

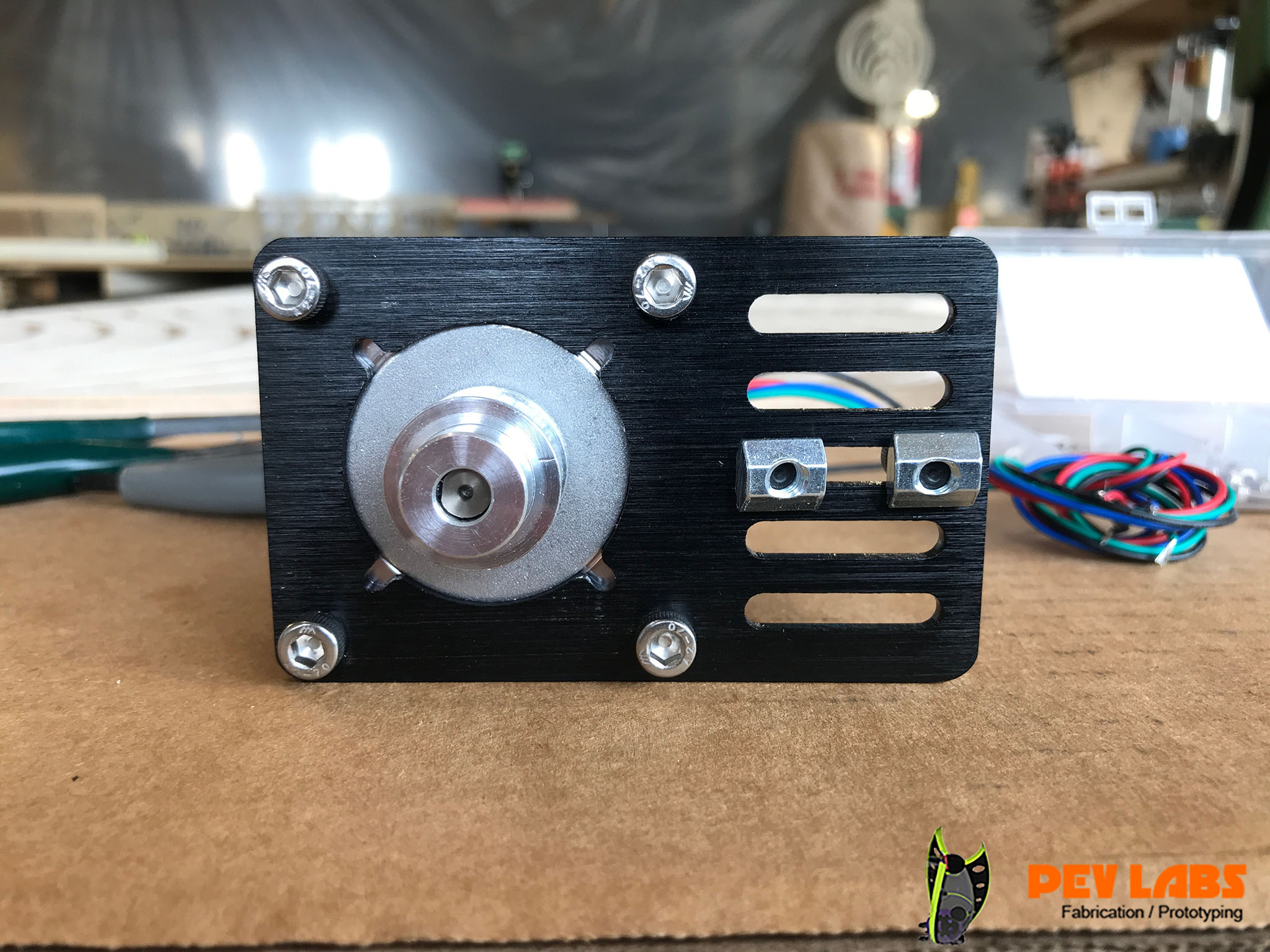

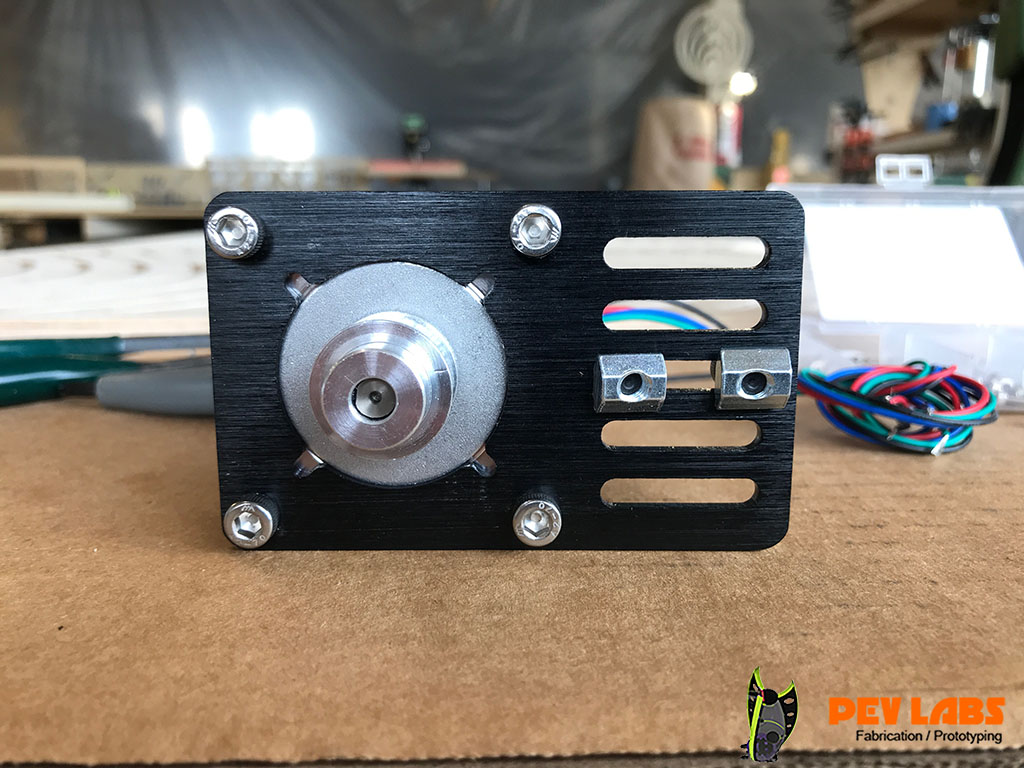

NEMA 23 Stepper Motor Assembly
NEMA 23 Stepper Motor Assembly
NEMA 17 Stepper Motor Kit
NEMA 17 Stepper Motor Kit

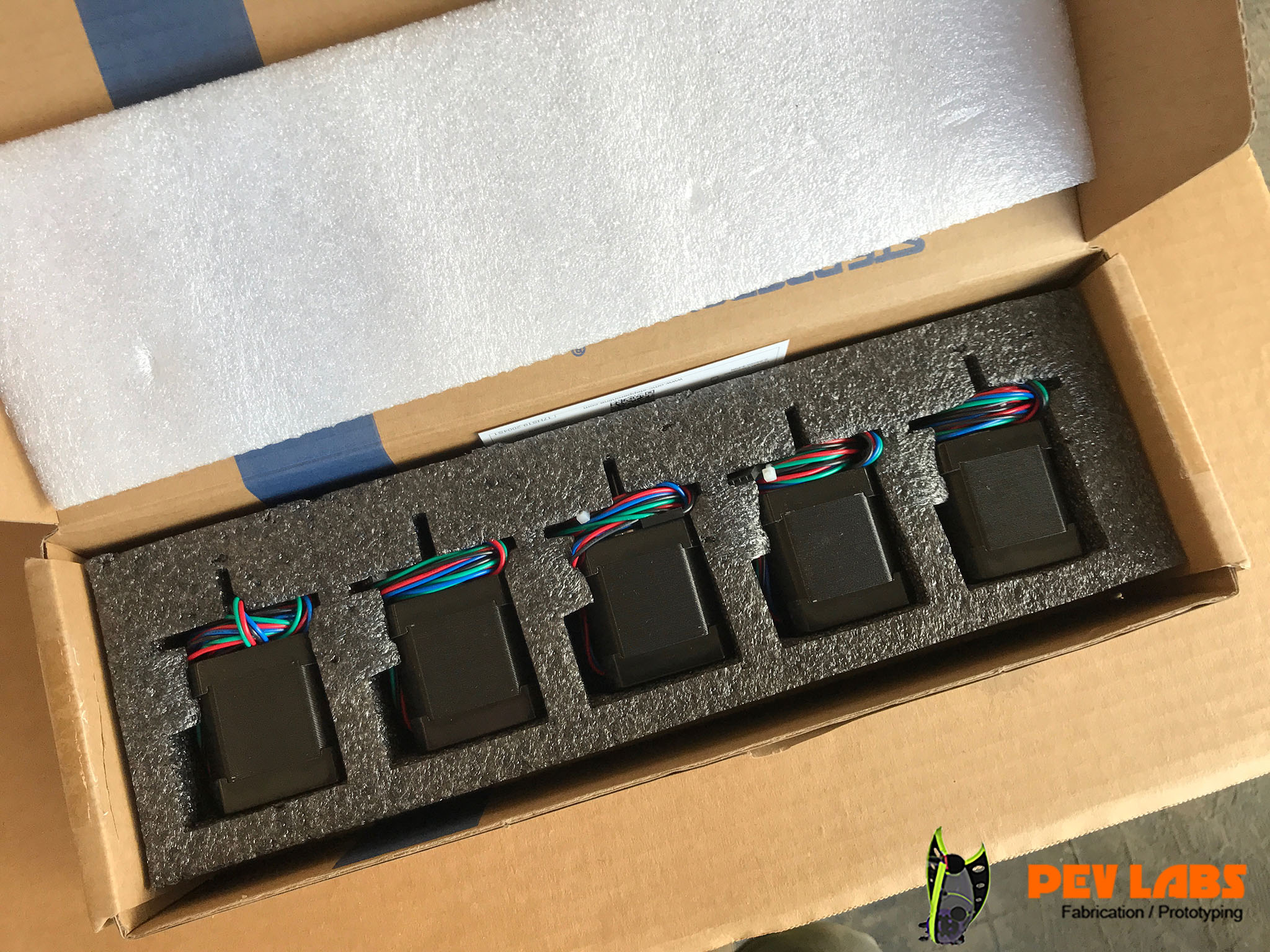

NEMA 17 Stepper Motor Array
NEMA 17 Stepper Motor Array
