DIY CO2 laser project chassis frame will operate as a 3-Axis system of XYZ. A fourth axis rotary will be added once the system is up and running. System includes an electronically controlled Z-Bed height with auto focus in the Ruida DSP controller. Laser chassis frame is made of extruded aluminum V-slot from openbuilds. This is a lighter duty extrusion compared to the aircraft grade T-slot we used for the base cabinet. Though the V-slot offers the ability to bypass linear bearings the only pace we use that feature is for the Y-Axis. We mostly chose this here for affordability and heaver stock was not needed. Currently was have the frame together with the lead screw assemblies attached. The Z-Bed is together and in some of the images. It however would not fit back down inside the frame as the lead screw pillow blocks are in the way. I will need to remove two top blocks to install the bed. What will happen in a few days. The base cabinet is complete other than the front doors which will happen much later as they will just be in the way currently.
DIY Laser Engraver Project Main Page

DIY Laser Lead Screws ready for Z-Bed Instal
DIY Laser Lead Screws ready for Z-Bed

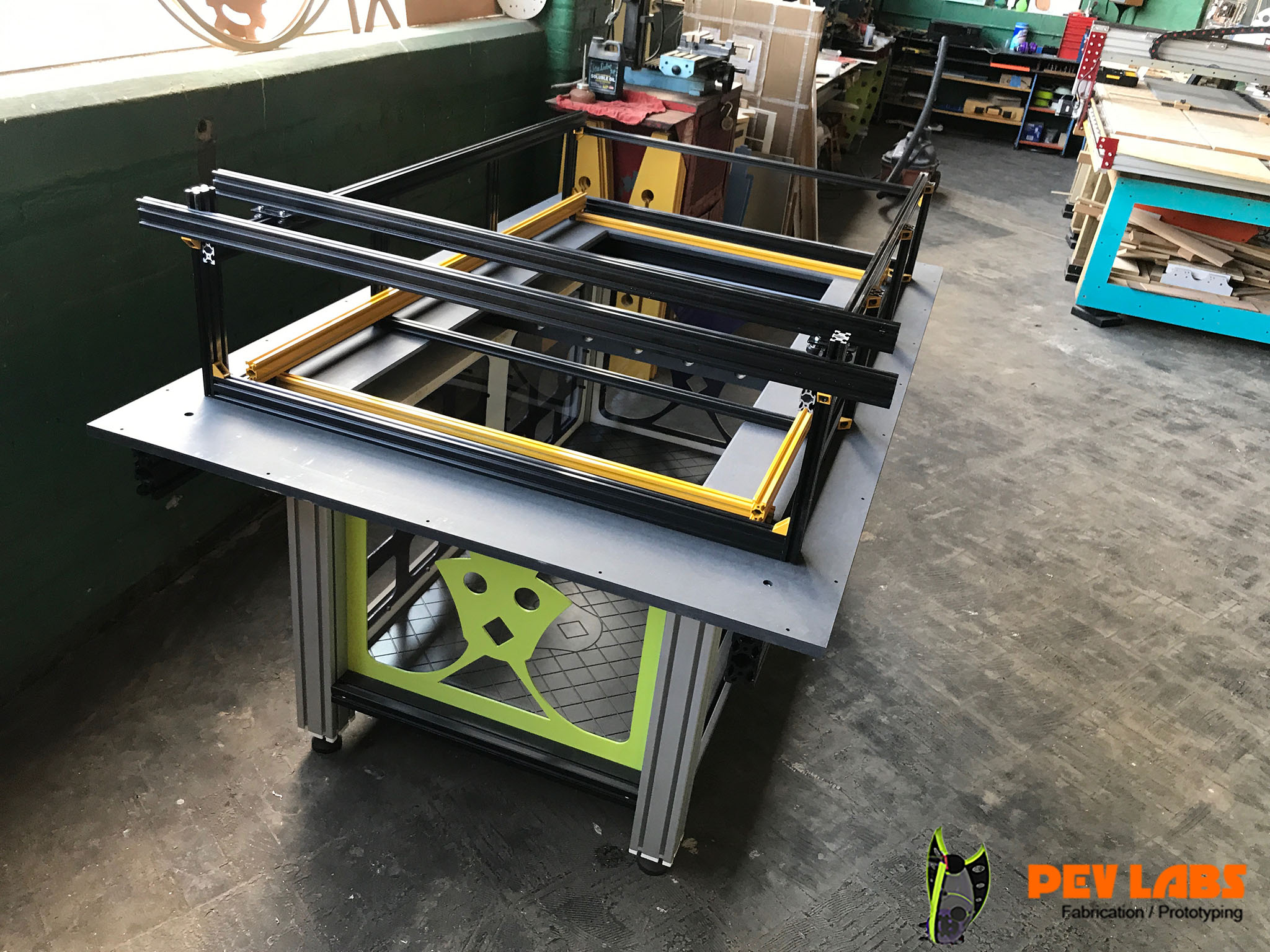

DIY Laser Frame on Base - Left Iso View
DIY Laser Frame on Base - Left Iso

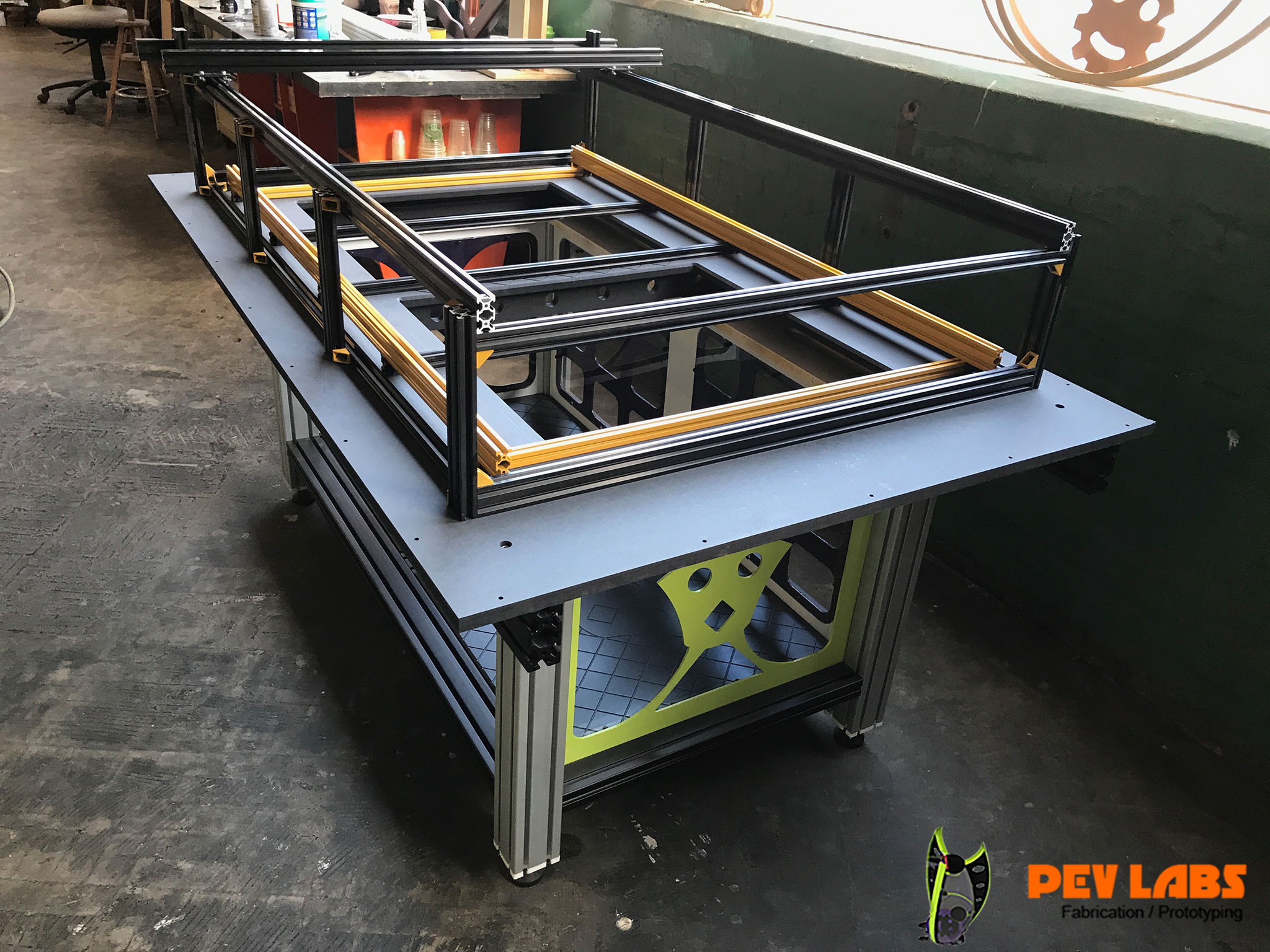

DIY Laser Frame on Base - Right Iso View
DIY Laser Frame on Base - Right Iso

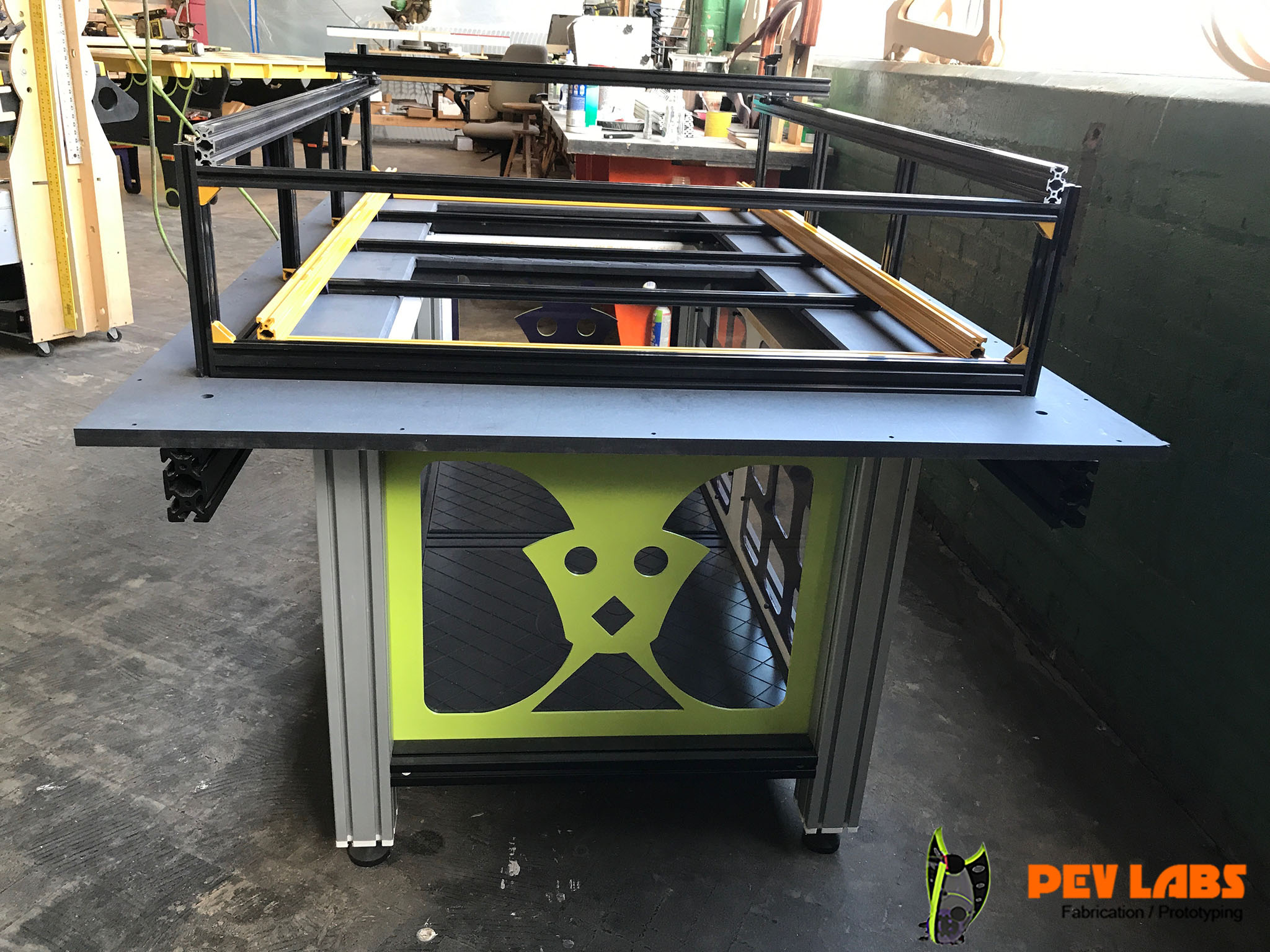

DIY Laser Frame on Base - End View
DIY Laser Frame on Base - End

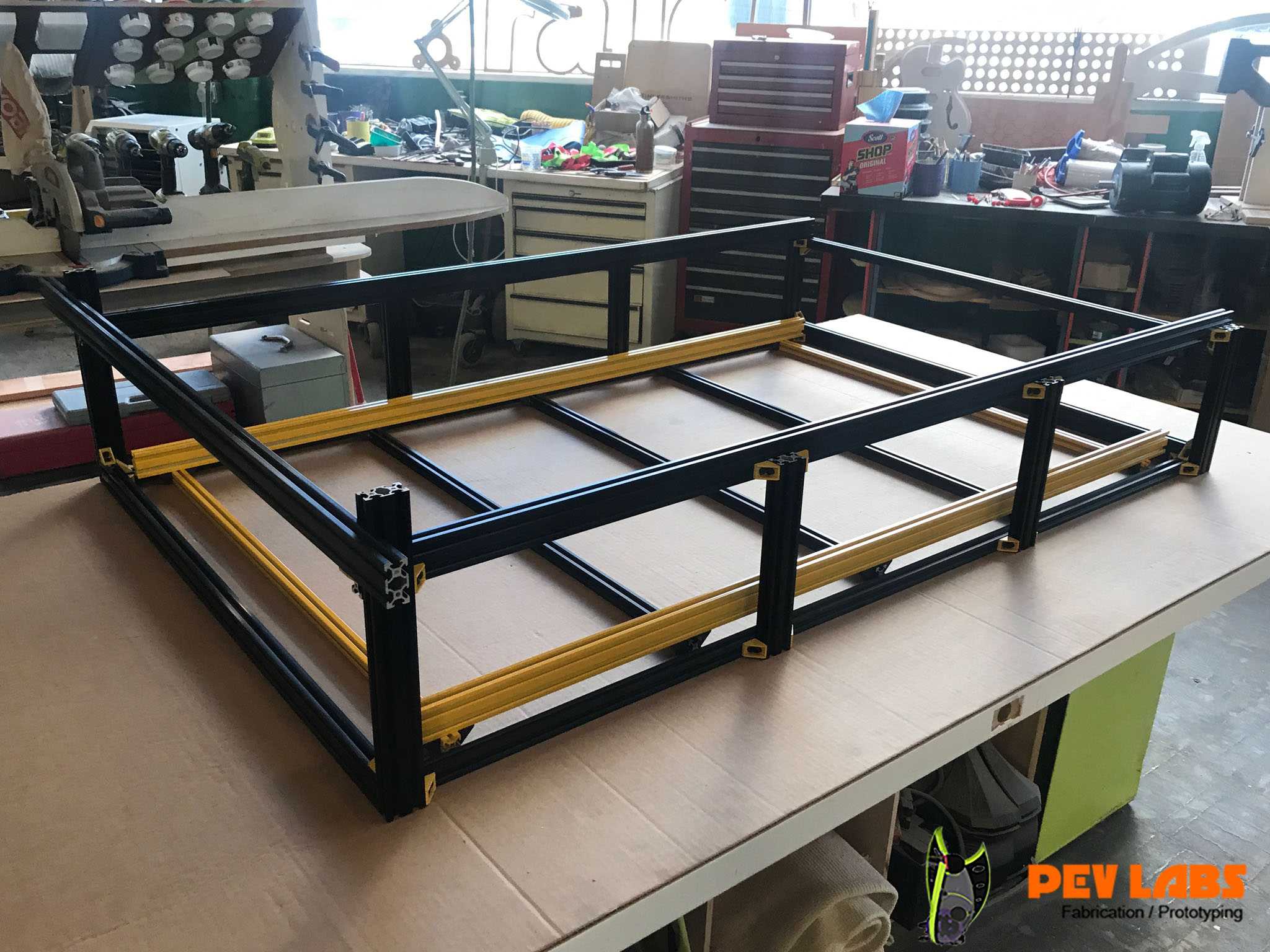

DIY Laser Frame Complete
DIY Laser Frame Complete

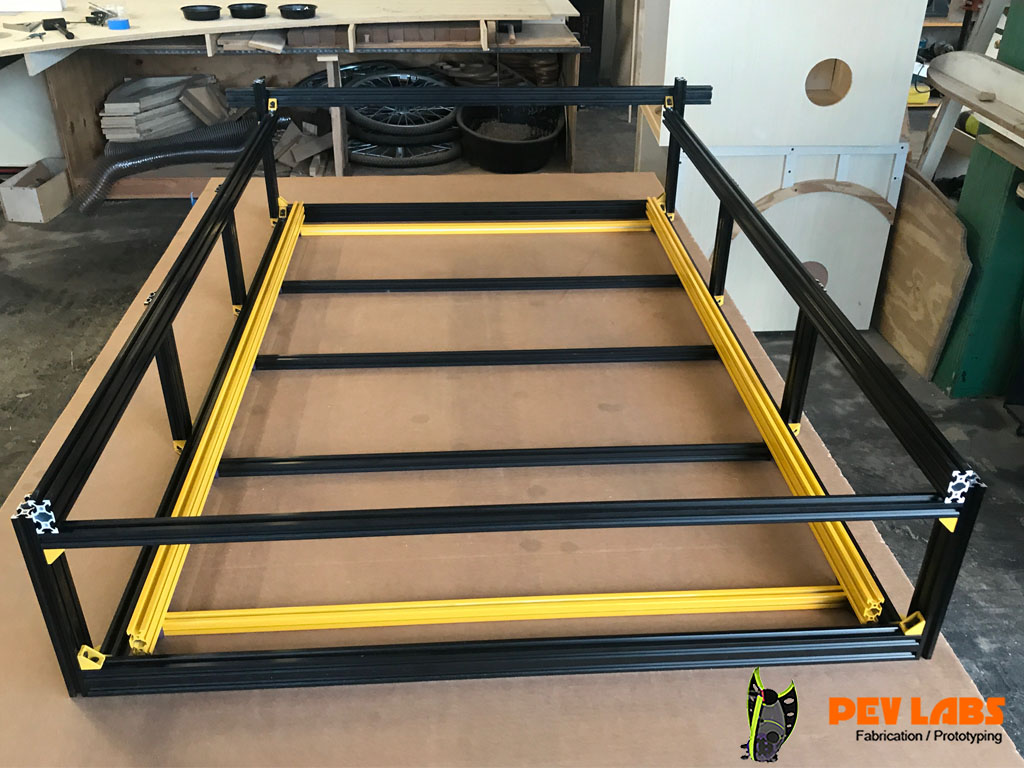

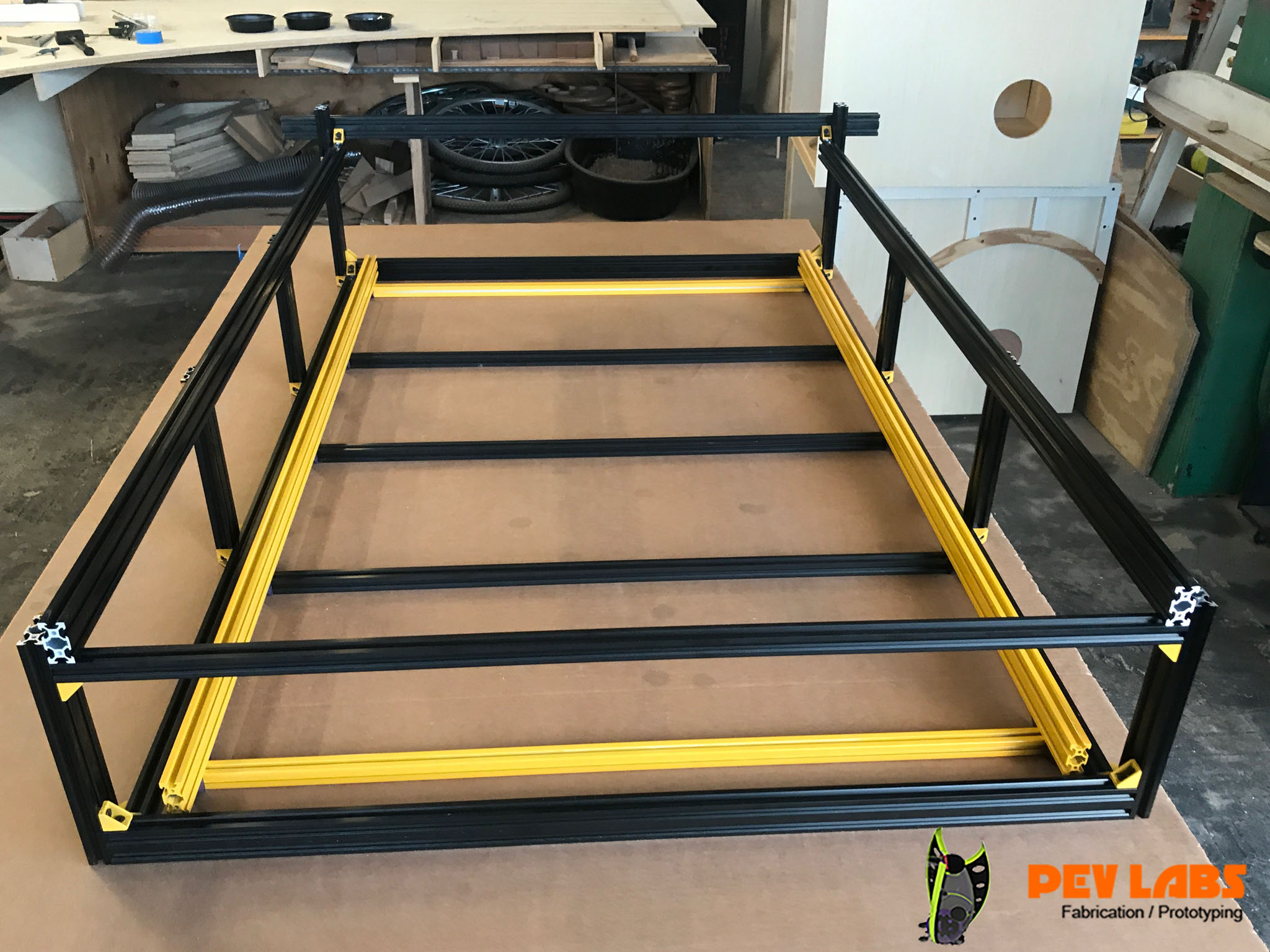

DIY Laser Frame and Z-bed
DIY Laser Frame and Z-bed

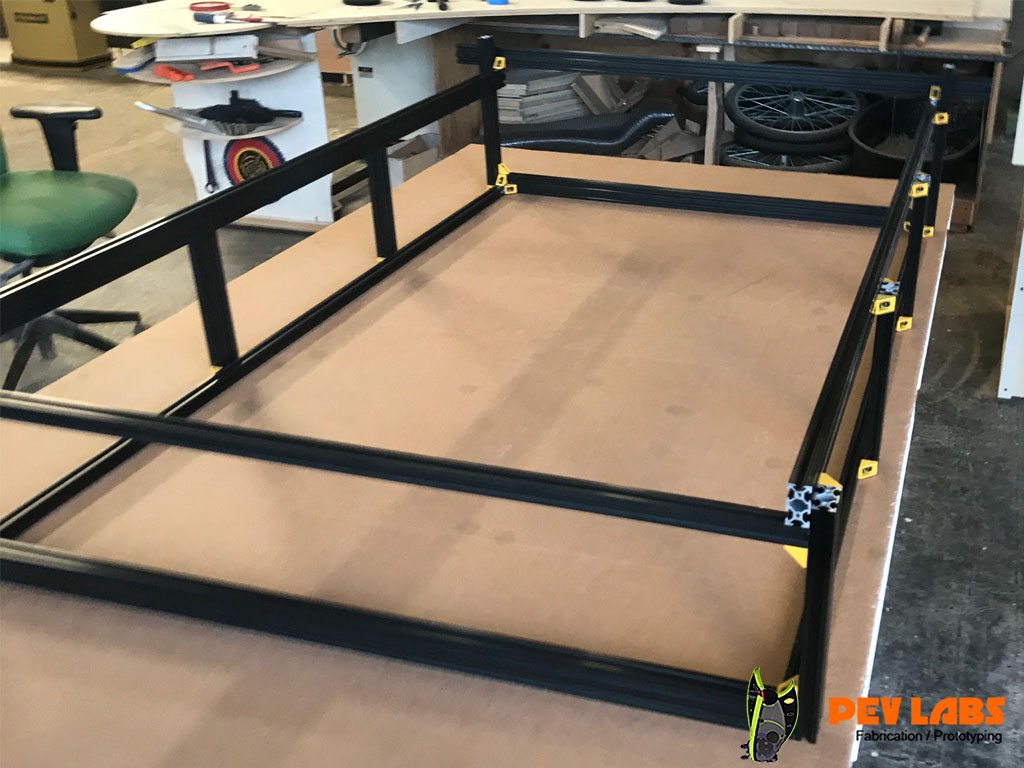

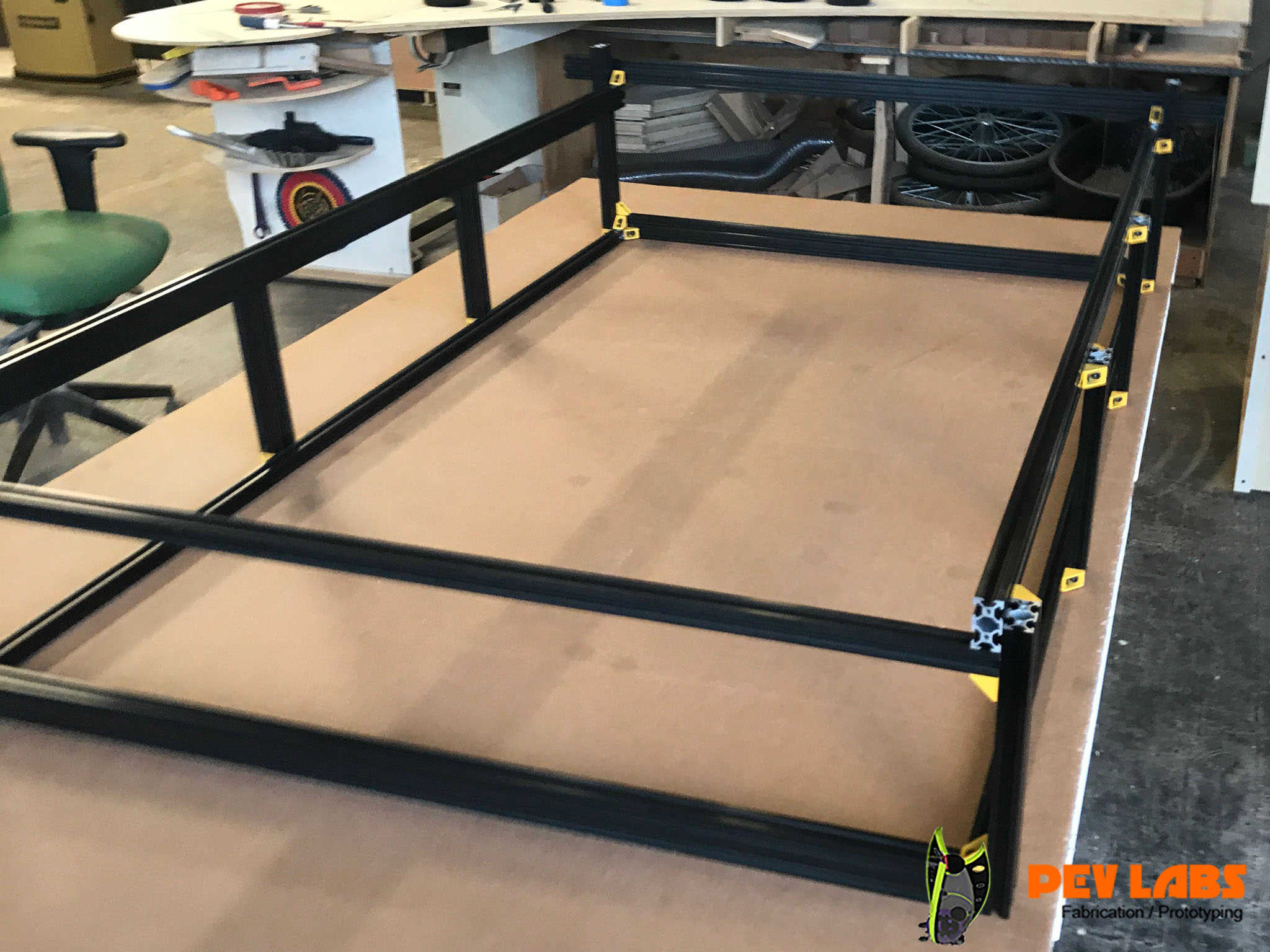

Painted Extrusion Connectors
Painted Extrusion Connectors

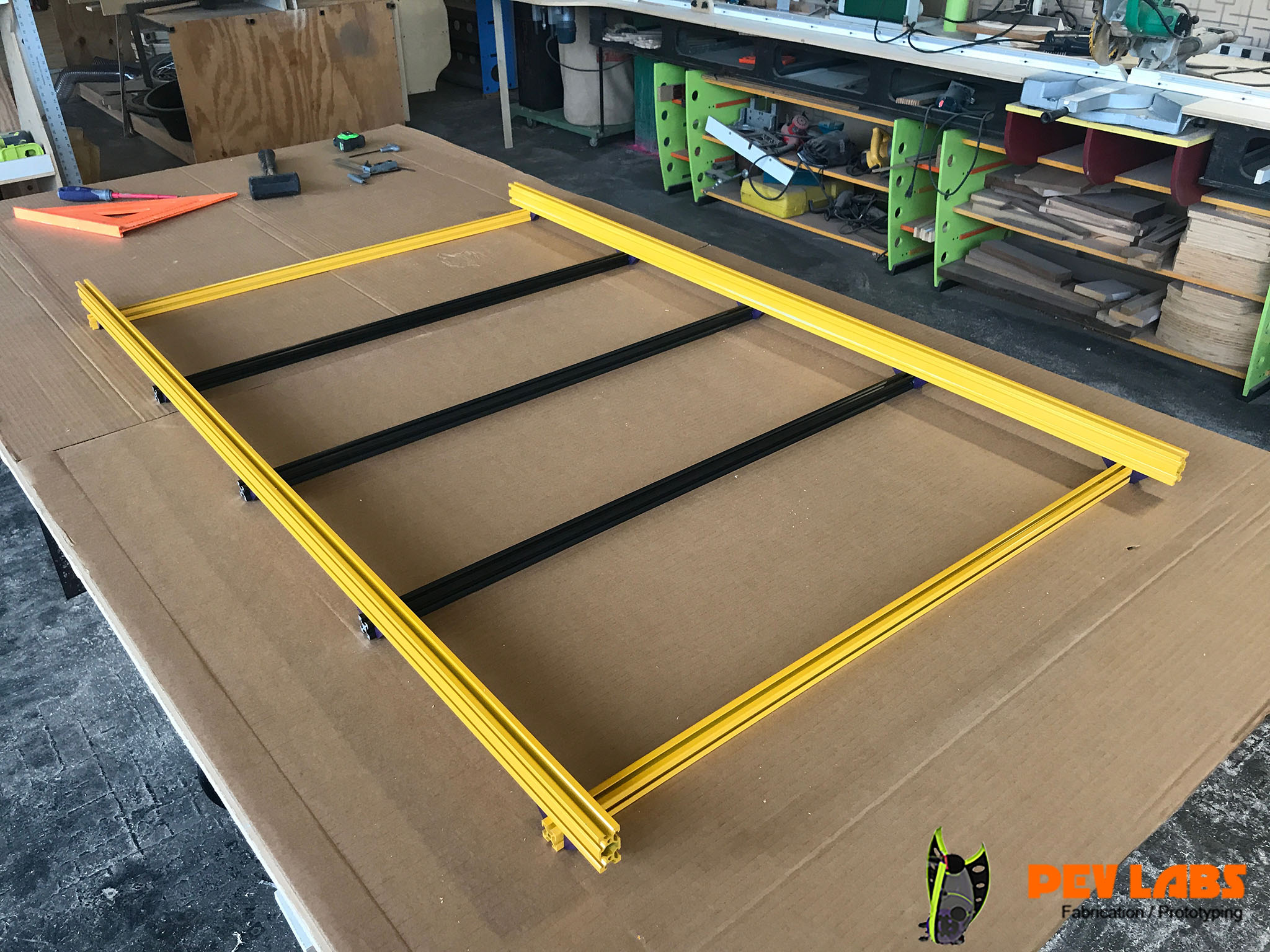

Laser Z-Bed Assmbly
Laser Z-Bed Assmbly

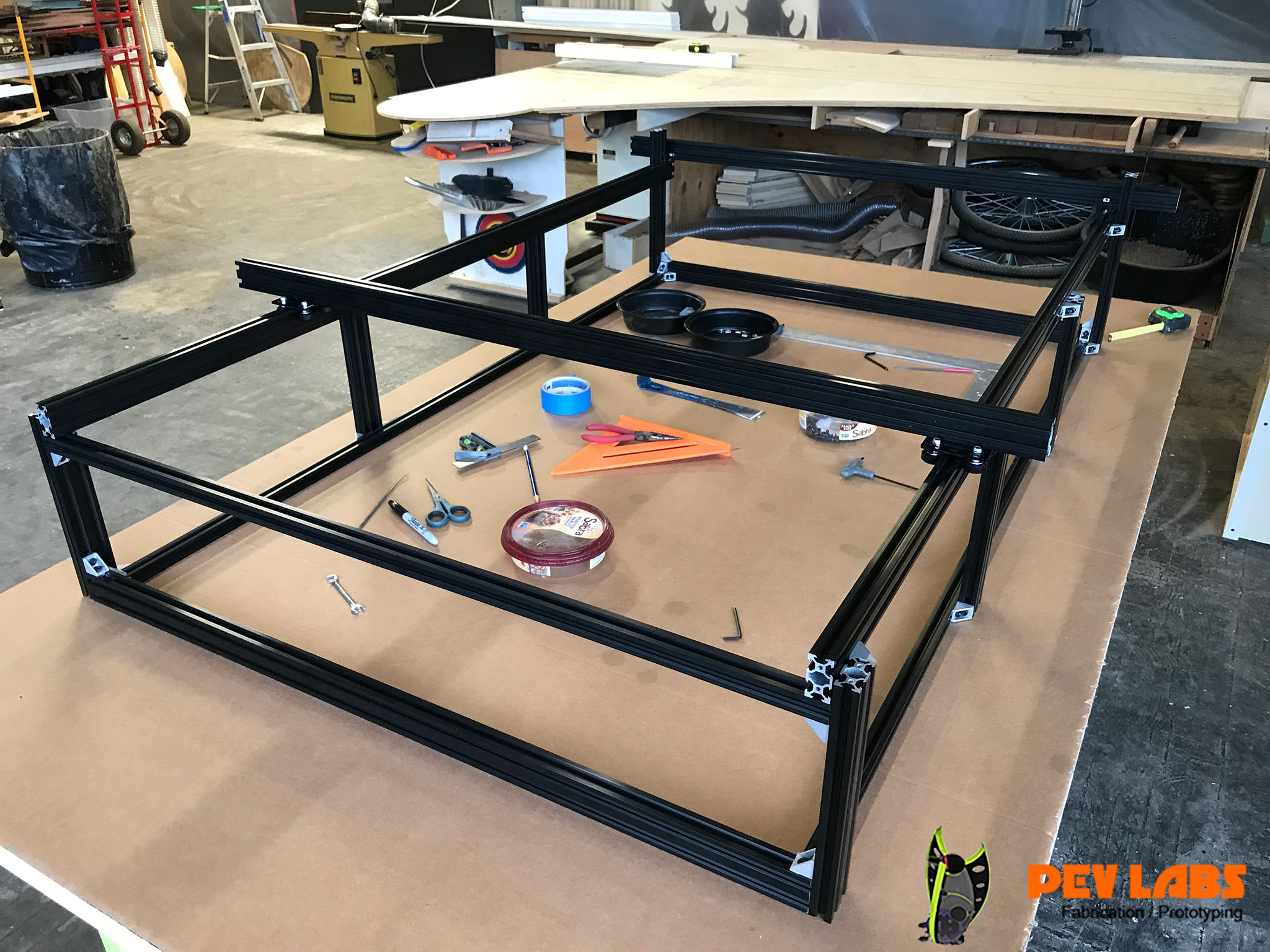

Laser Frame Adding X-Axis
Laser Frame Adding X-Axis

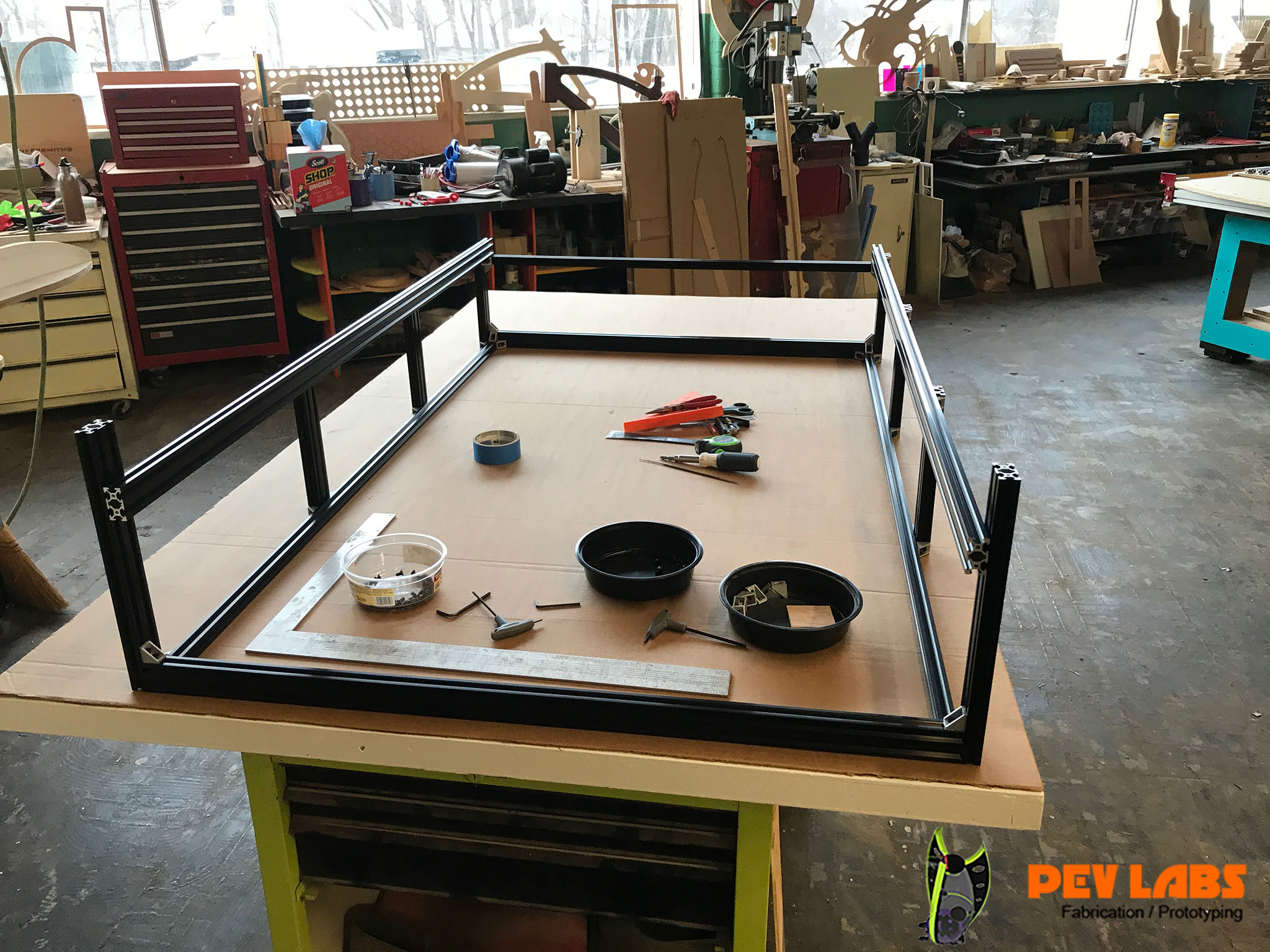

Laser Frame V-Slot Assembly
Laser Frame V-Slot Assembly

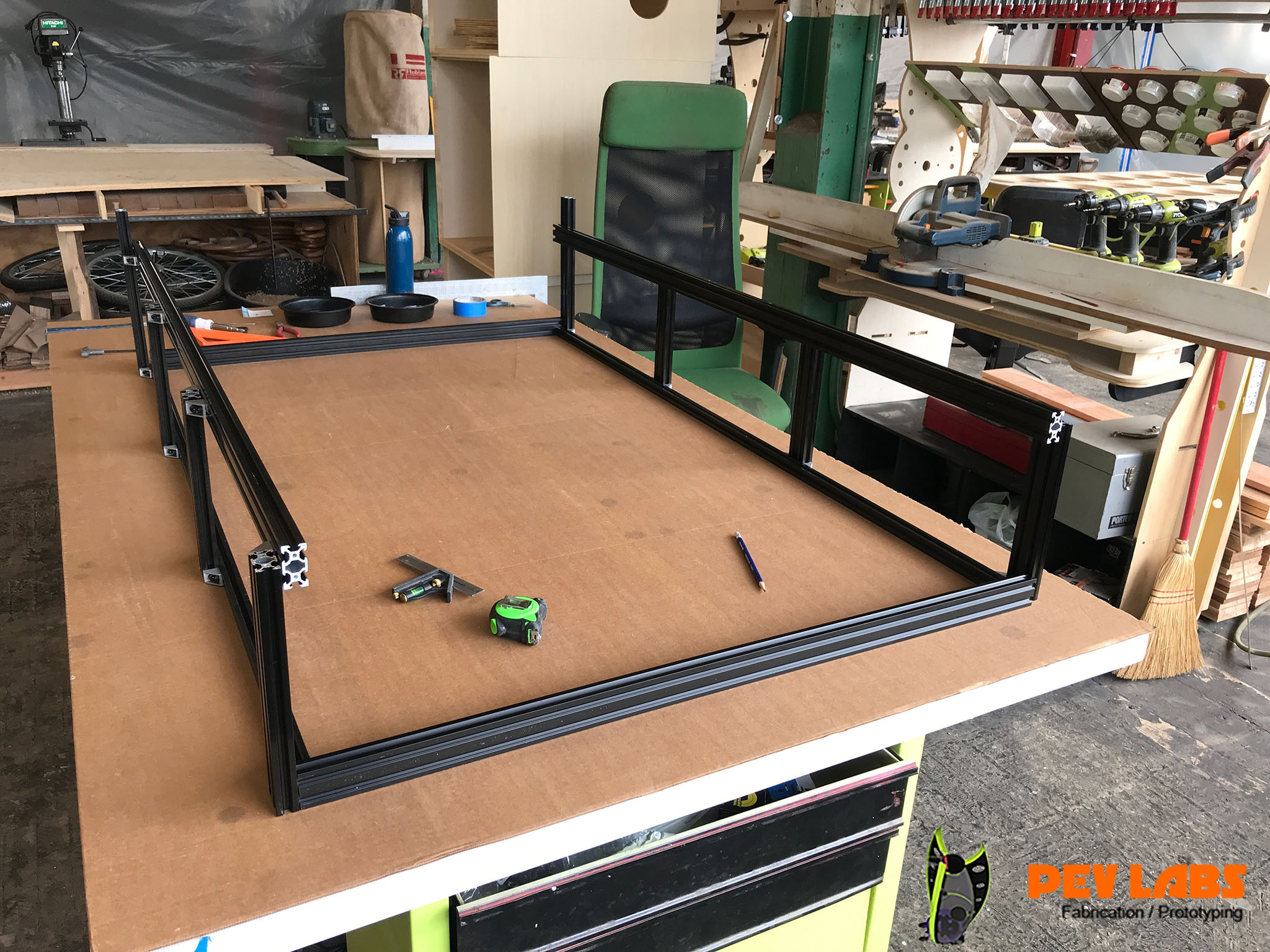

Laser Frame Connecting Front and Rear
Frame Connecting Front and Rear

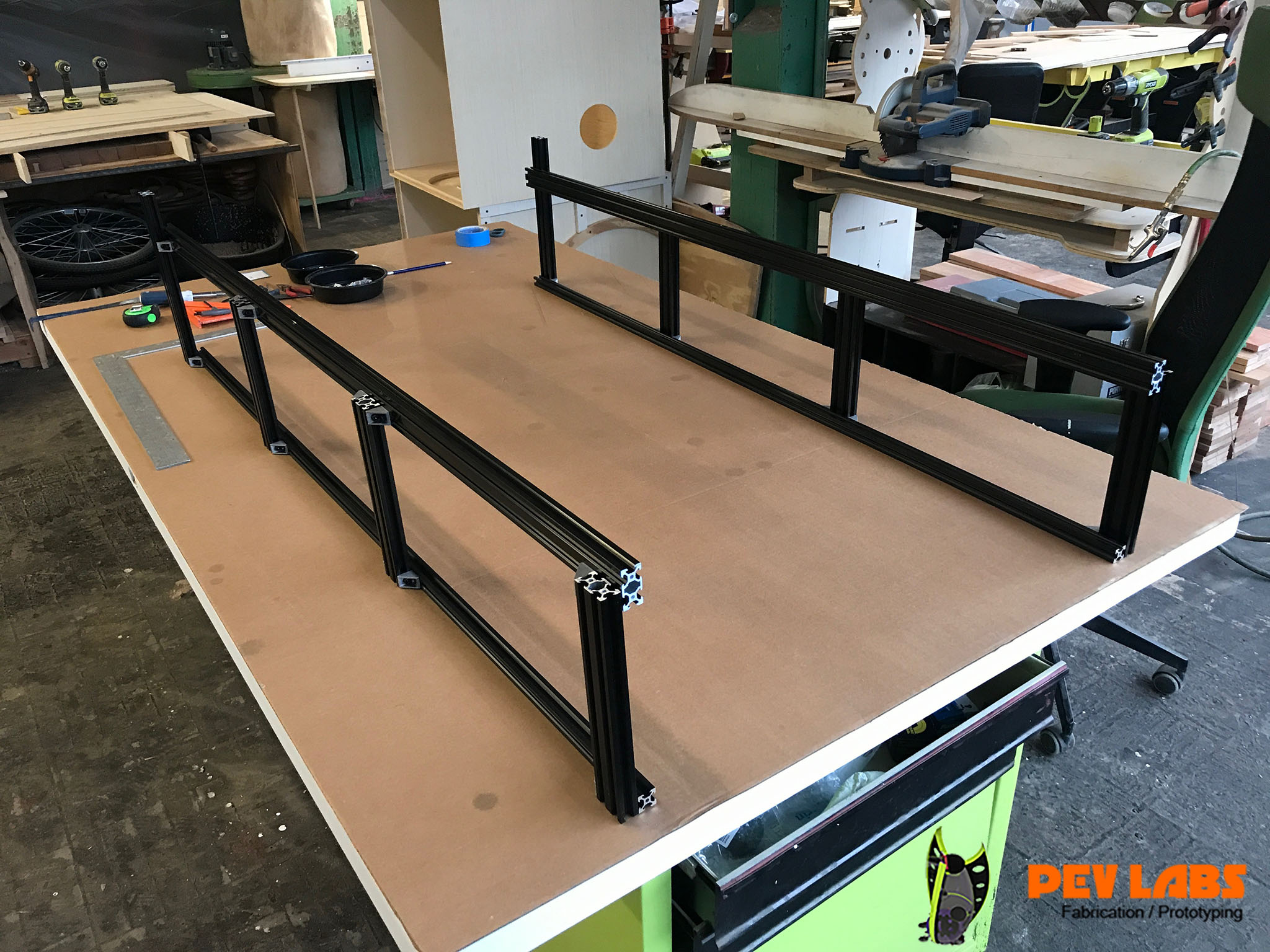

Laser Frame Front and Rear Assembly
Laser Frame Front and Rear Assembly

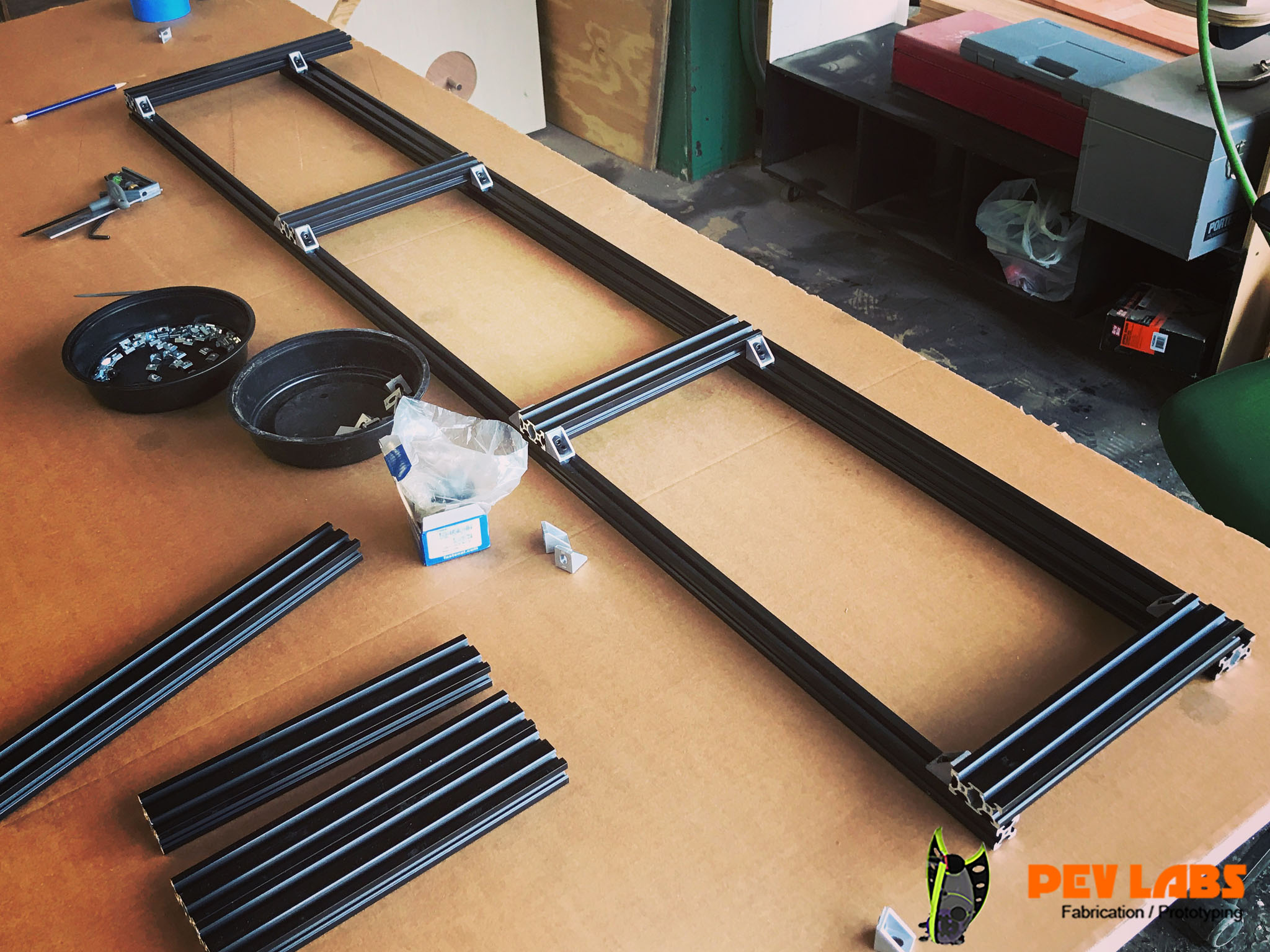

V-Slot Extruded Aluminum Assembly
V-Slot Extruded Aluminum Assembly

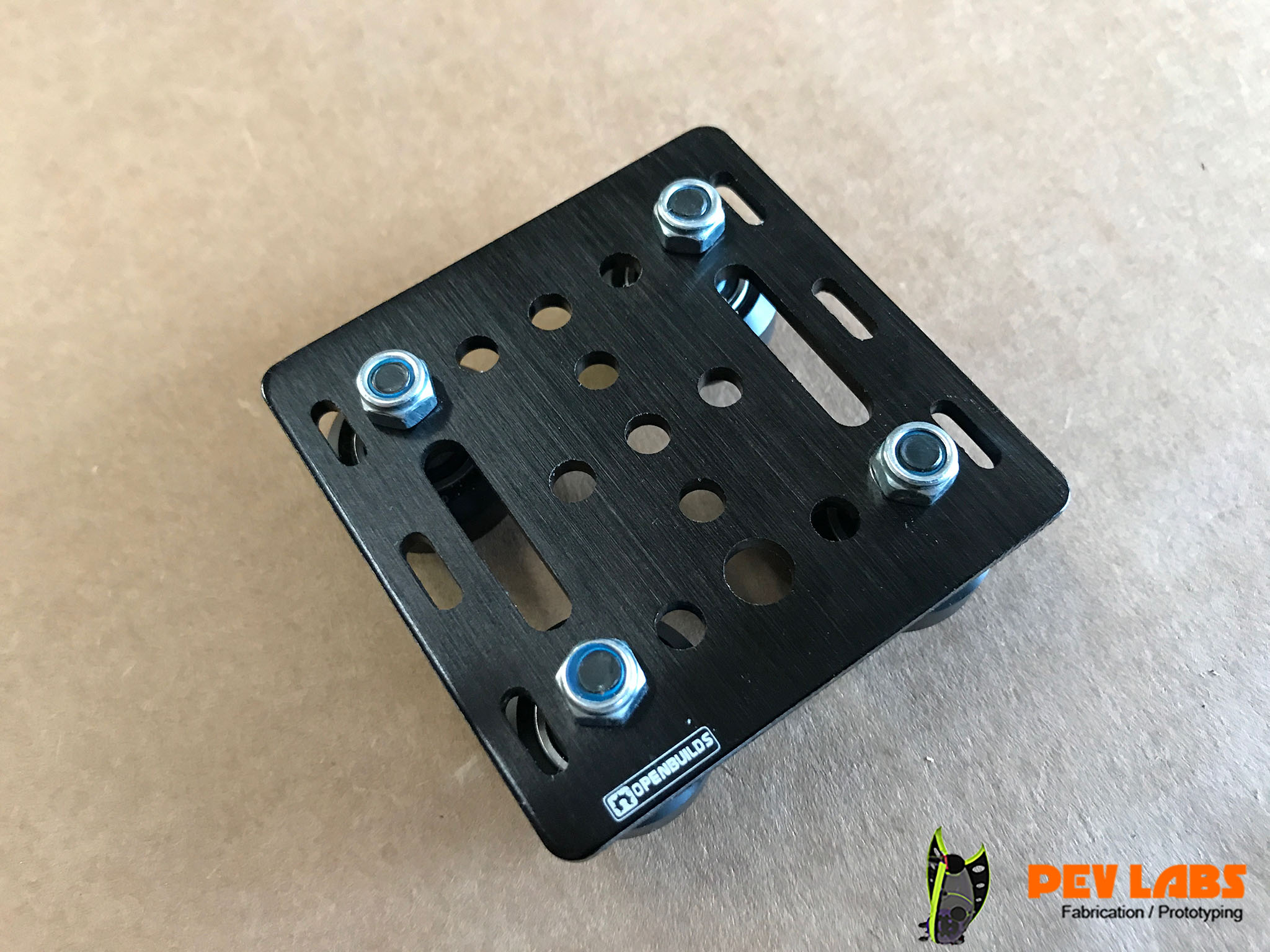

Laser Gantry V-Slot Slider
Laser Gantry V-Slot Slider

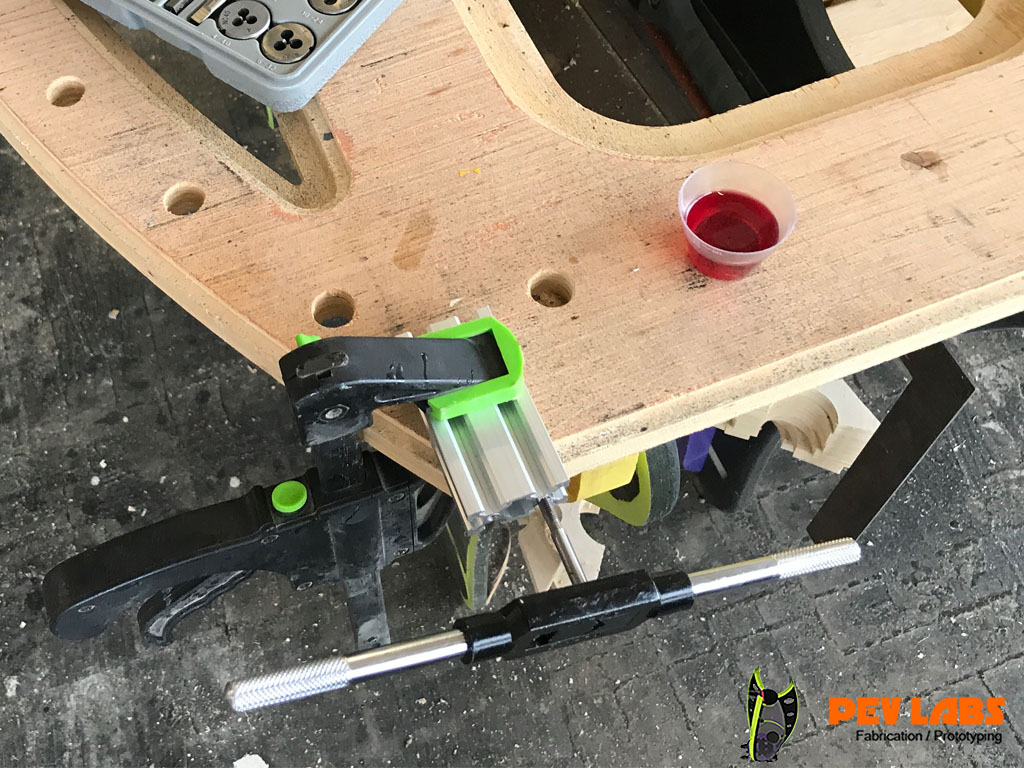

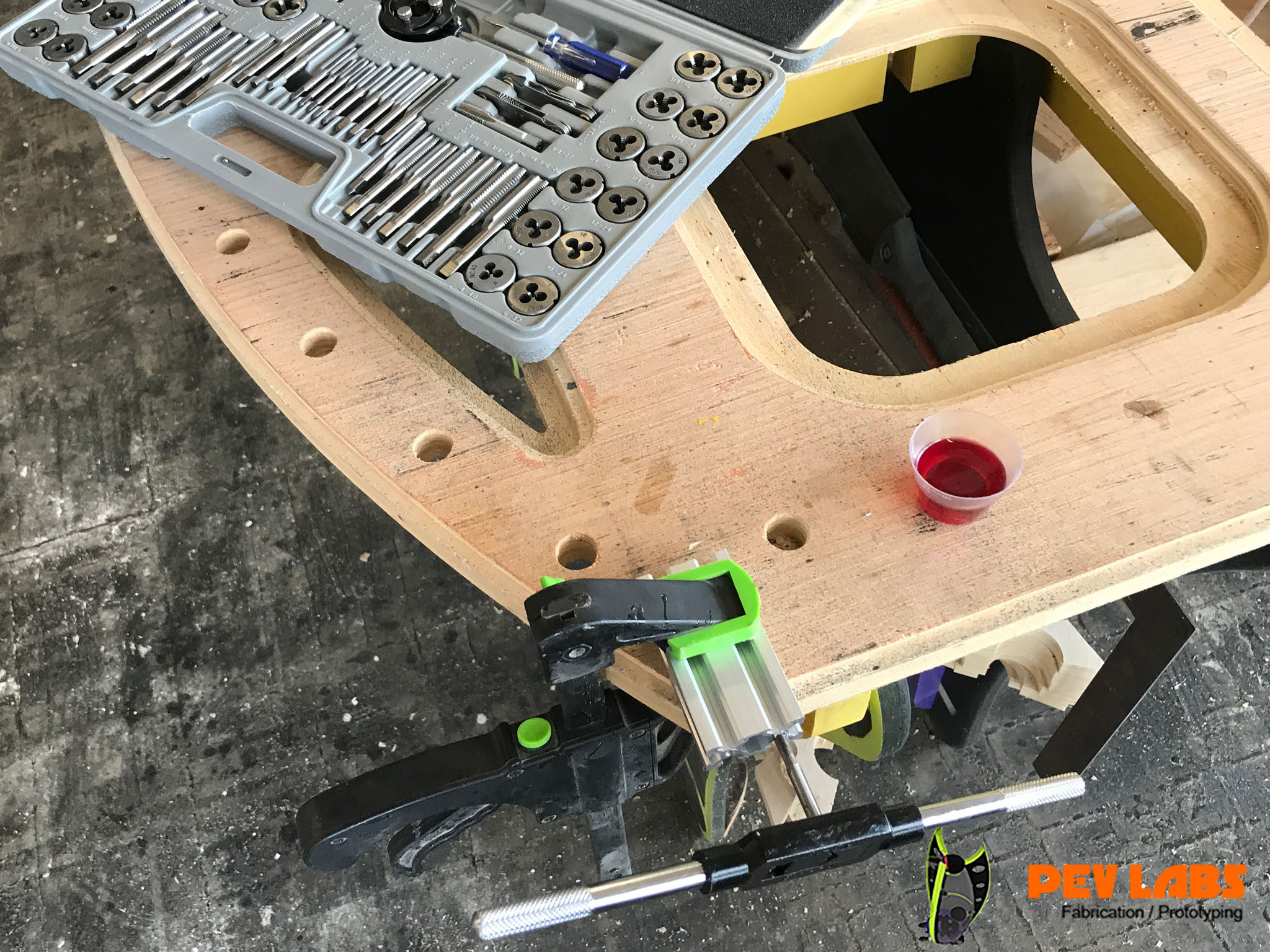

Tapping Aluminum Extrusion
Tapping Aluminum Extrusion

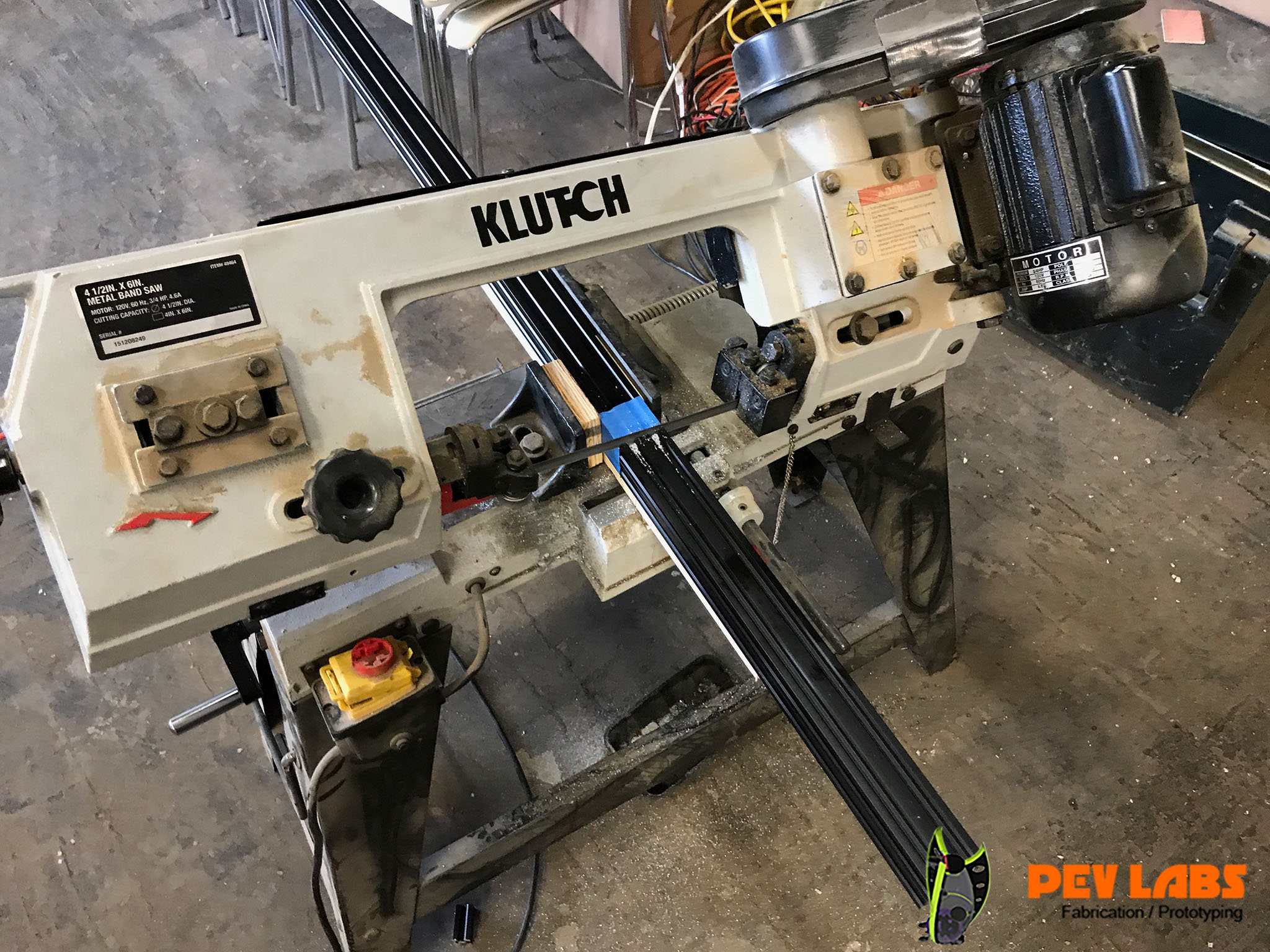

Cutting Extruded Aluminum Bandsaw
Cutting Extruded Aluminum Bandsaw
DIY Laser Project Early Chassis Frame Design Rendering
Early Chassis Frame Design Rendering



DIY co2 Laser Project Progress as of 05-08-2020 - Visit our Video Channel

DIY CO2 Laser Frame Early Assembly Visit our Video Channel
