Slumber Party Massacre Guitar 2 : Bespoke Handmade Custom Guitar - Second Build
This is our second build of a Slumber Party Massacre Guitar replica. We have certain budgetary constraints over the movie version but our first version looked pretty good.This one shaped up to be much nicer and we put forth some extra effort beyond initial request in getting closer to a playable version. This iteration has real electric guitar pickups, a Floyd Rose tremolo system, volume and tone controls along with a truss rod in the neck.
We learned a few thing in this custom guitar build. We should have used a thicker than standard neck along with solid hardwood. The Floyd Rose has a lot of spring tension along with the serious weight of this large auger bit coming out of the neck really needs a lot of support.
We have been told the fretboard has come loose which may attribute to neck movement, maybe the glue job went bad. In retrospect we routed the top of the neck for the truss rod which is putting pressure on the fret board. Next time we will do a bottom relief. We need to allow more time for the two tone paint job than we planned. Other than that its a nice looking prop that should at least make some noise.
Click here to order your own bespoke custom electric Slumber Party Massacre Guitar or Guitar Body
Click here for the Slumber Party Massacre Guitar Build 1
Click here for the Slumber Party Massacre Guitar Body Only

Slumber Party Massacre II Complete

Electric Guitar Making

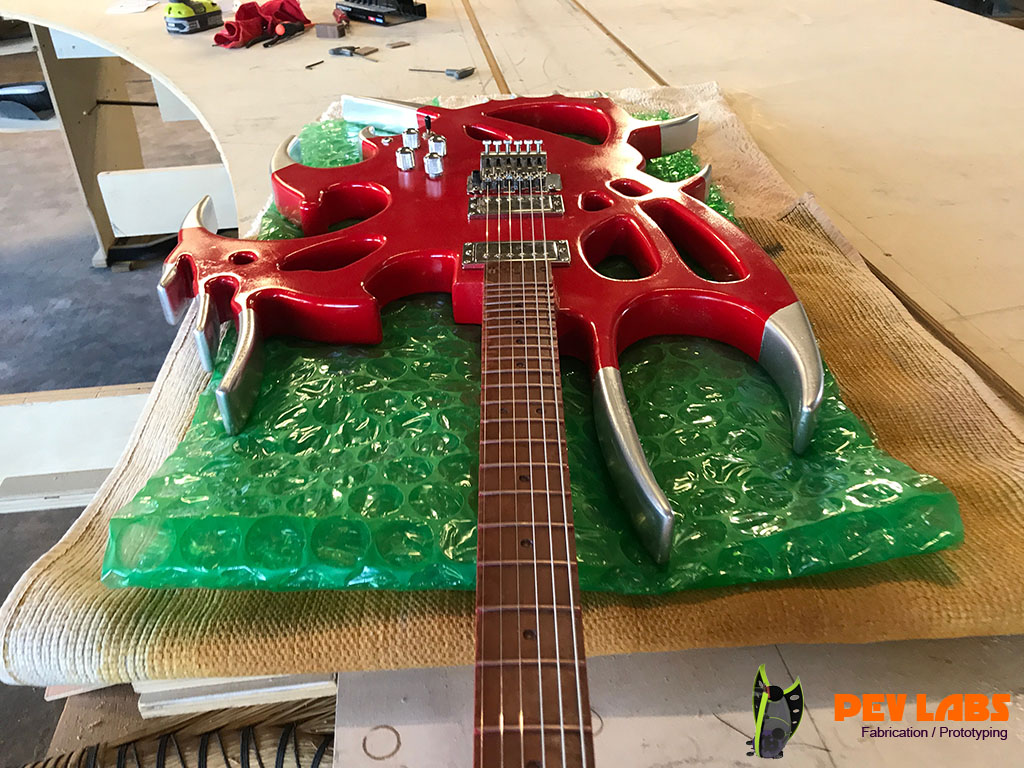

Custom Guitar Fabrication

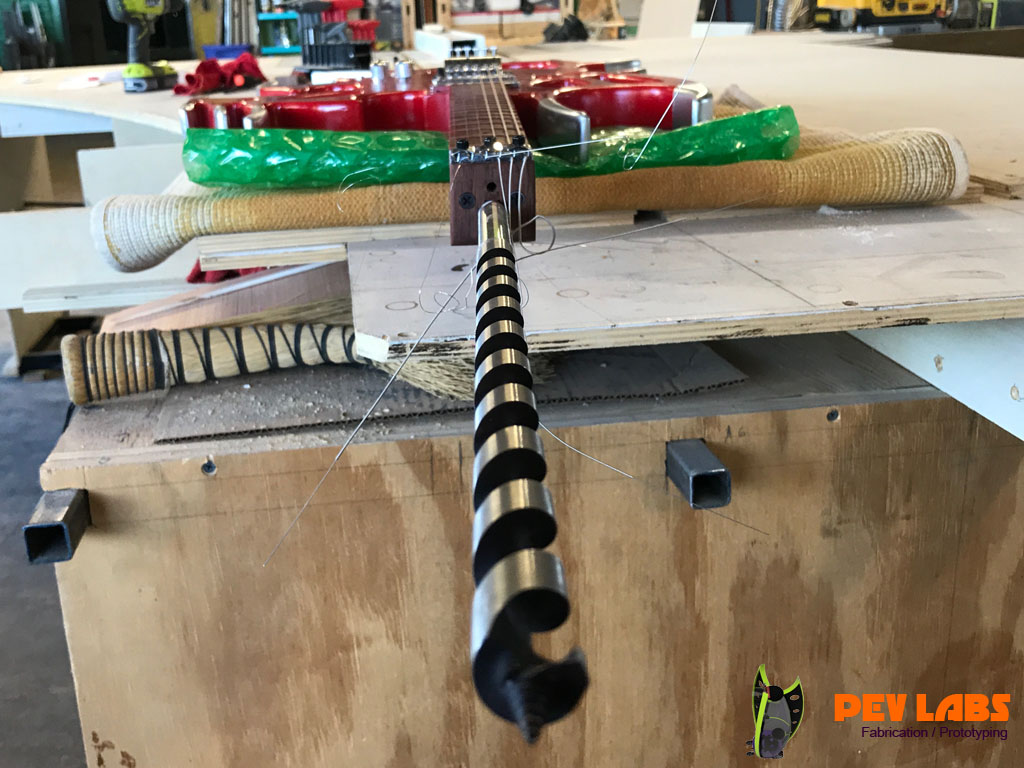

Guitar Drill Bit

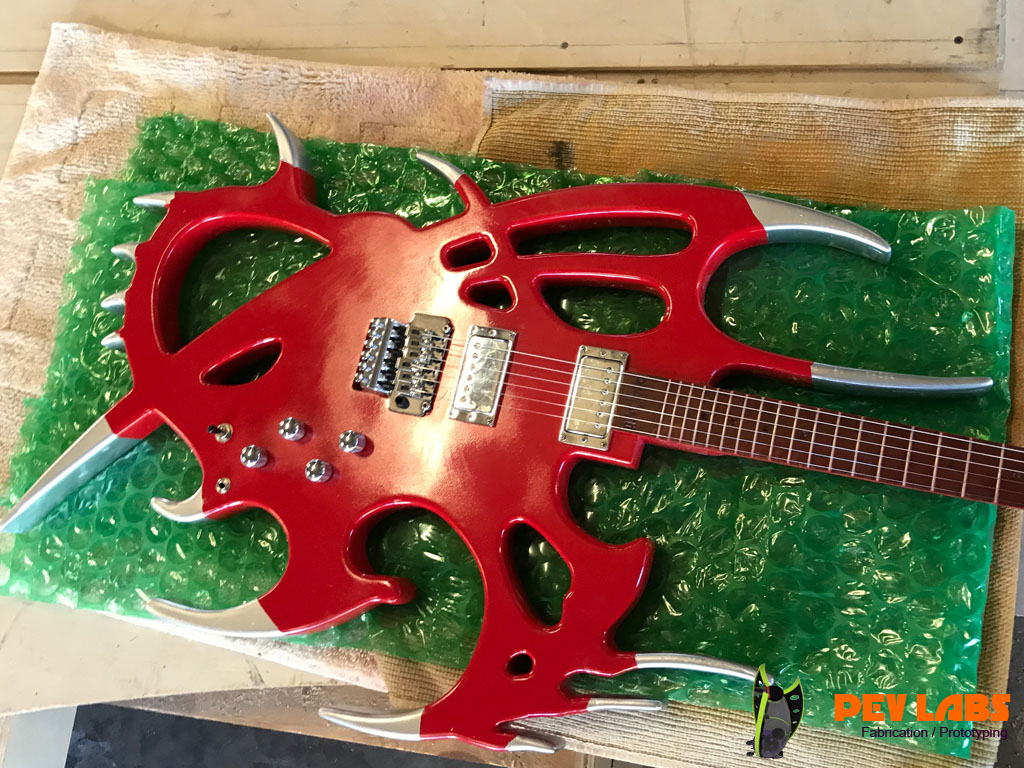

SPM Guitar Body Profile

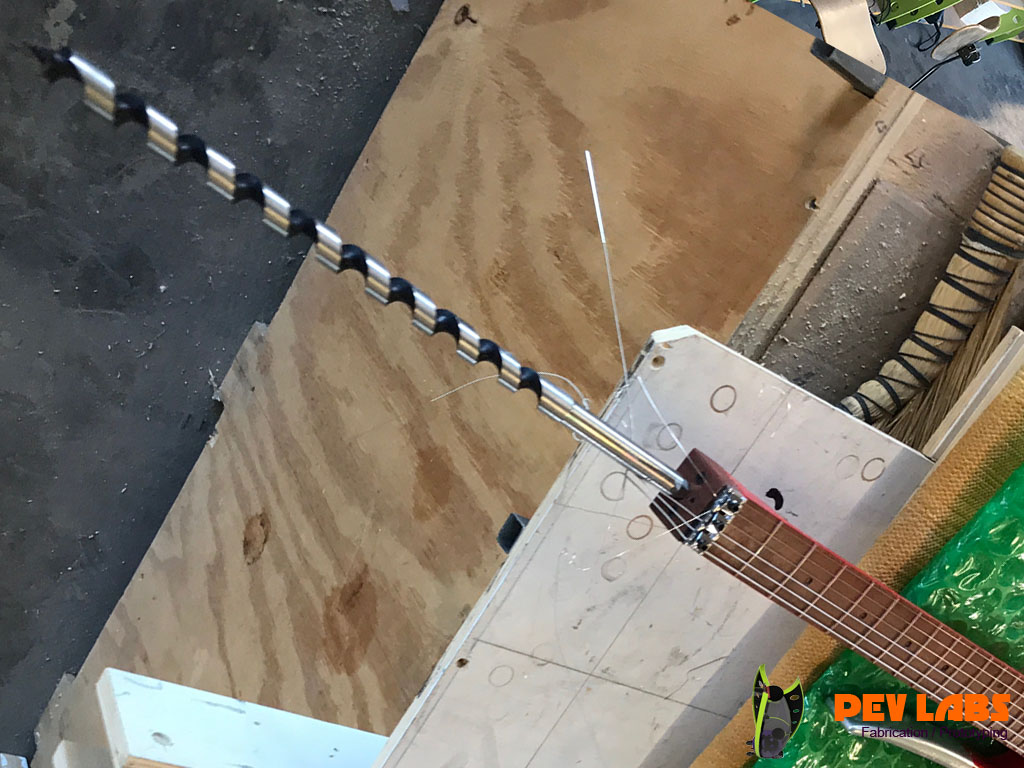

Slumber Party Massacre Guitar Auger

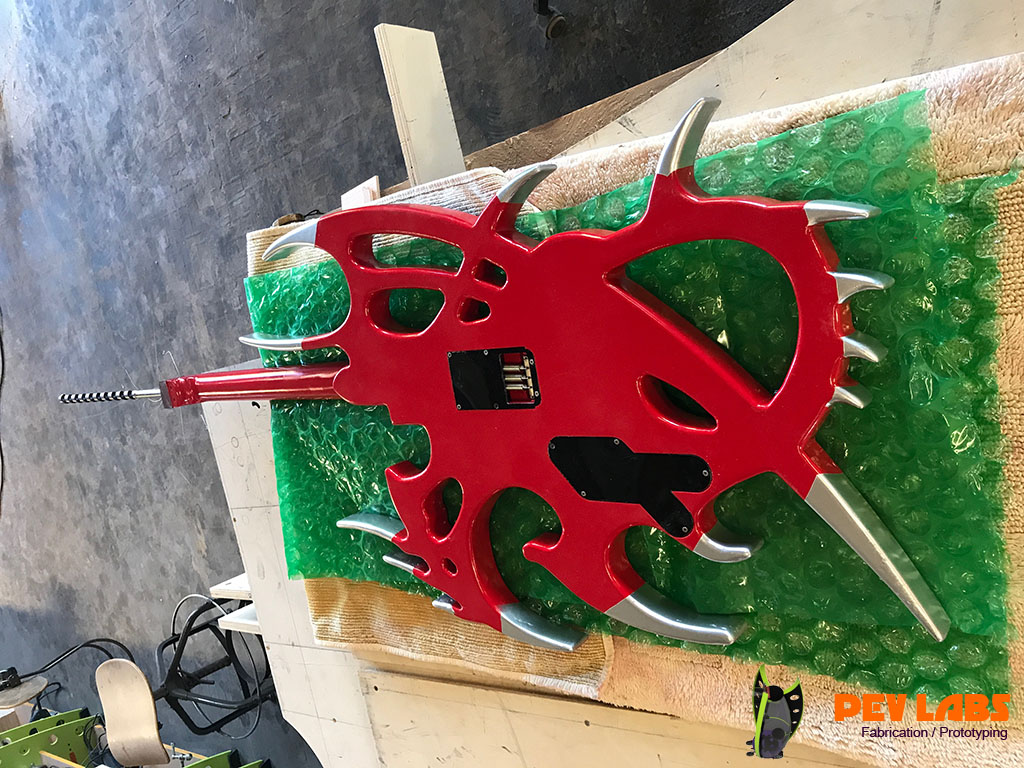

SPM II Guitar Auger Bit

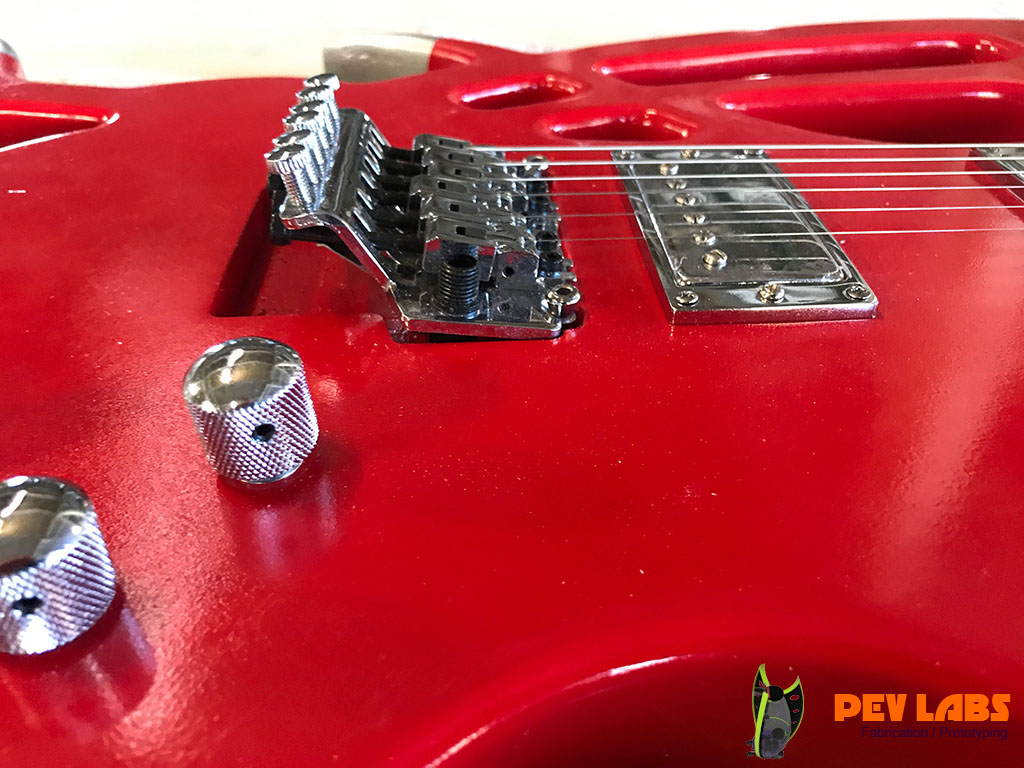

Tuning a Floyd Rose Tremolo

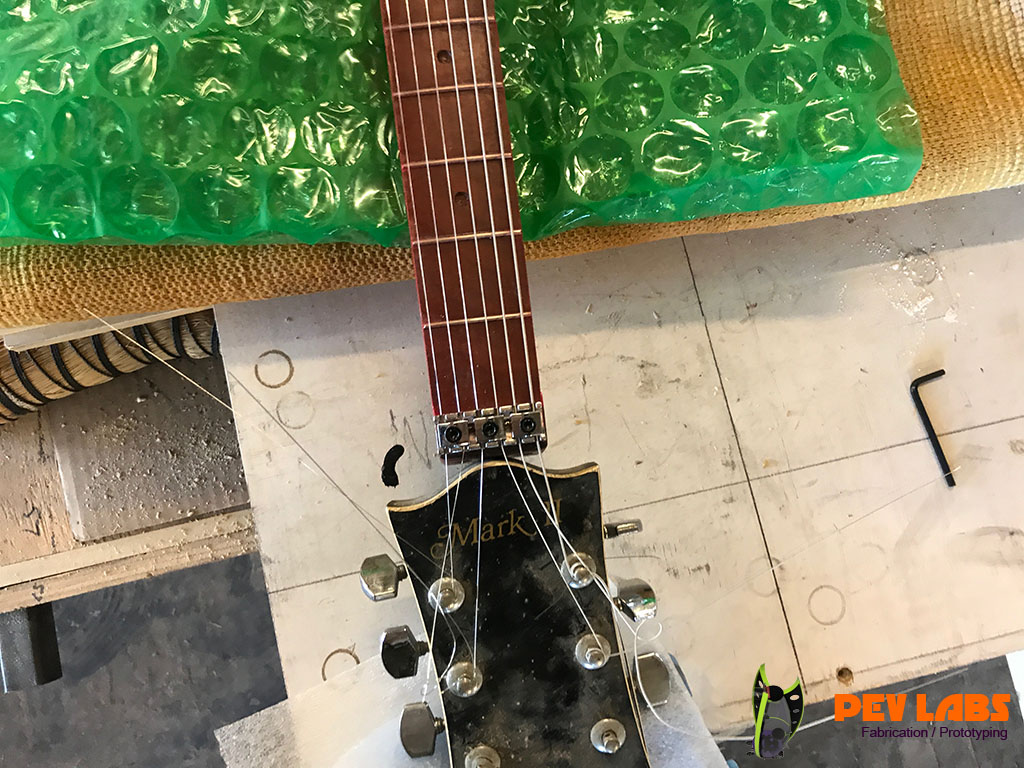

Headless Guitar Floyd Rose Tuning

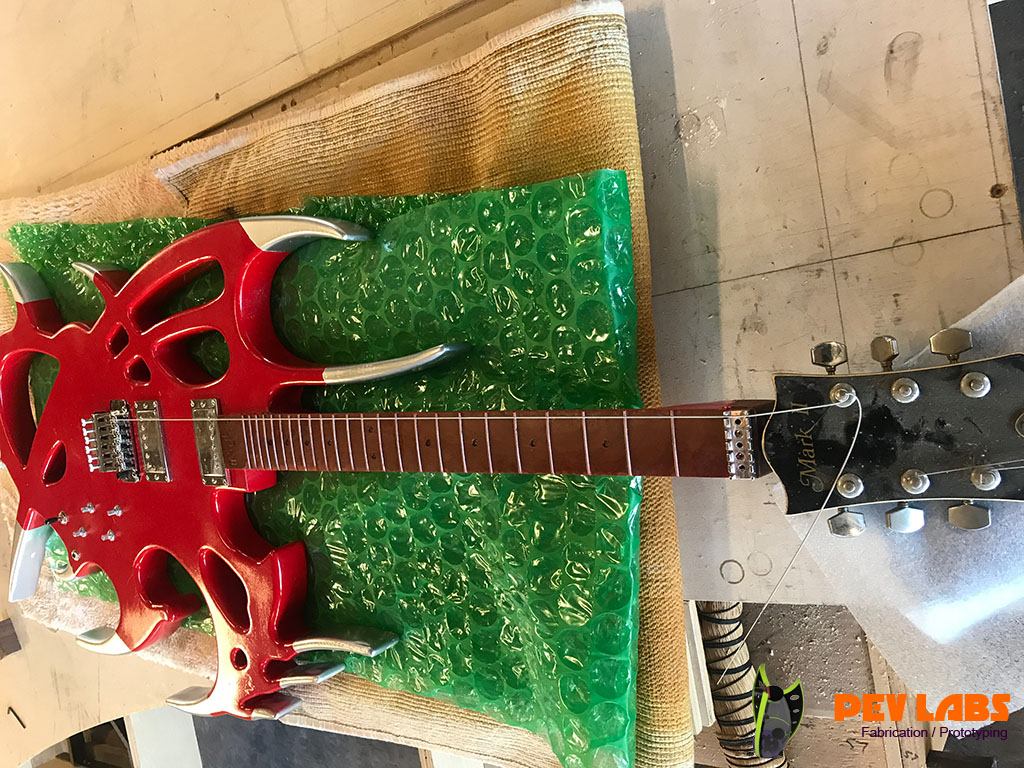

Stringing Floyd Rose Headless Guitar

Black Plastic Guitar Backplate

Slumber Party Massacre Guitar Tips

SPM Guitar Rear Paint Job

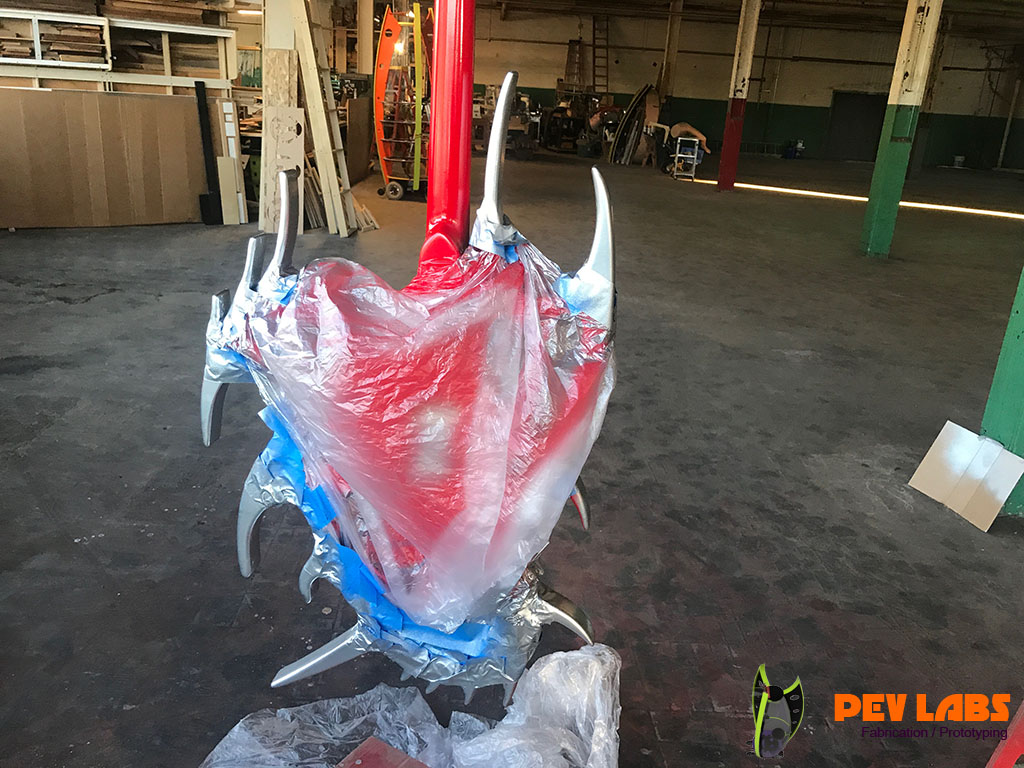

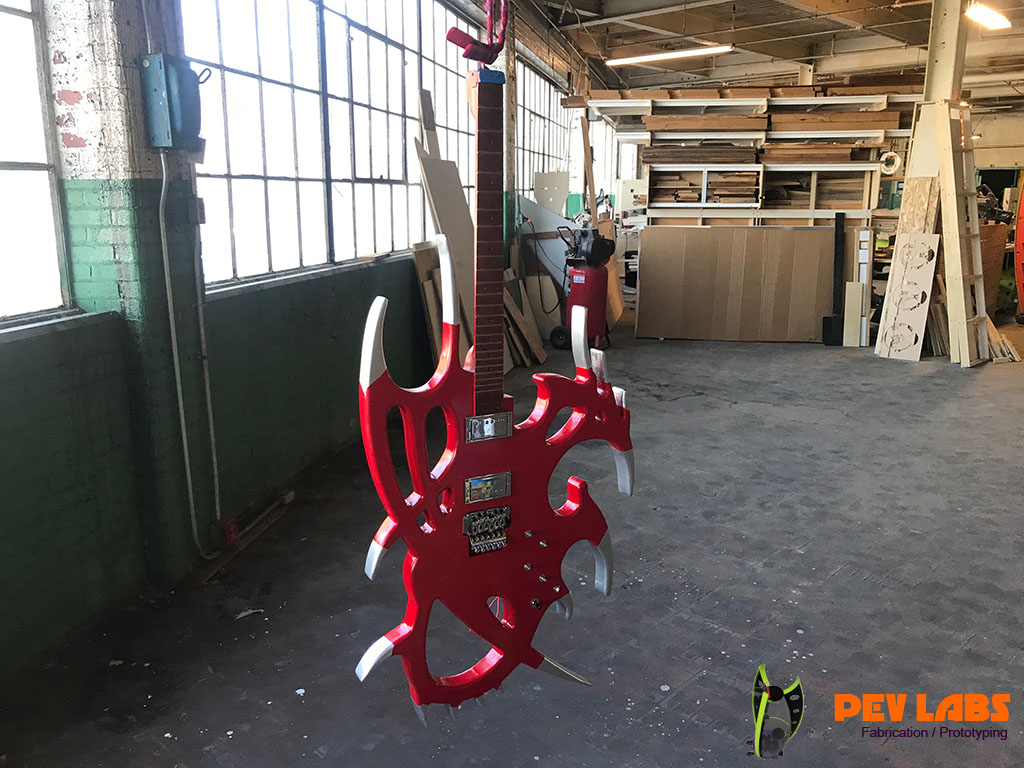

Spraying Guitar Body Silver Tips

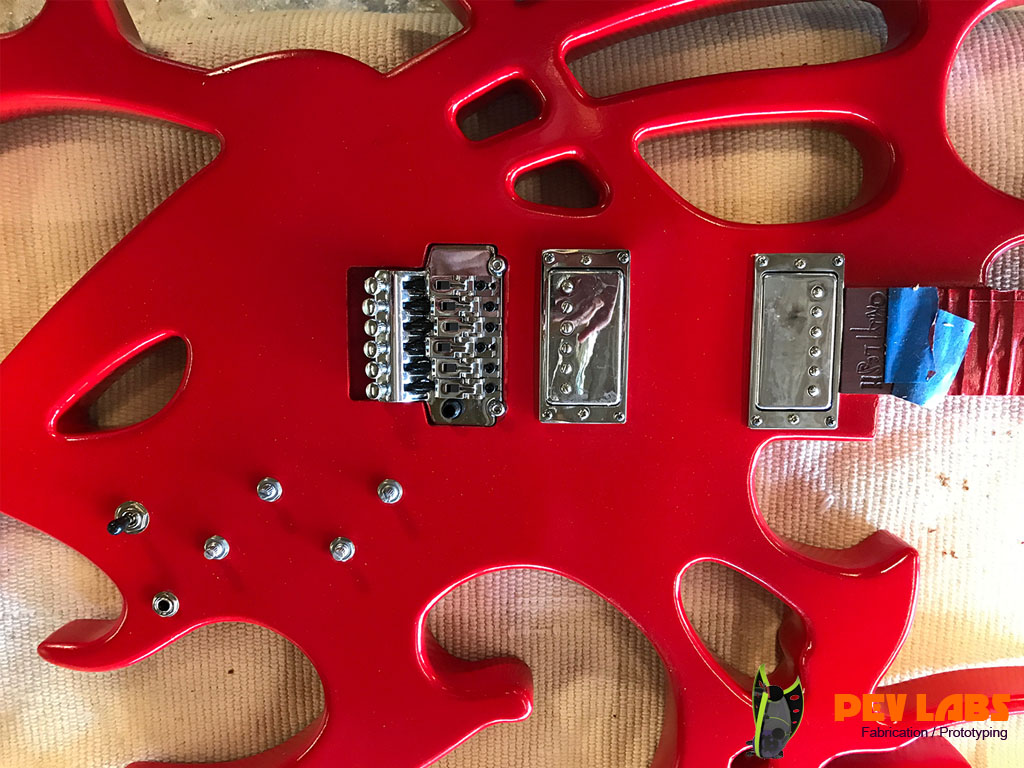

Installing Tremelo Bridge and Pickups

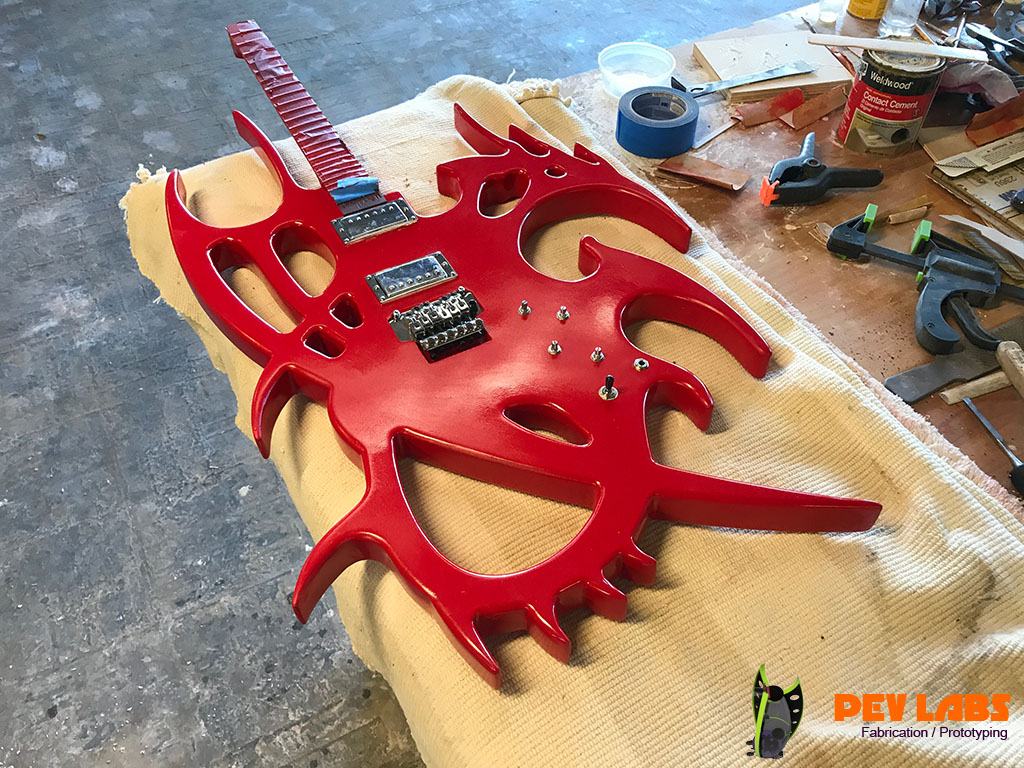

Custom Guitar Painted Front

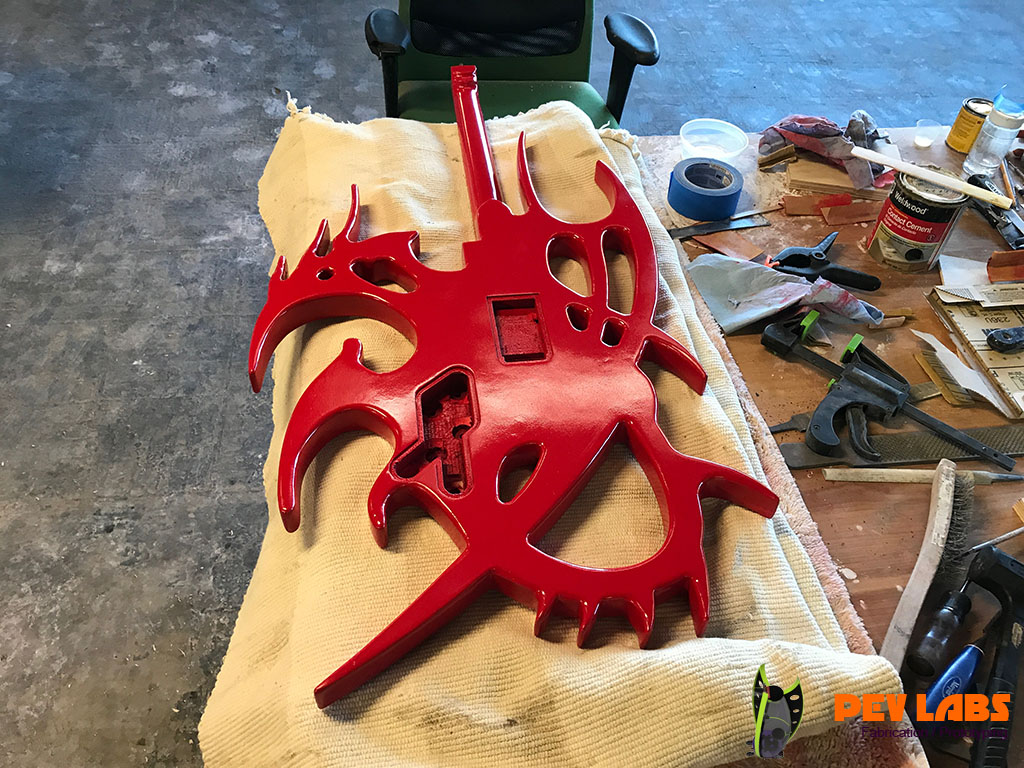

Custom Guitar Painted Back

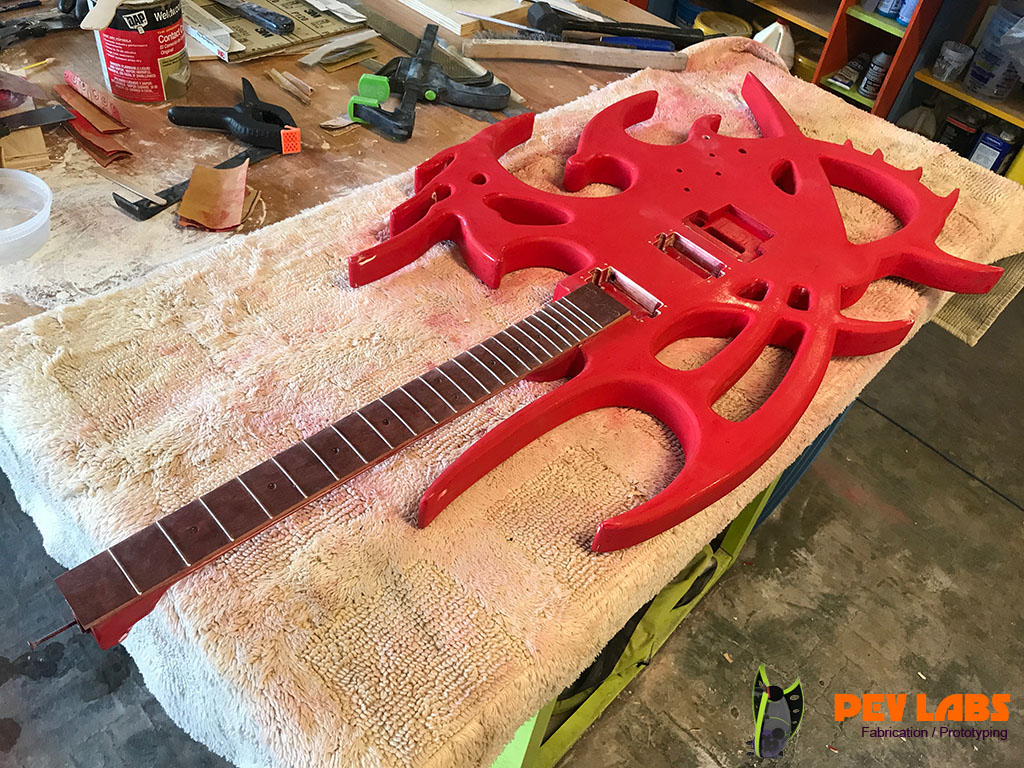

Paint Sanded Ready for Next Coat

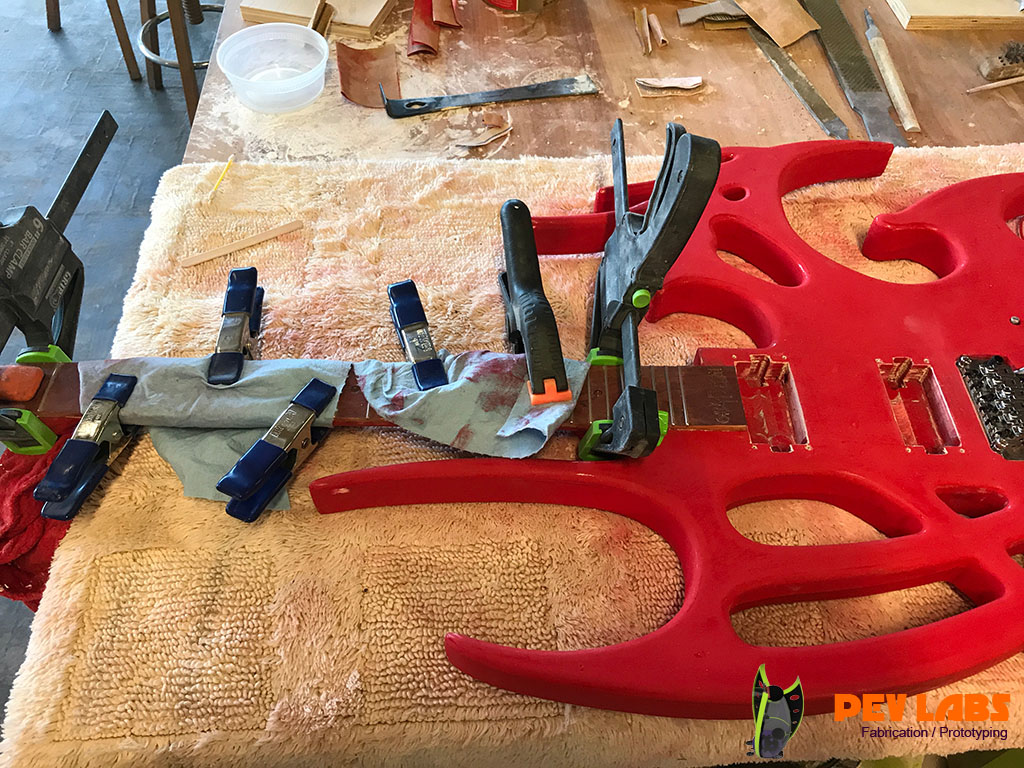

Guitar Gluing Fretboard on Neck

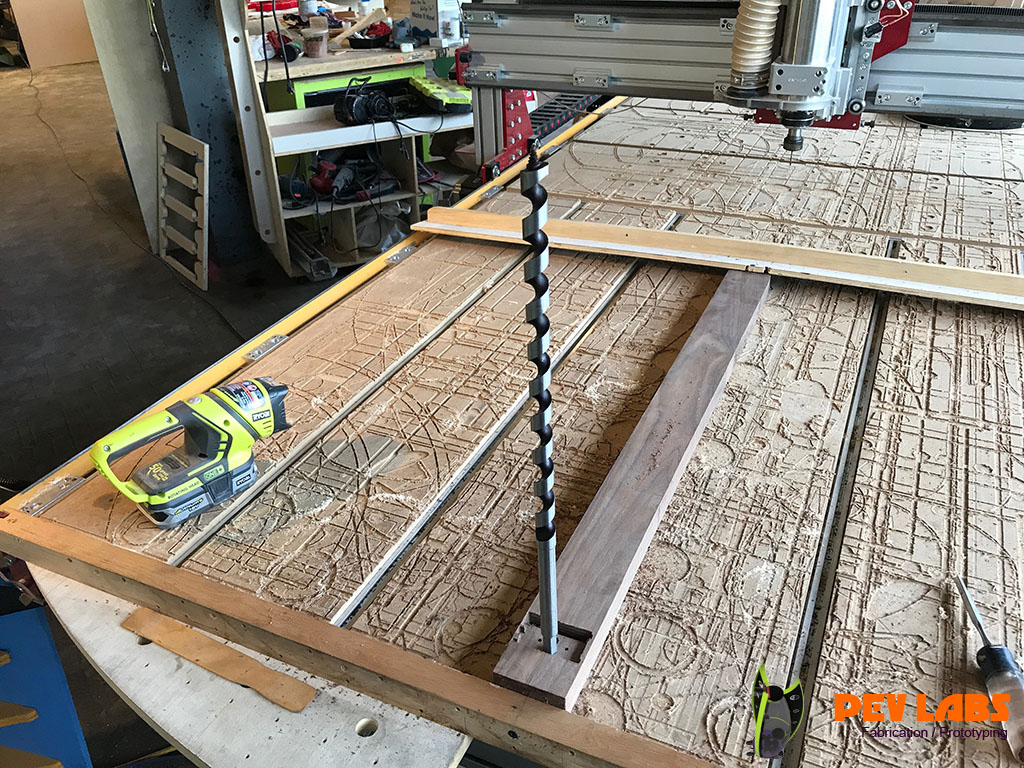

Auger Bit Christmas Tree ?

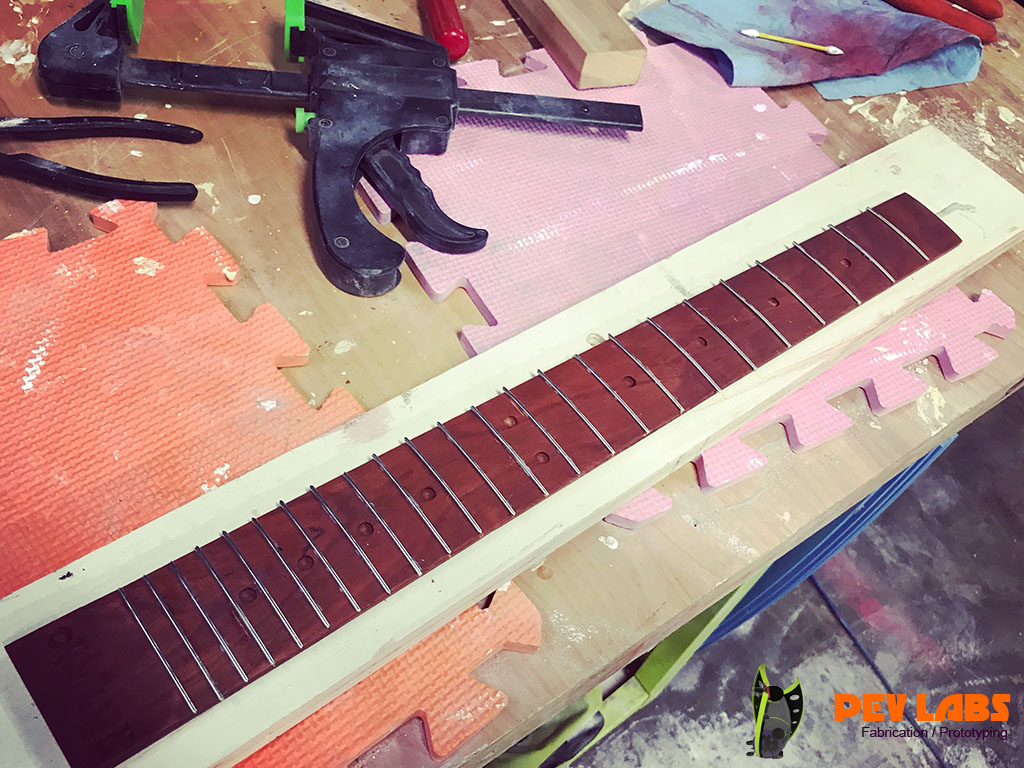

Fret Bars Installed

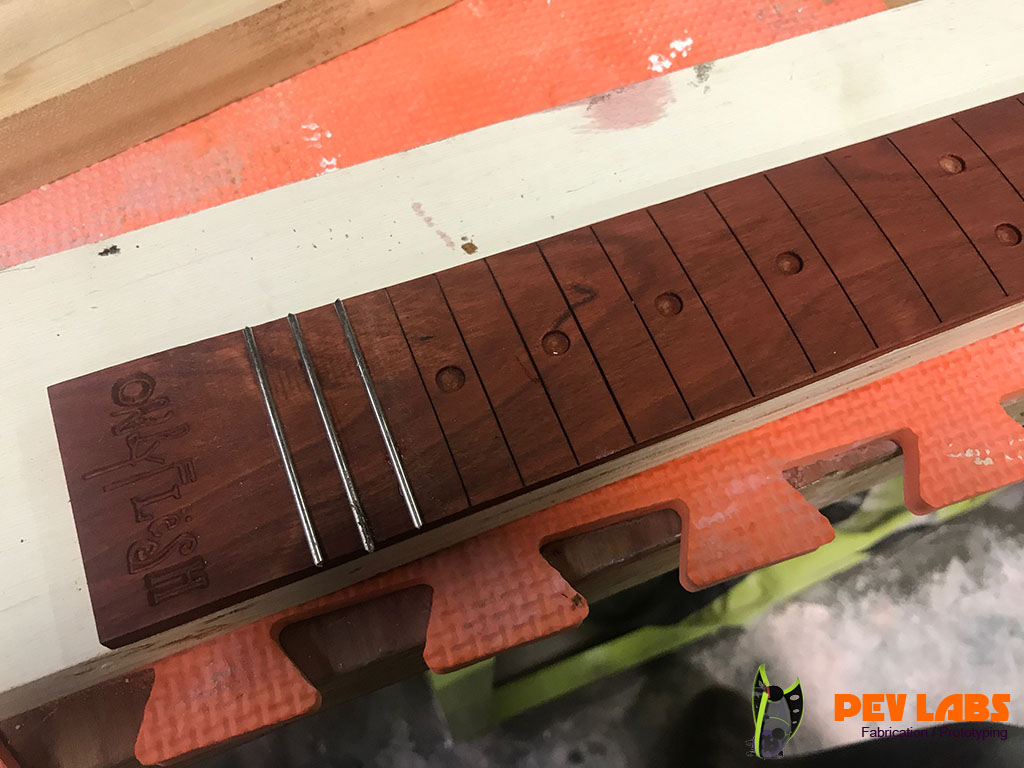

Fret Bar Installation

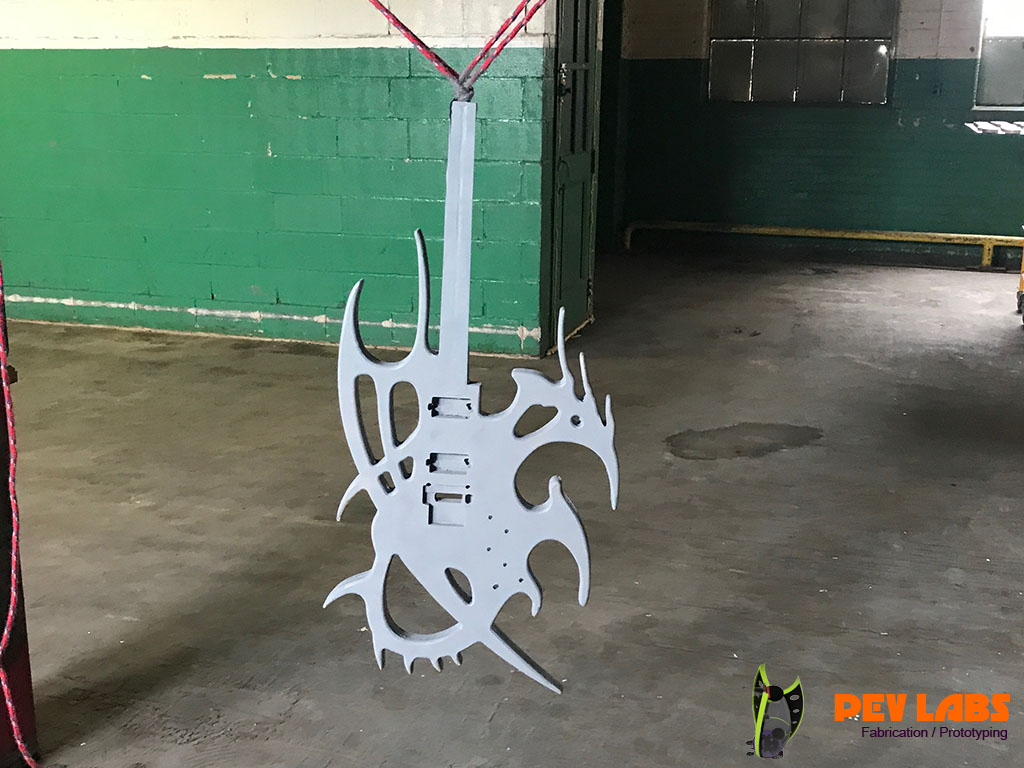

Bespoke Guitar Primed

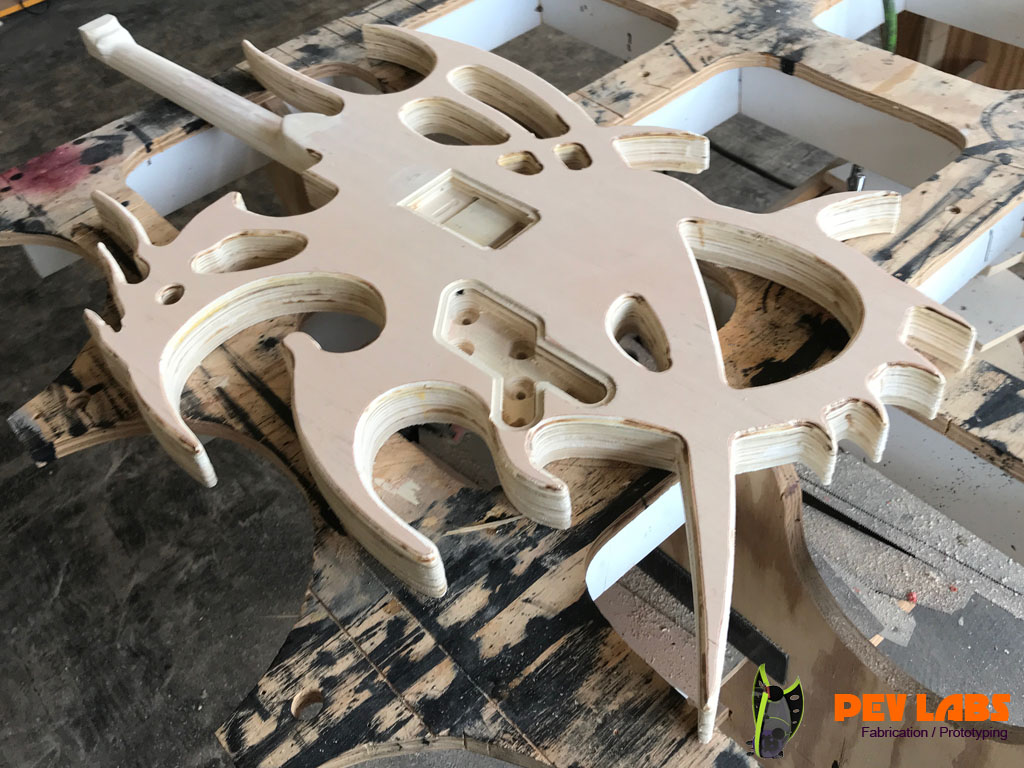

Floyd Rose Guitar Rear Pocket

Laminating Guitar Body

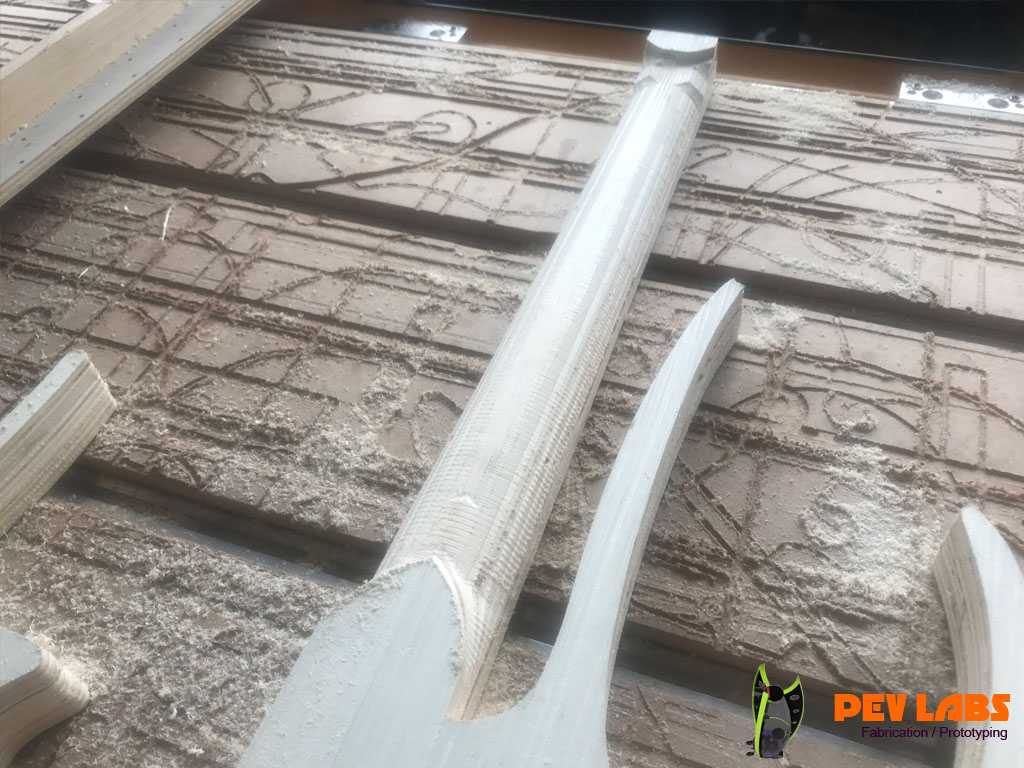

Milled Guitar Neck

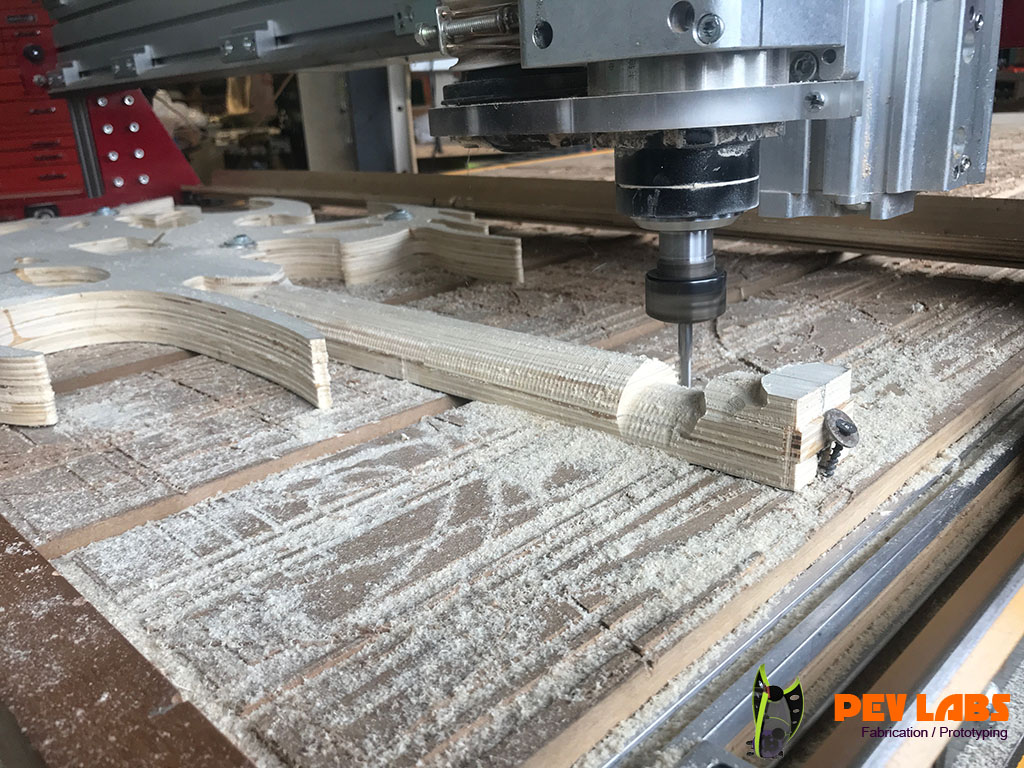

CNC Milling Guitar Neck

Floyd Rose Tremelo Test Fit

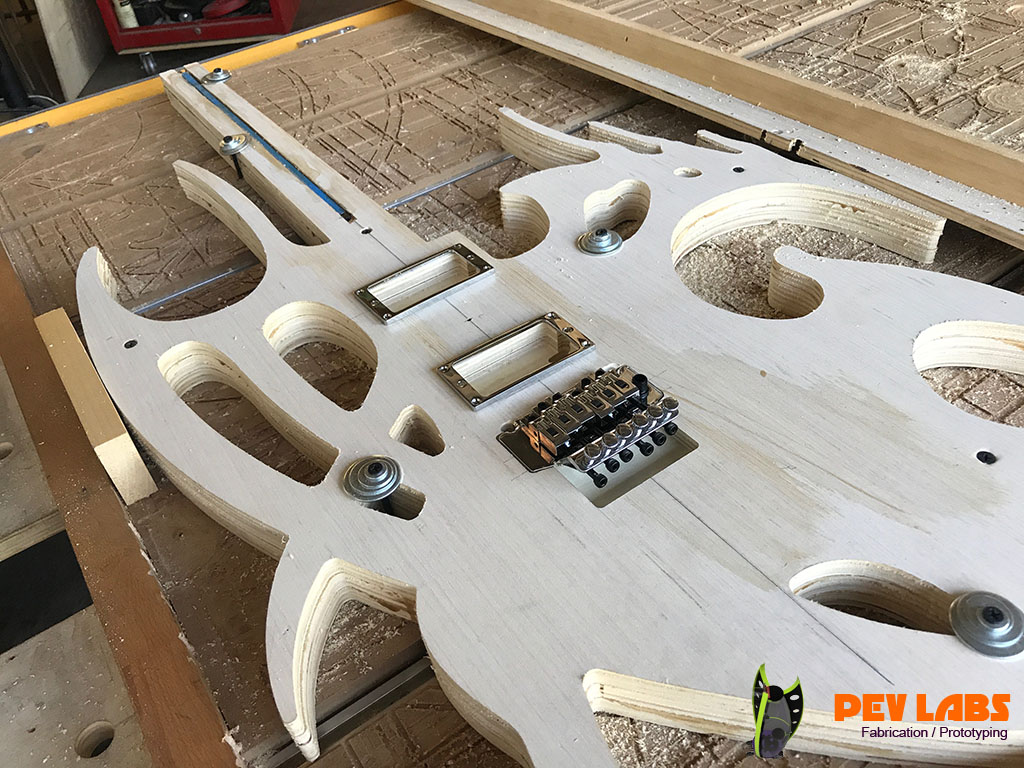

CNC Milling Floyd Rose Tremelo

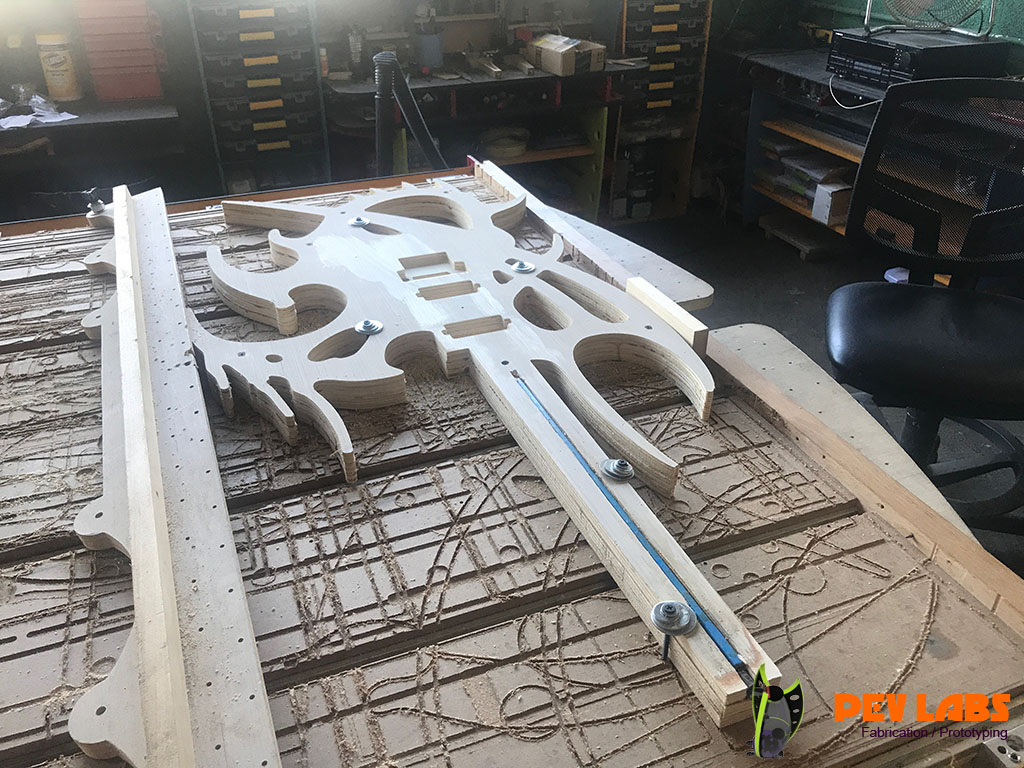

Bespoke Guitar Making

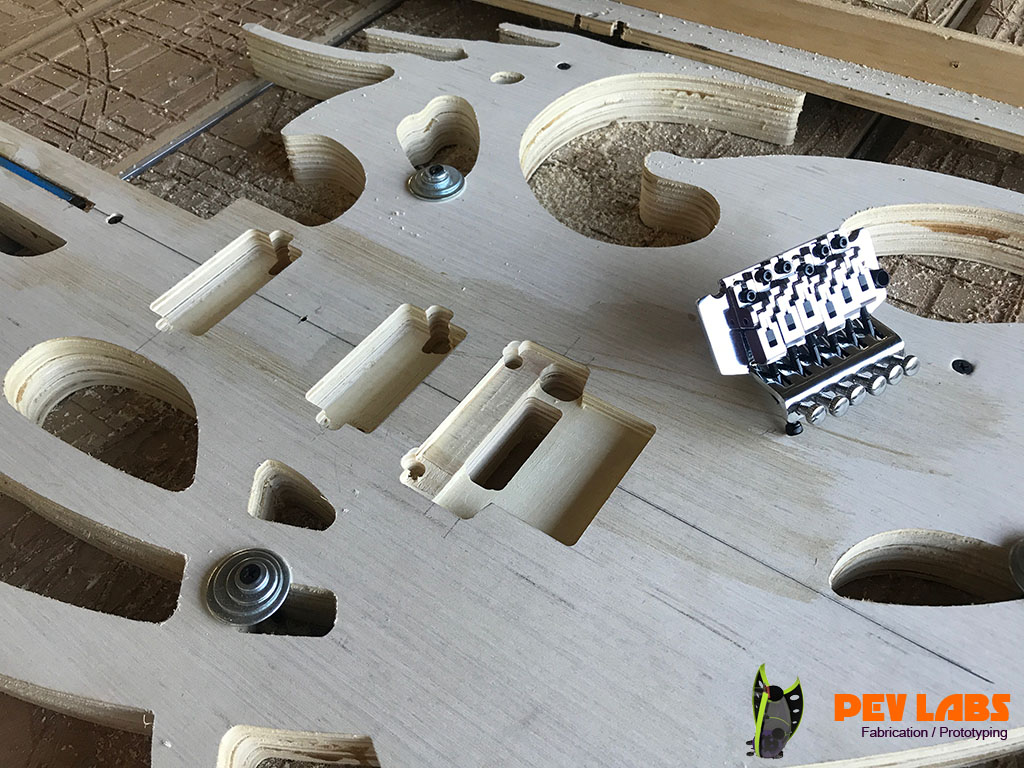

Guitar Pickups and Floyd Rose Pockets

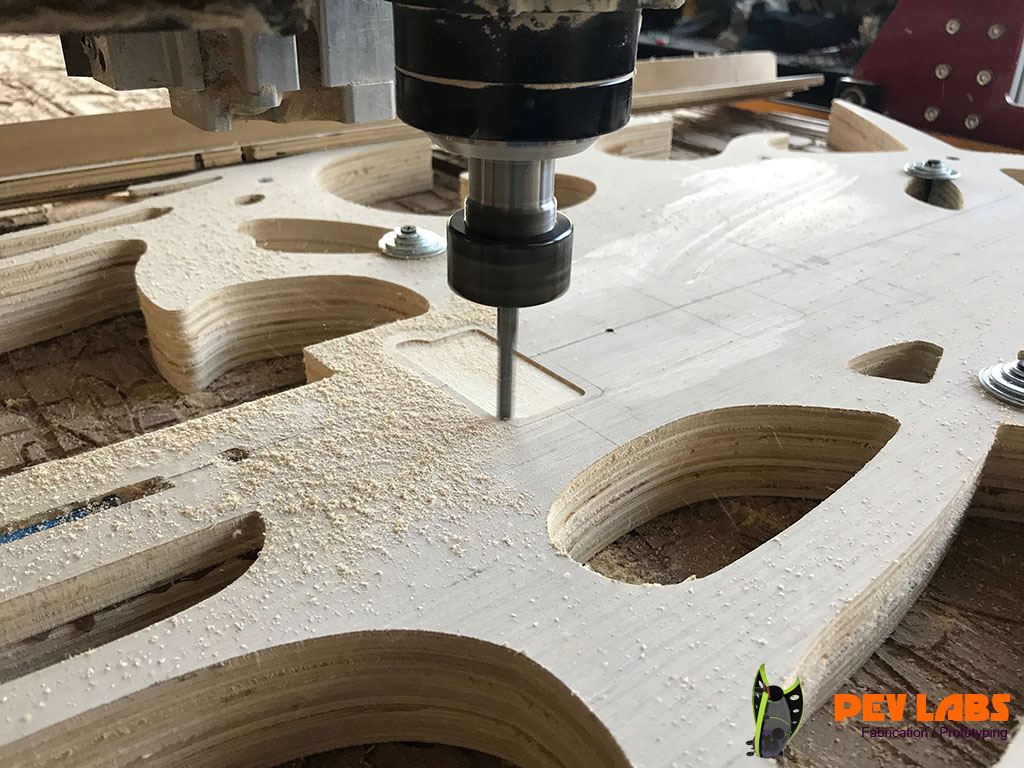

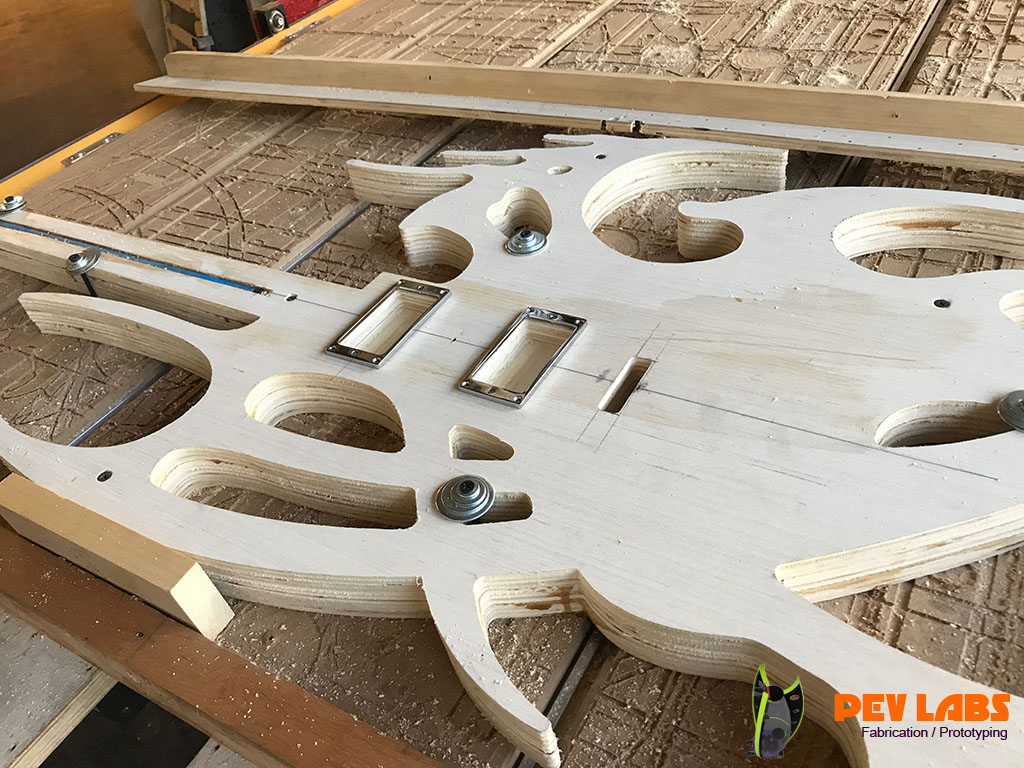

CNC Routing Guitar Pickups

DIY Neck Fretboard Fret Slots

Guitar Fretboard Logo Milling Model

Guitar Fretboard With Logo Area

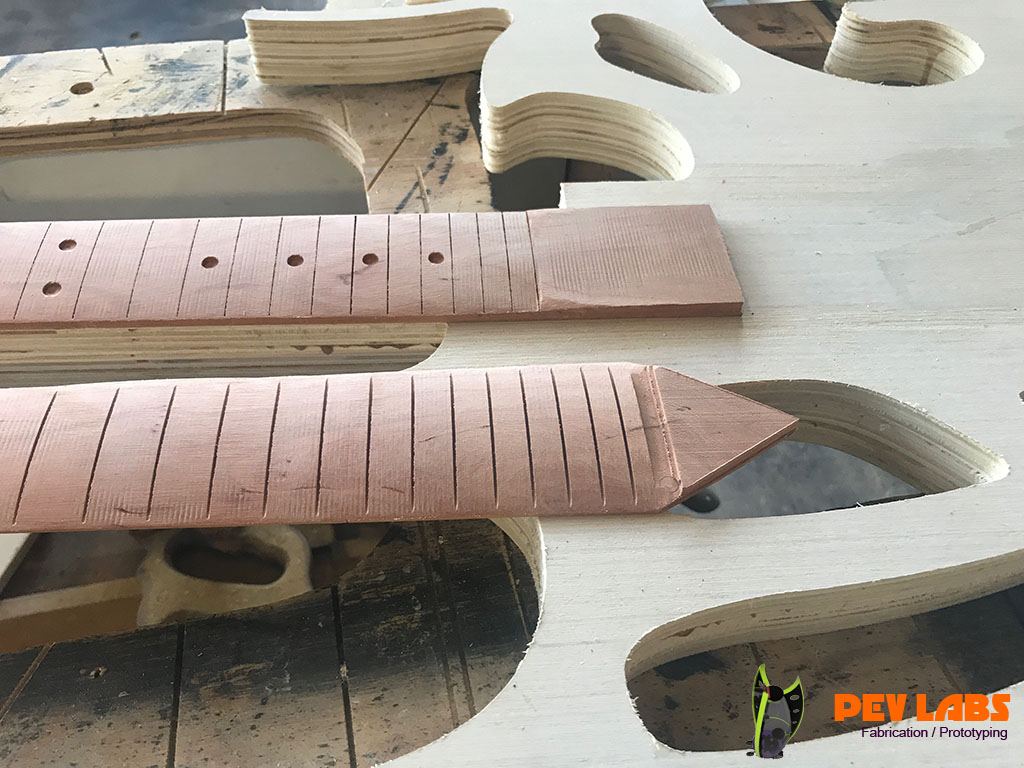

Custom Milled Cherry Fretboards

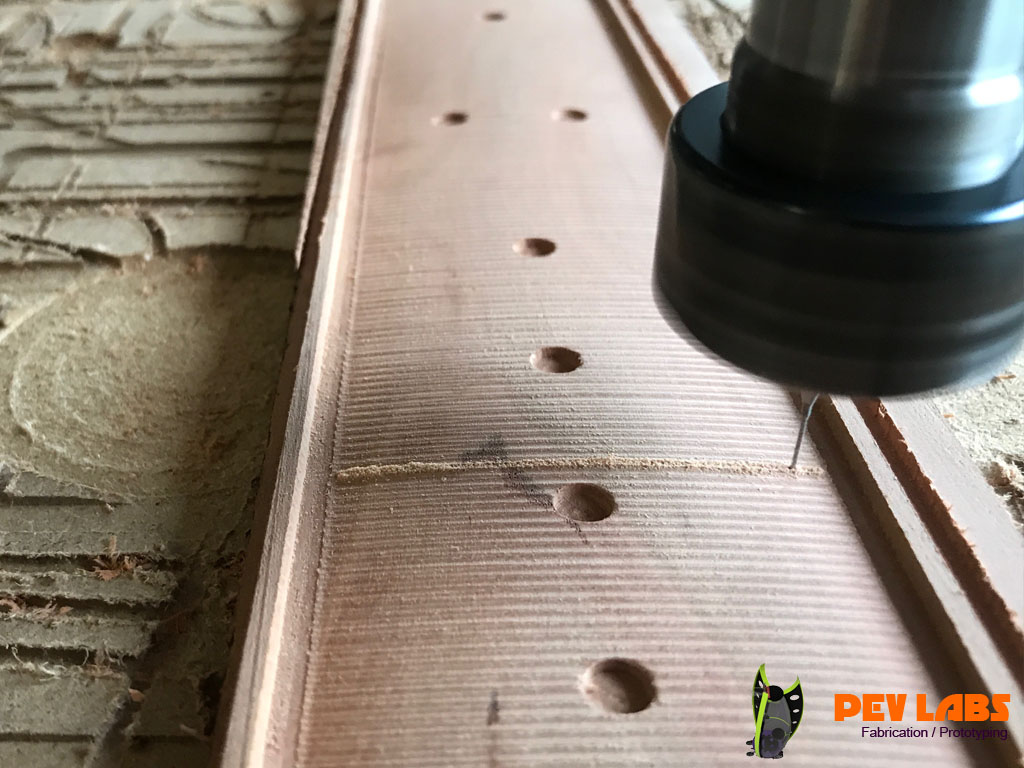

CNC Milling Fretboard Fret Slots

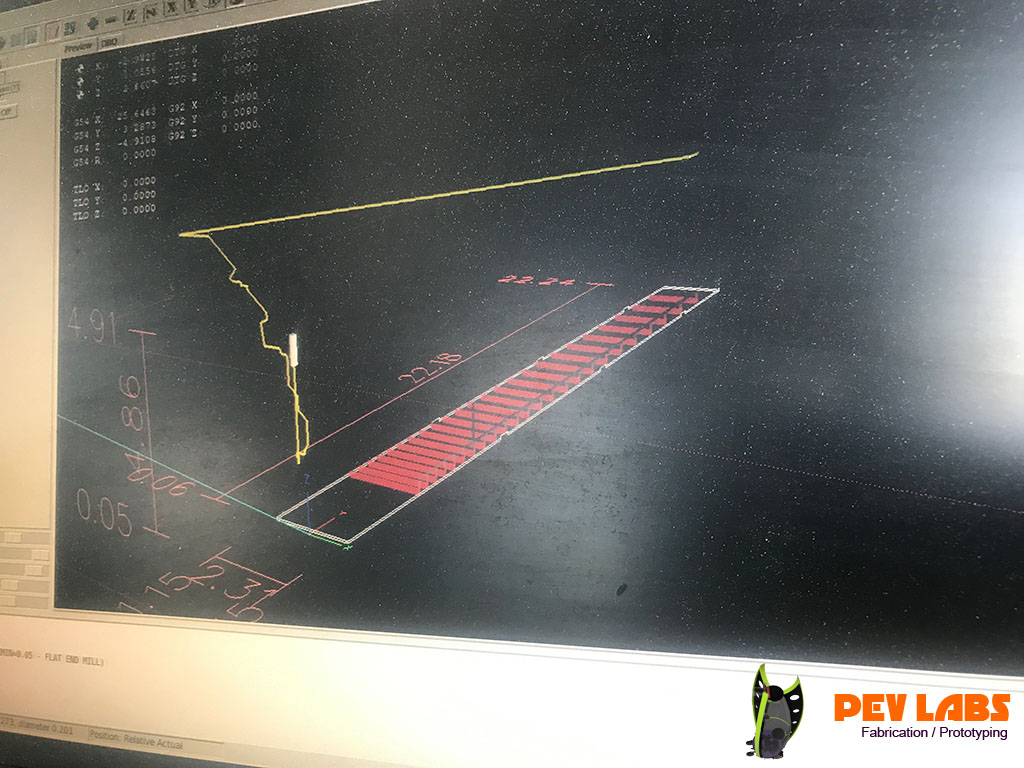

Fretboard CAM/CNC Tool Paths

Guitar Truss Rod Installed

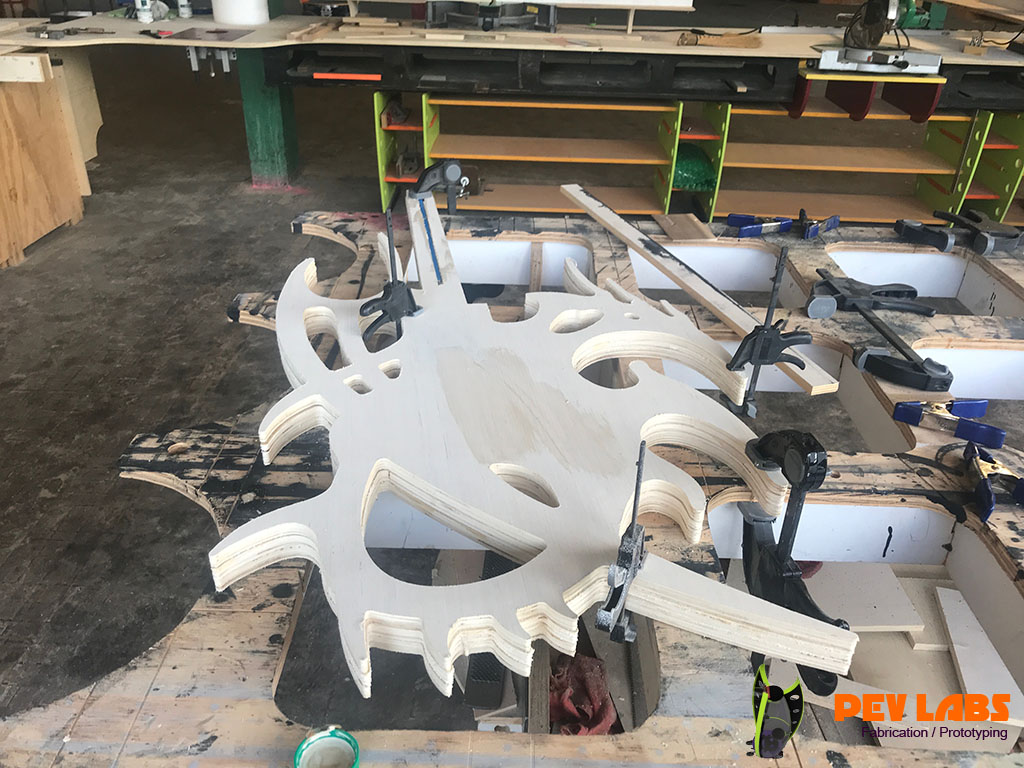

Guitar Clamped and Glued

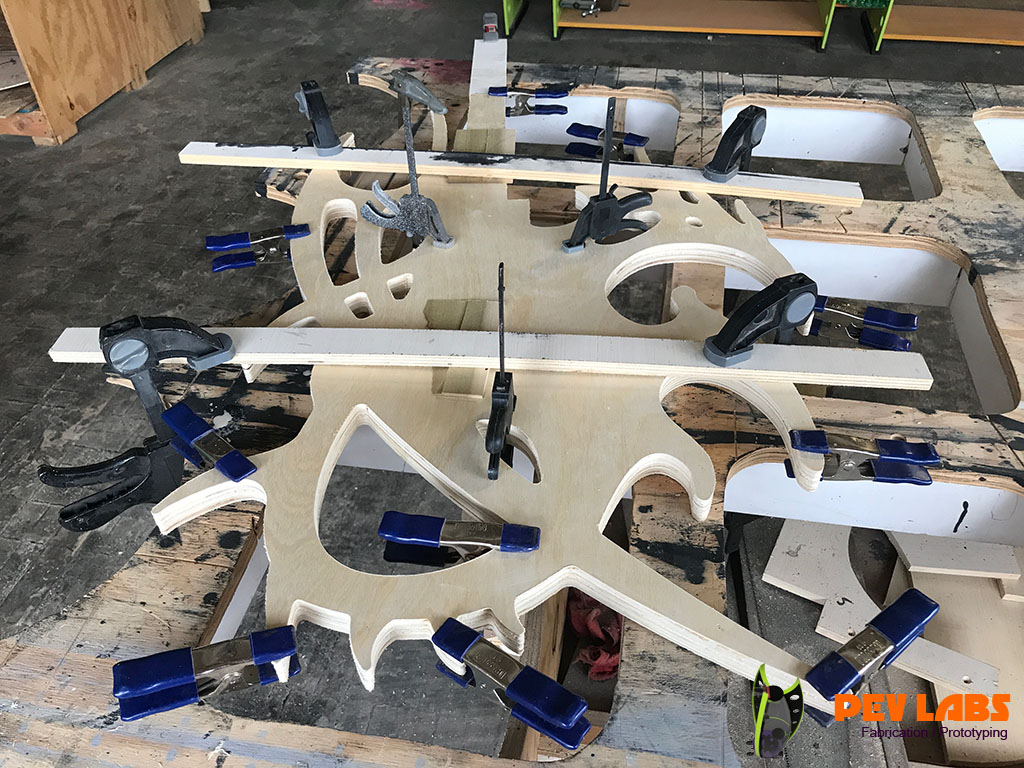

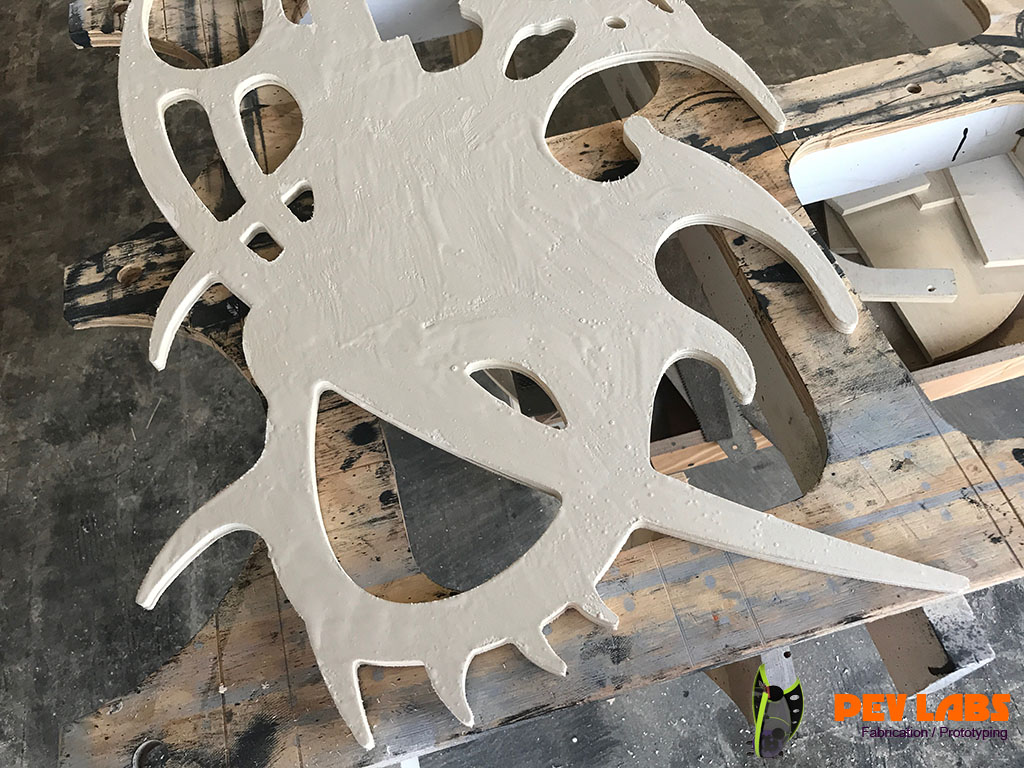

Guitar Body Layers Glueing

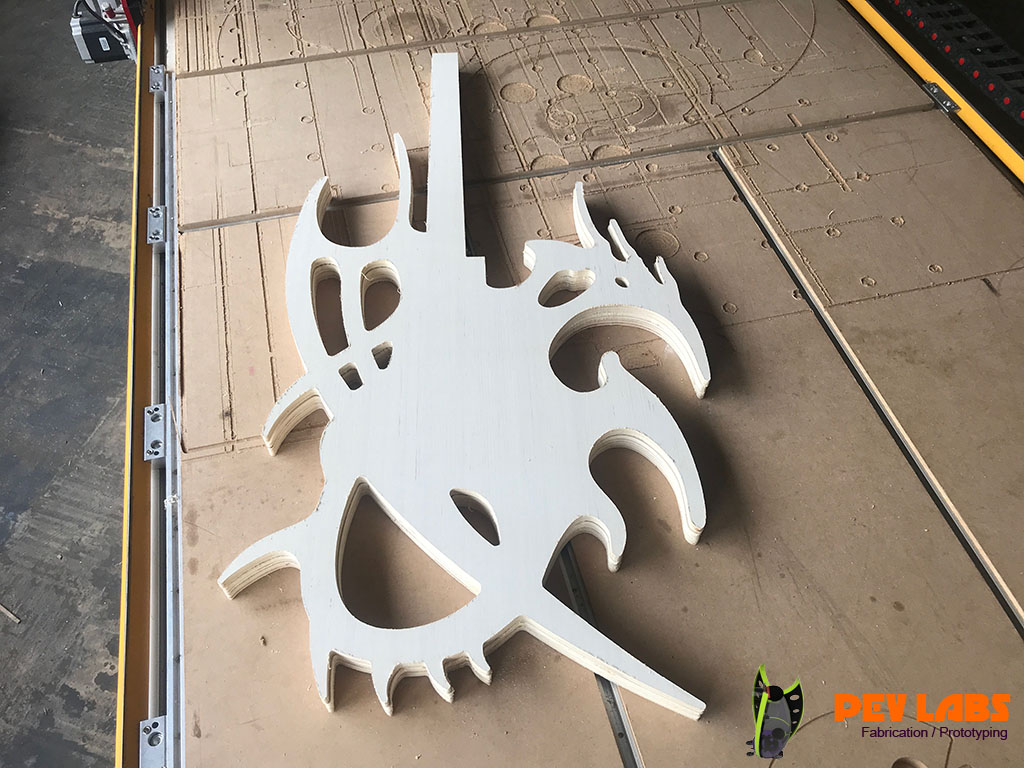

Guitar Layers Dry Fitting

Slumber Party Massacre Guitar Parts

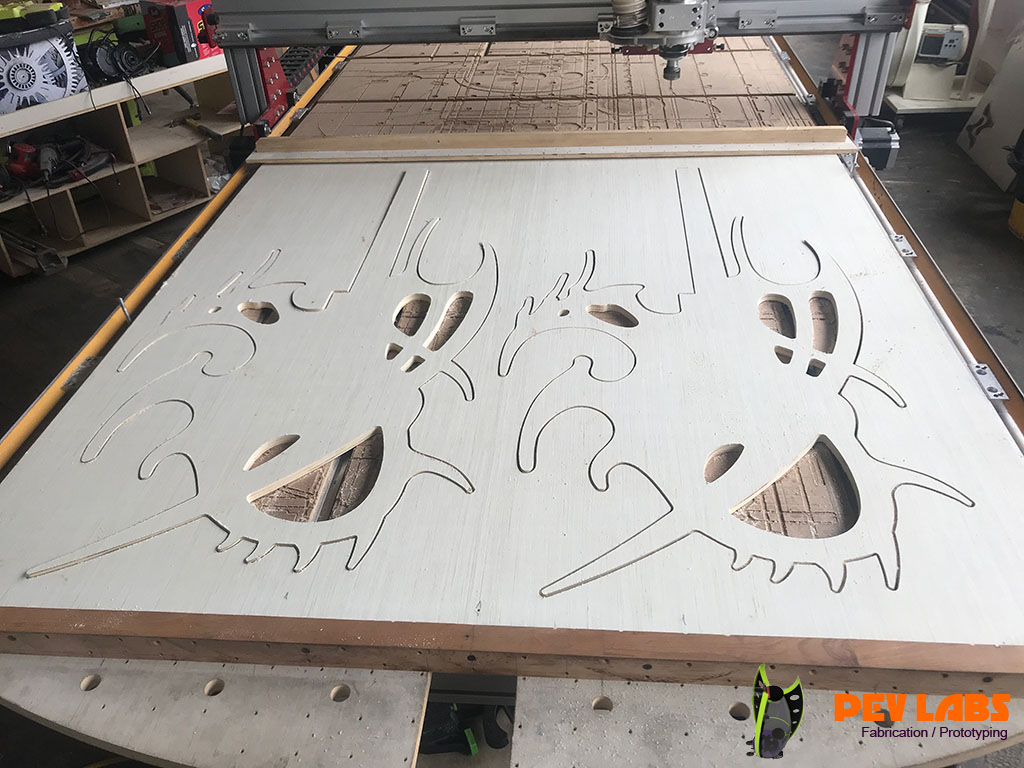

Guitar CNC Milling of Outer Profiles 2b

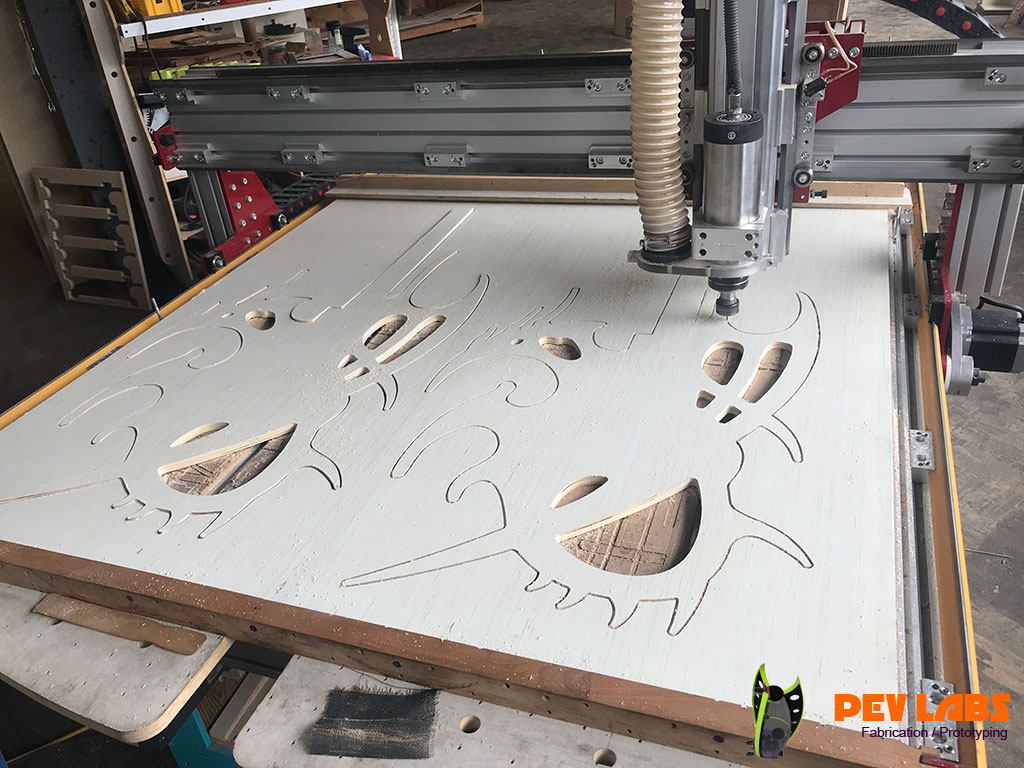

Guitar CNC Milling of Outer Profiles 2a

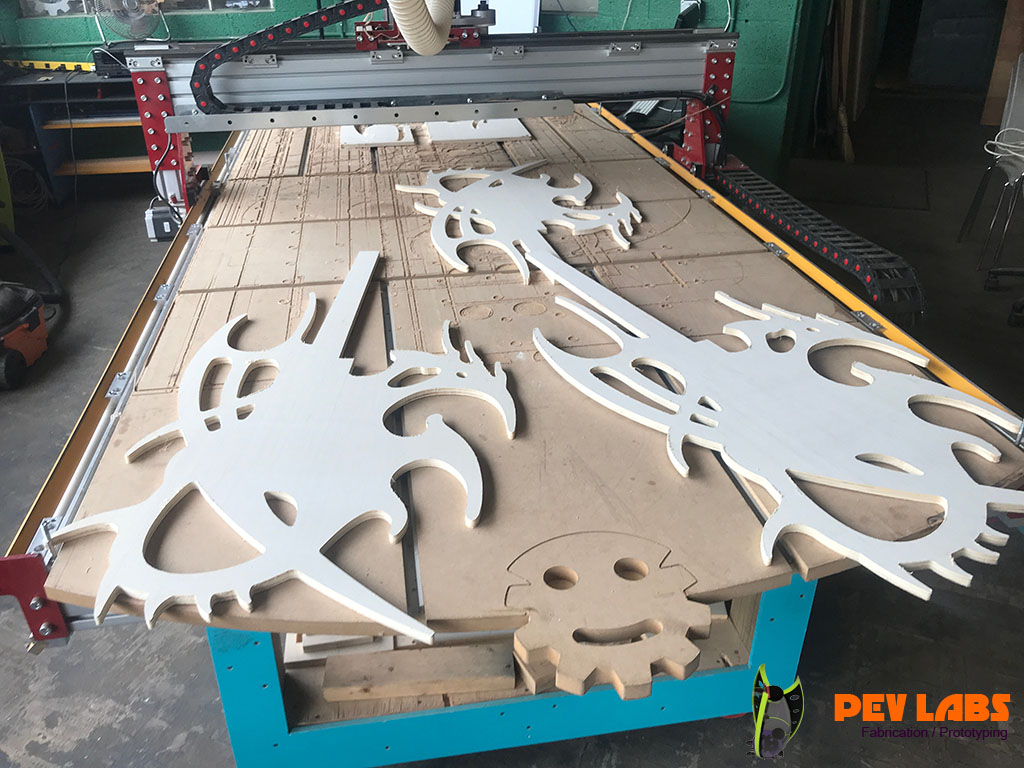

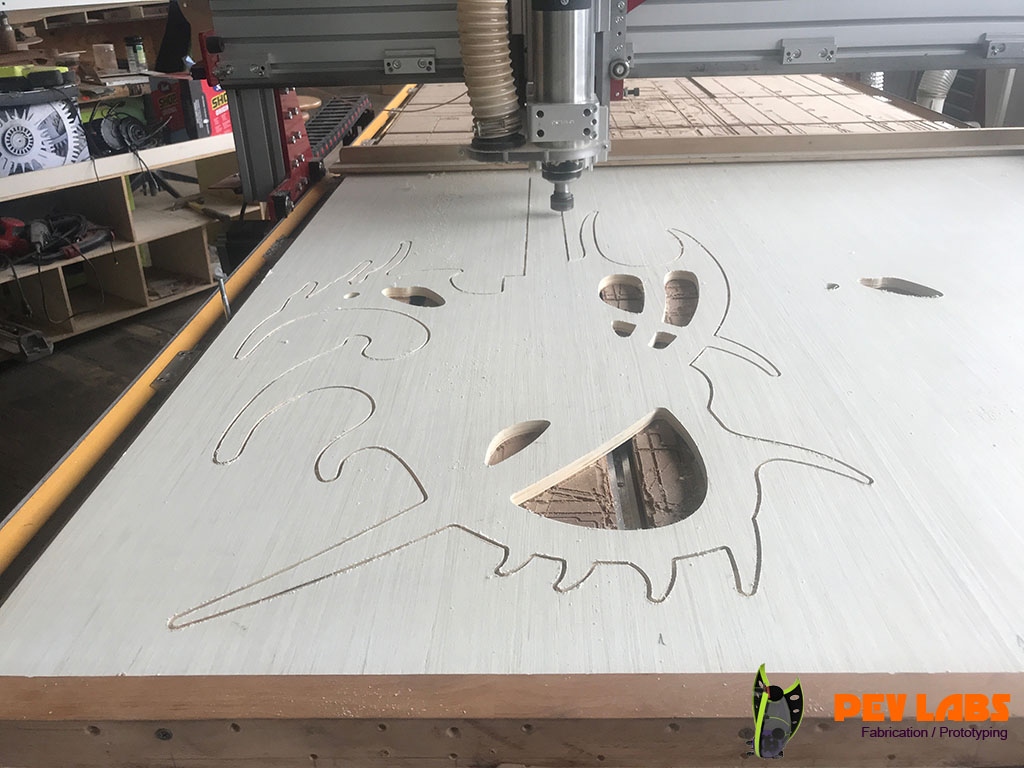

Guitar CNC Milling of Outer Profiles

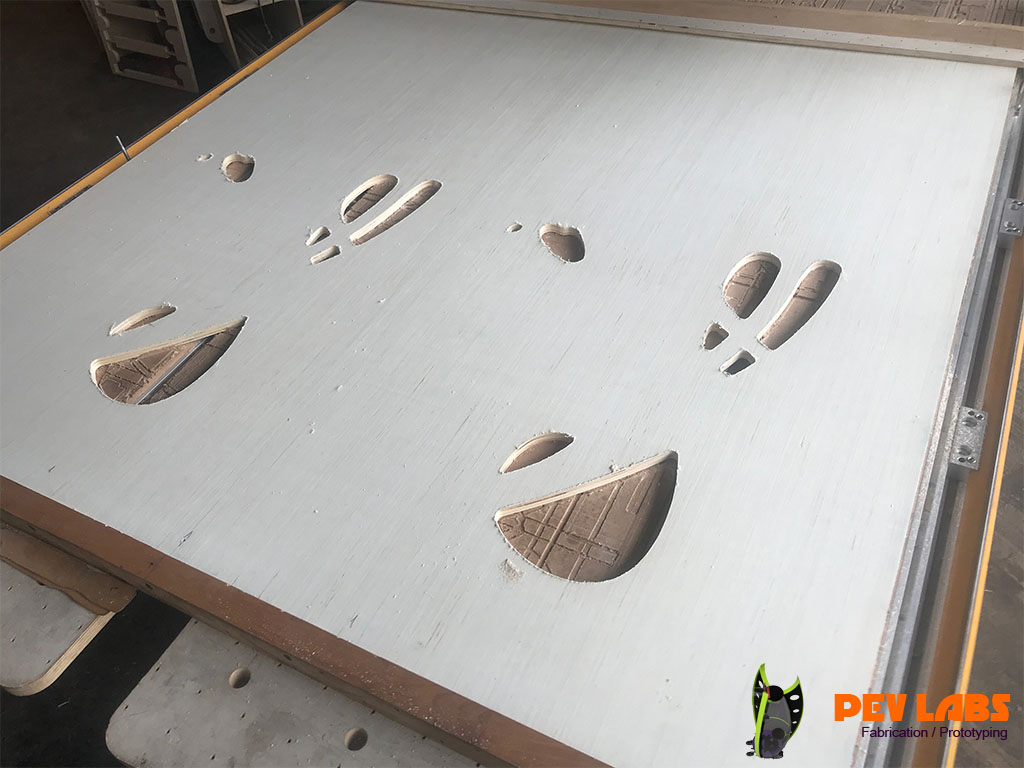

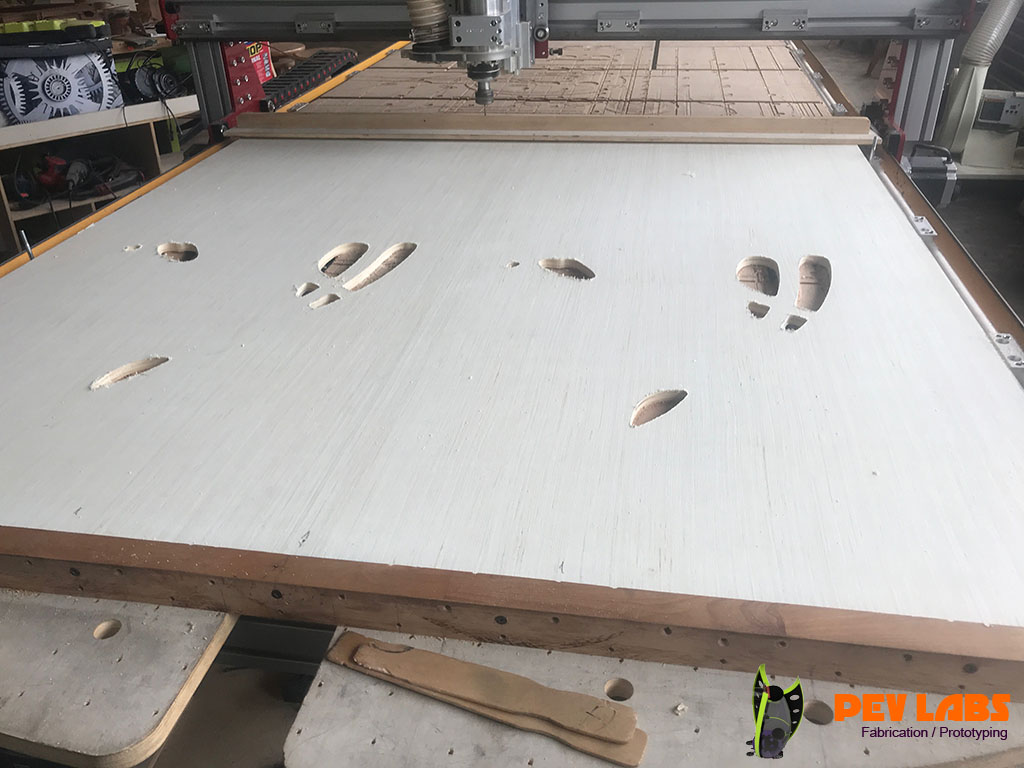

Guitar CNC Milling of Inner Profiles

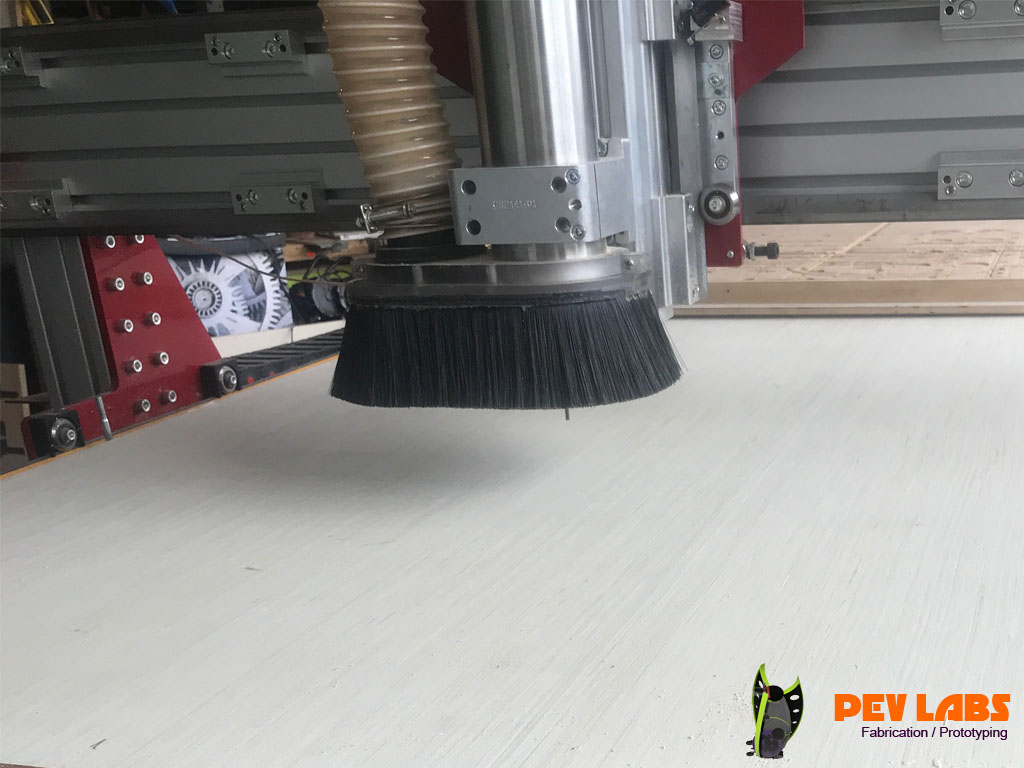

CNC Set With Blank Sheet of Plywood

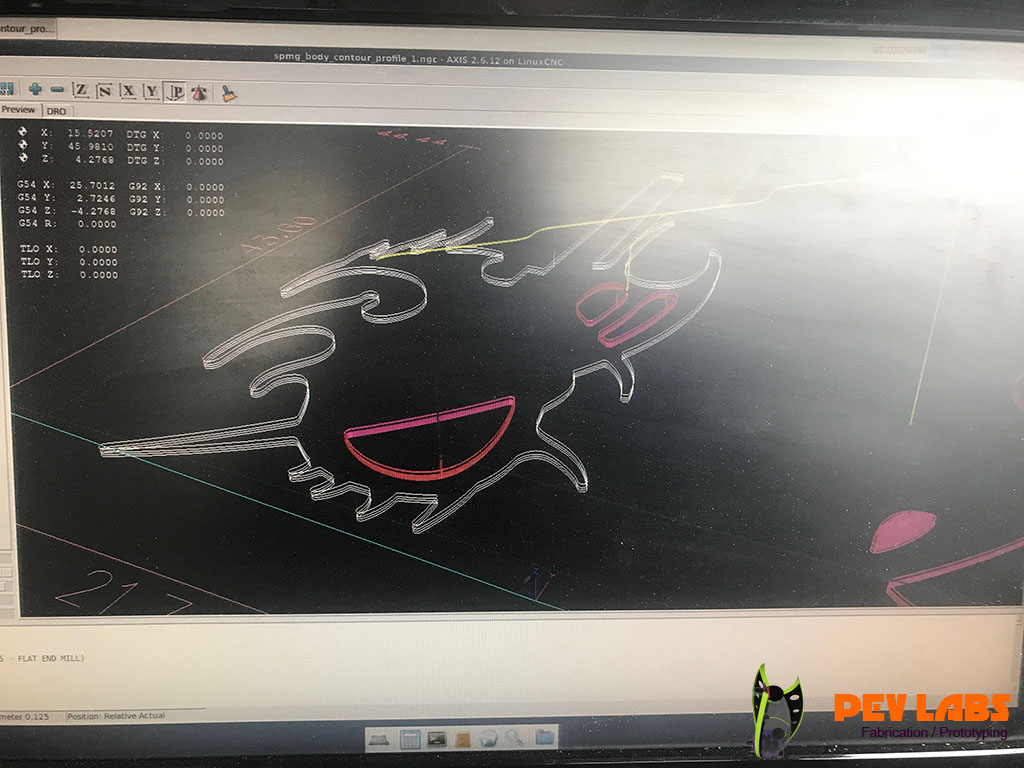

Linux CNC Ready for Guitar Milling

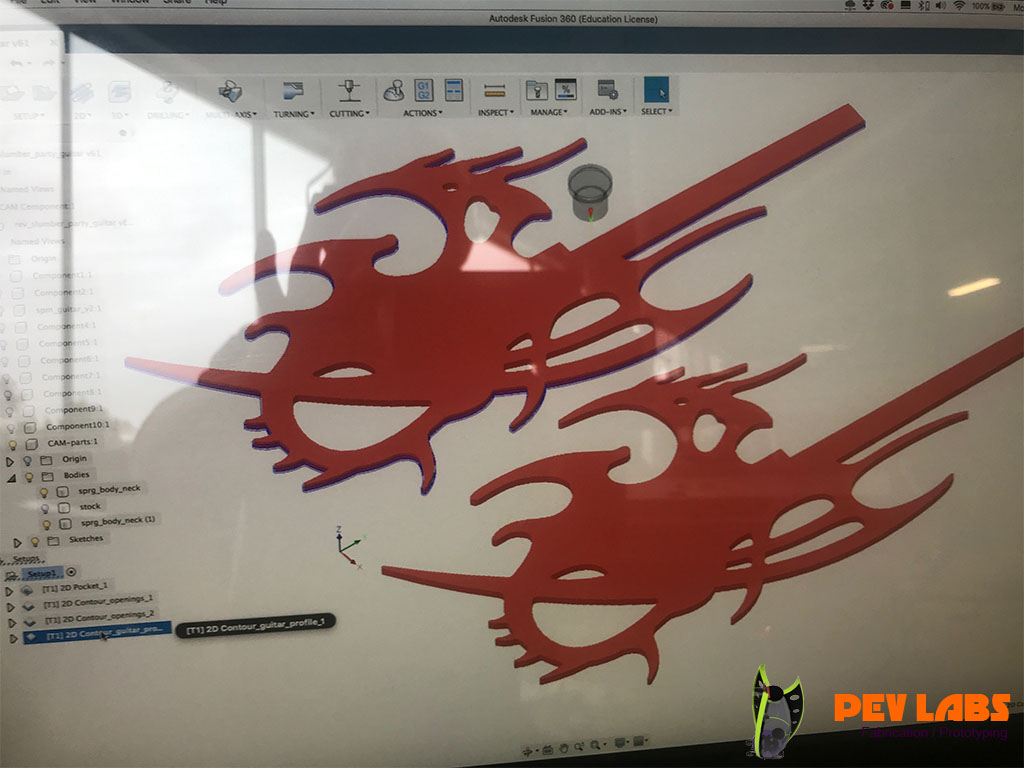

Massacre Guitar CAM View

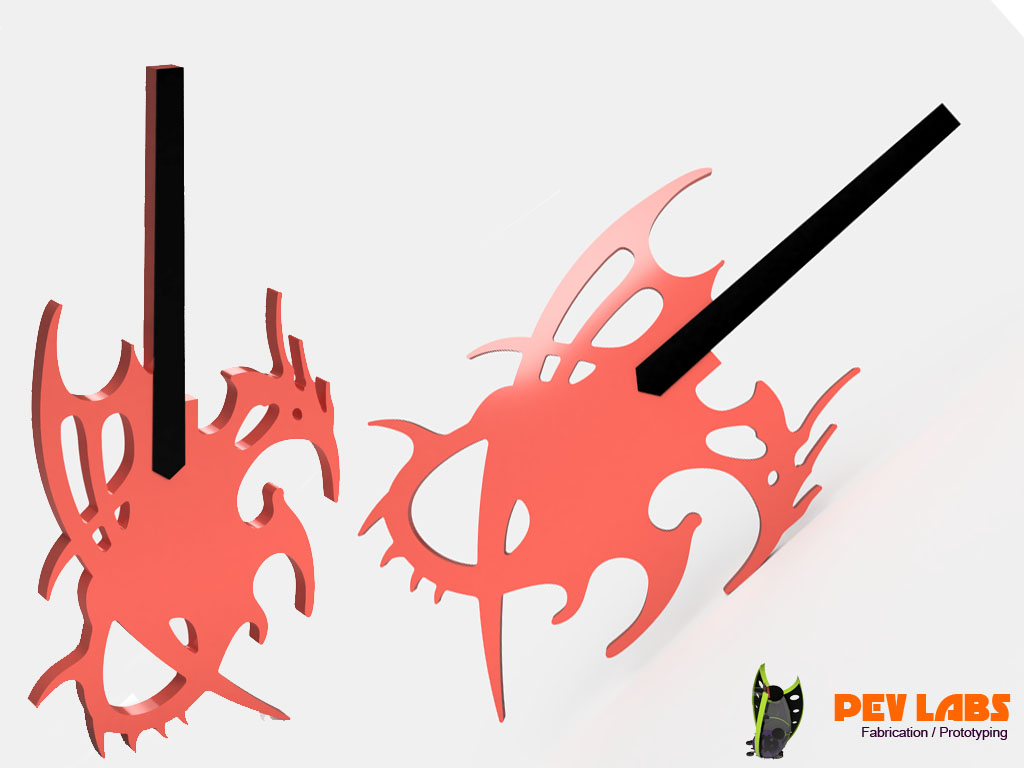

Slumber Party Massacre Guitar 3D

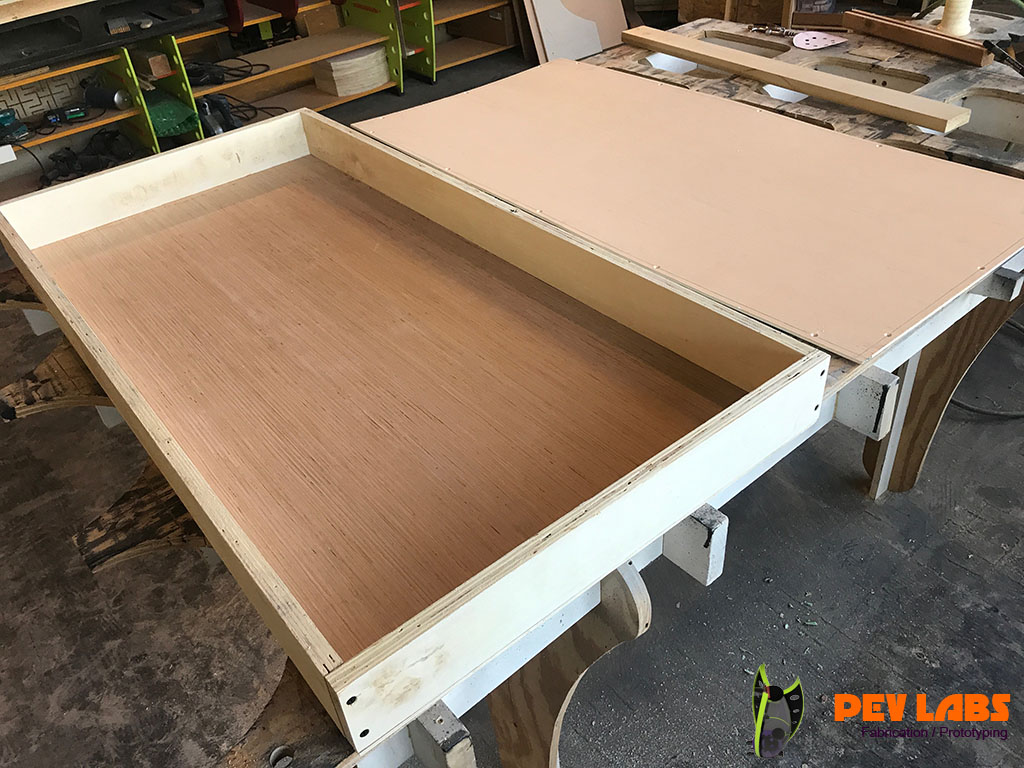

Guitar Shipping Wooden Box
More about the SPM Movie: https://en.wikipedia.org/wiki/The_Slumber_Party_Massacre
Fabrication Skills Involved
