Wooden Electric Bike Prototyping Stages : Prototype Version 5

A visual overview of the many steps involved in prototyping version 5.xx of a handmade wooden bicycle. Here we are making one manual bike and three more electric wooden bicycles for Renaissance Products Group. This production run should yield four wooden sapele bikes from one sheet of one inch thick custom produced plywood. Frames are sapele ply, seatstay is sapele ply, solid sapele chain stays and for the dropouts we custom CNC mill out of a sheet of 3/8 aluminum. Making Bikes in this bespoke fashion is fairly precise with accuracy and attention to details paramount.

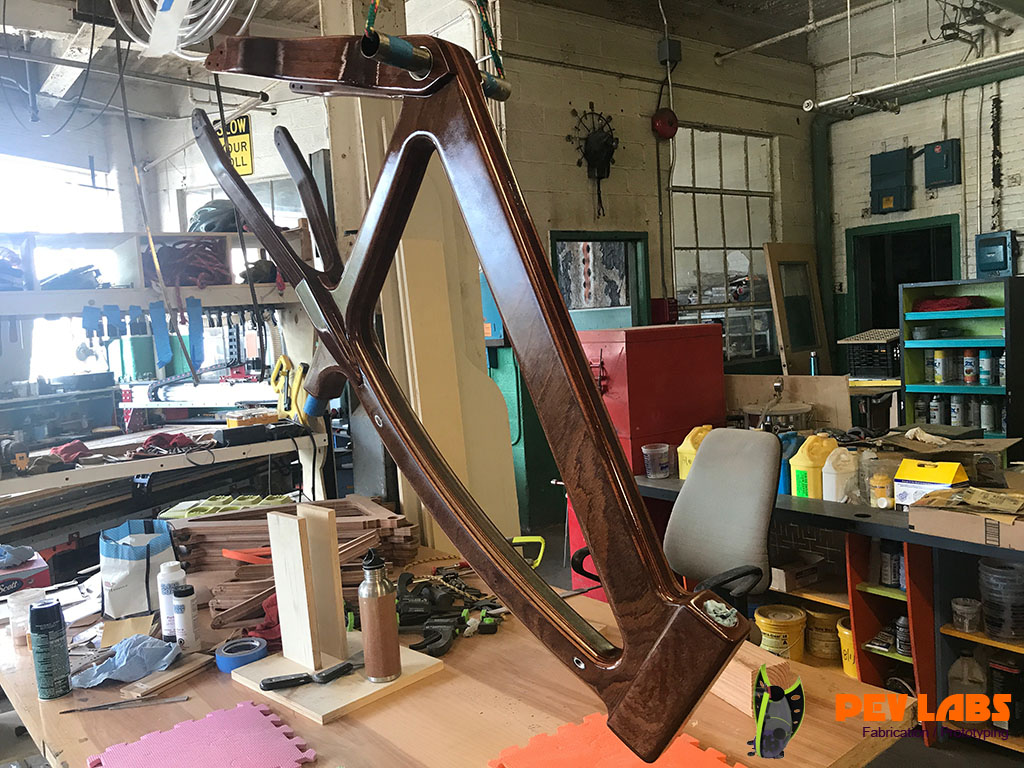

Wooden Bike Frame Satin Spar Varnish
Wooden Bike Frame Spar Varnish
Second Coat of Epoxy Sanded
Second Coat of Epoxy Sanded

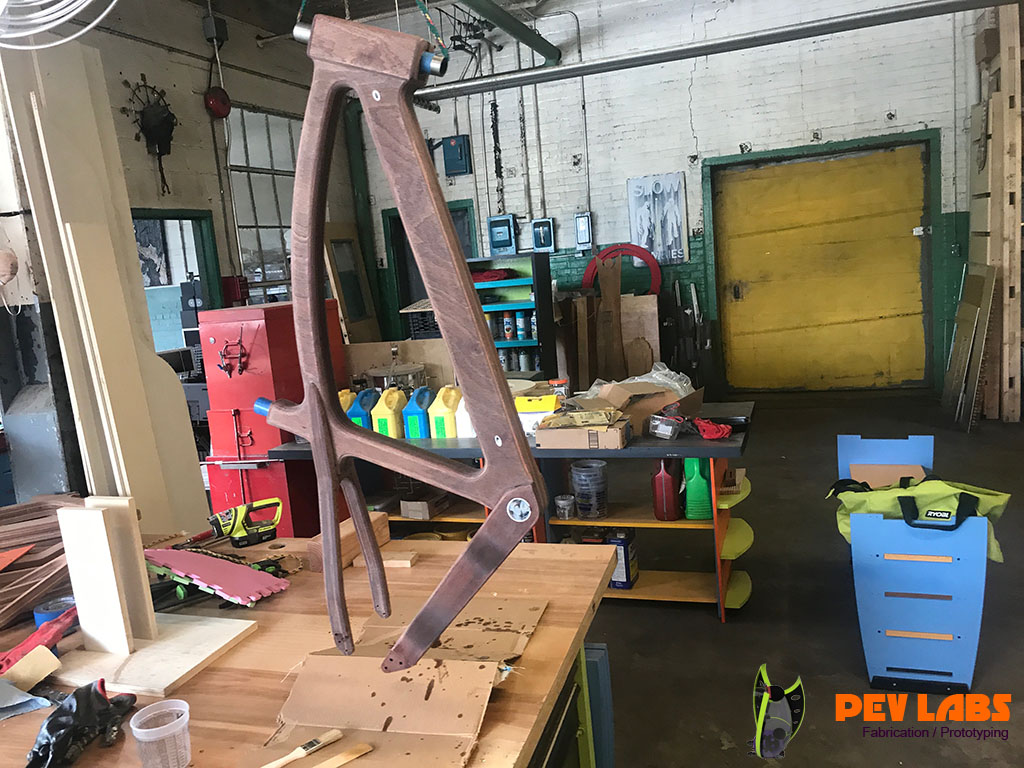

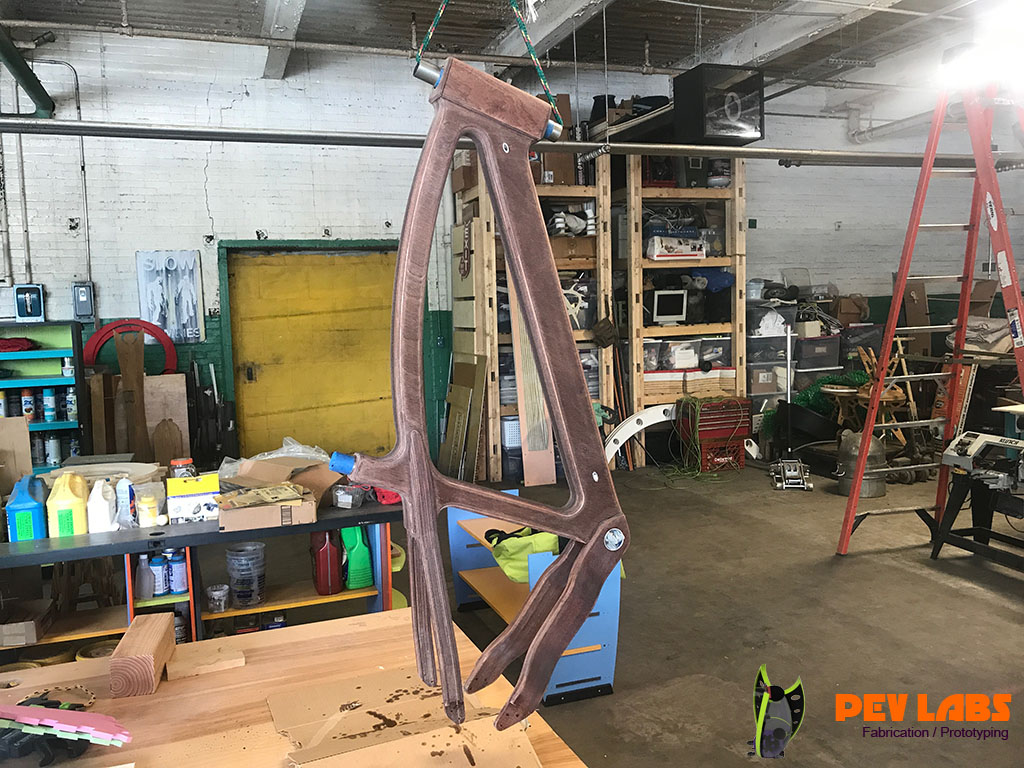

First Coat of Epoxy Sanded
First Coat of Epoxy Sanded

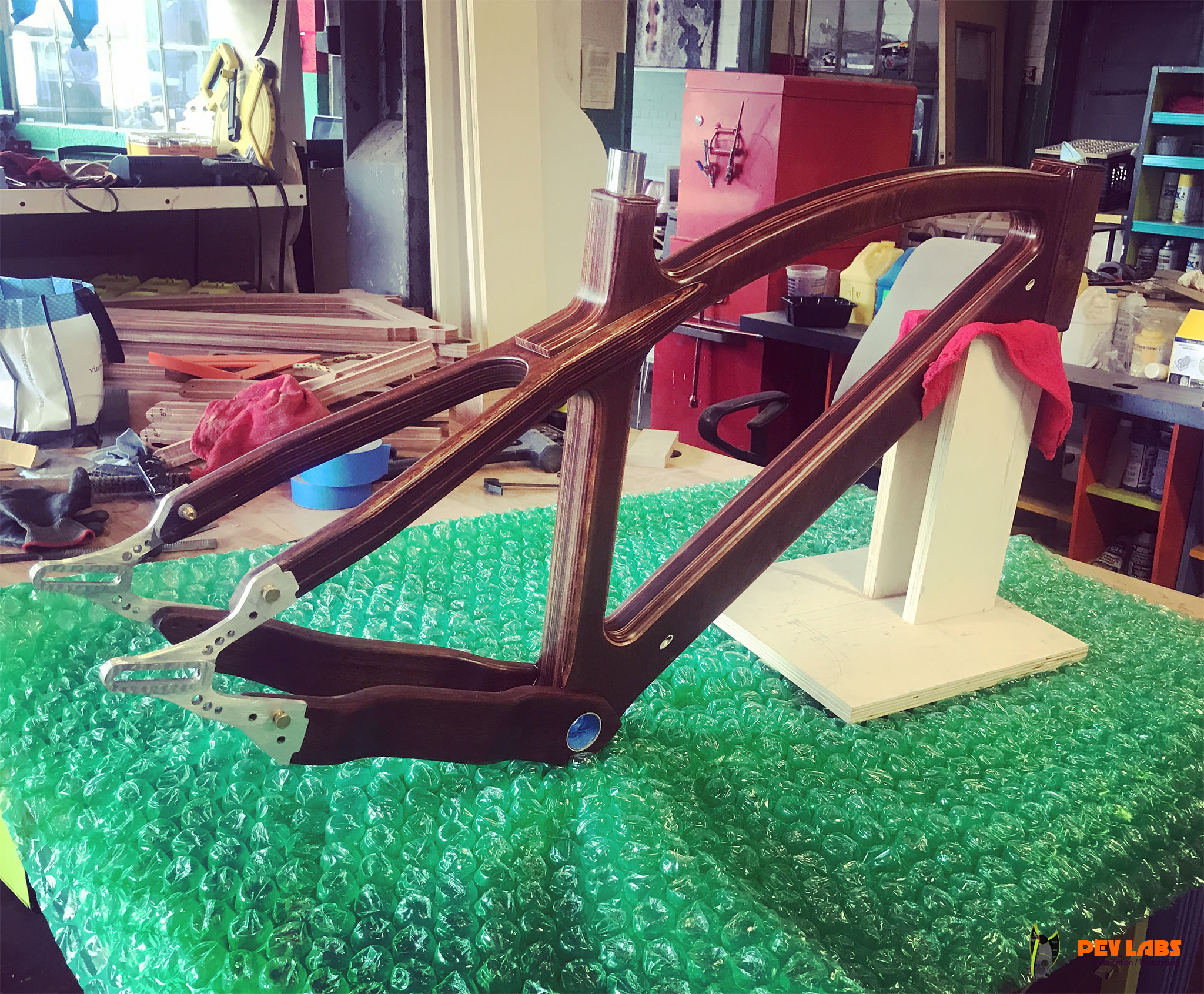

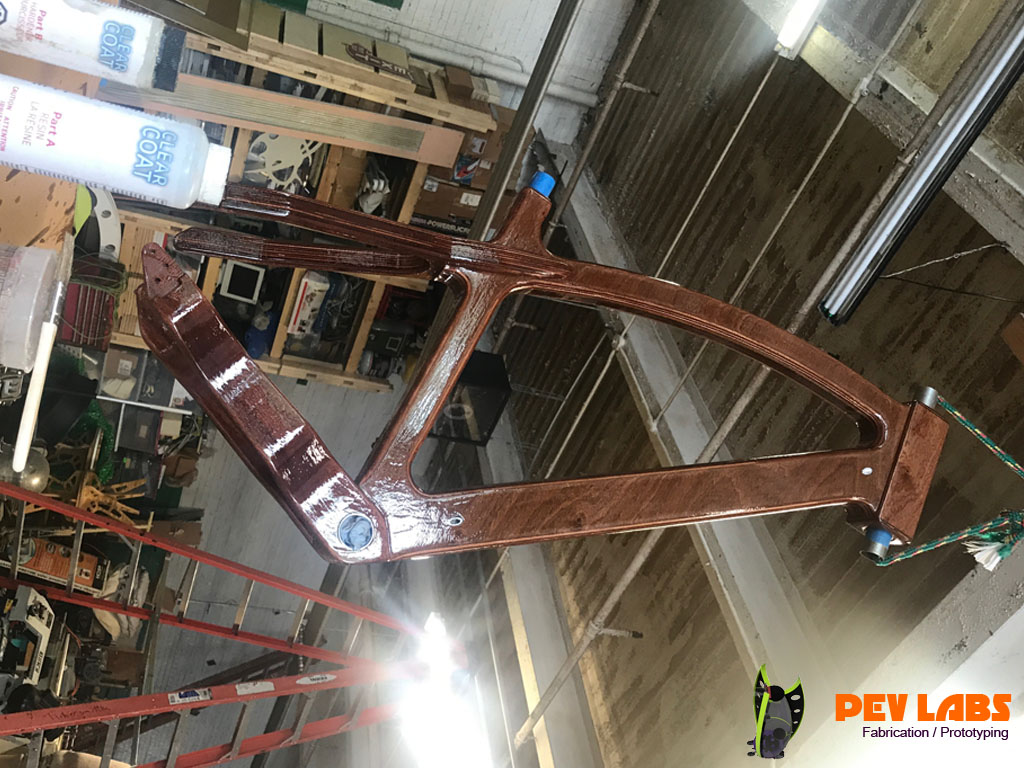

One of Many Epoxy Clear Coats
One of Many Epoxy Clear Coats

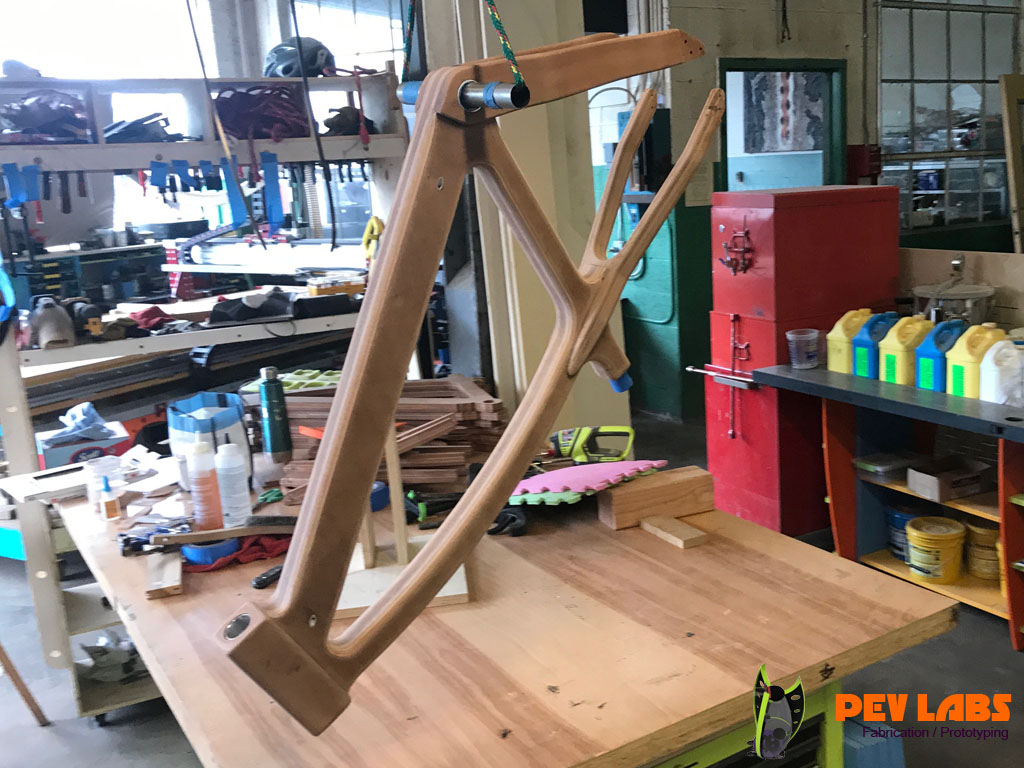

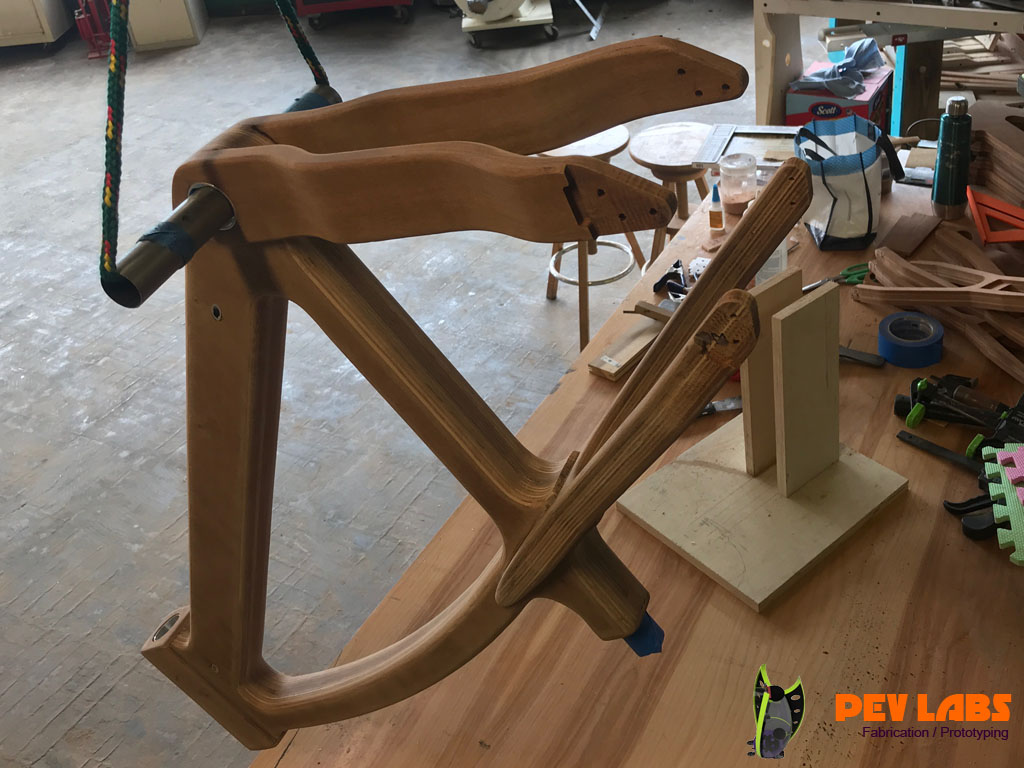

Sanded Wooden Bike Frame
Sanded Wooden Bike Frame
Sanded Bespoke Wood Bike Frame
Sanded Bespoke Wood Bike Frame

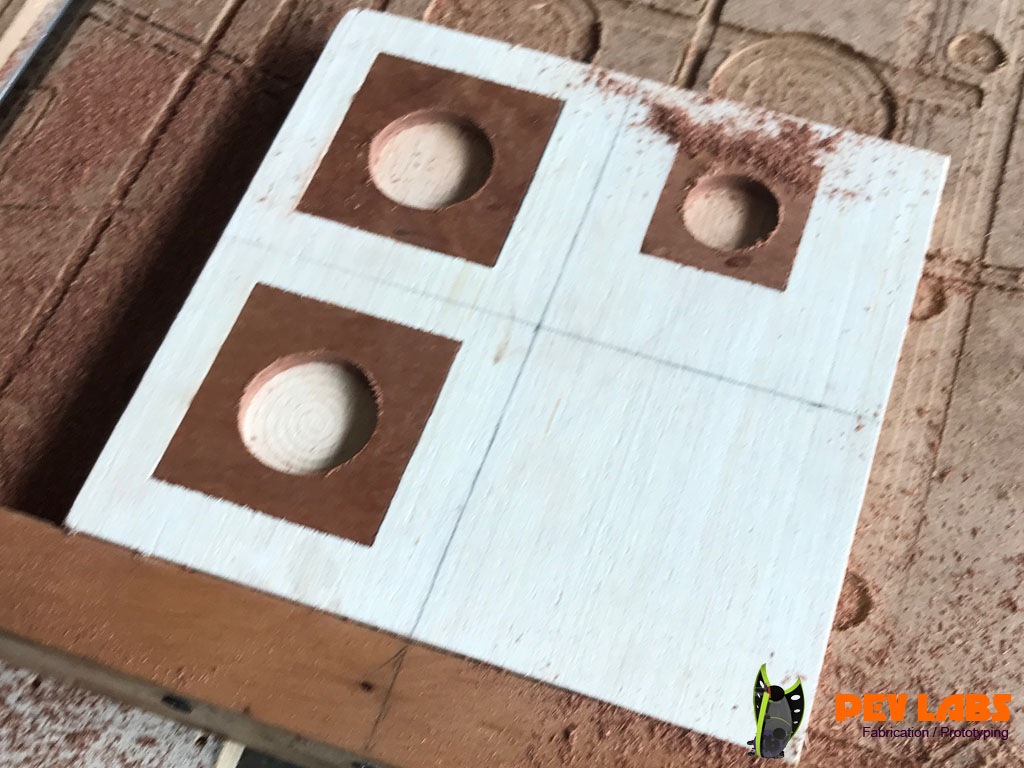

CNC Milling Jig for Column Caps
CNC Milling Jig for Column Caps
Dry Fitting Wood Bike Frame Assembly
Dry Fitting Wood Bike Frame Assembly

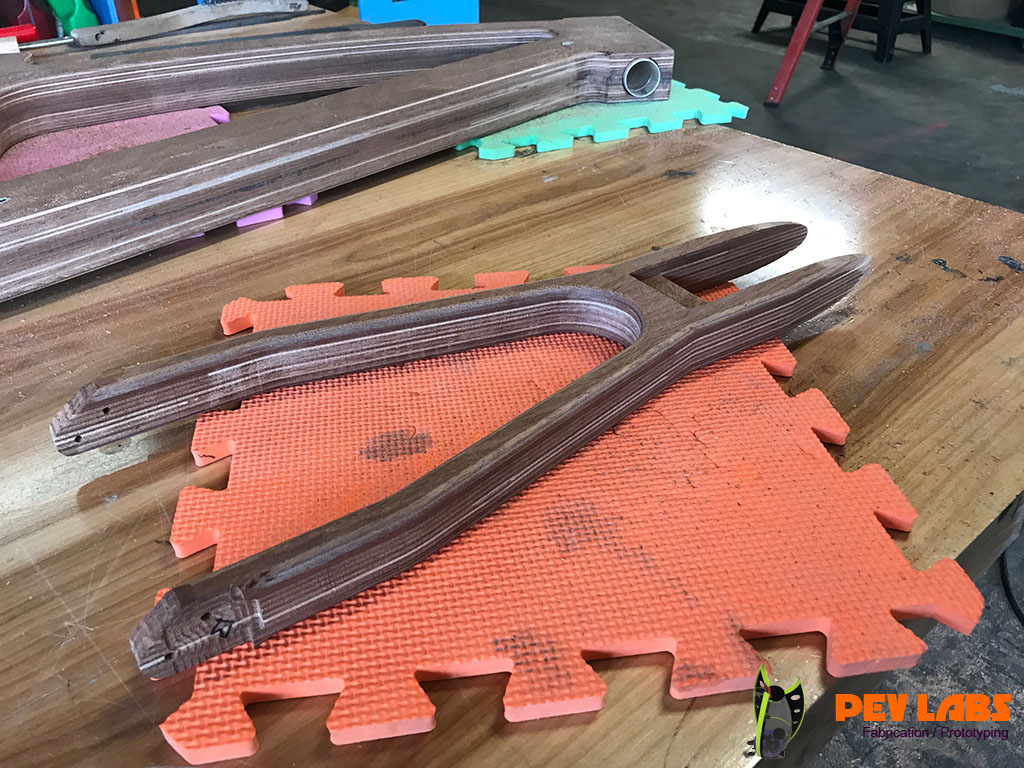

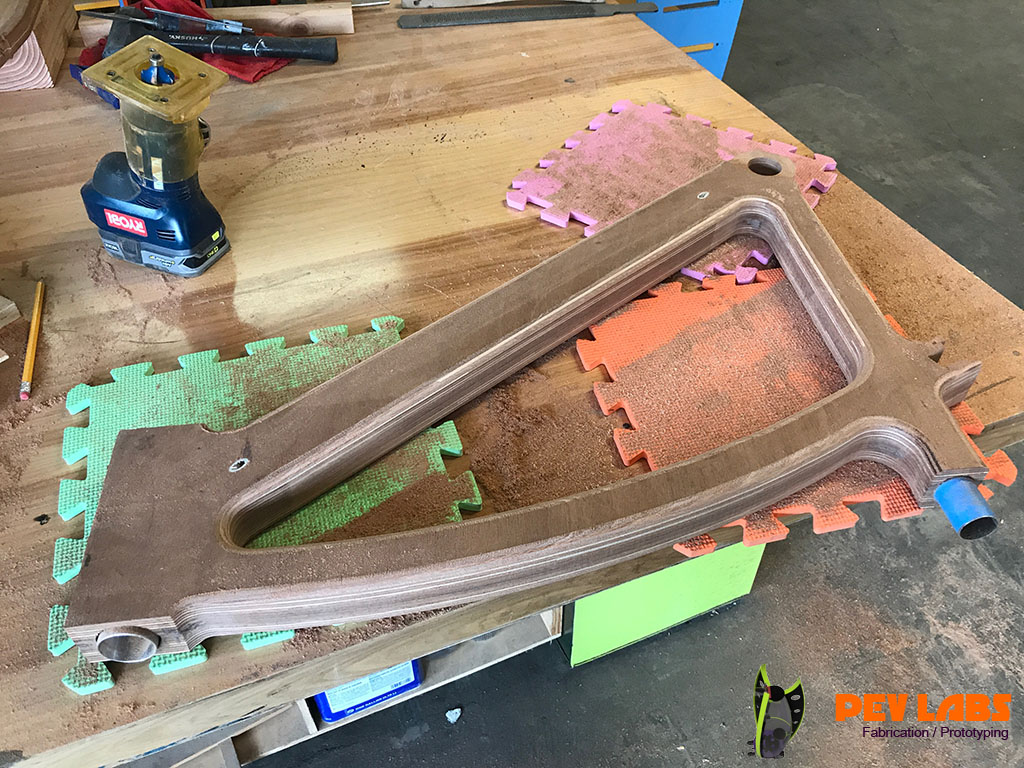

Rounding Edges on Wooden Bike Frame
Rounding Edges Wood Bike Frame

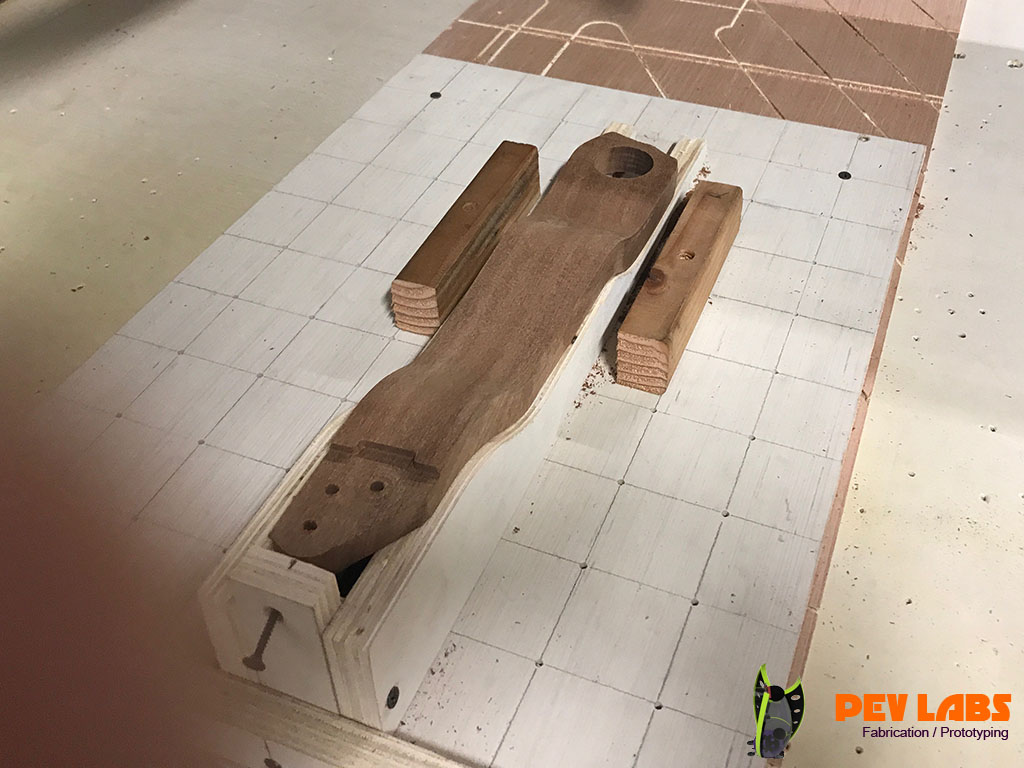

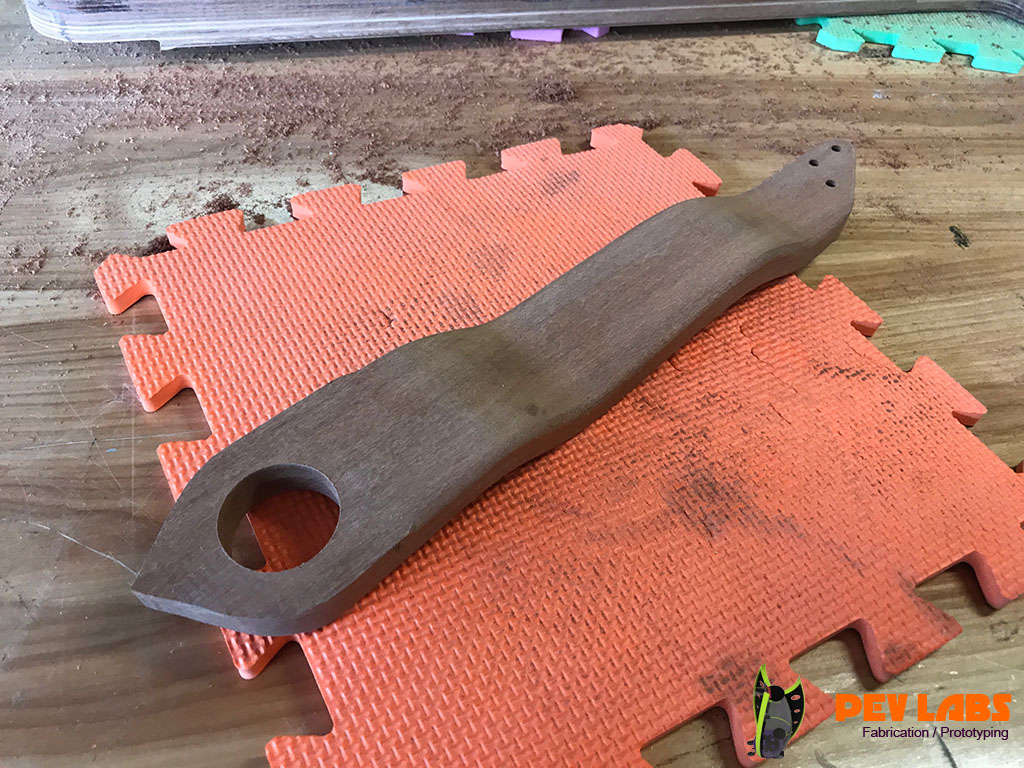

Solid Wood Chain Stay Milled
Solid Wood Chain Stay Milled
Plywood Seat Stay Milled
Plywood Seat Stay Milled

Fitting Solid Wood Chain Stay

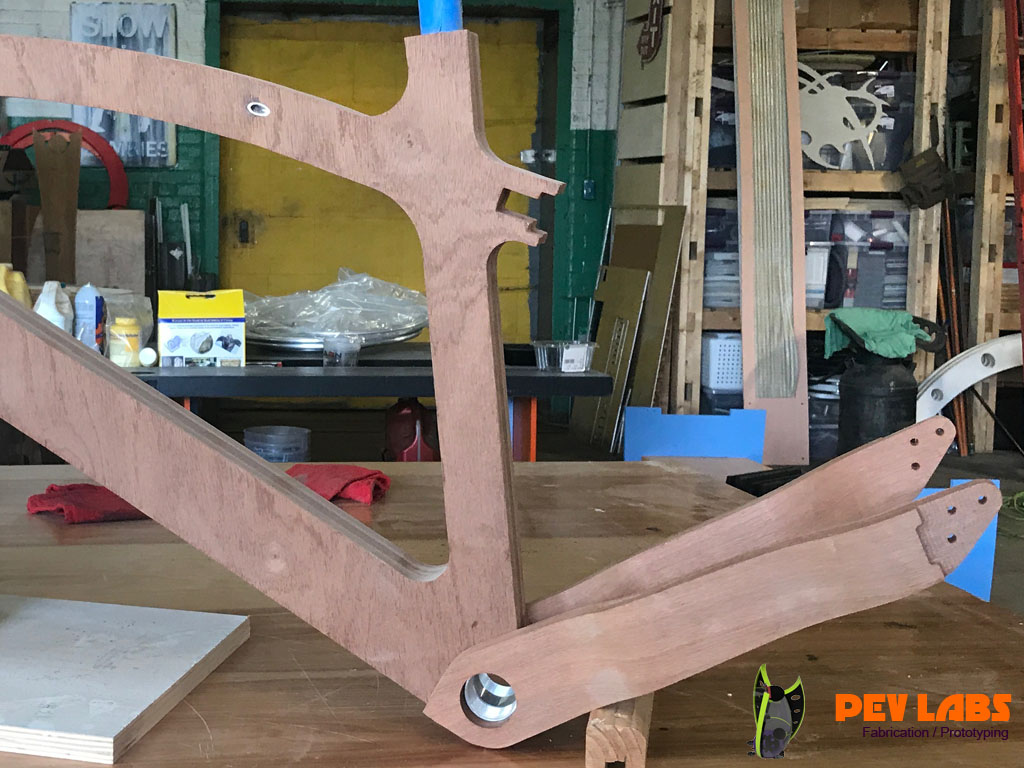

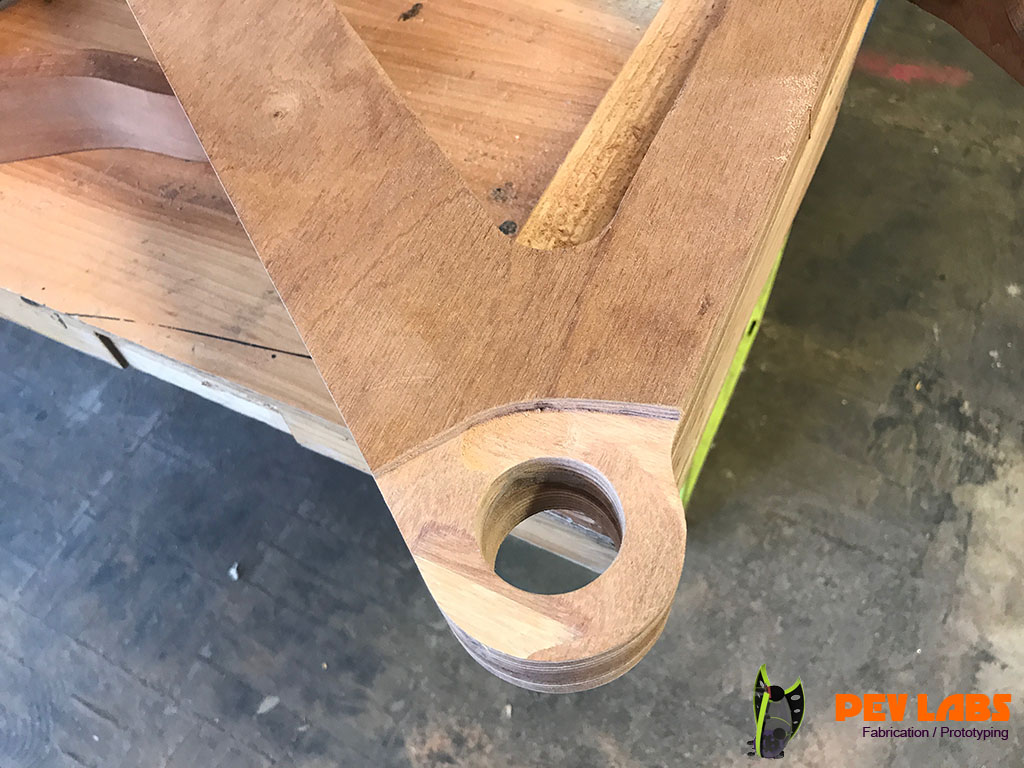

Chain Stay Frame Pocket Cut
Chain Stay Frame Pocket Cut

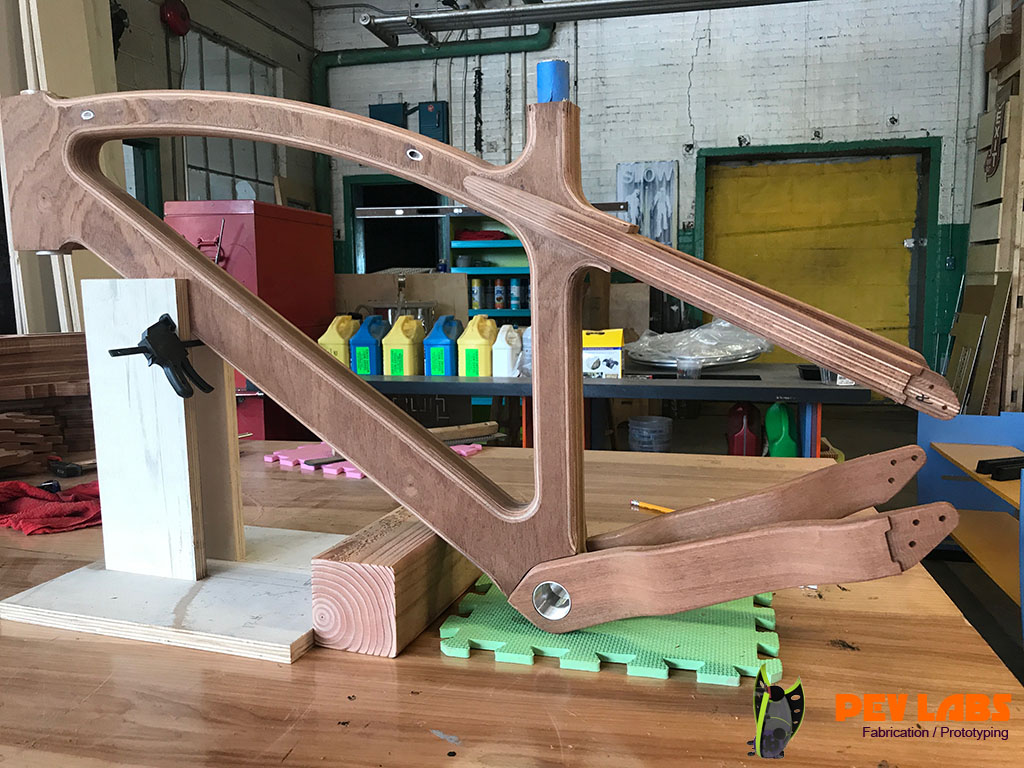

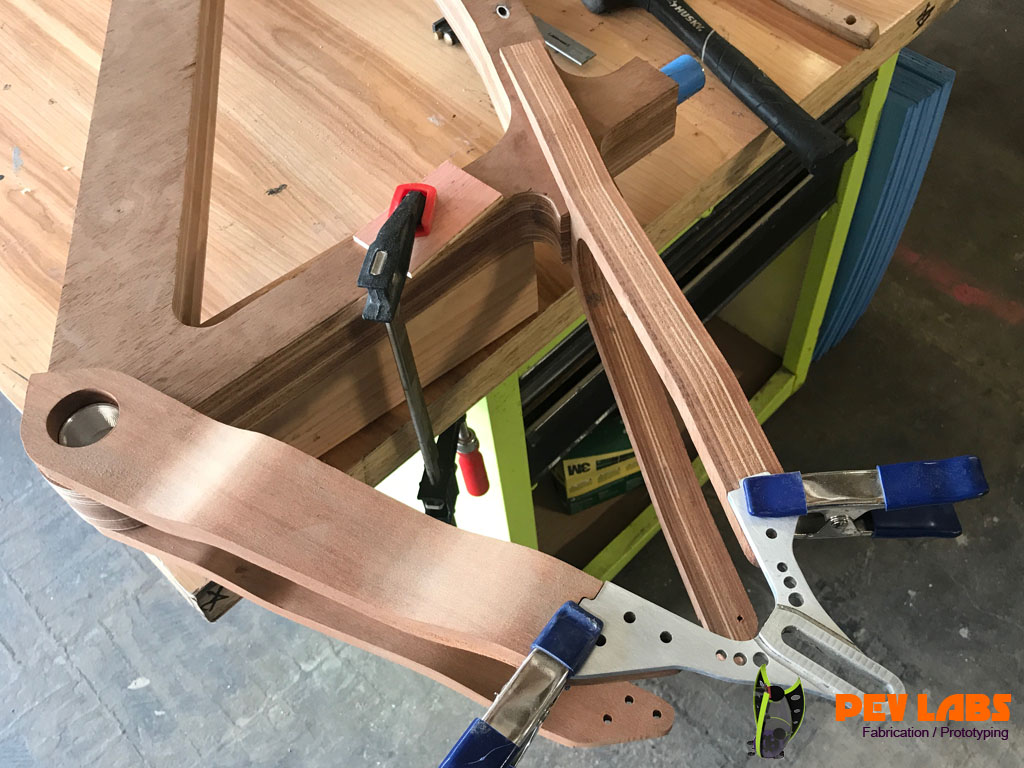

Dry Fitting Wooden Bike Frame Parts
Dry Fitting Wooden Bike Frame
>Laying out for Crank Pocket Cuts
Laying out for Crank Pocket Cuts

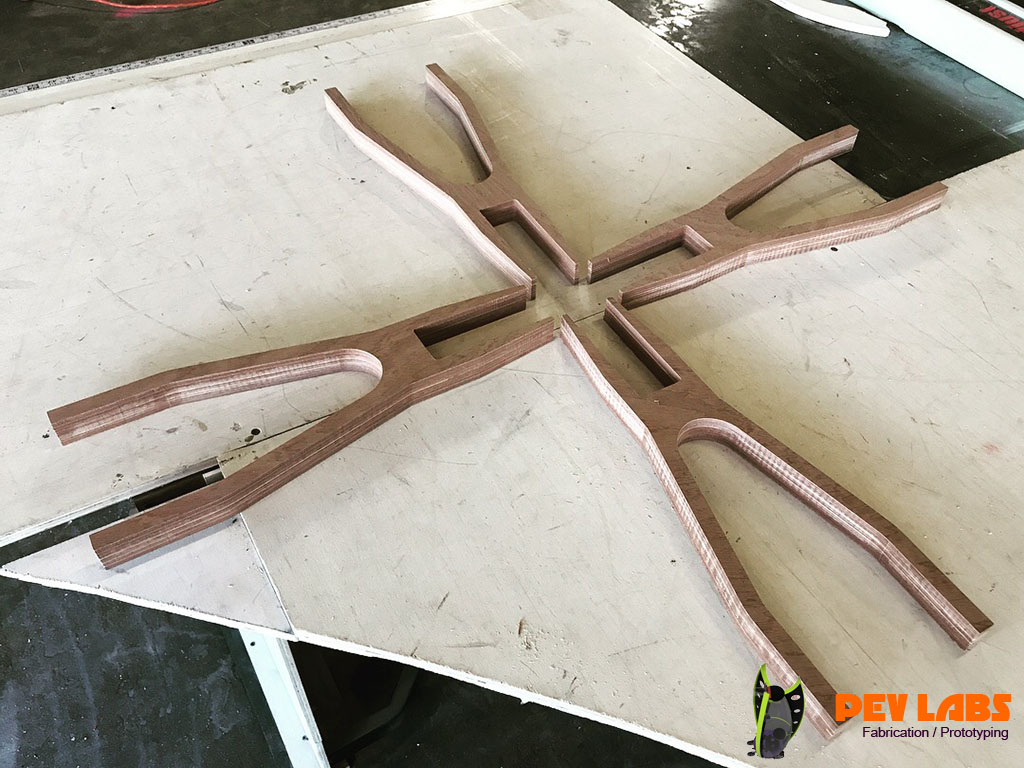

Wooden Bike Seat Stay Profiles Milled with CNC
Wooden Bike Seat Stay Profiles Milled

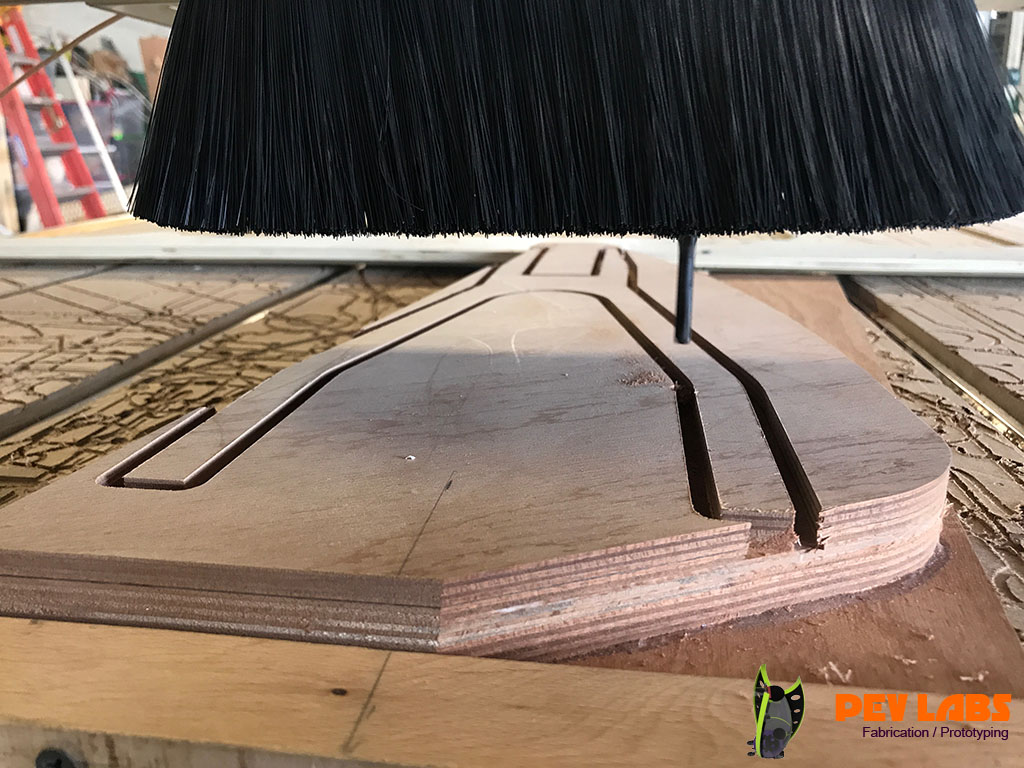

Wooden Bike Seat Stay Milling
Wooden Bike Seat Stay Milling

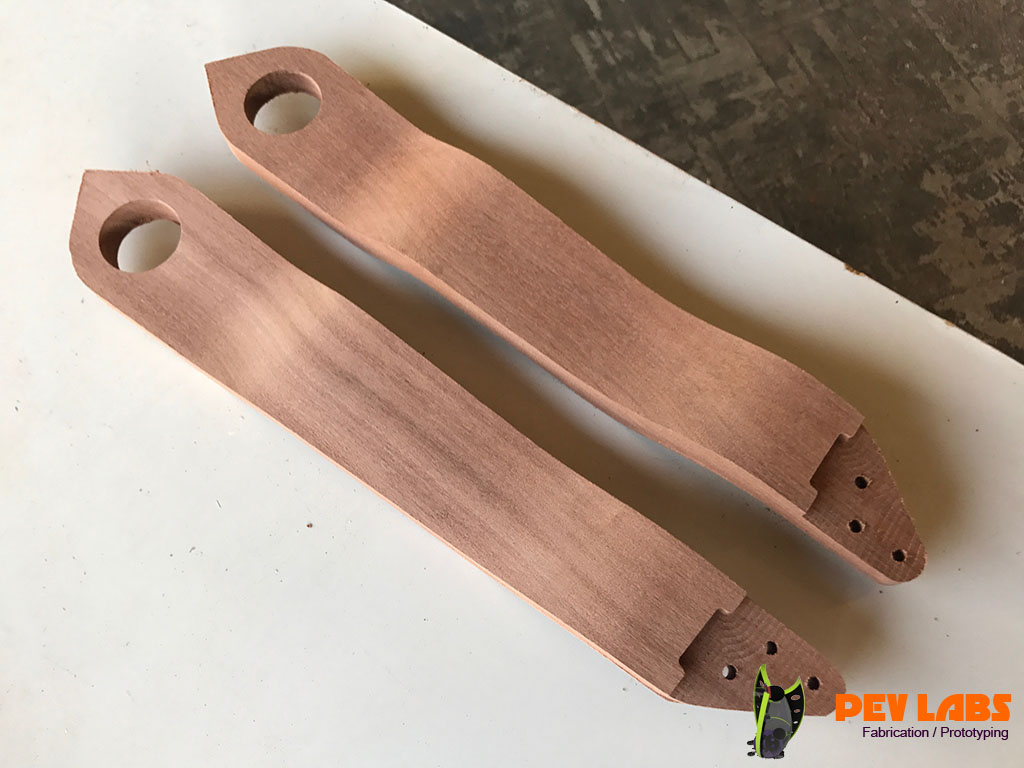

Sapele Chain Stay Milling Complete
Sapele Chain Stay Milling Complete

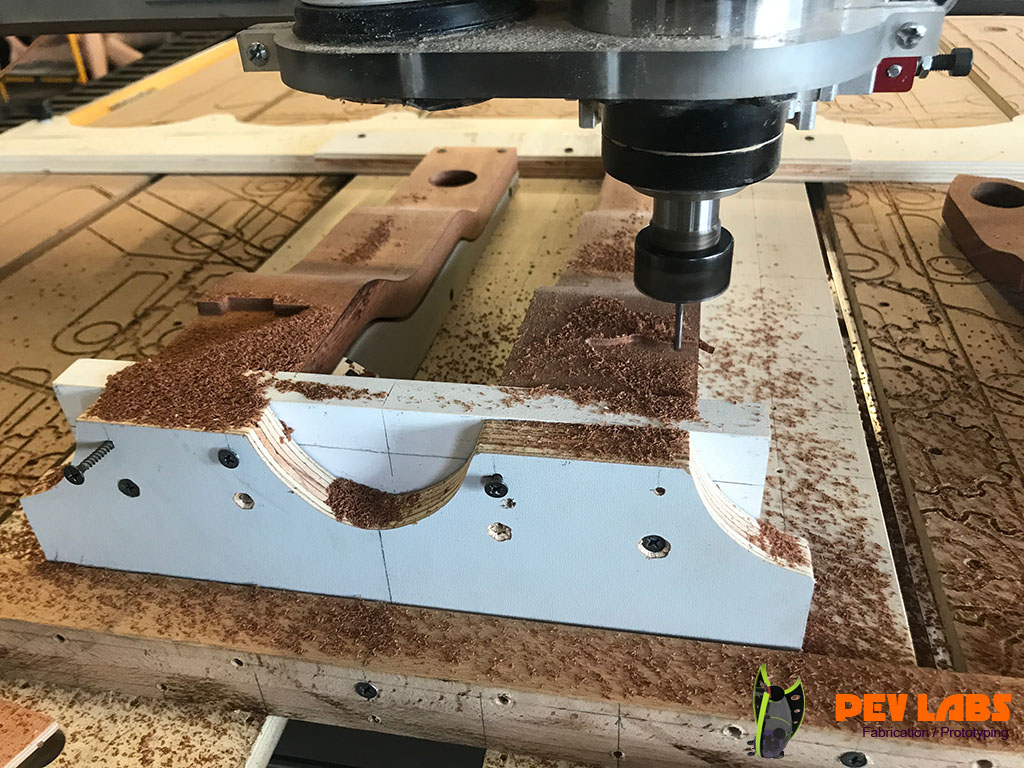

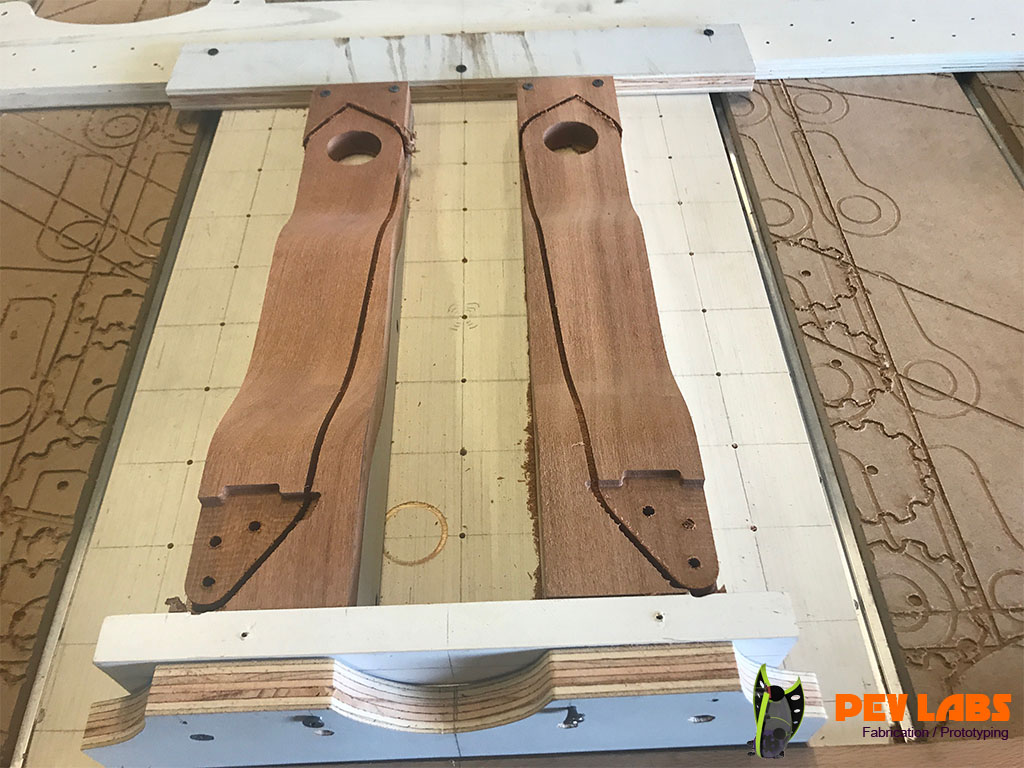

CNC Milling Chain Stay Edge Profile
CNC Milling Chain Stay Edge Profile
CNC Milling for Droupouts
CNC Milling for Droupouts
CNC Milling Jig for Chain Stays
CNC Milling Jig for Chain Stays

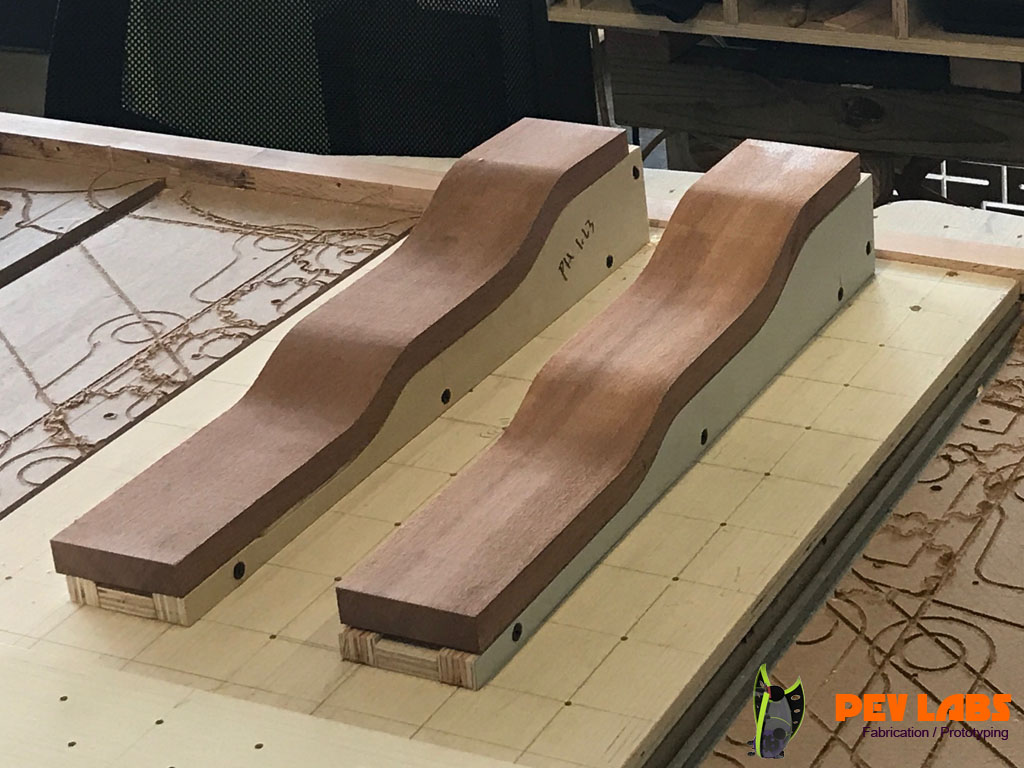

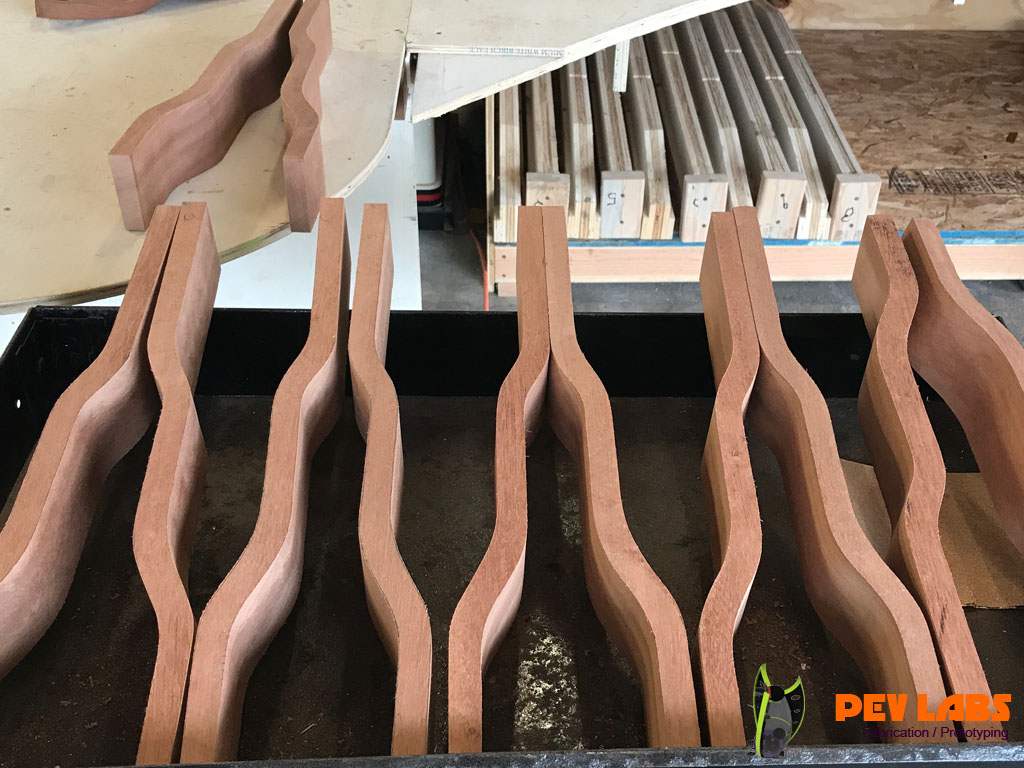

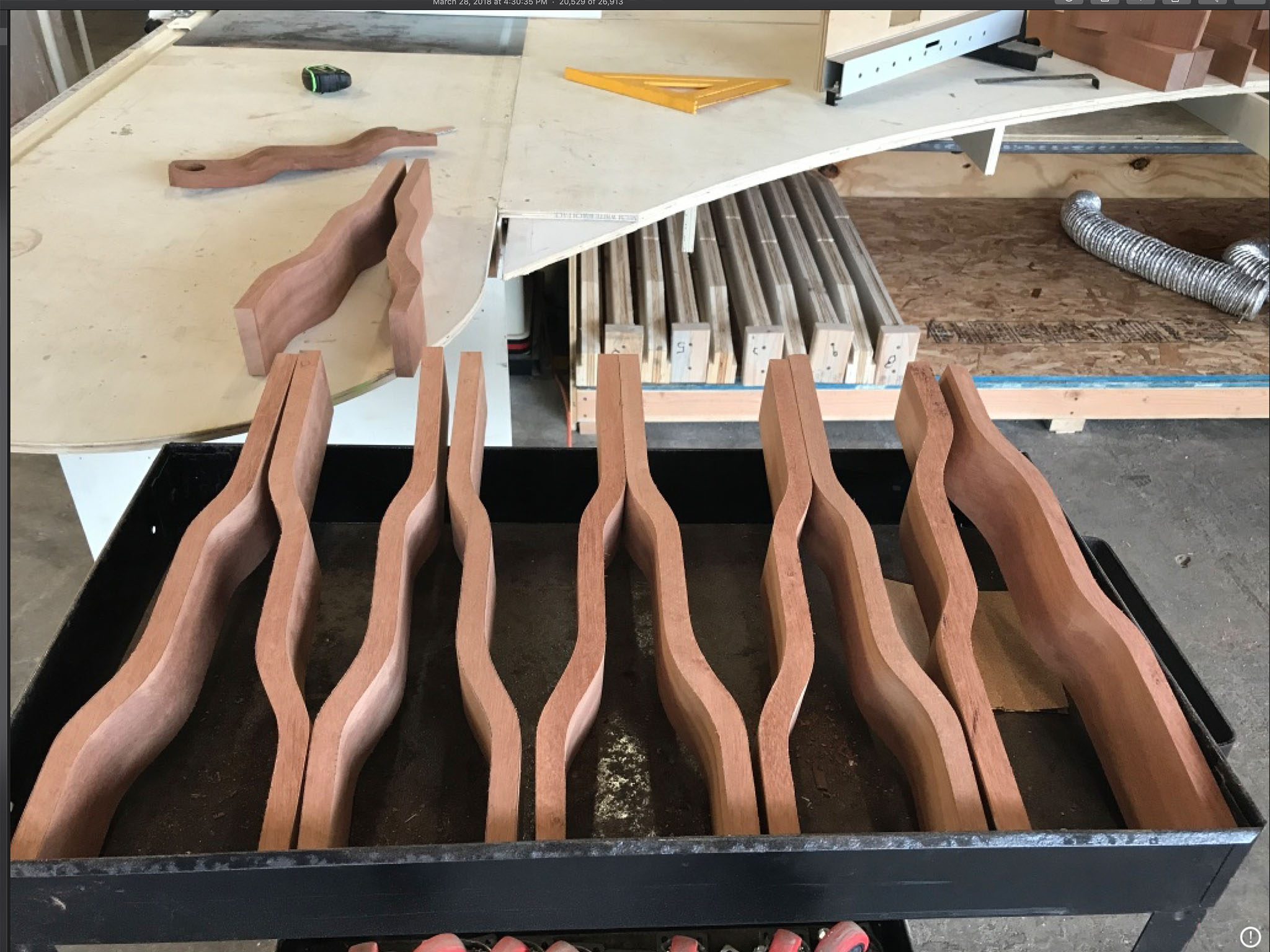

Chain Stay Blanks Paired
Chain Stay Blanks Left Right Pairs

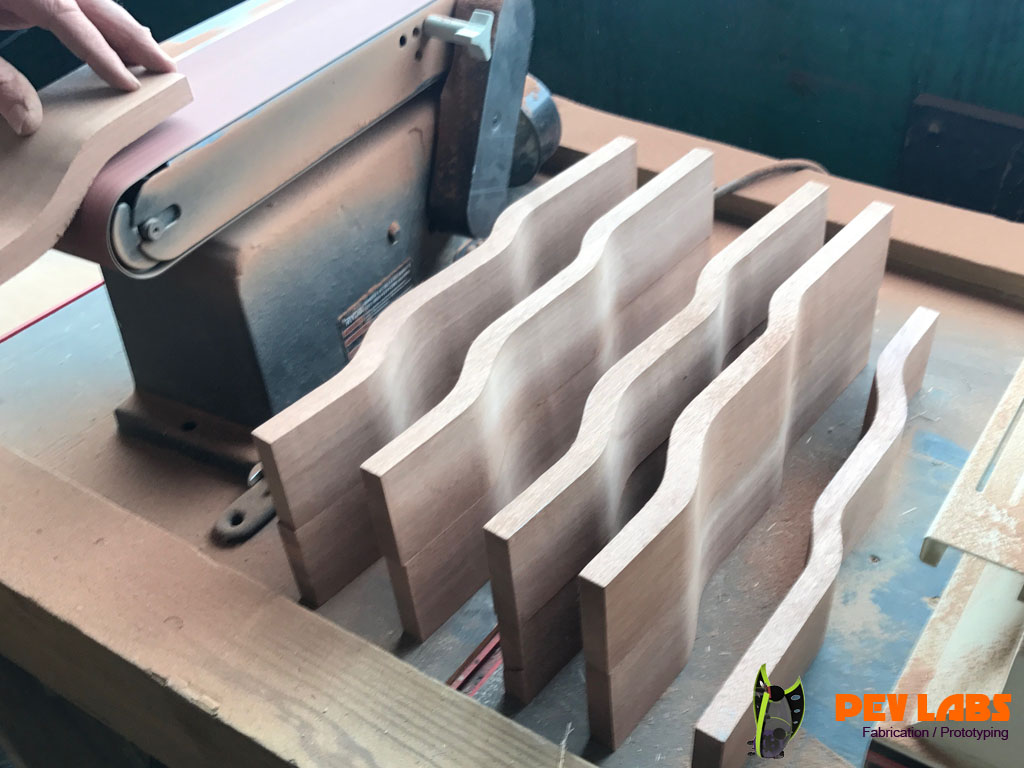

Chain Stay Blanks Sanding
Chain Stay Blanks Sanding

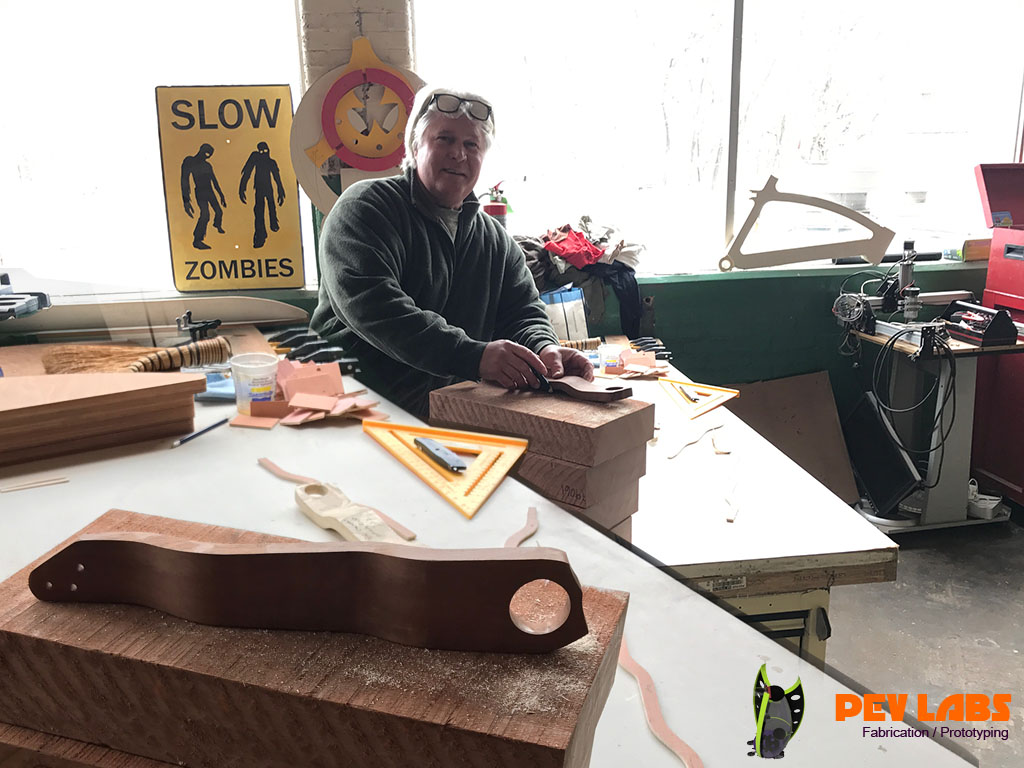

Billy Making Wood Chainstays
Billy Making Wood Chainstays

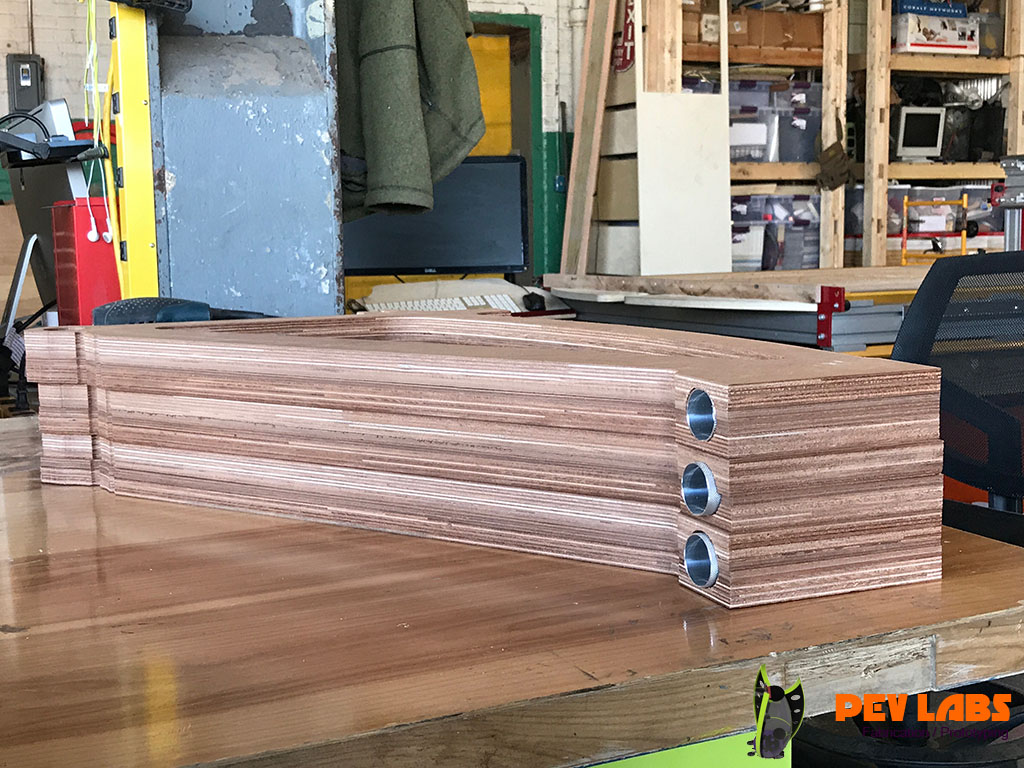

Stack of Sapele Wood Bike Frames
Stack of Sapele Wood Bike Frames

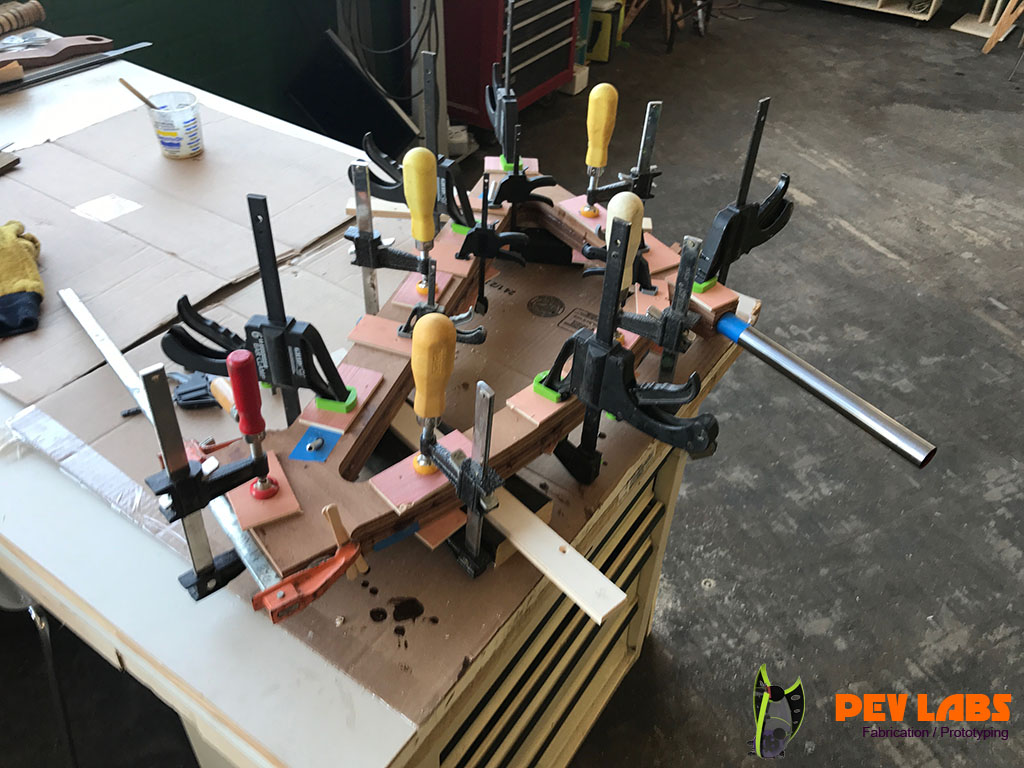

Clamping & Glueing Wood Bike Frame
Clamping & Glueing Wood Bike Frame

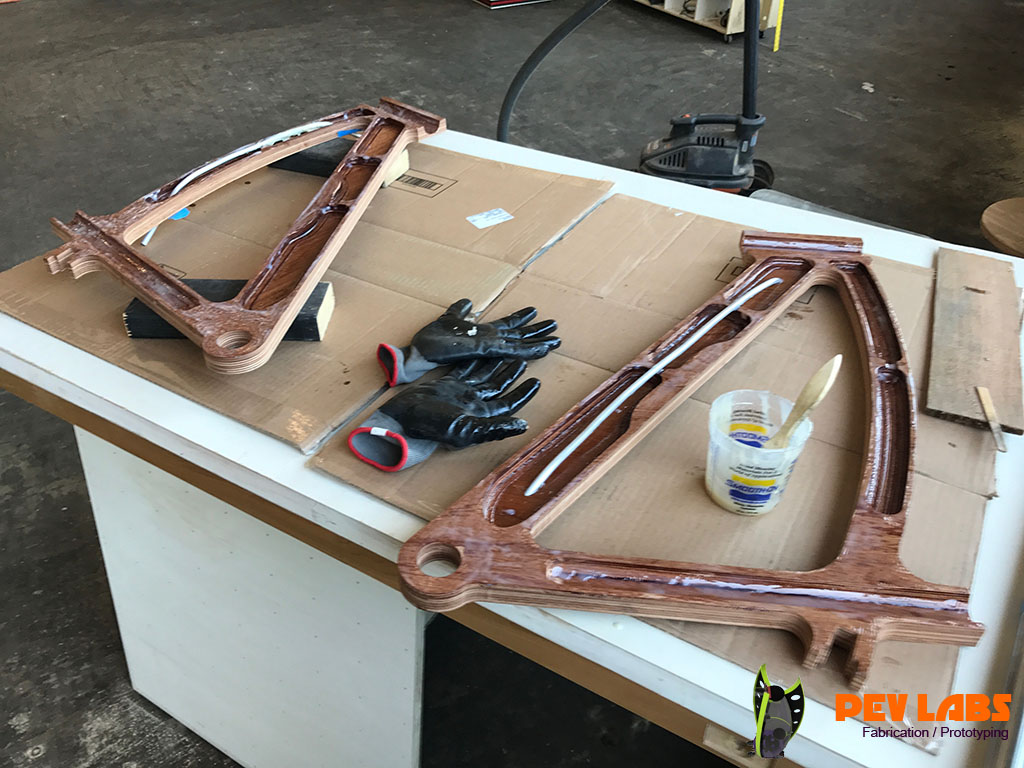

T-88 Epoxy of Wood Bike Frame
T-88 Epoxy of Wood Bike Frame

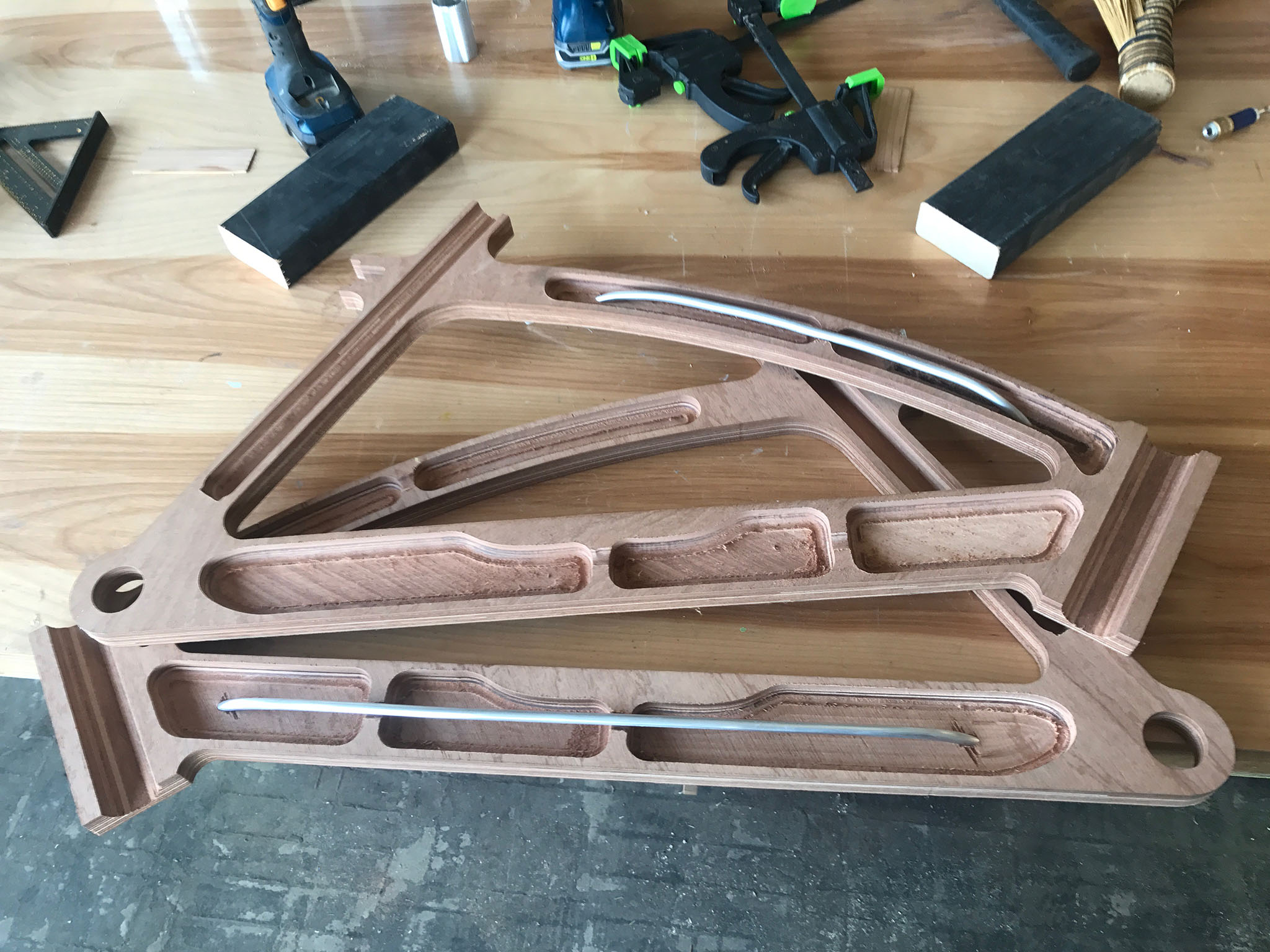

Manual Wood Bike Cable Tubing
Manual Wood Bike Cable Tubing

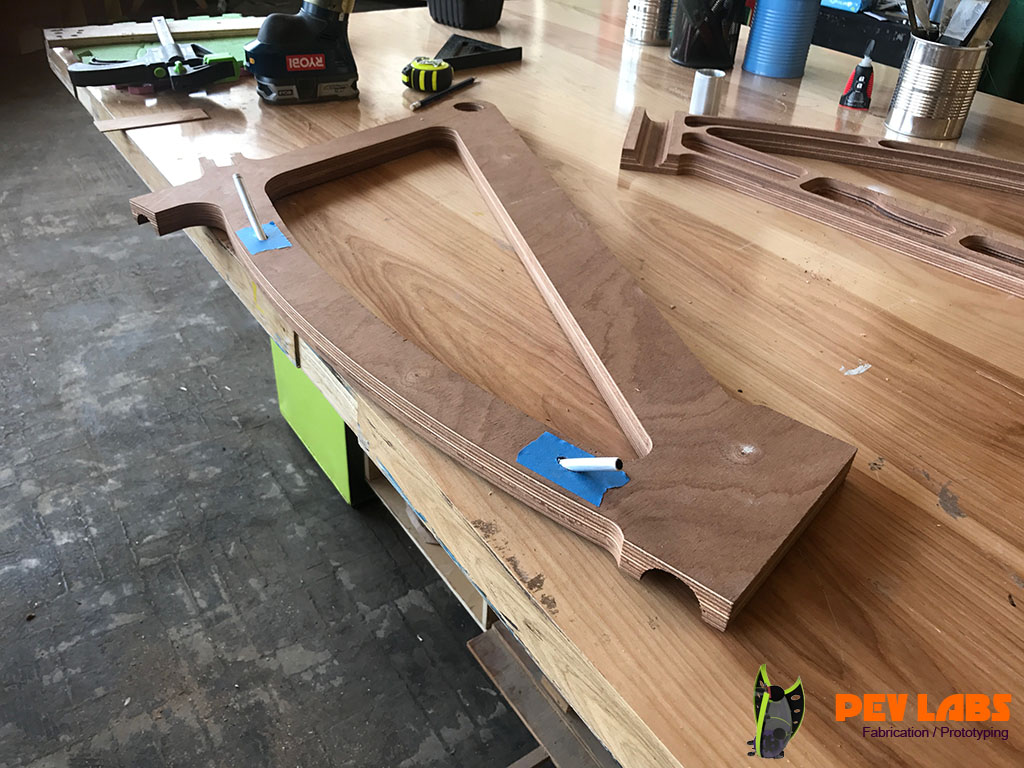

Internal Aluminum Tubing Protrusion
Internal Aluminum Tubing Protrusion

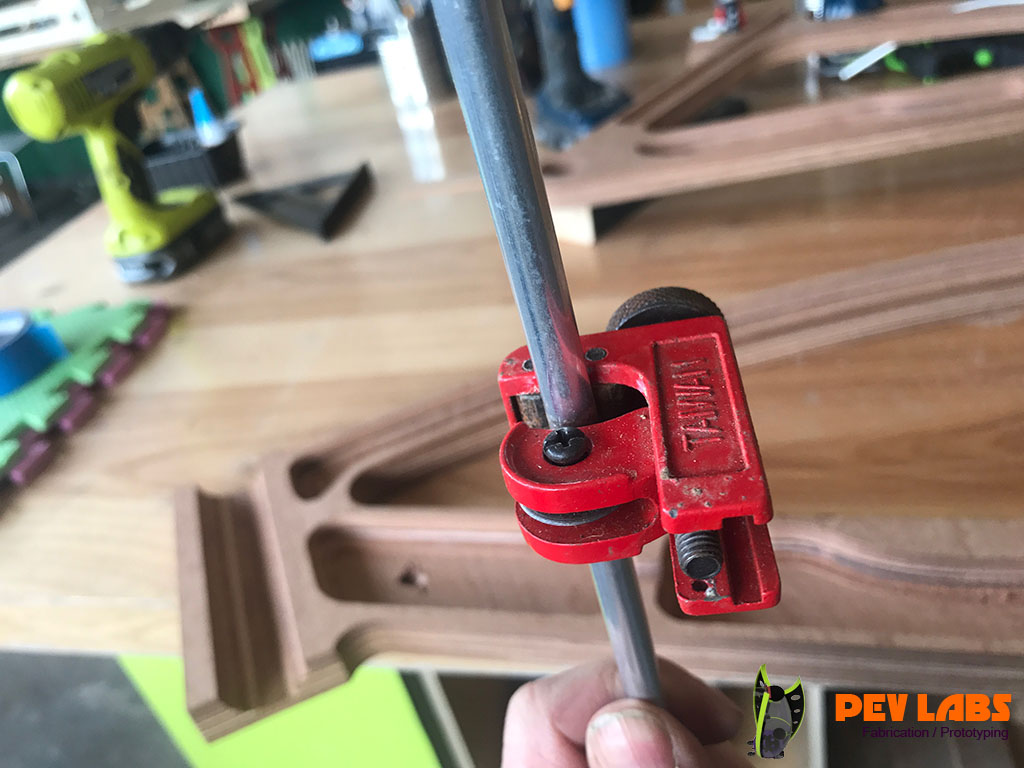

Cutting Aluminum Tubing
Cutting Aluminum Tubing

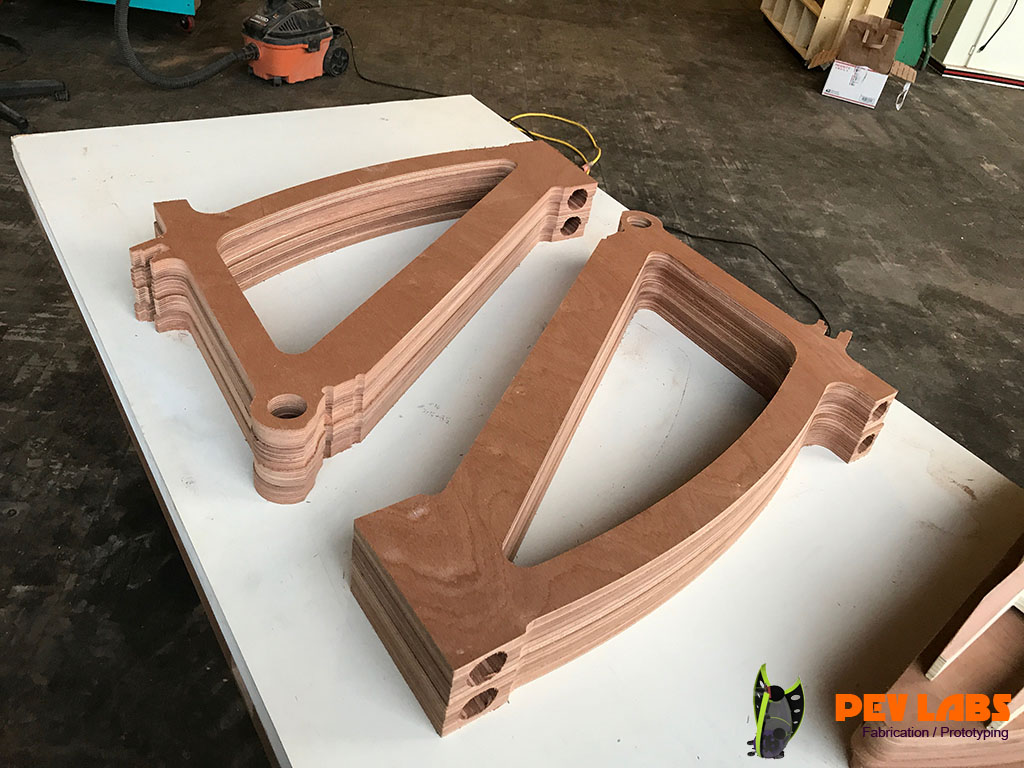

Bespoke Wood Bike Frames
Bespoke Wood Bike Frames

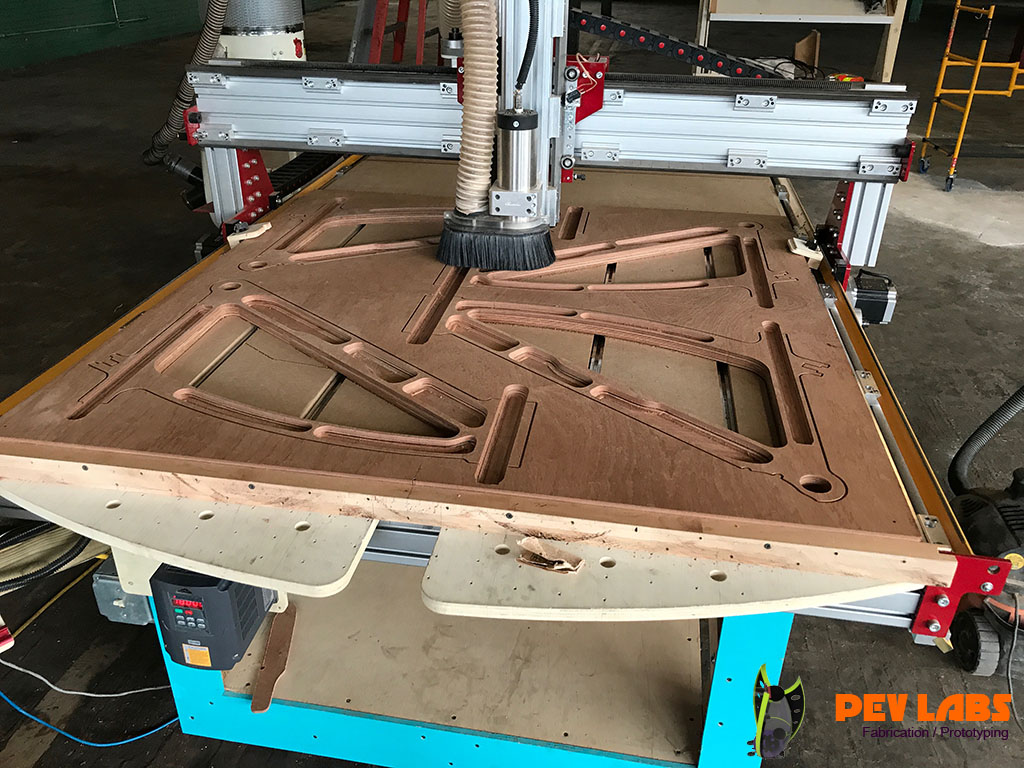

Bespoke Wood Bike Making
Bespoke Wood Bike Making
CNC Pocket Cove Milling for Seatpost and Steering Column
CNC Pocket Cove Milling
CNC Pocket Prep Before Cove Milling
CNC Pocket Prep Before Cove Milling

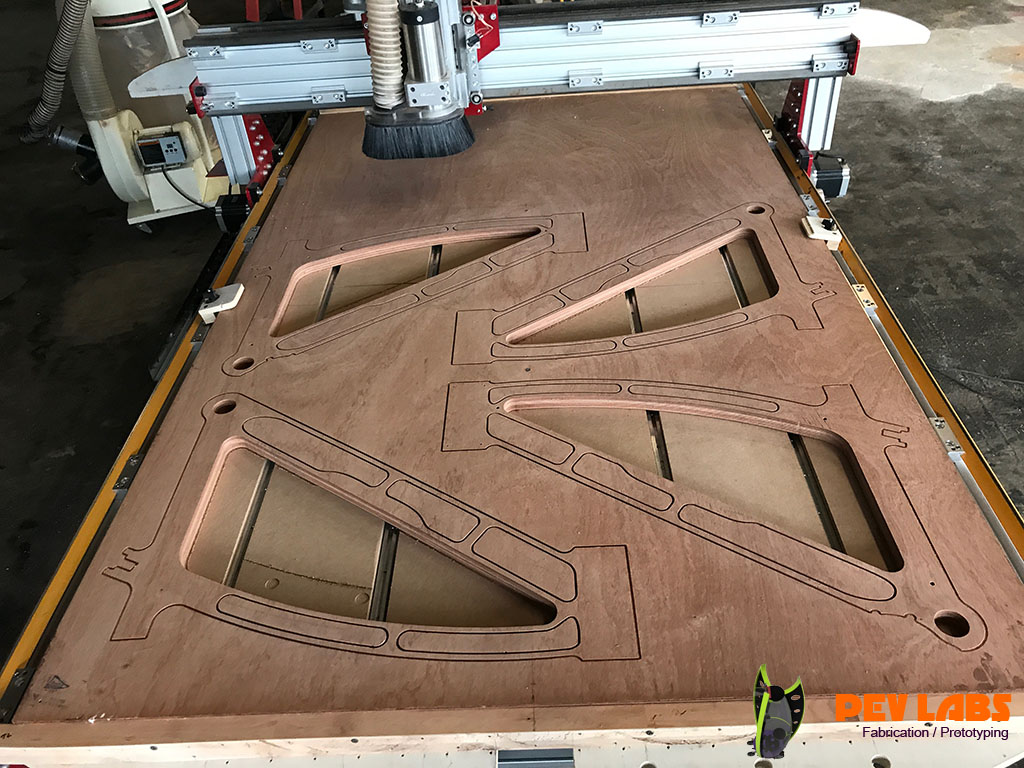

Weight Relief Pocket Outlines
Weight Relief Pocket Outlines

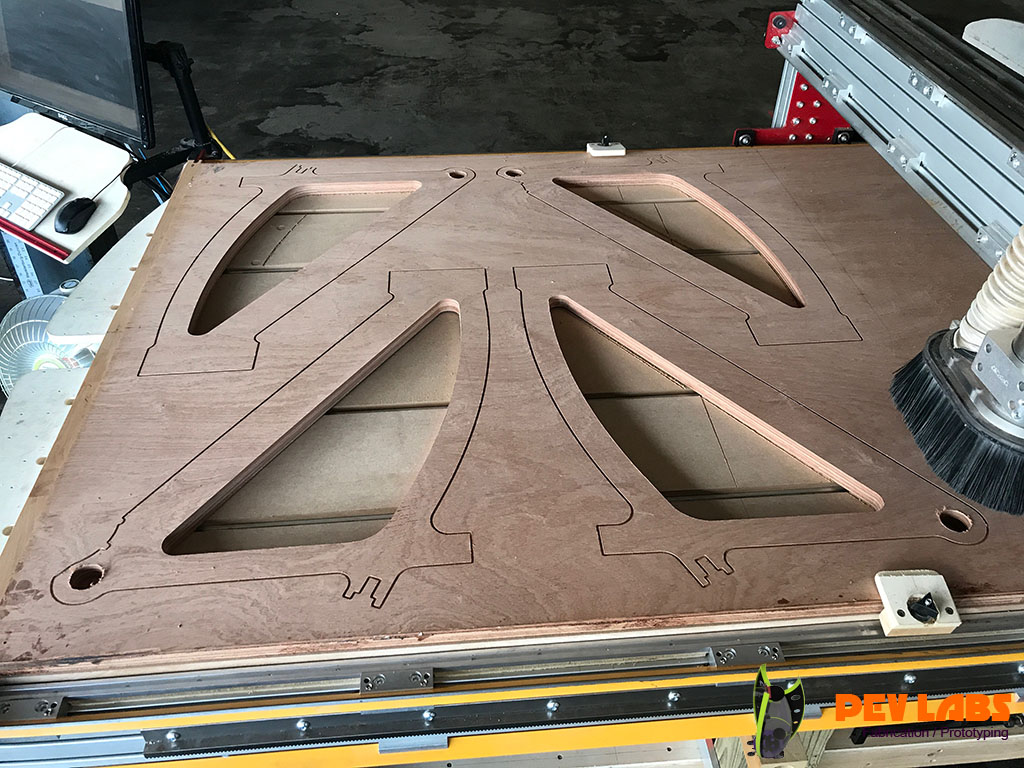

Manual and Electric Frame Crank Holes
Manual and Electric Crank Holes

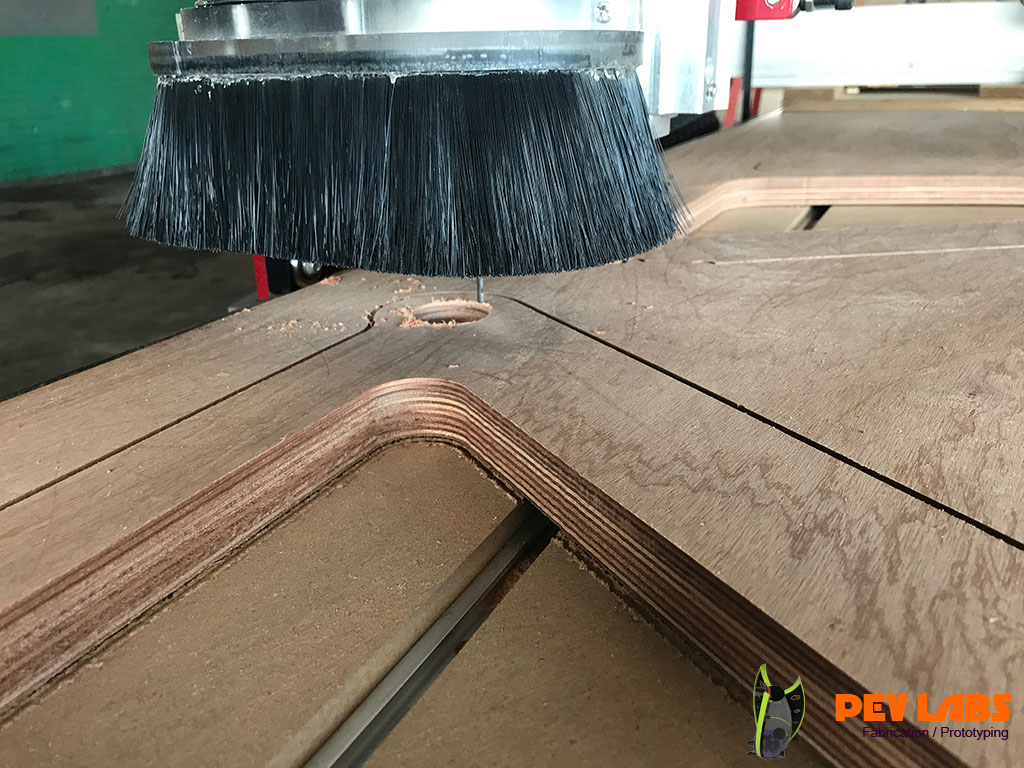

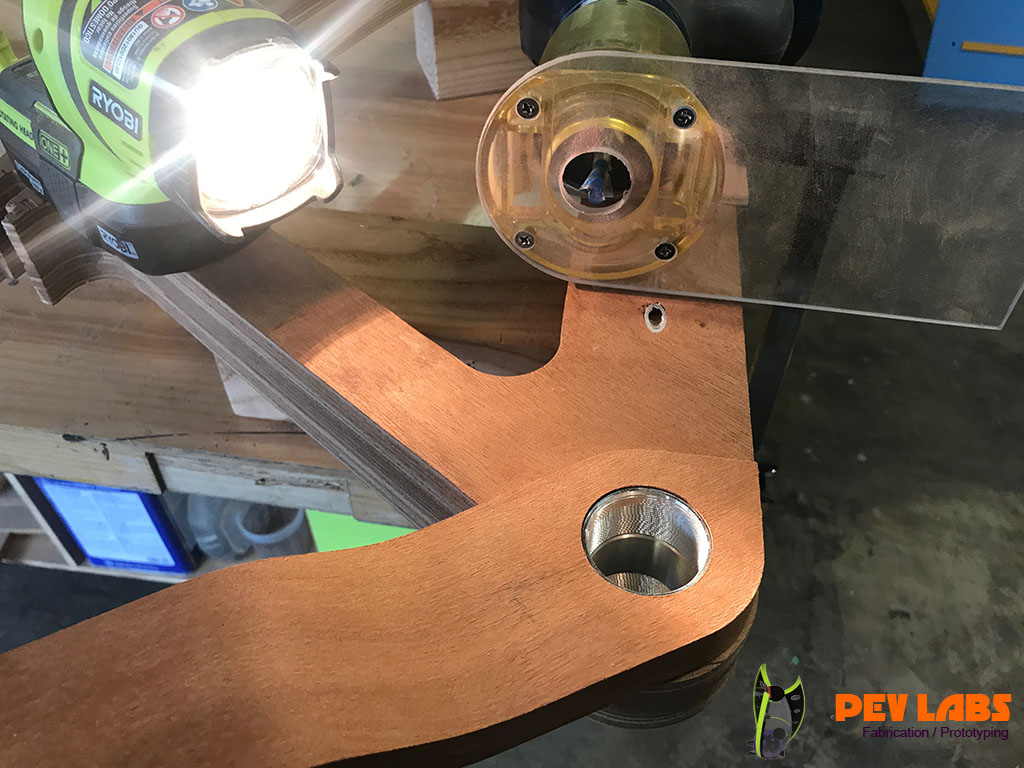

CNC Milling of Bike Frame Crank Hole
CNC Milling of Bike Frame Crank Hole

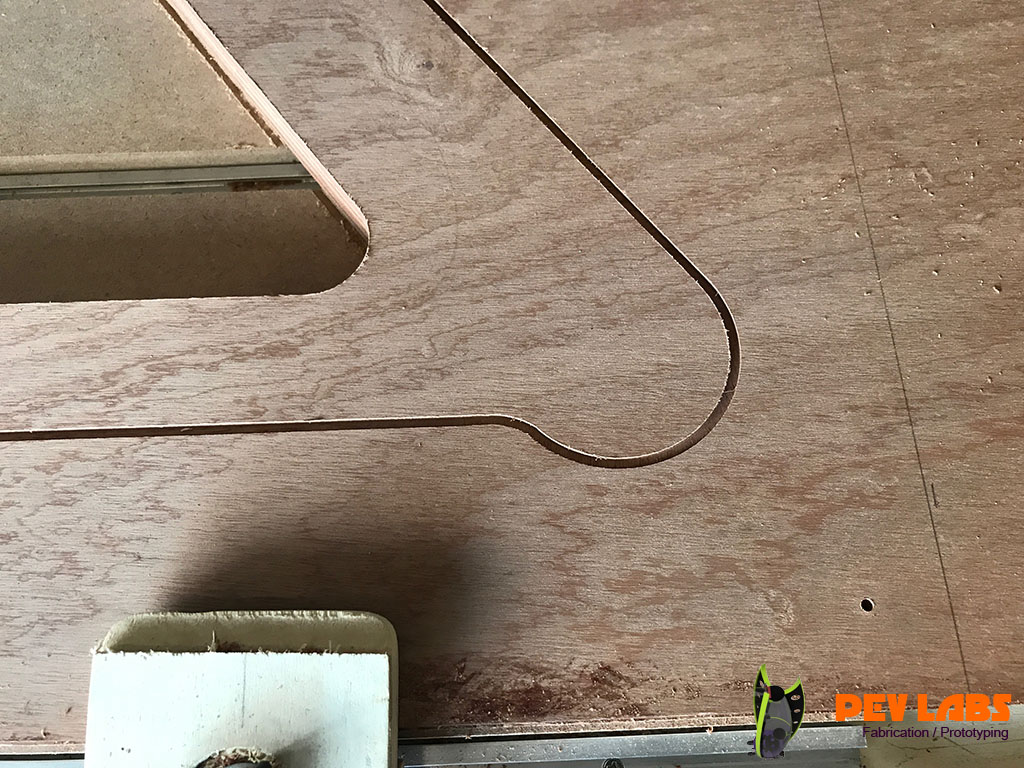

Wooden Manual Bicycle CNC Milling
Wooden Manual Bicycle CNC Milling

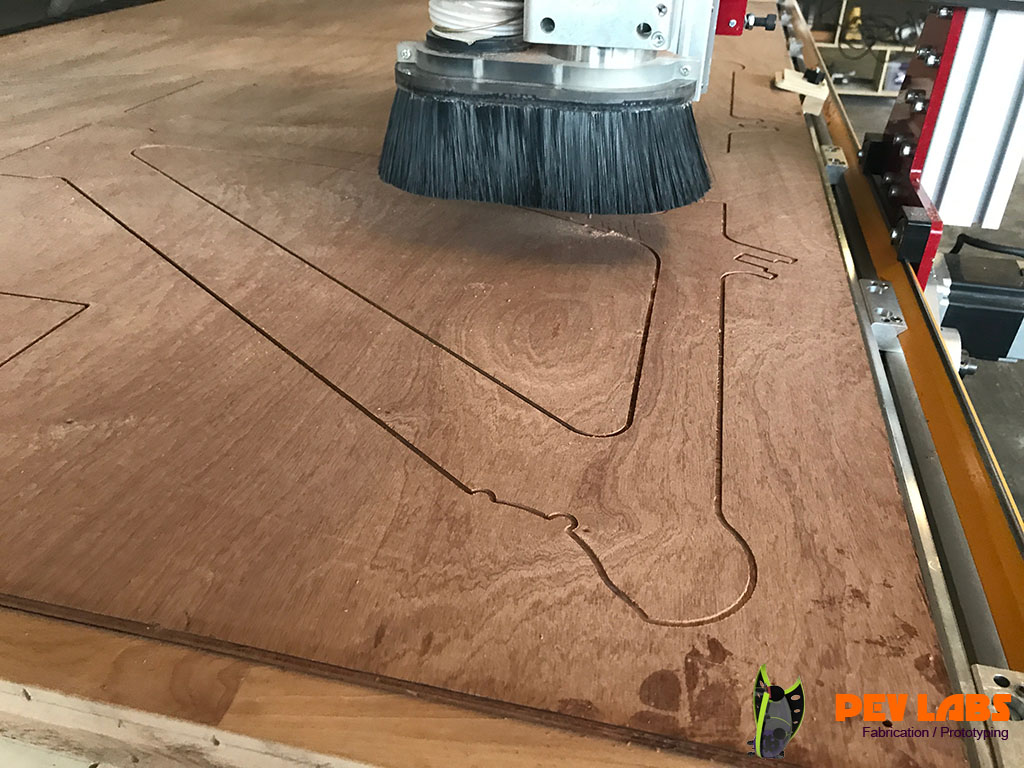

Wooden Electric Bicycle CNC Milling
Wooden Electric Bicycle CNC Milling
Hardwood Wood Bike Chainstay
Hardwood Wood Bike Chainstay

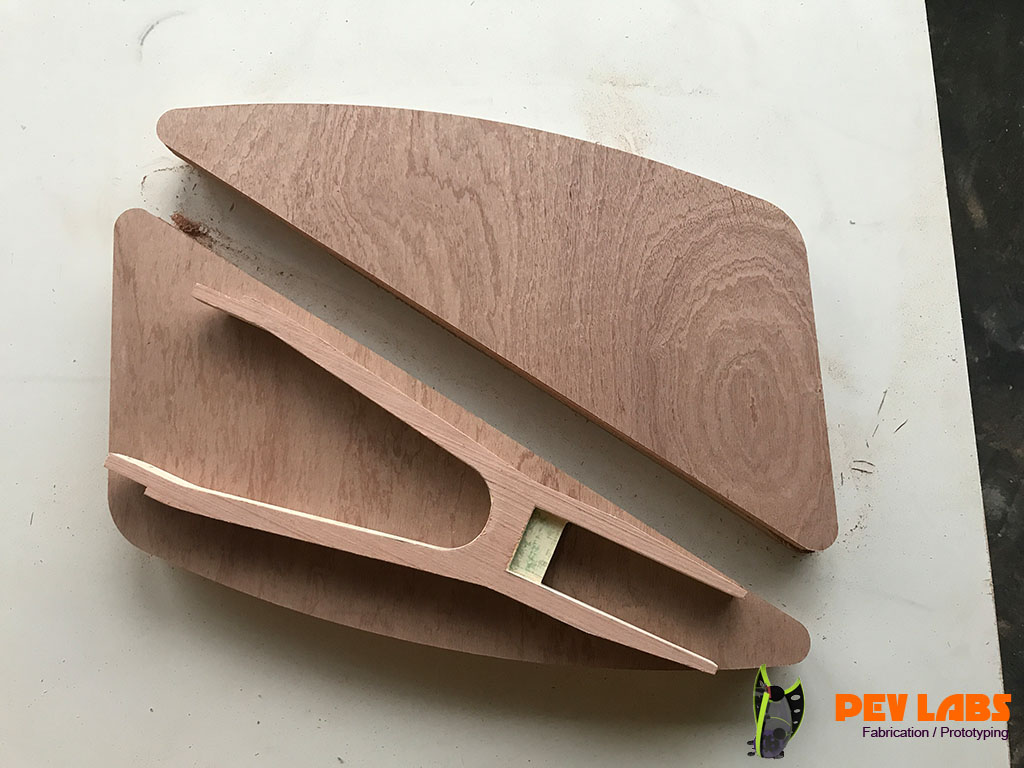

Inner Frame Plywood Cutout is Used to Make the Seatstay
Seatstay from Frame Plywood Cutouts

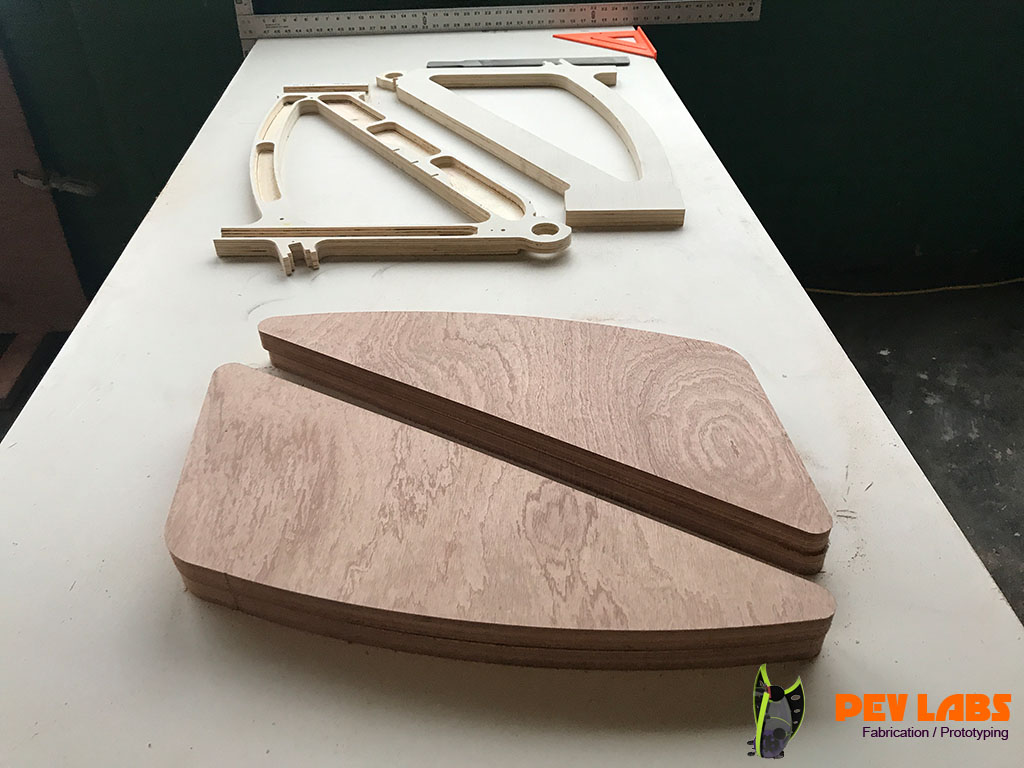

PEV Labs for Handmade Wooden Bike Making
Handmade Wooden Bike Making

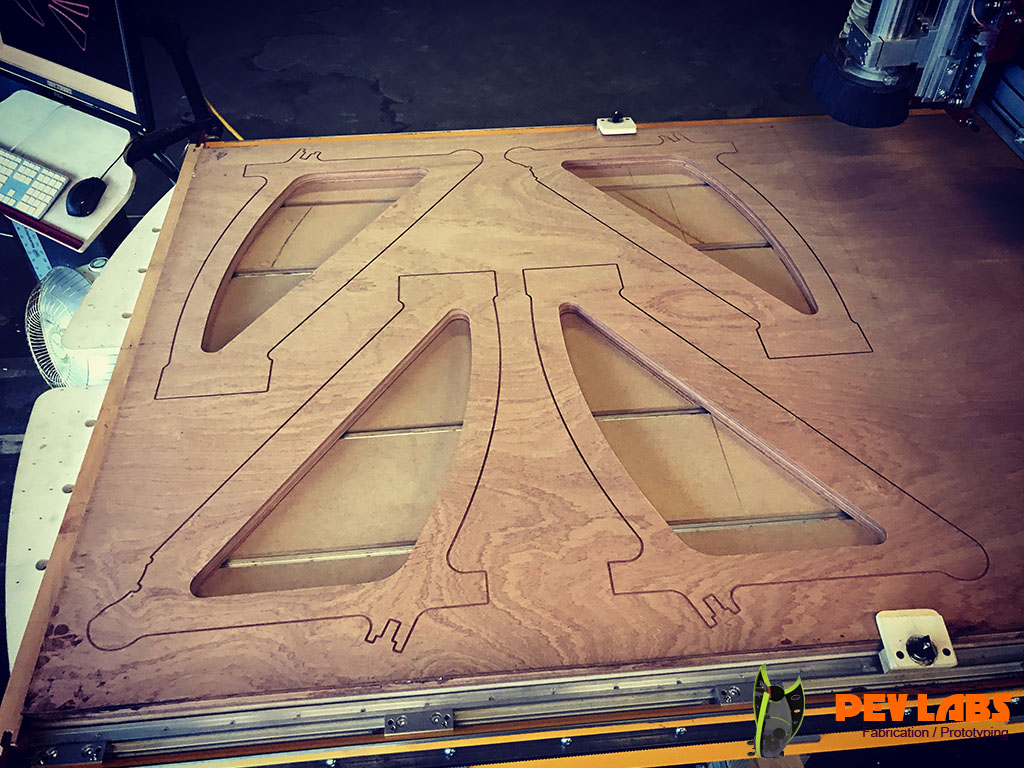

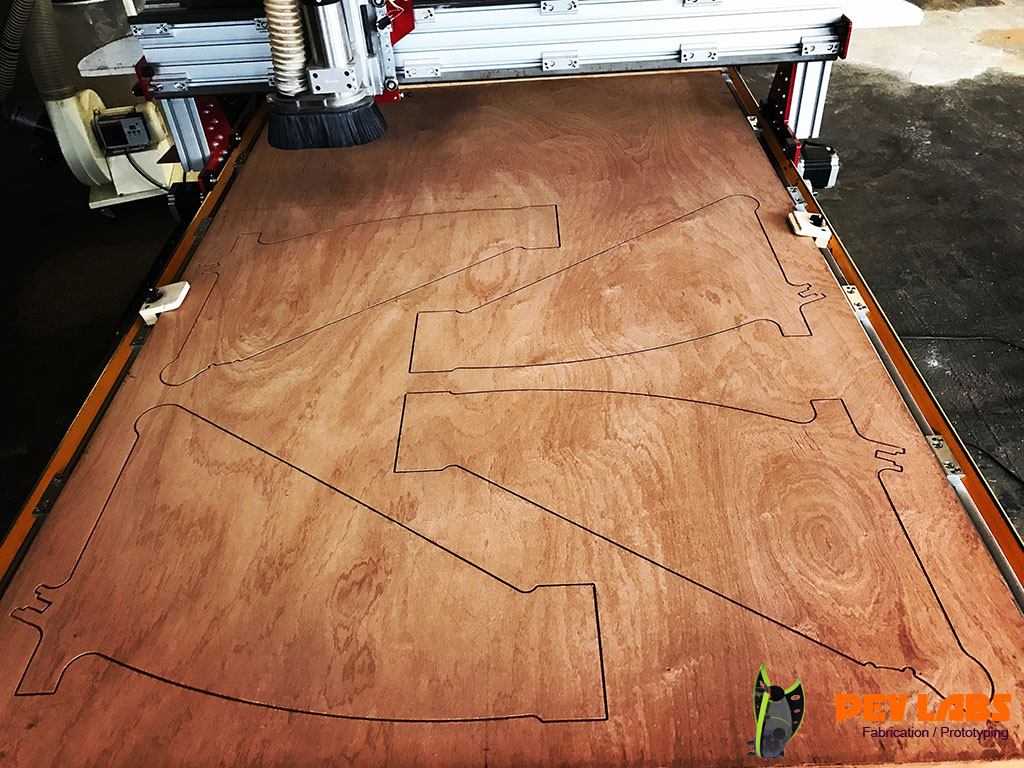

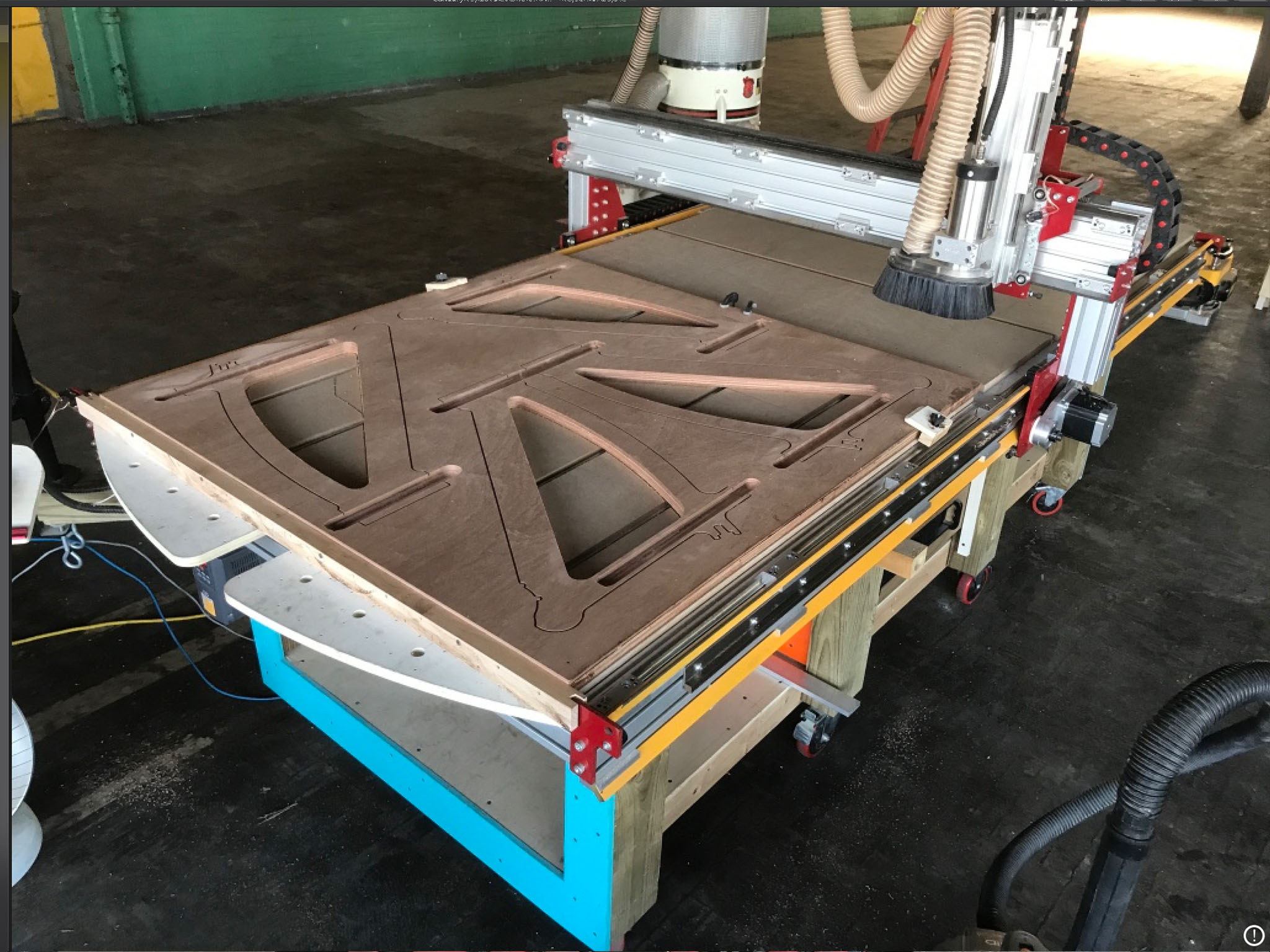

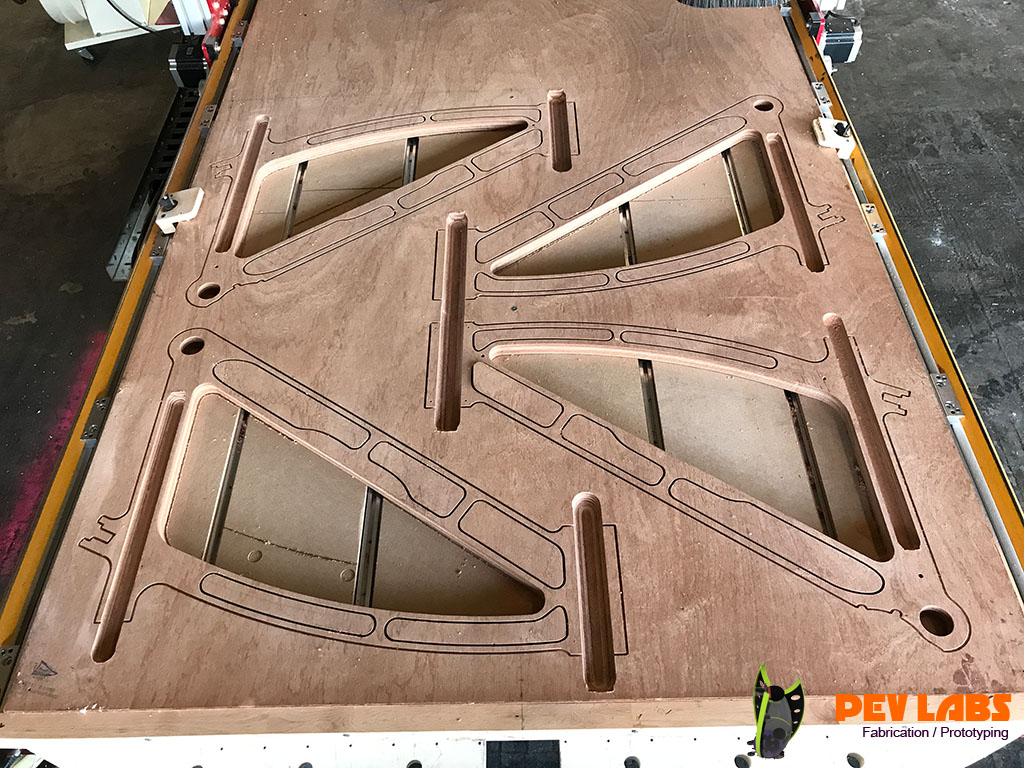

CNC Milling Sapele Wooden Bike Frames
CNC Sapele Wooden Bike Frames
Bike Making with our CNC
Bike Making with our CNC
>Sapelli or Sapele Hardwood Bikes
Sapelli or Sapele Hardwood Bikes
Wood Bike Prototype v5 Plywood Glue Prepreation
Wood Bike Prototype v5 Plywood Bike
