These custom chevron patterned vented doors were designed by Diana Johnson of Fifth Wall Design Group as a solution for residential vented HVAC mechanical room doors being a focal point of a residential basement build out in Charlottesville Virginia. Diana wanted a way for air movement without relying on conventional louvered doors. These doors where designed to have an array of CNC cut holes in the back core with a white oak overlay coving the holes from view while allowing air to pass through the spaces and behind the raised panels. One of our many well enjoyed woodworking projects. Custom cabinetry and casework services also available.

The doors were manufactured by us at PEV Labs. The core of the doors are cabinet grade pre-primed birch or maple plywood. The frames are Douglas Fir (Pseudotsuga menziesii) which are rabbeted to increase strength. The chevron pattern spacers are made from Douglas Fir, glued and fastened with a pin hole nailer. We made a pattern jig with the CNC which was used in laying out and securing the spacers. We locally sourced the rough sawn white oak from Black Forest Saw Mill a few miles down the road from us. The material was 4/4 so we were able to dress it up a bit, then get two re-saw passes with the bandsaw to bisect into 3/8 thick slices which we in turn ran though the thickness planer again to end up with about 5/16 veneering pieces to adhere to the chevron spacer pieces. We made a second jig on the CNC for oak since if overlaps the back spacers a half inch all around. That did not go as well as planed. We could see more variation in the spaces between the sections than we preferred. So once done we laid each door on the 4'x8' CNC milling machine and cleaned up the cuts a bit. Also note we like a little Wabi Sabi so we choice to use material with a few pin holes, branch marks and color variation. Accented by the grey paint this all made for a very warm final product. You may enjoy viewing another chevron door project here.
Contact us about making your custom doors.

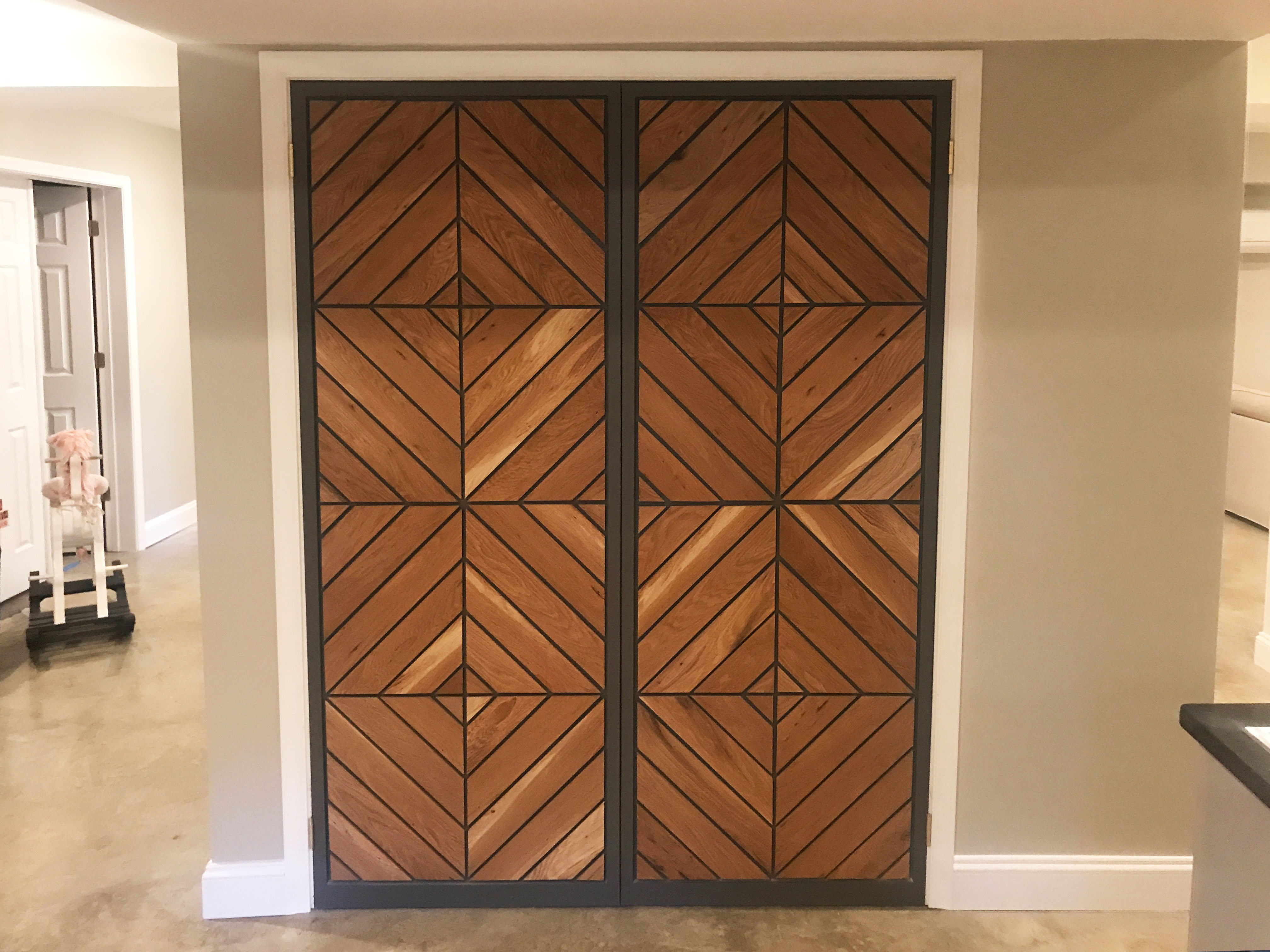

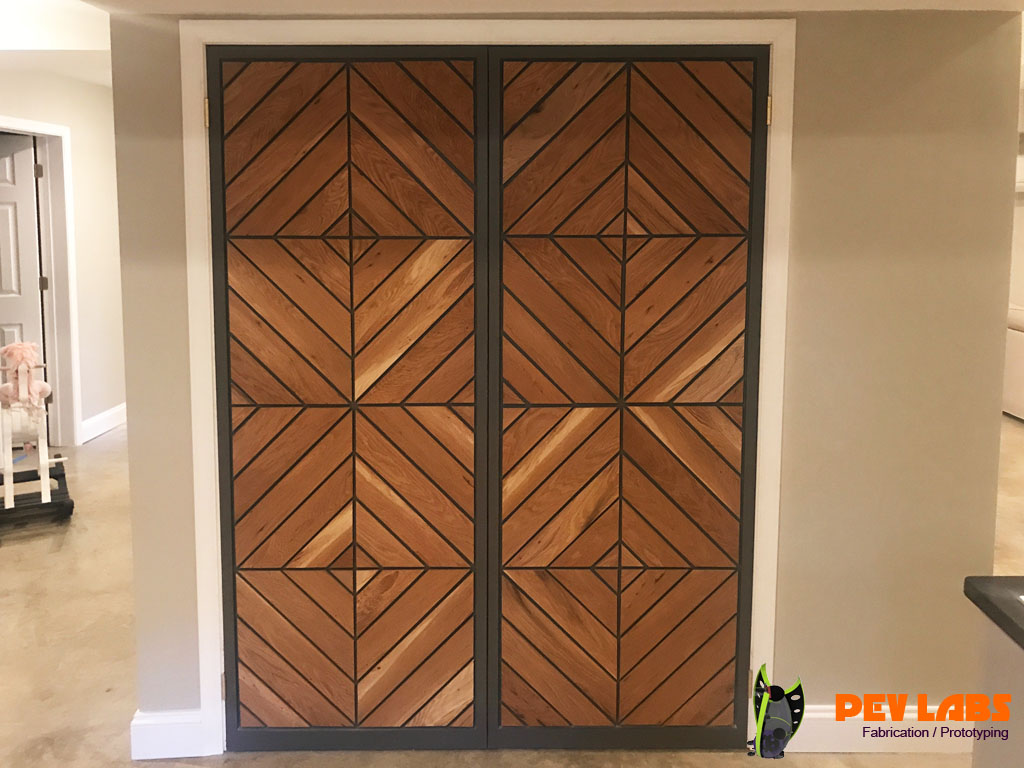

Custom Doors Charlottesville Va
Custom Doors Charlottesville Va

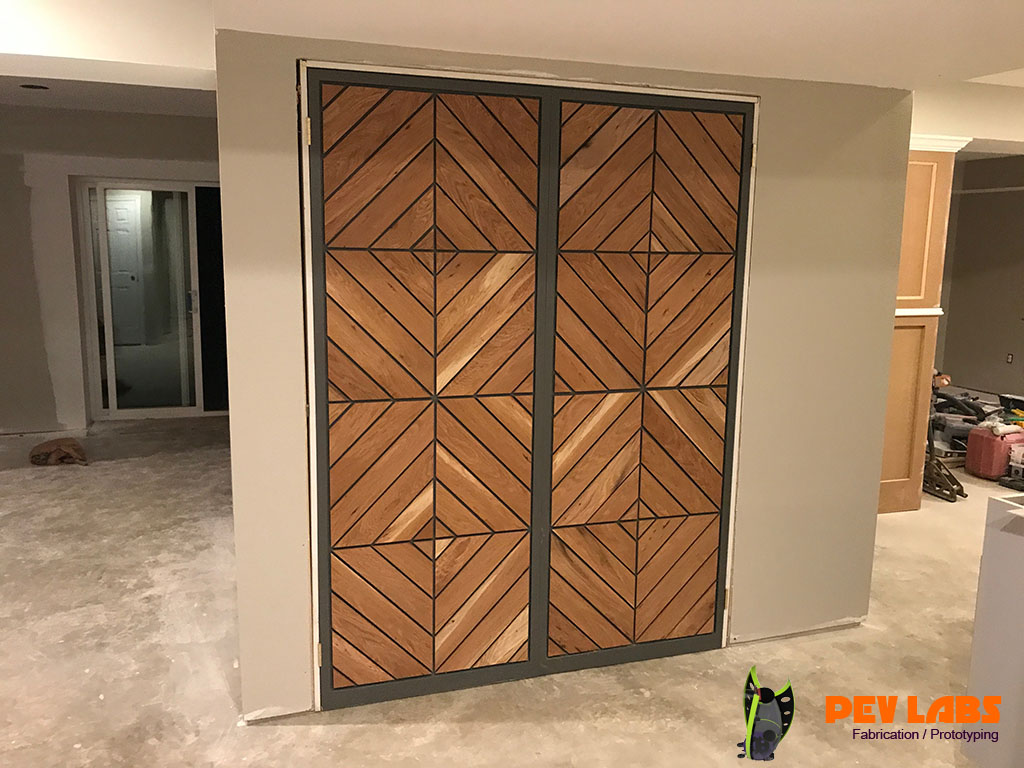

Custom Doors Chevron Pattern
Custom Doors Chevron Pattern

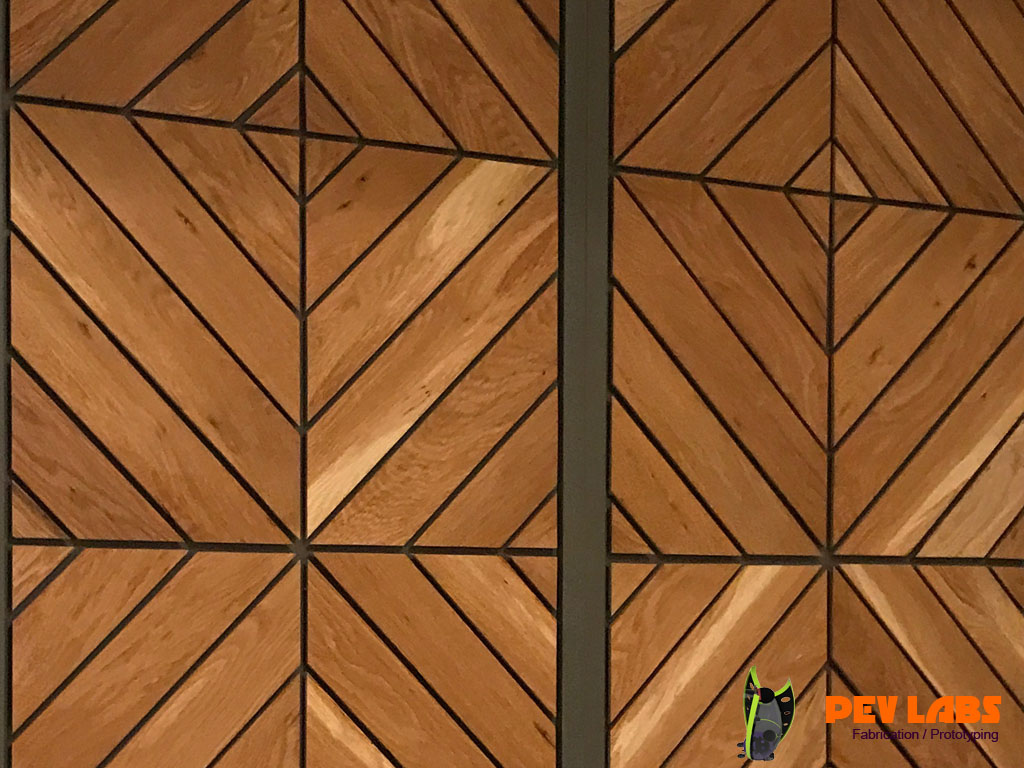

Custom Doors Raised Pattern for Venting
Custom Doors Raised Pattern Venting

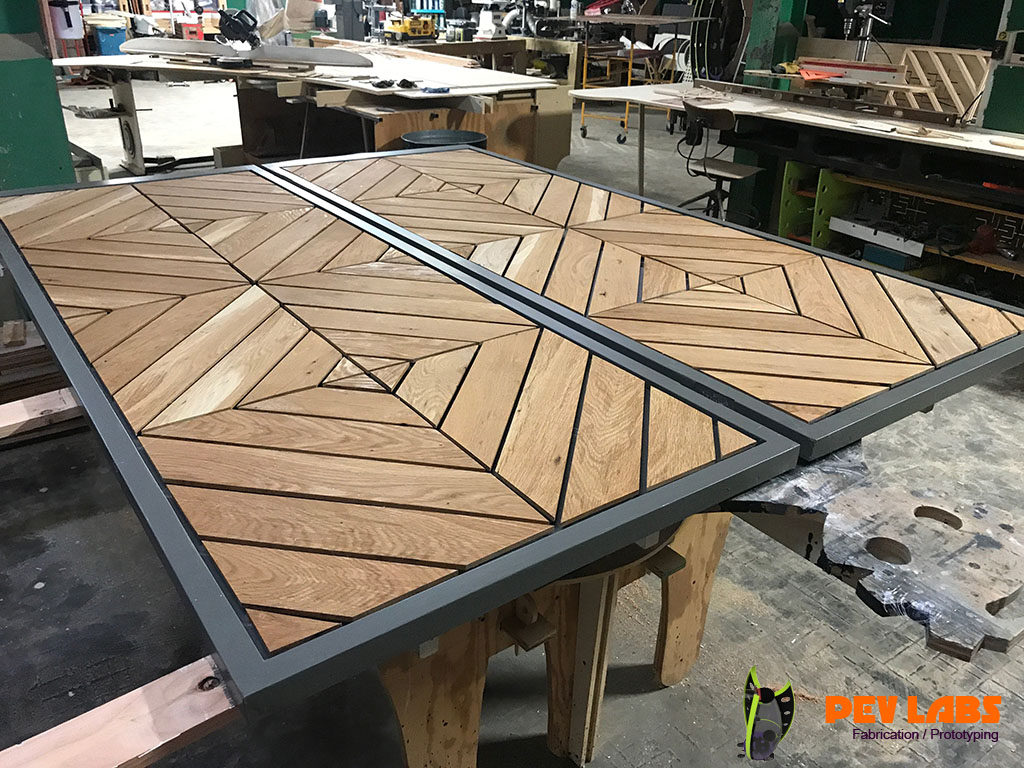

Applying Hardwood Pattern on Chevron Custom Doors
Applying Hardwood Chevron Pattern

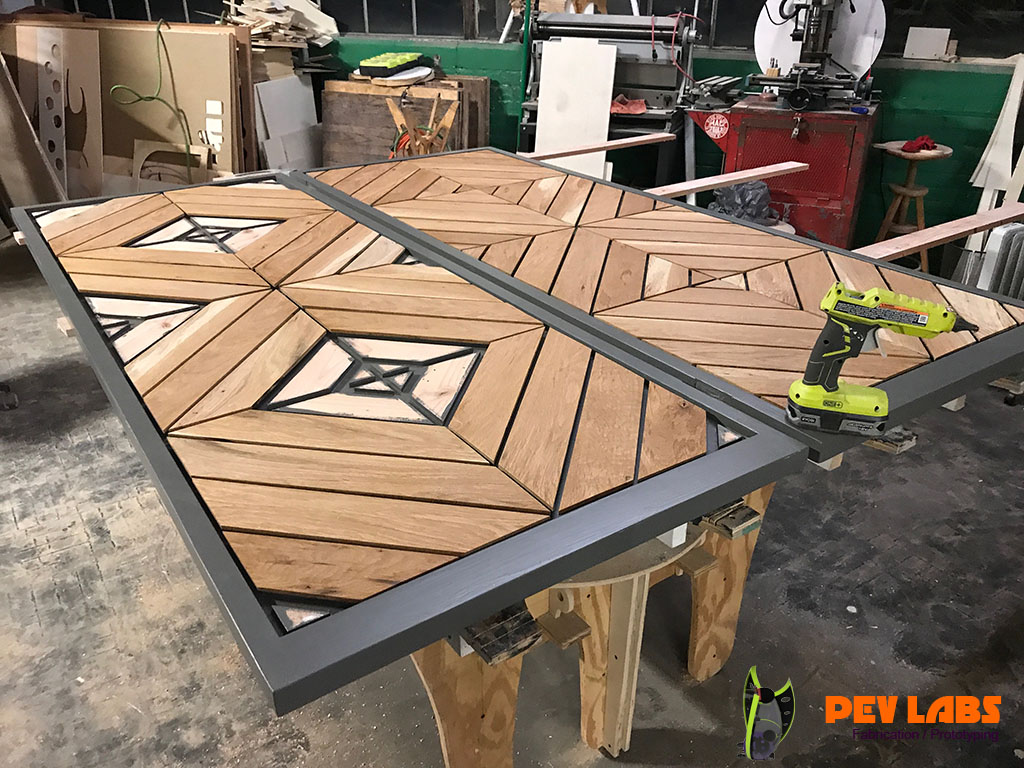

White Oak Laminated on Pattern Backers
White Oak Laminated on Backers

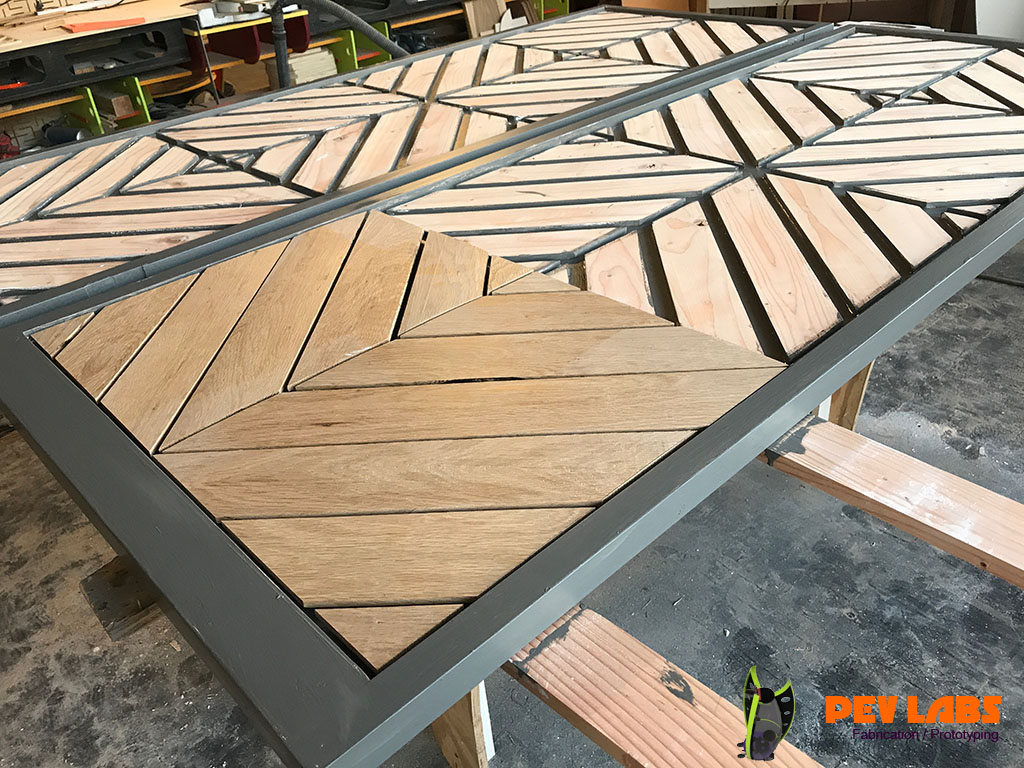

Dry Fit Before Oak Lamination
Dry Fit Before Oak Lamination

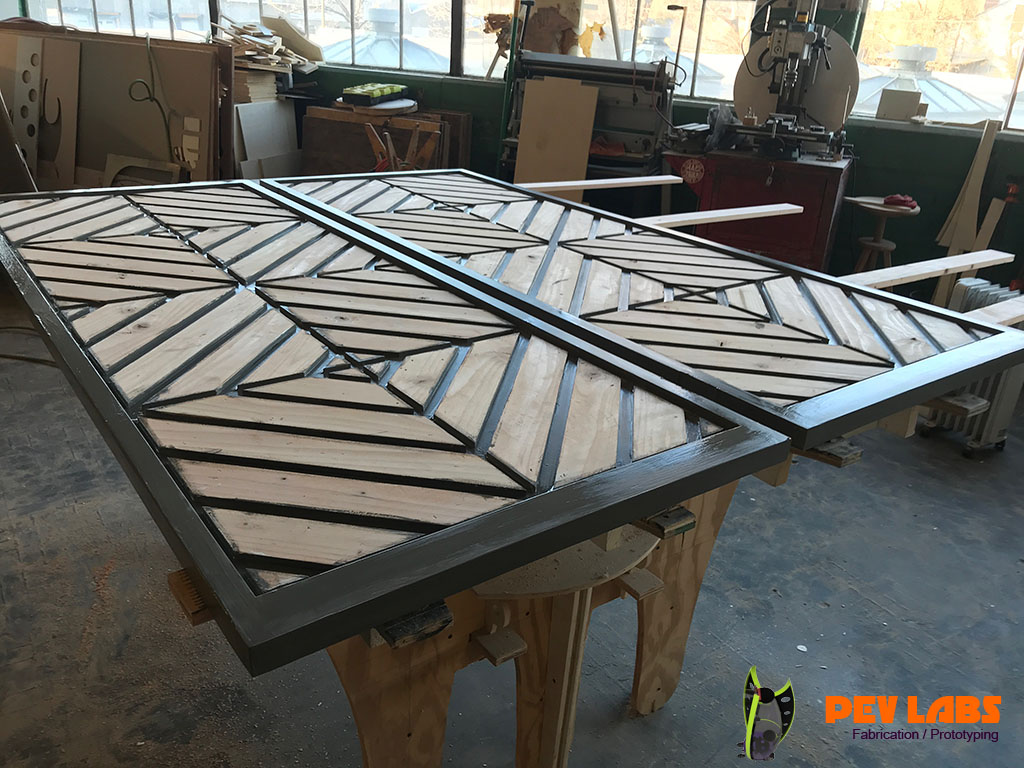

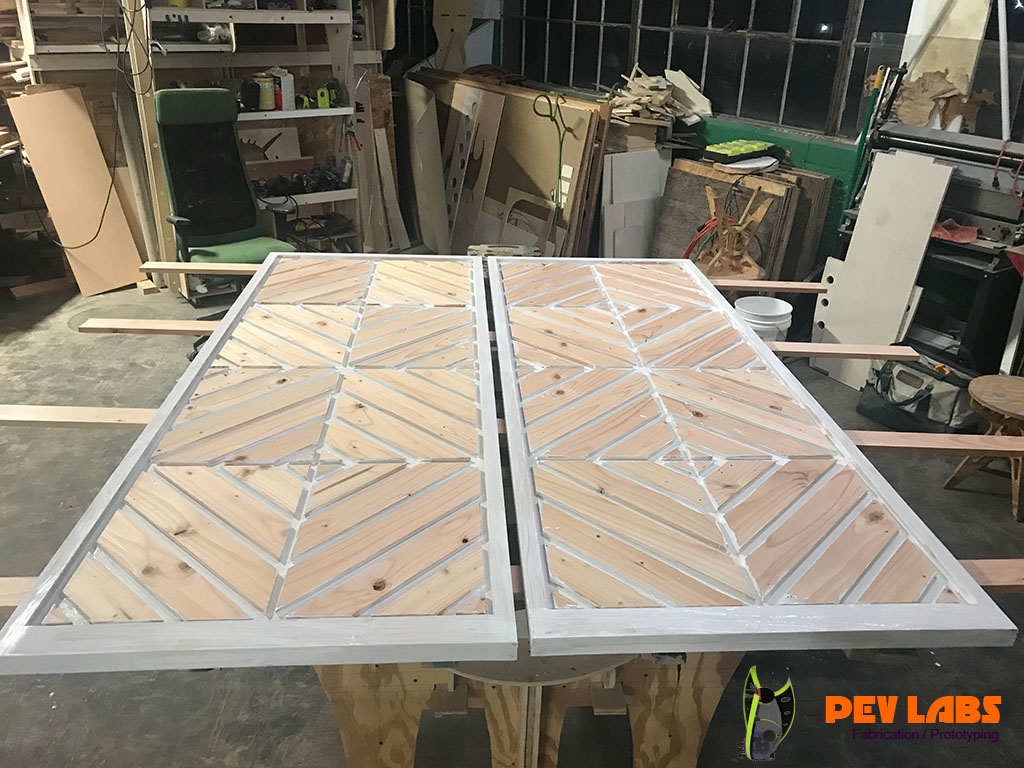

Grey Paint Before Hardwood Lamination
Grey Before Hardwood Lamination

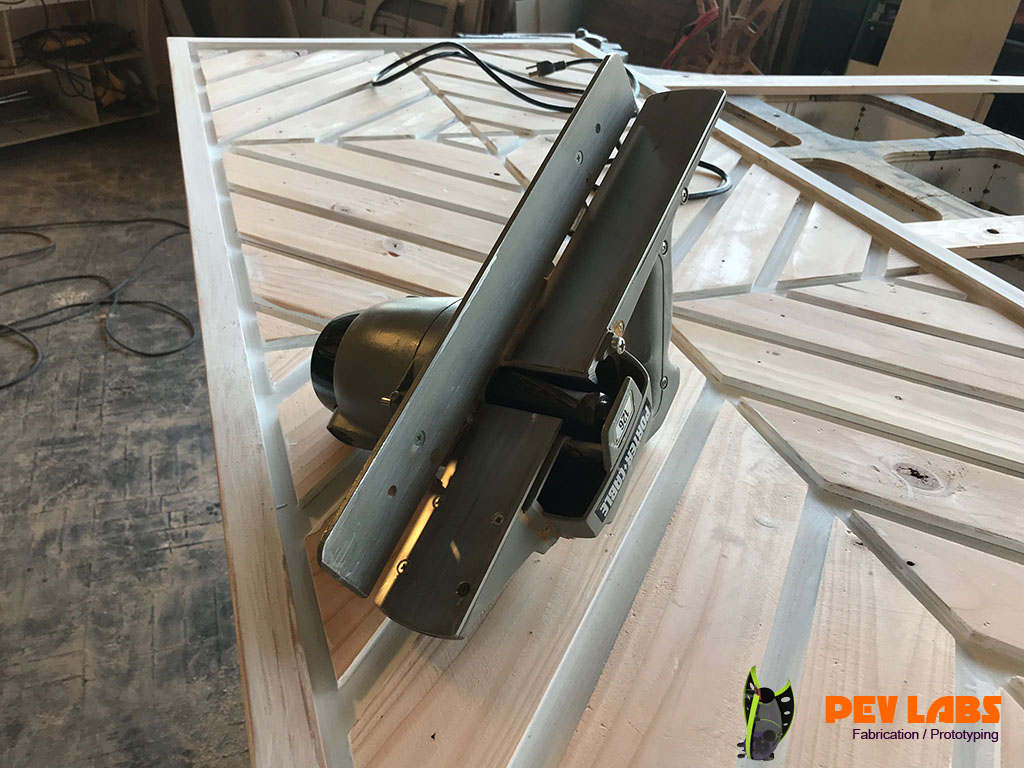

Porter Cable Helical Cutter Door Plane
Porter Cable Helical Cutter Door Plane

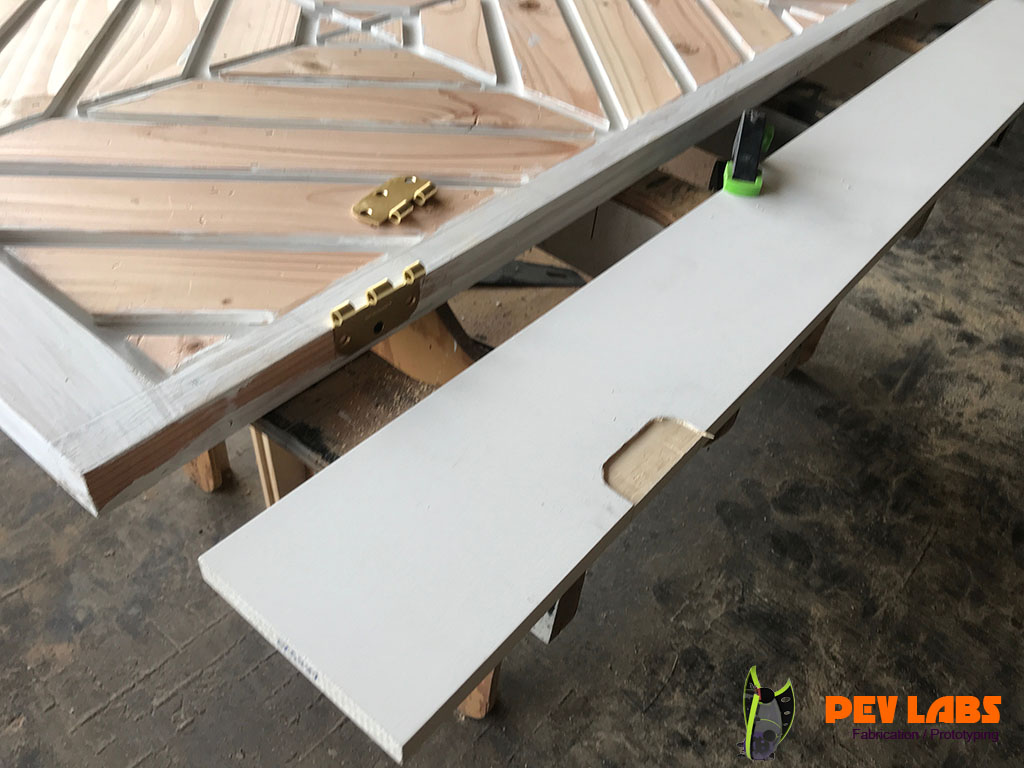

Morticing Door Hinges with Router
Morticing Door Hinges with Router

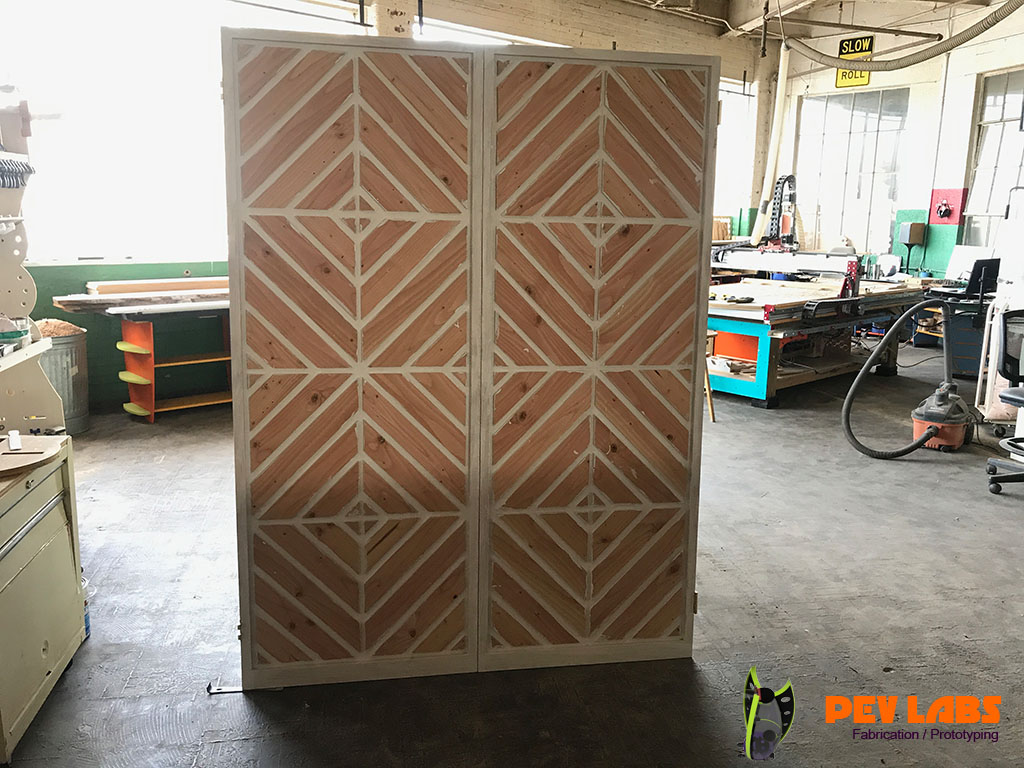

Door Frame with Chevron Pattern Spacers
Door Frame Chevron Pattern Spacers
Custom Door Framing Primed
Custom Door Framing Primed

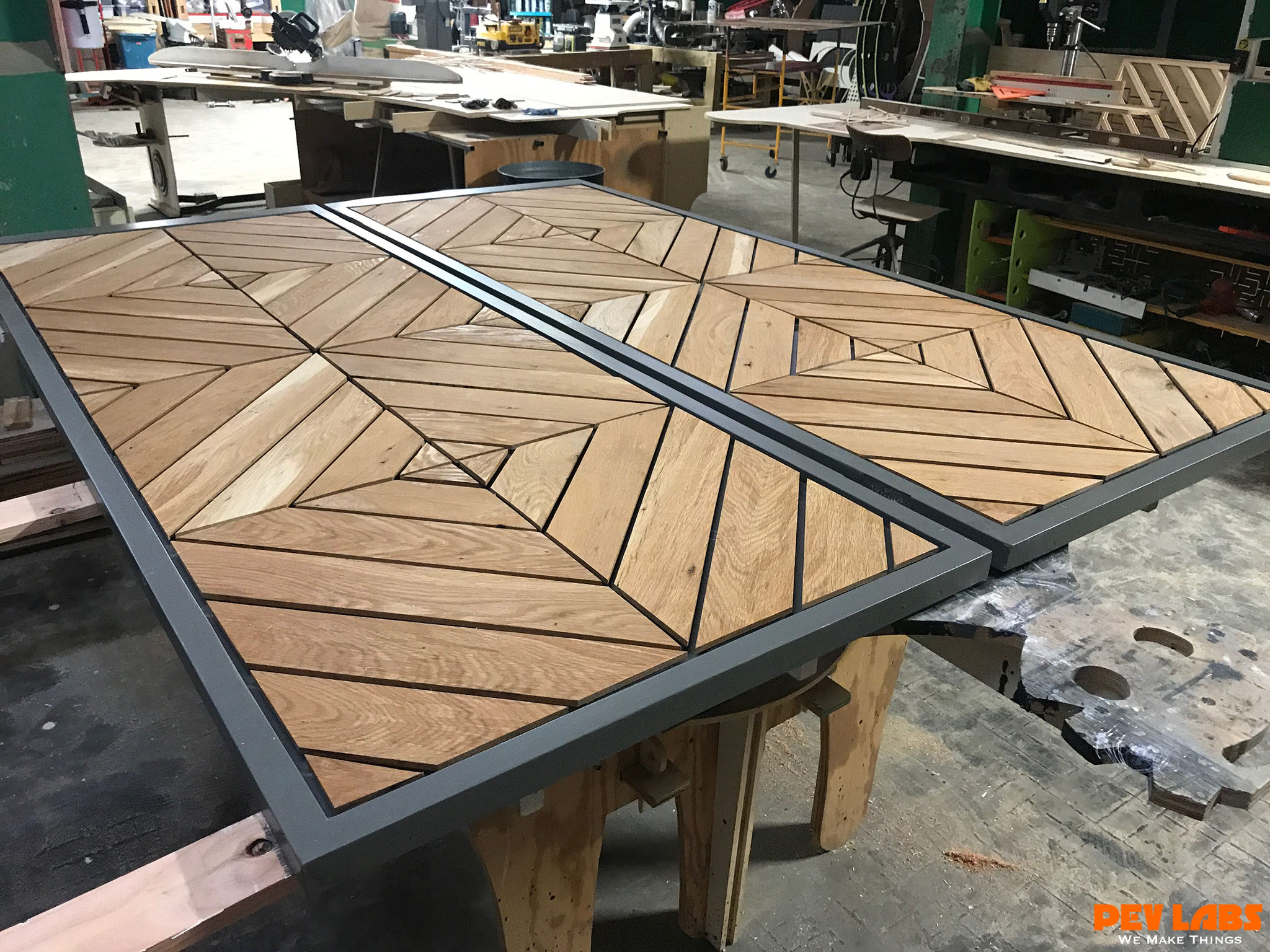

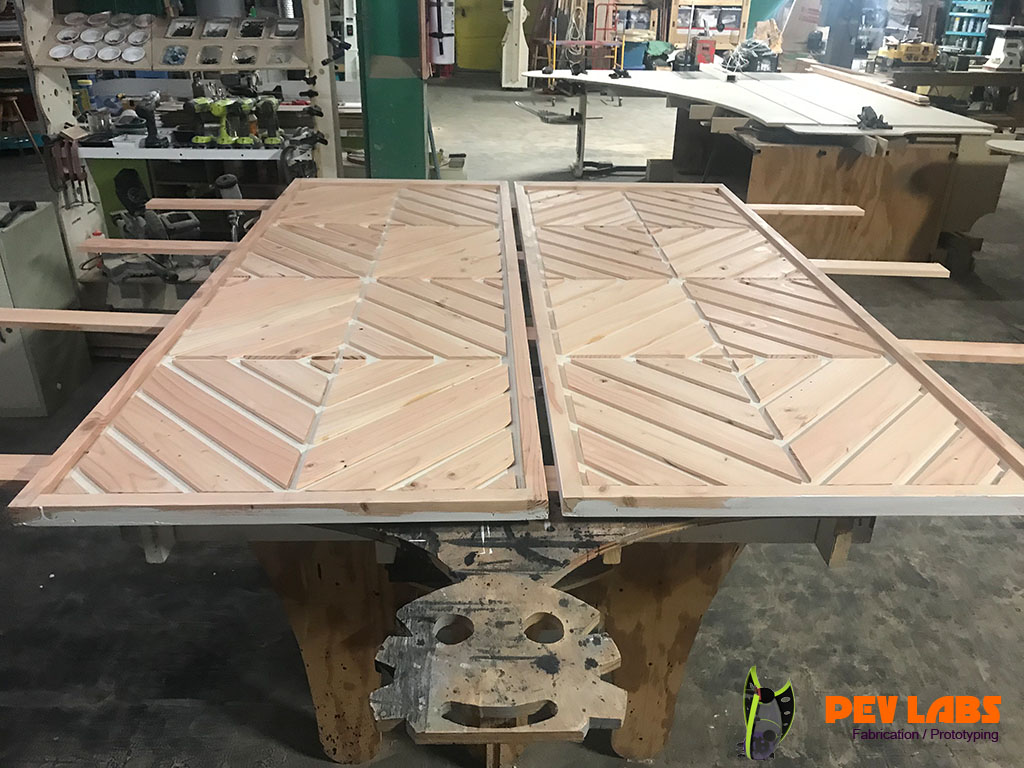

Door Pair with Chevron Pattern Backers
Doors with Chevron Pattern Backers

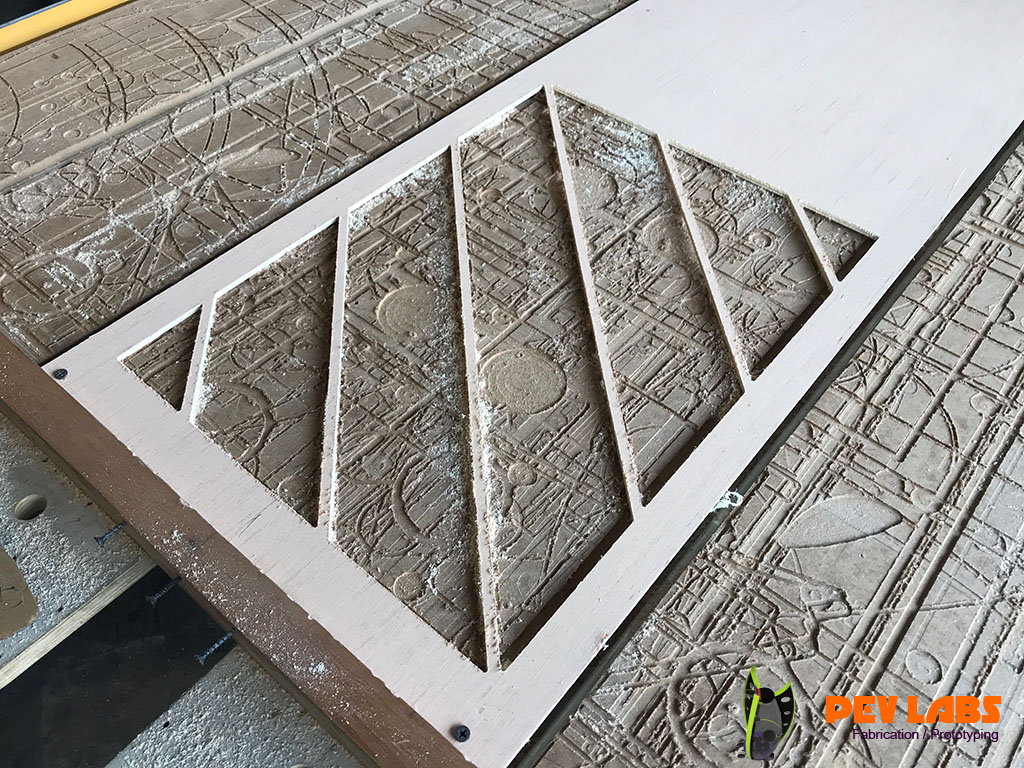

Chevron Mirrored Pattern Doors
Chevron Mirrored Pattern Doors

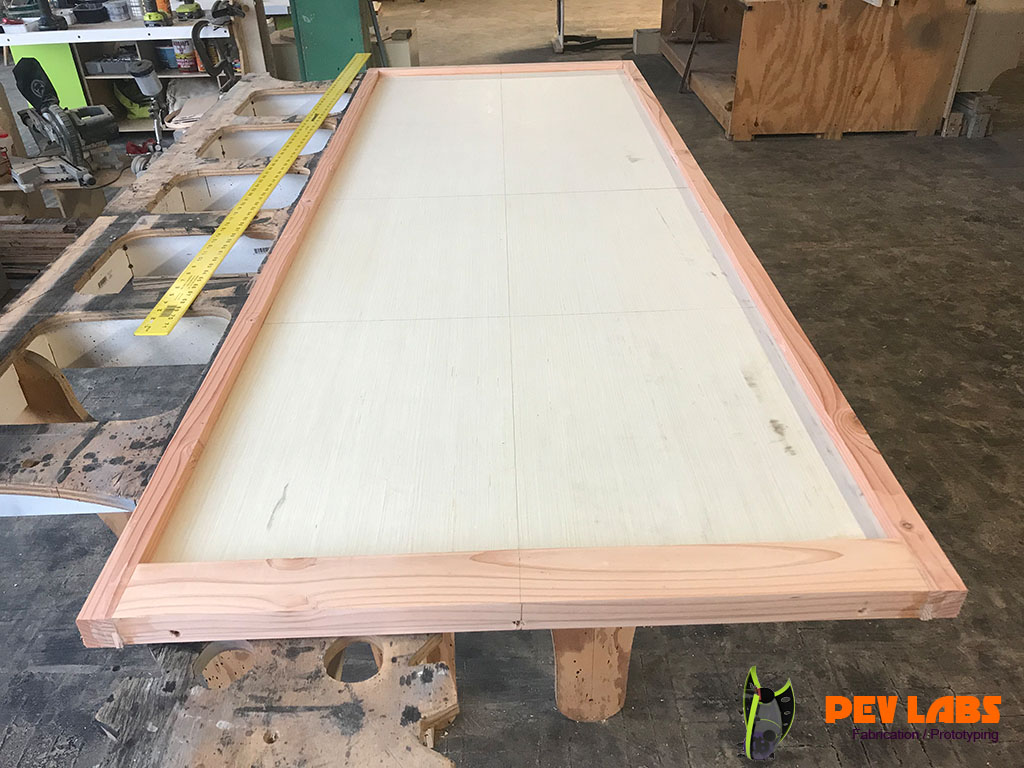

Custom Door Frames Secured to Door Cores
Door Frames Secured to Door Cores

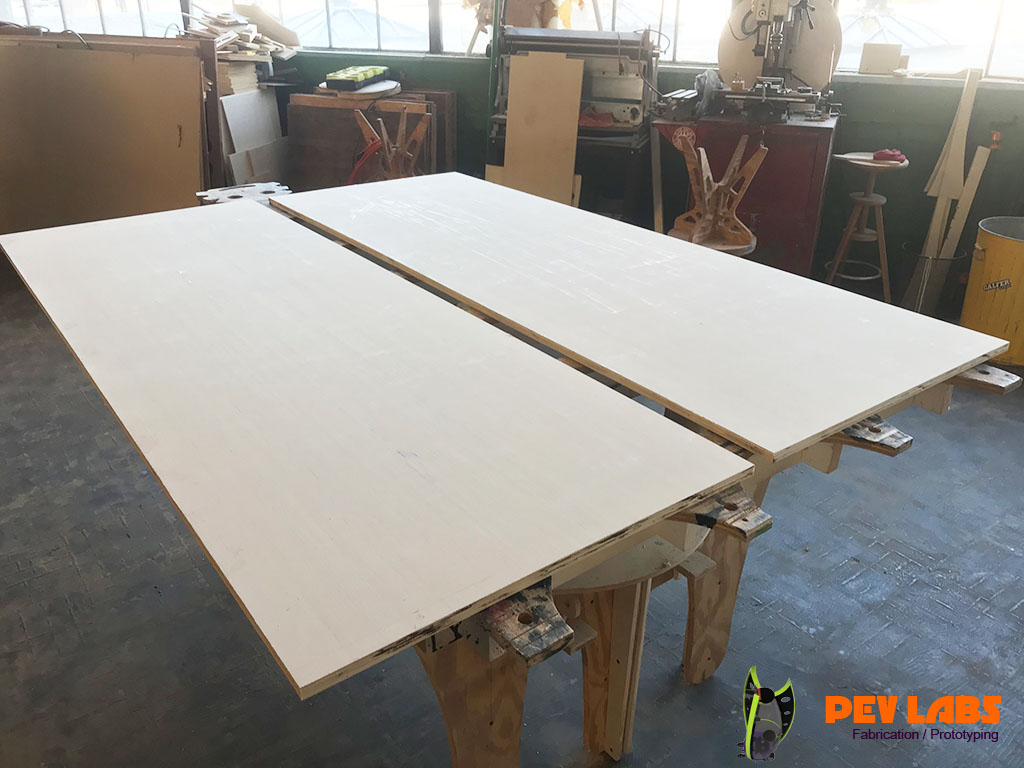

Custom Doors Plywood Core
Custom Doors Plywood Core

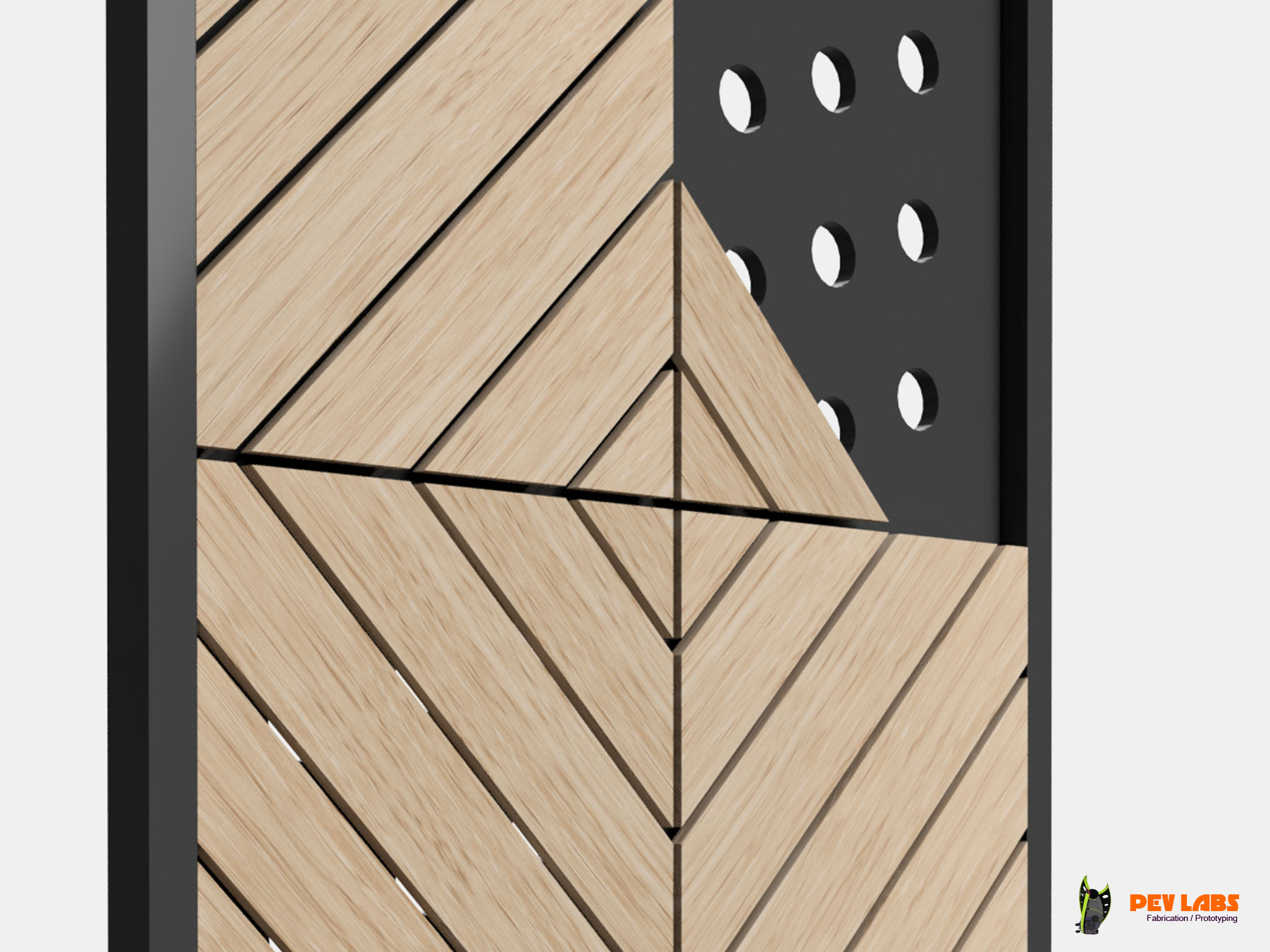

Rendering of Vented Door Design
