We design and build custom manufacturing machines. This is the build page for our 48" x 96" gantry style router has been going strong daily for nine years. Currently we are in the process of our 90 Watt CO2 laser build which you can follow here. This is our build page for large format 4'x8' gantry style CNC routing machine we made at Tinkersmiths Makerspace. Digital fabrication is the heartbeat of our CNC service offerings and Digital Fabrication Services.Powerful NEMA 34 stepper motors makes this thing a total workhorse. Five horse power, 2.2KW 220 volt spindle runs from 8000 to 24000 RPM. Custom electronics along with custom post processor coding in the open source Linux CNC software running on a custom made computer. Designing and building motion control systems is a favorite of ours. Originally built in 2016 this CNC machine is still the heart of our digital fabrication business today. Recently (2019) upgraded to a water cooled spindle. We are in the process of designing our vacuum table system along with a fourth axis. If you would like a custom CNC machine built for you please contact us.

Custom CNC Spoilboard Pattern
Custom CNC Spoilboard Pattern
CNC Machine Build in Use
CNC Machine Build in Use

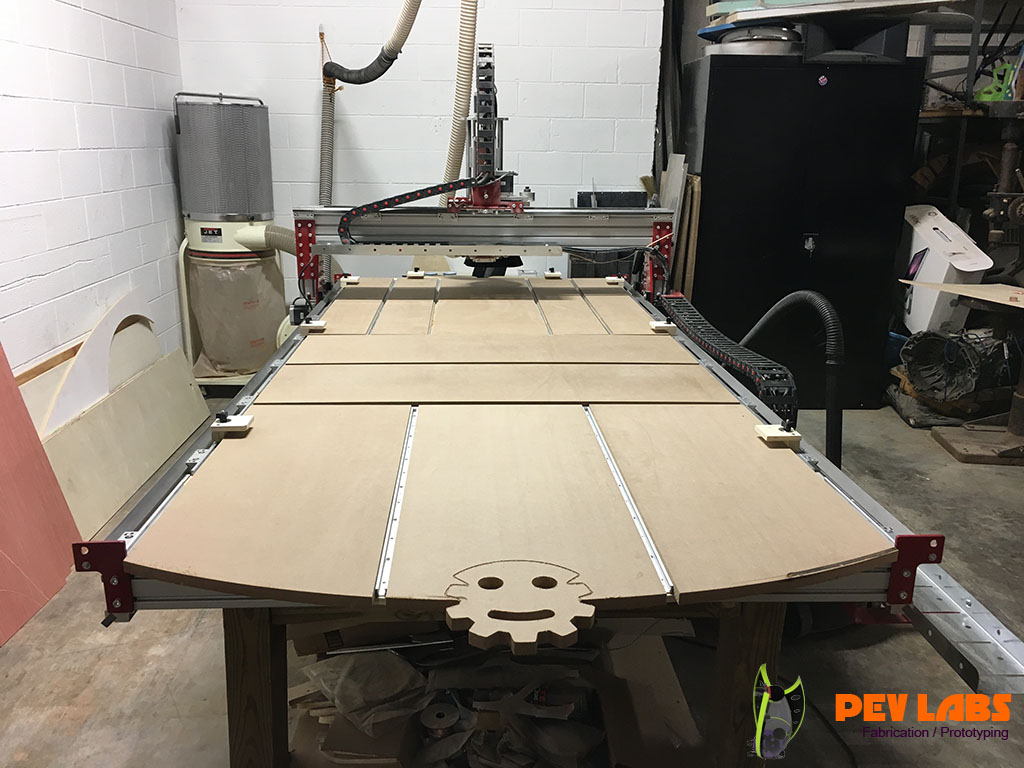

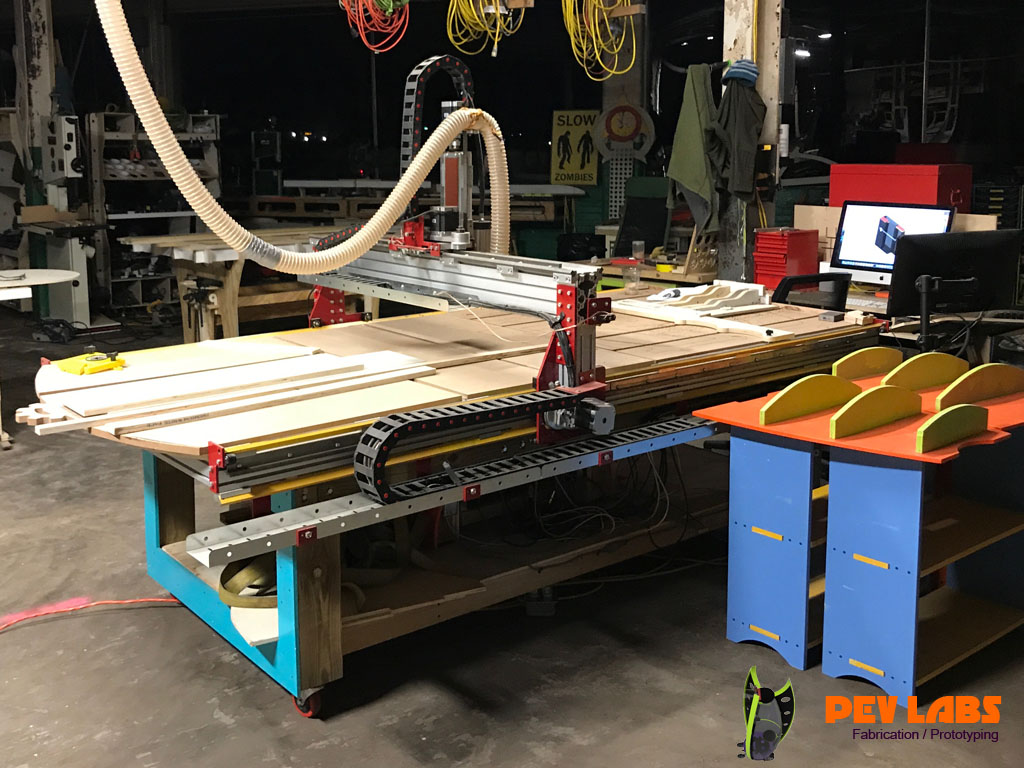

CNC Machine Build Complete
CNC Machine Build Complete
CNC Machine Tune-up 2018
CNC Machine Tune-up 2018

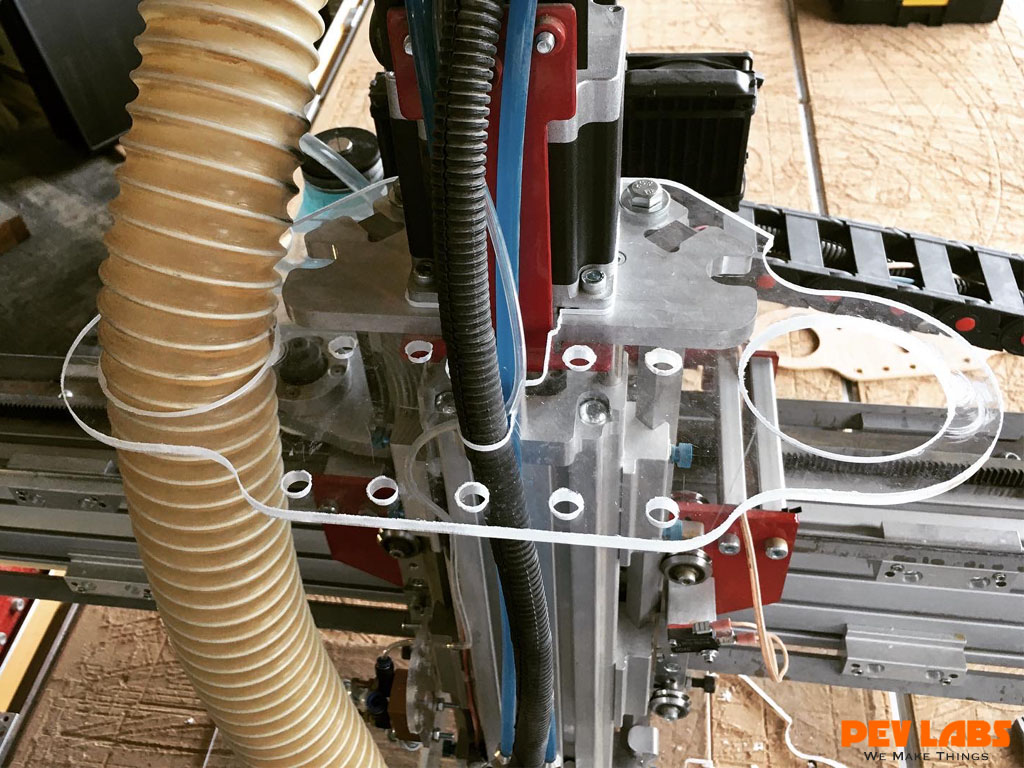

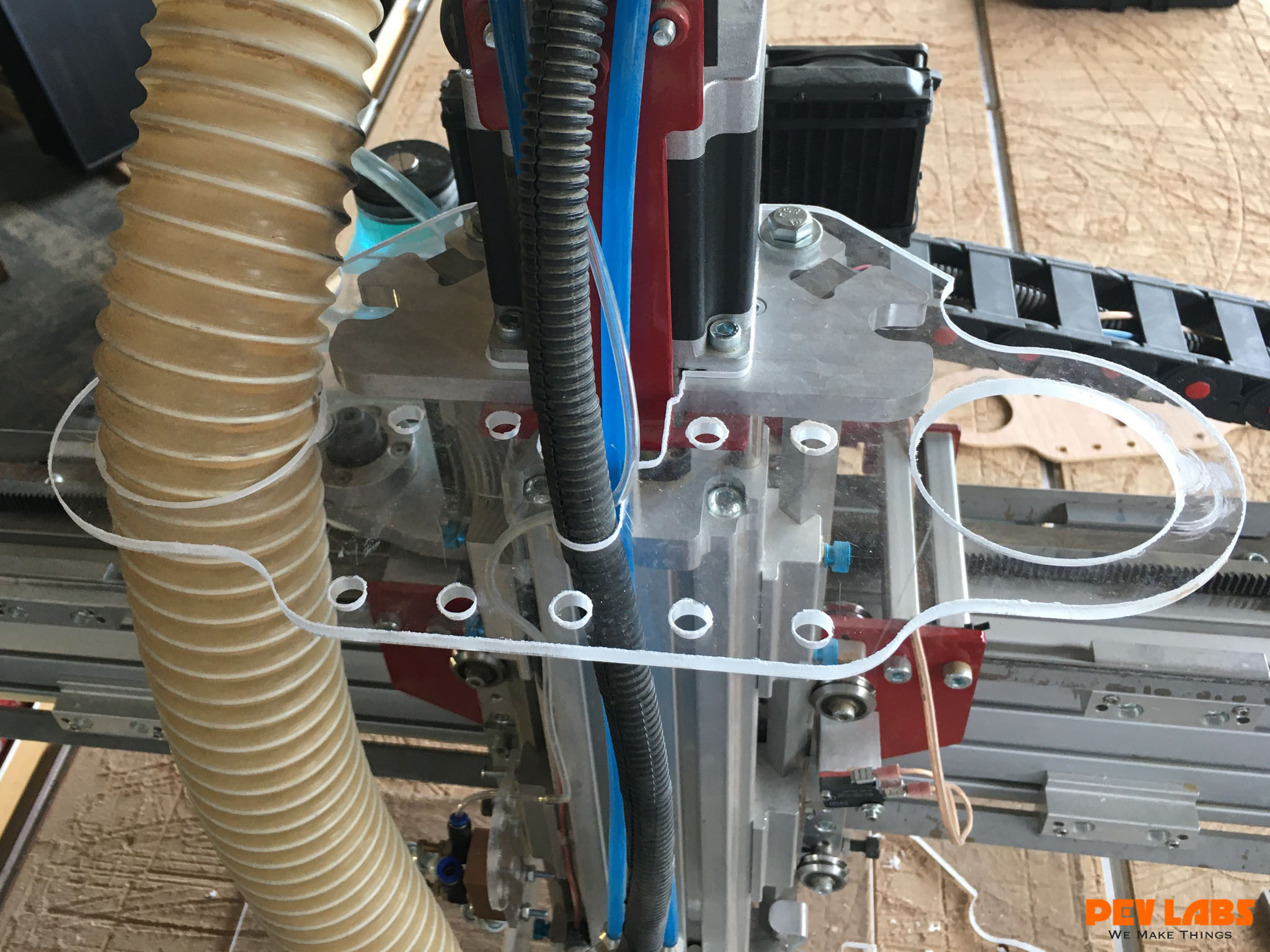

CNC Spindle Cable Hose Management Plate
CNC Spindle Cable Hose Management

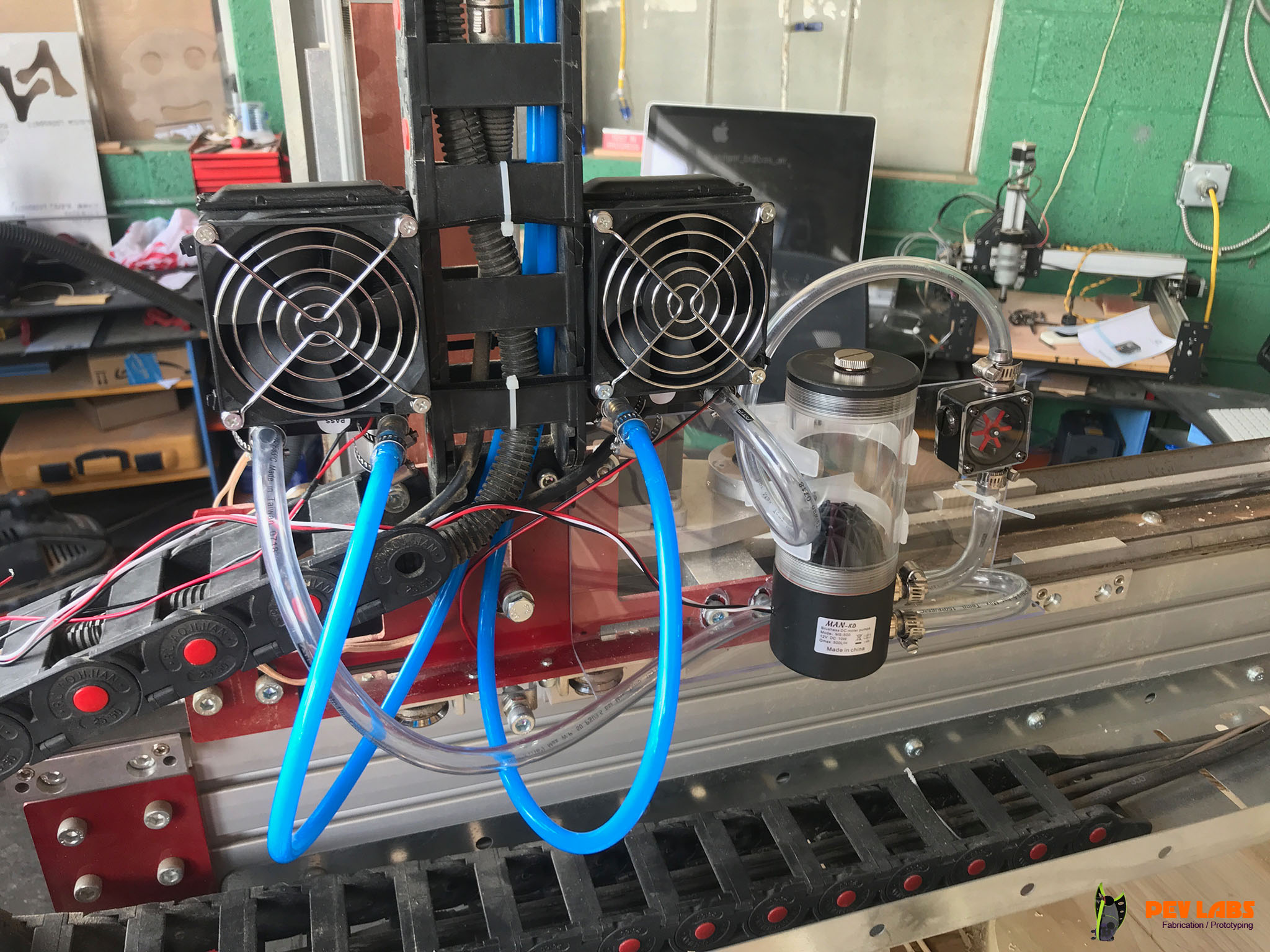

Water Cooling on CNC Gantry
Water Cooling on CNC Gantry

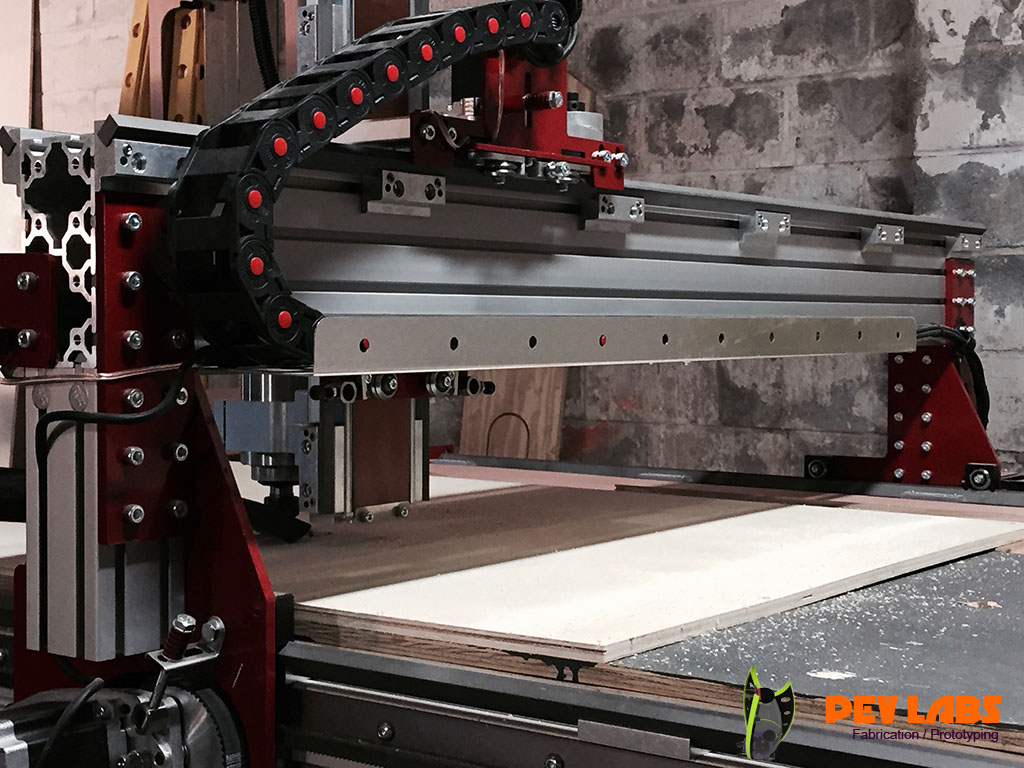

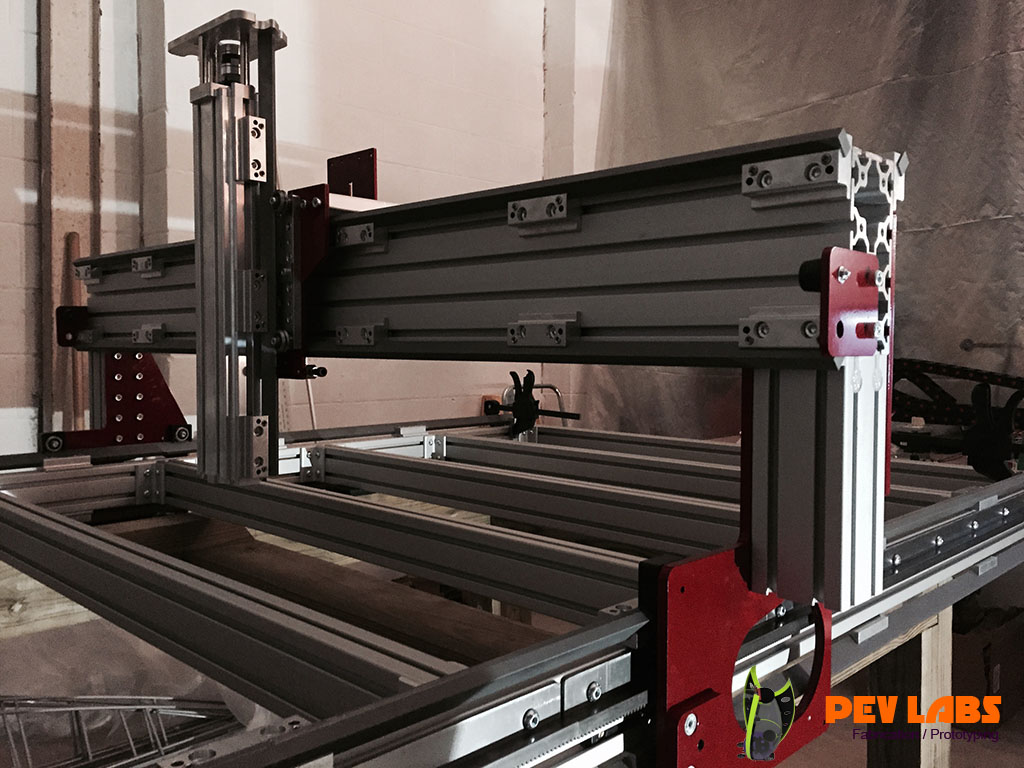

CNC Machine Gantry
CNC Machine Gantry

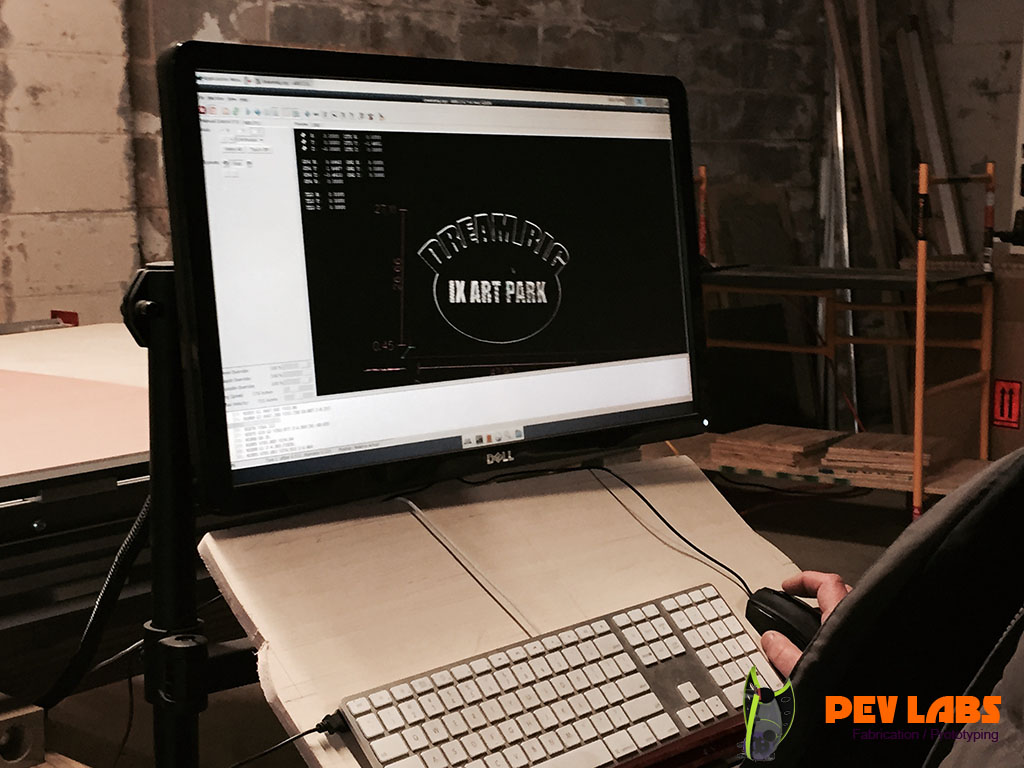

CNC Machine Monitor
CNC Machine Monitor

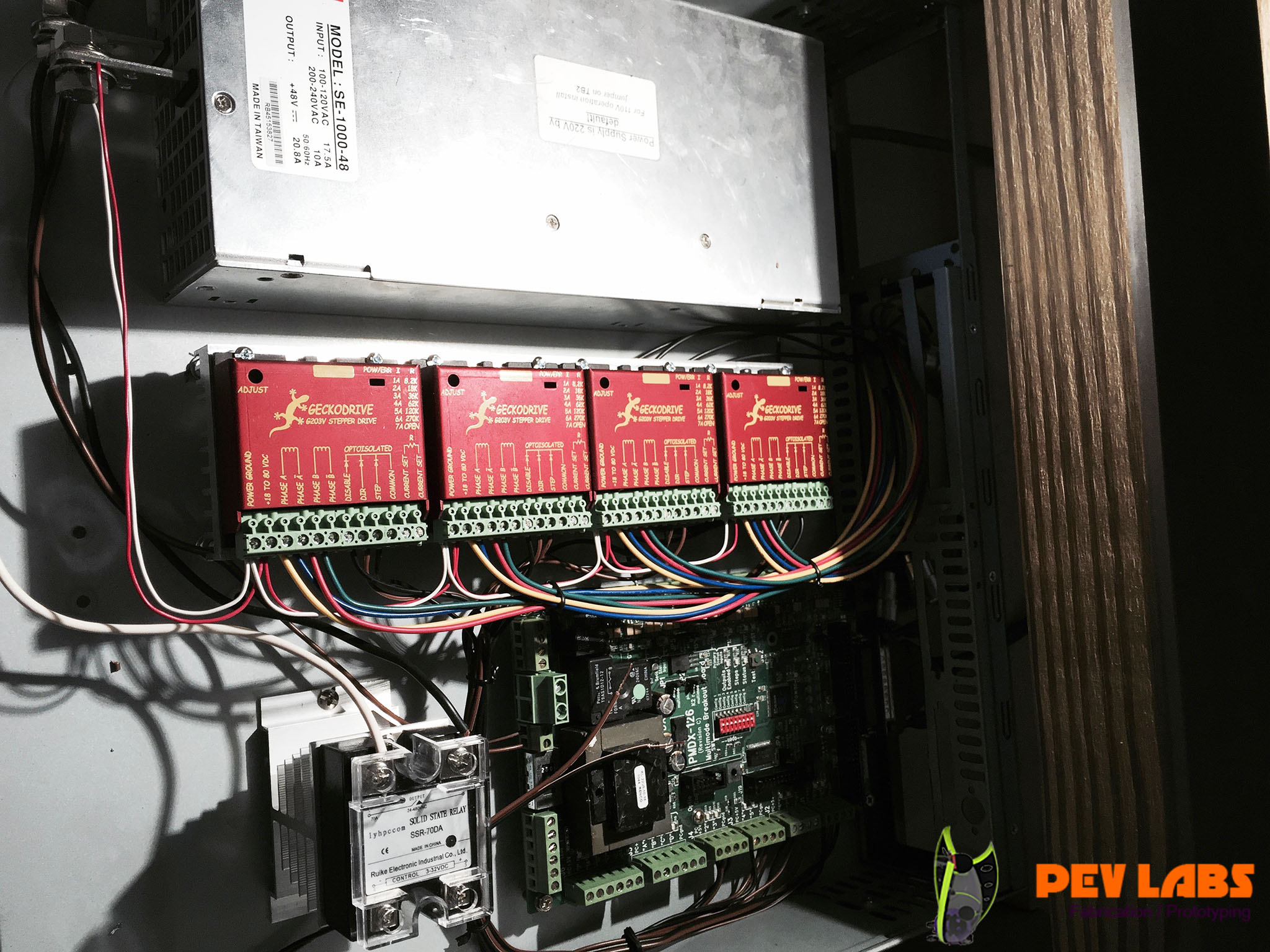

CNC Gecko Stepper Drivers
CNC Gecko Stepper Drivers

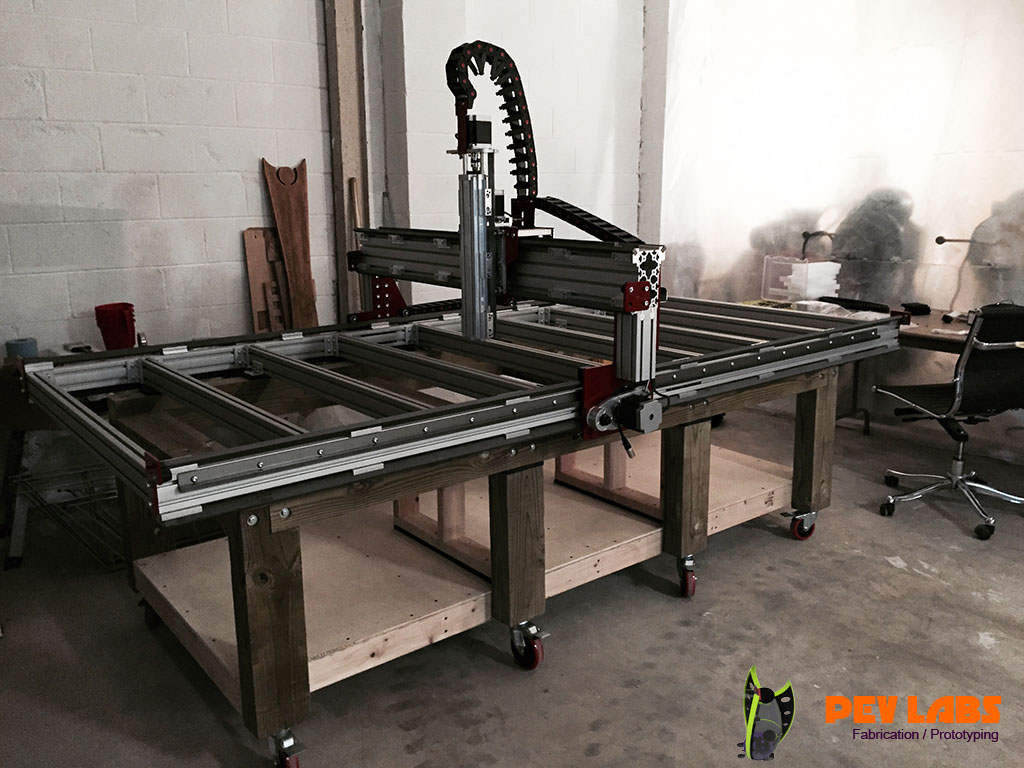

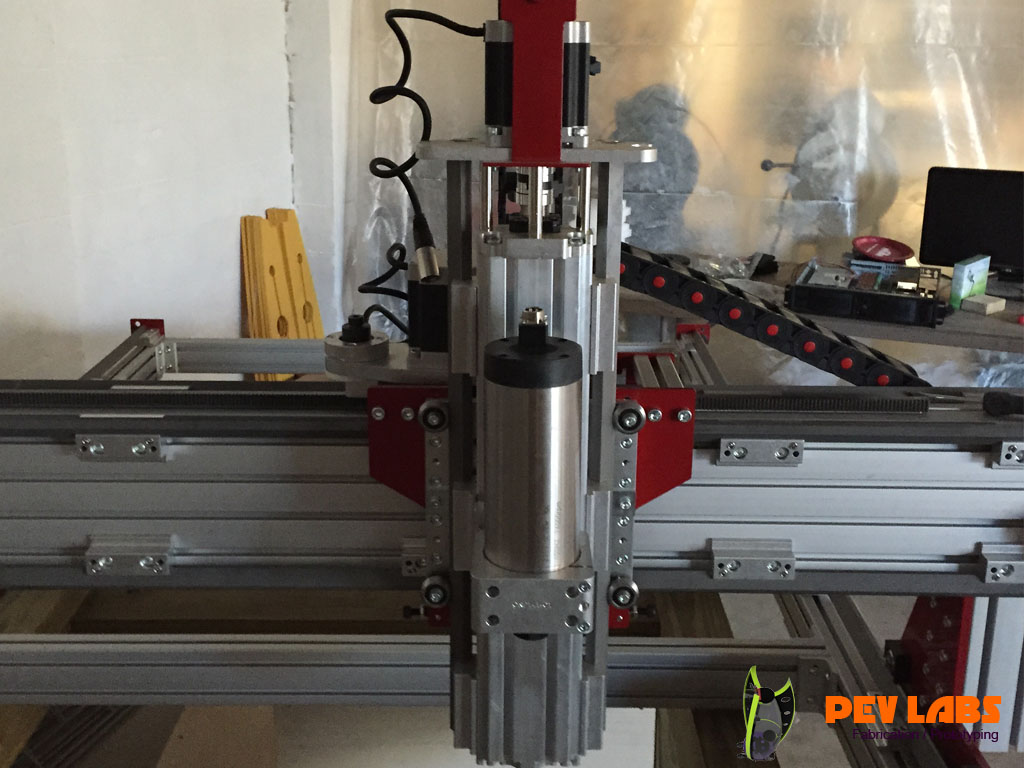

Spindle Mounted on CNC
Spindle Mounted on CNC
CNC Mounted on Z-Axis
CNC Mounted on Z-Axis

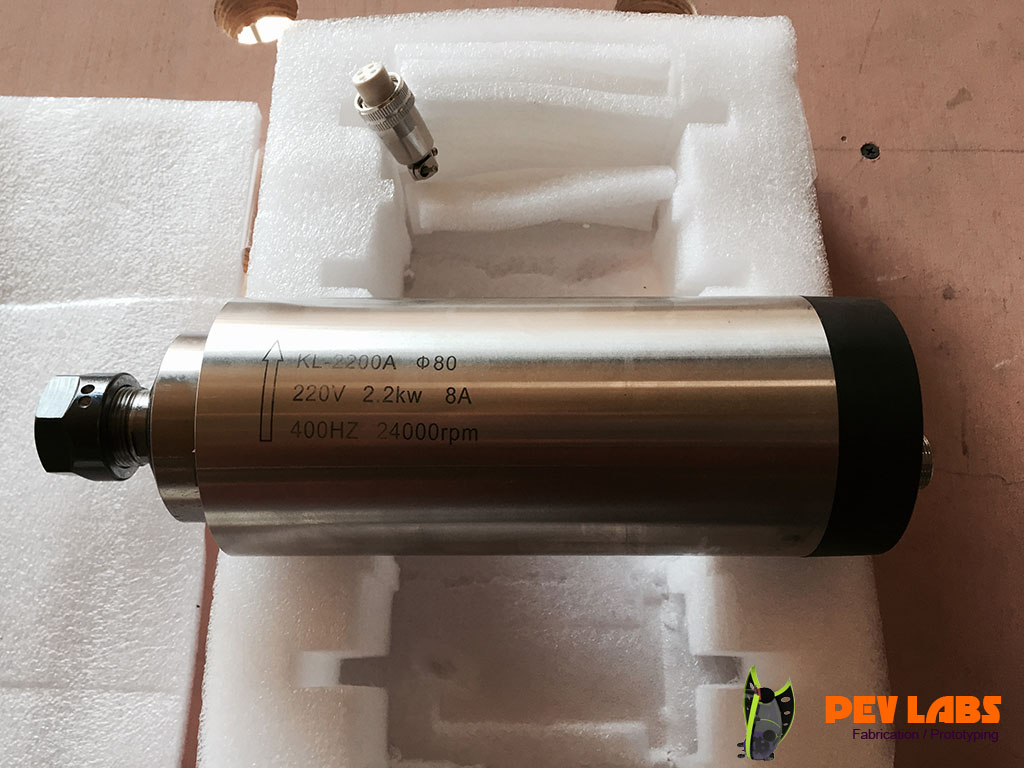

2200kw 24,000 RPM Spindle
2200kw 24,000 RPM Spindle

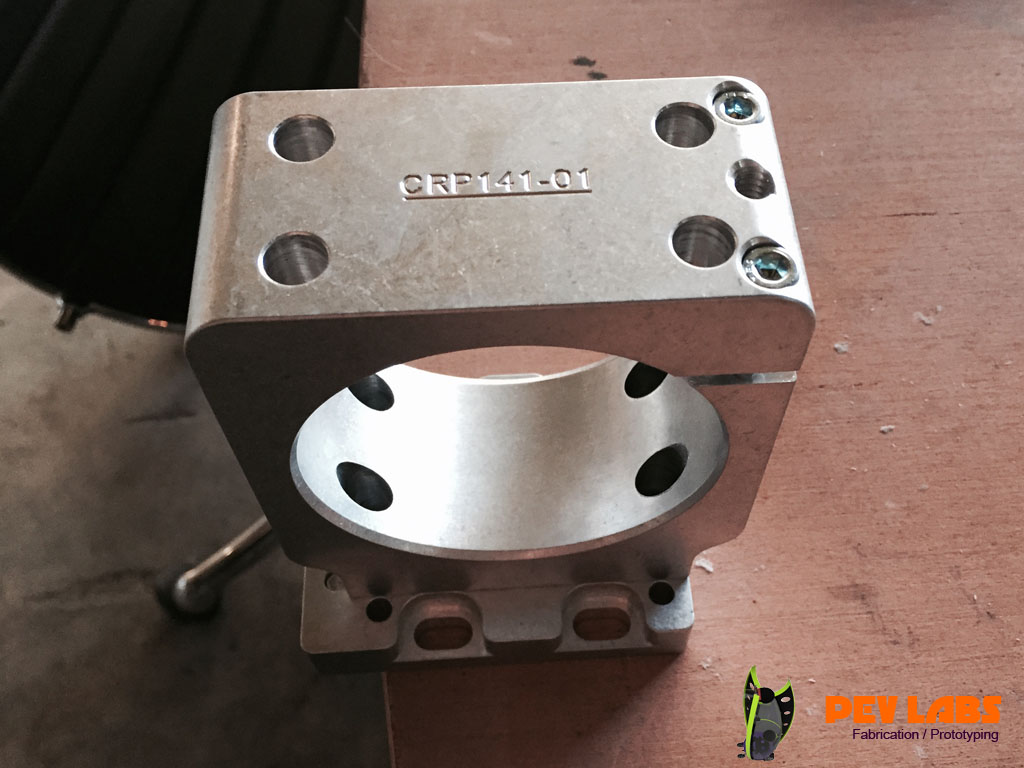

Monster CNC Spindle Mount
Monster CNC Spindle Mount

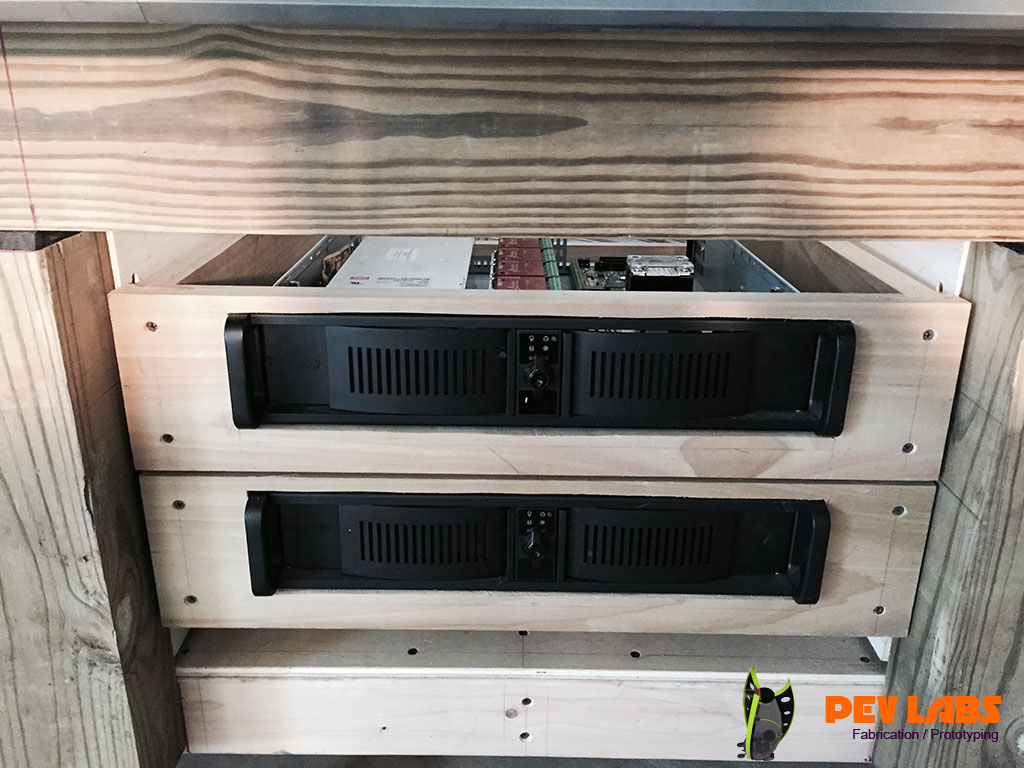

CNC Electronics Linux Computer
CNC Electronics Linux Computer
CNC Electronic Stepper Drivers
CNC Electronic Stepper Drivers

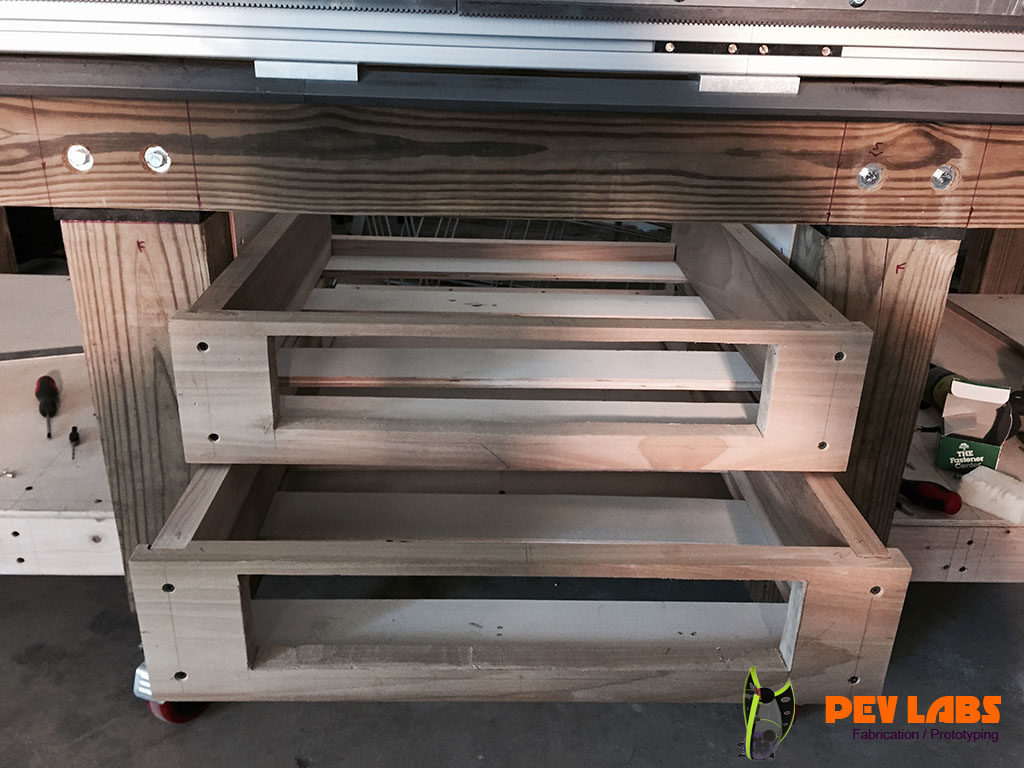

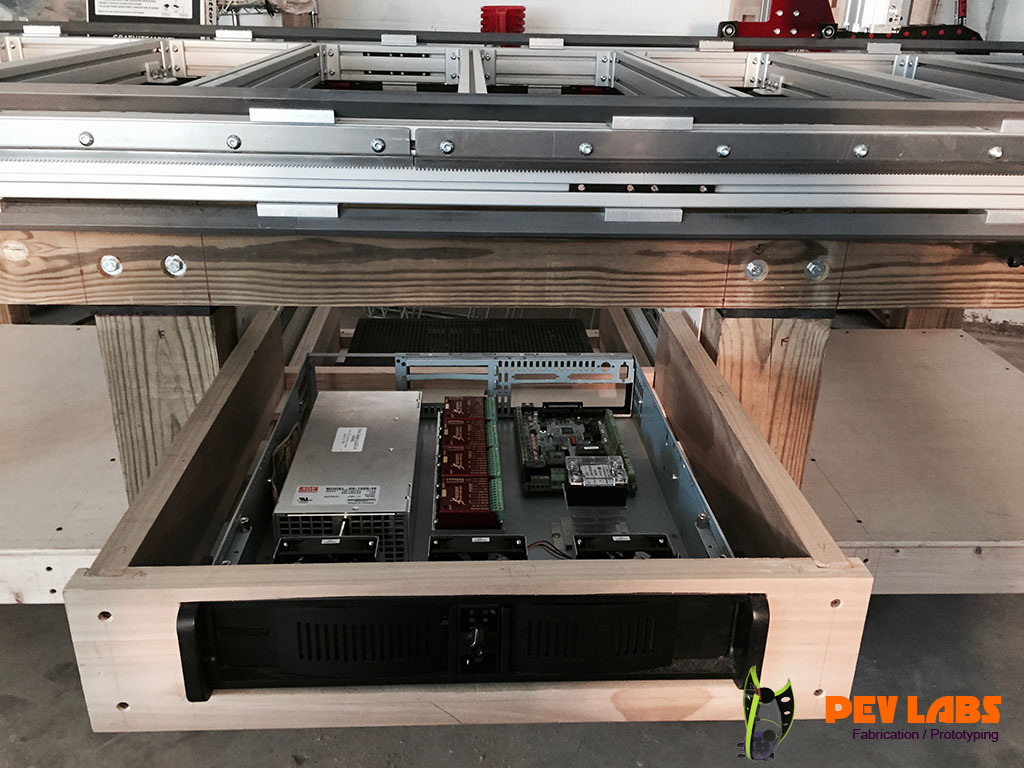

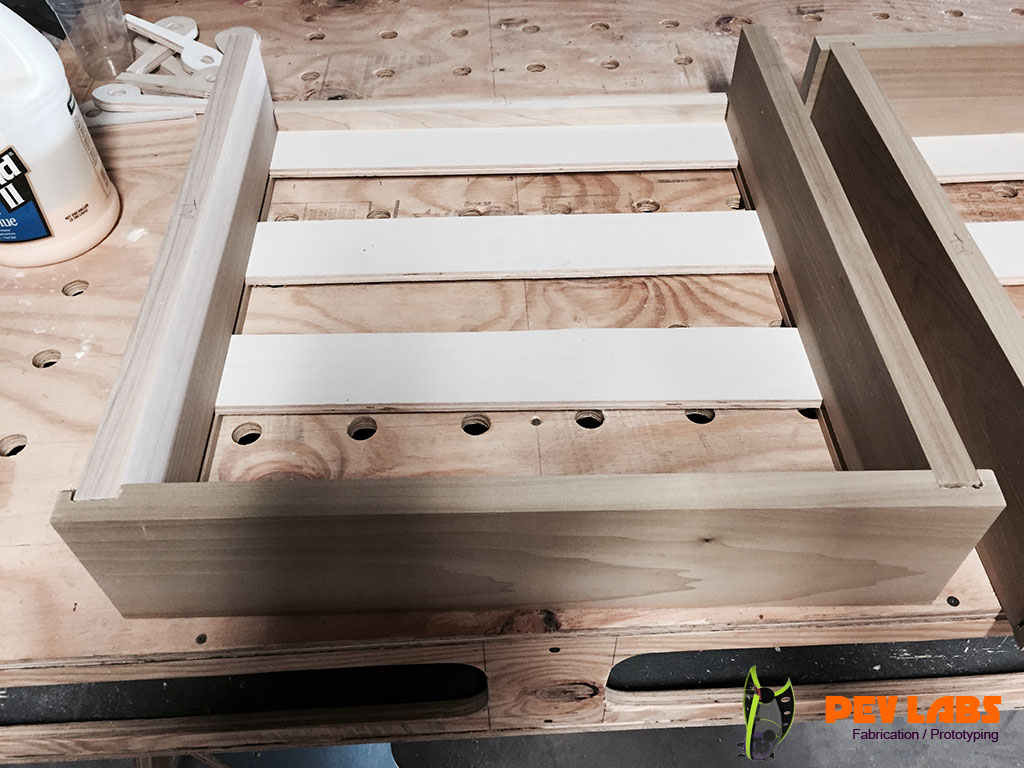

CNC Electronics Cabinet Drawers Mounted
CNC Electronics Cabinet Drawers

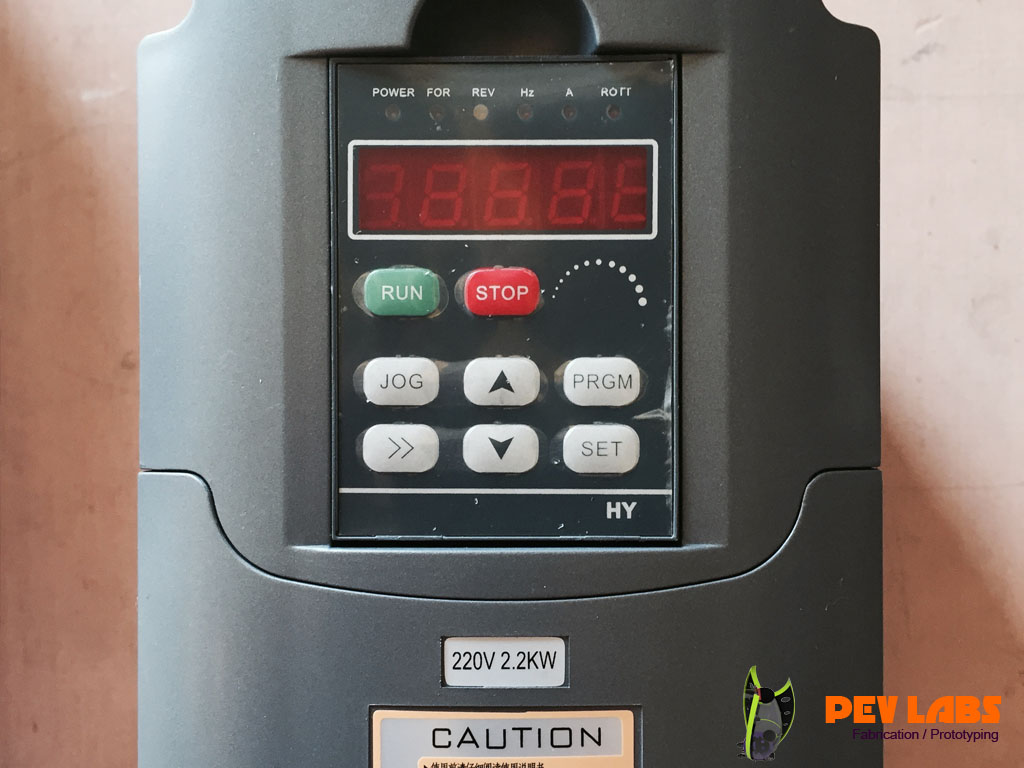

220v 2.2kv VFD
220v 2.2kv VFD

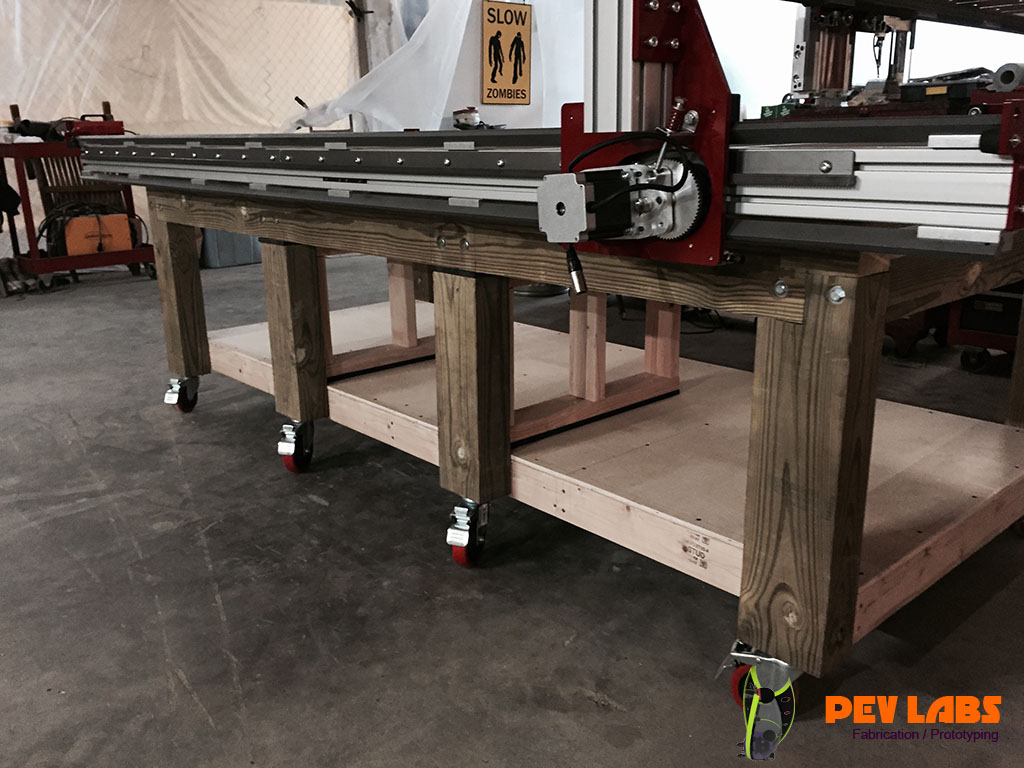

CNC Frame Wheels Detail
CNC Frame Wheels Detail

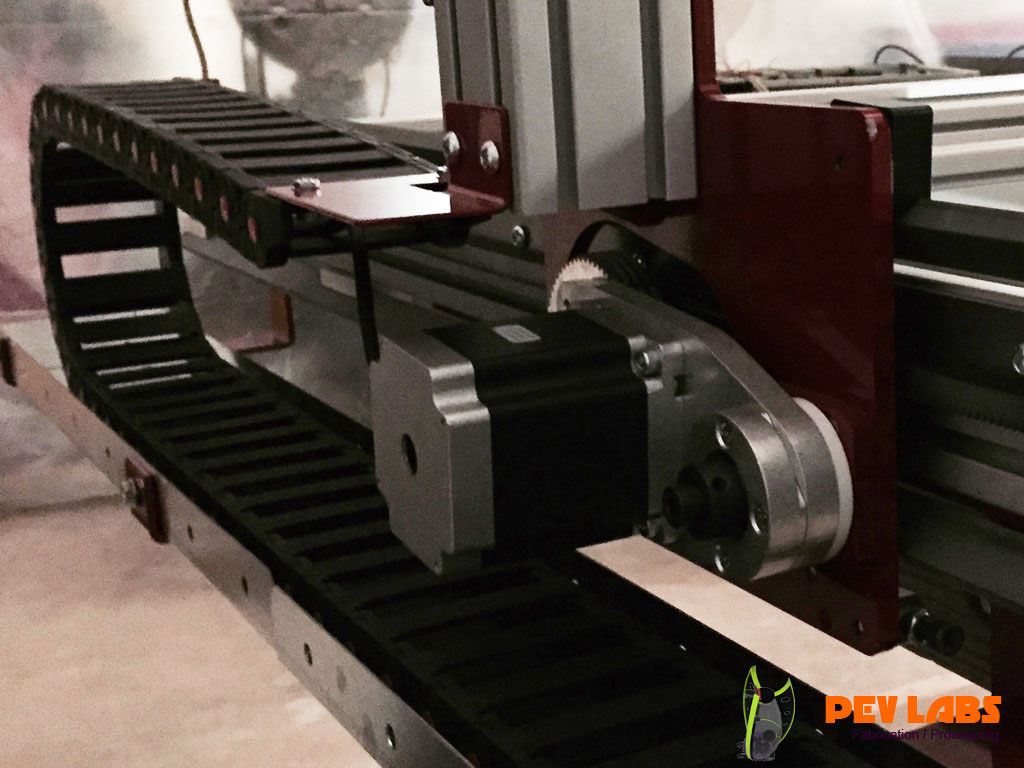

Stepper Mechanism on CNC
Stepper Mechanism on CNC

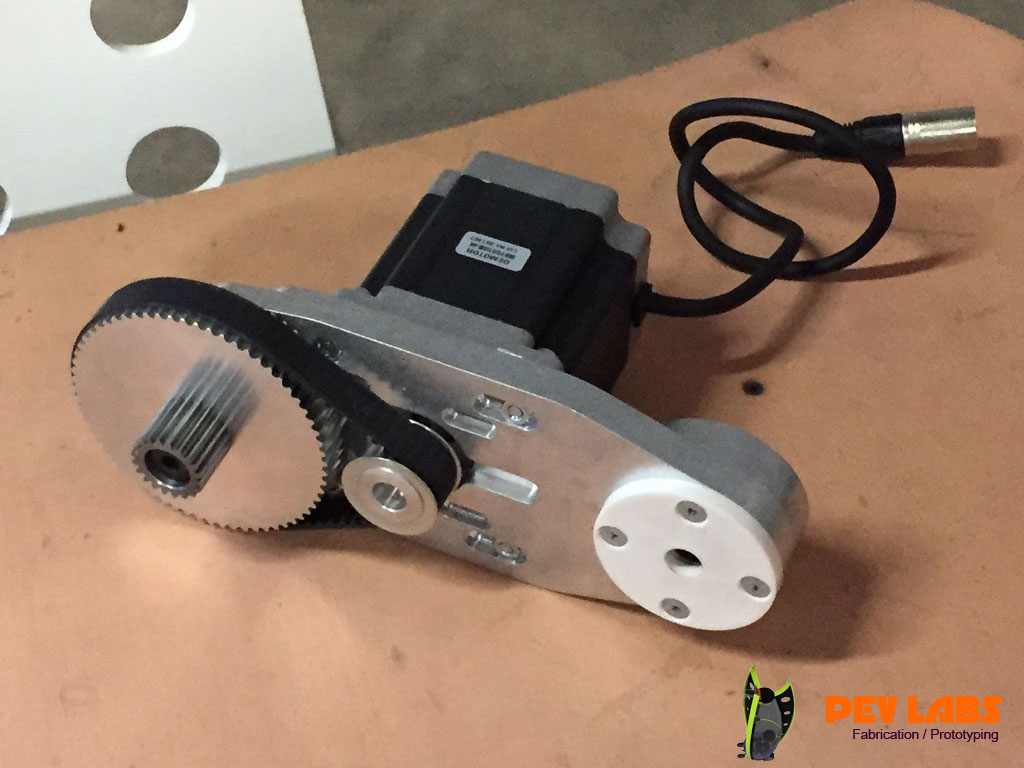

CNC Y Axis Stepper Assembly
CNC Y Axis Stepper Assembly

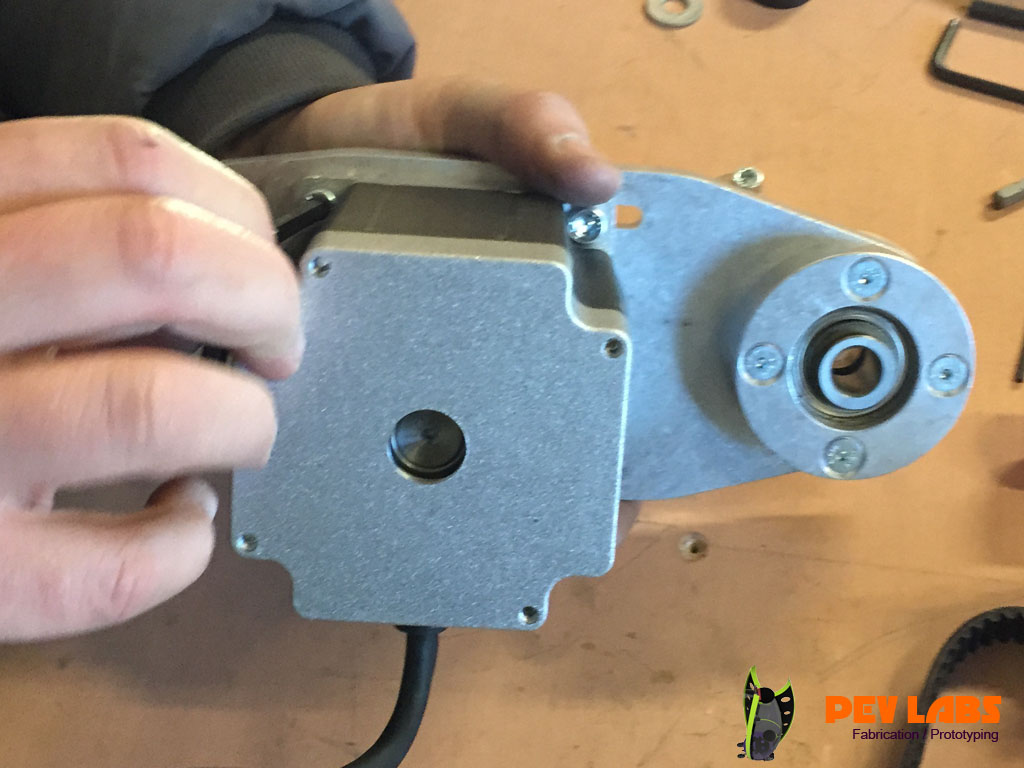

Mounting Stepper Motor on Rail Guide
Mounting Stepper Motor on Rail Guide

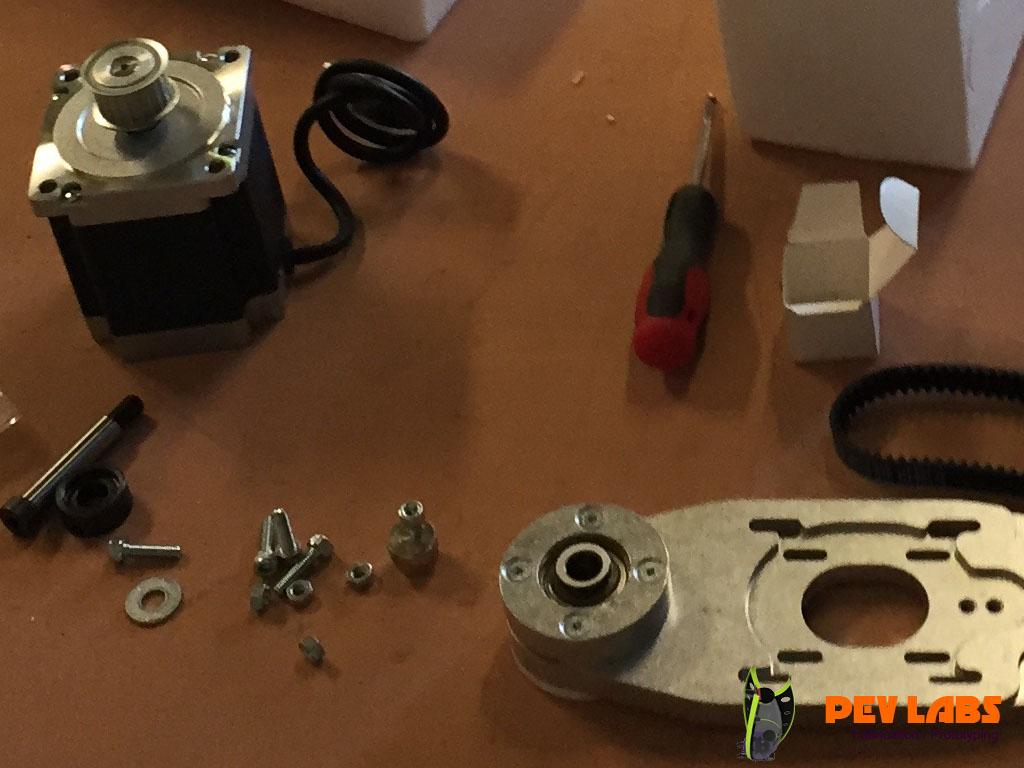

Motion Control Mechanics Parts
Motion Control Mechanics Parts

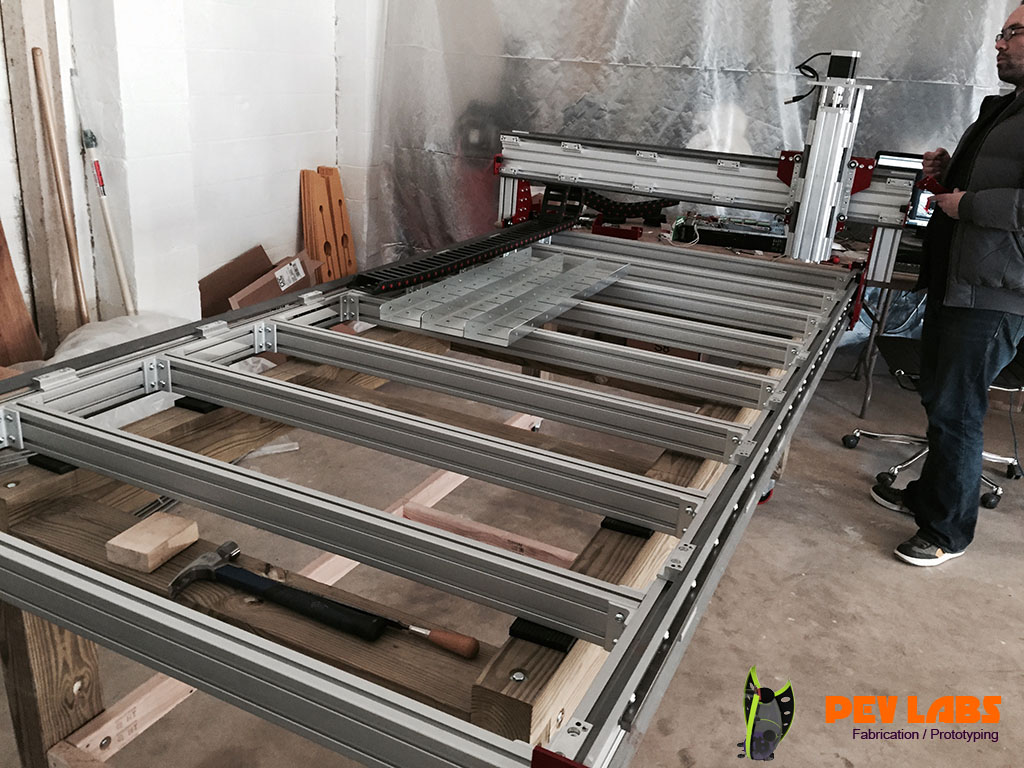

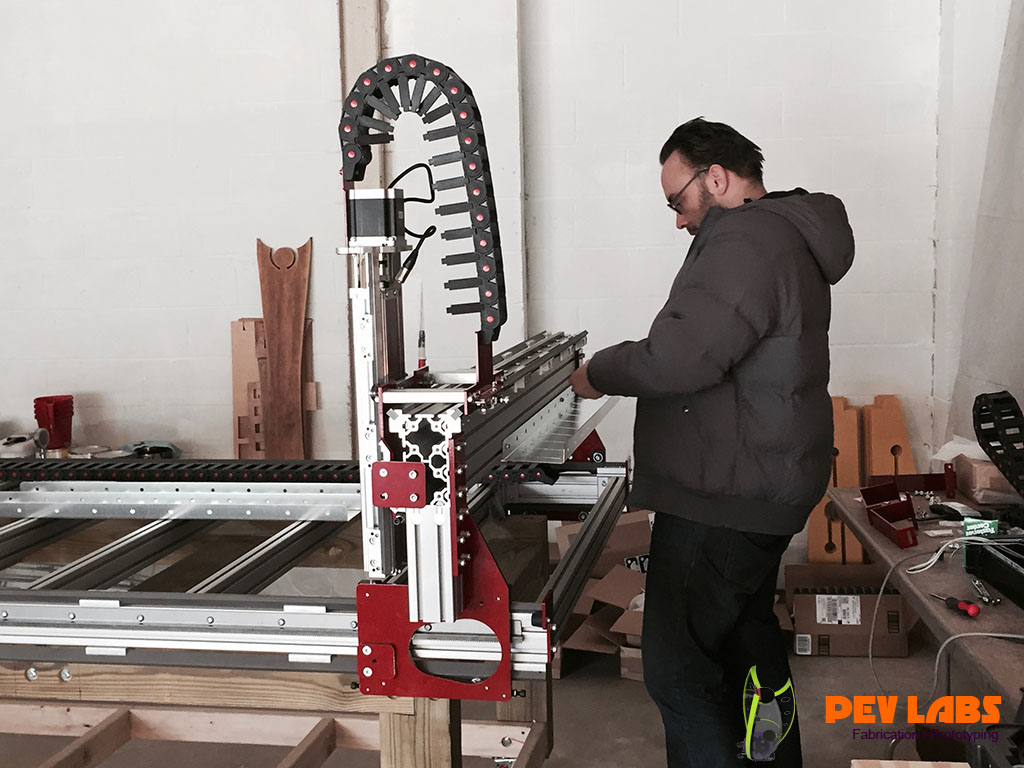

Installing CNC Drag Chains
Installing CNC Drag Chains All Axis

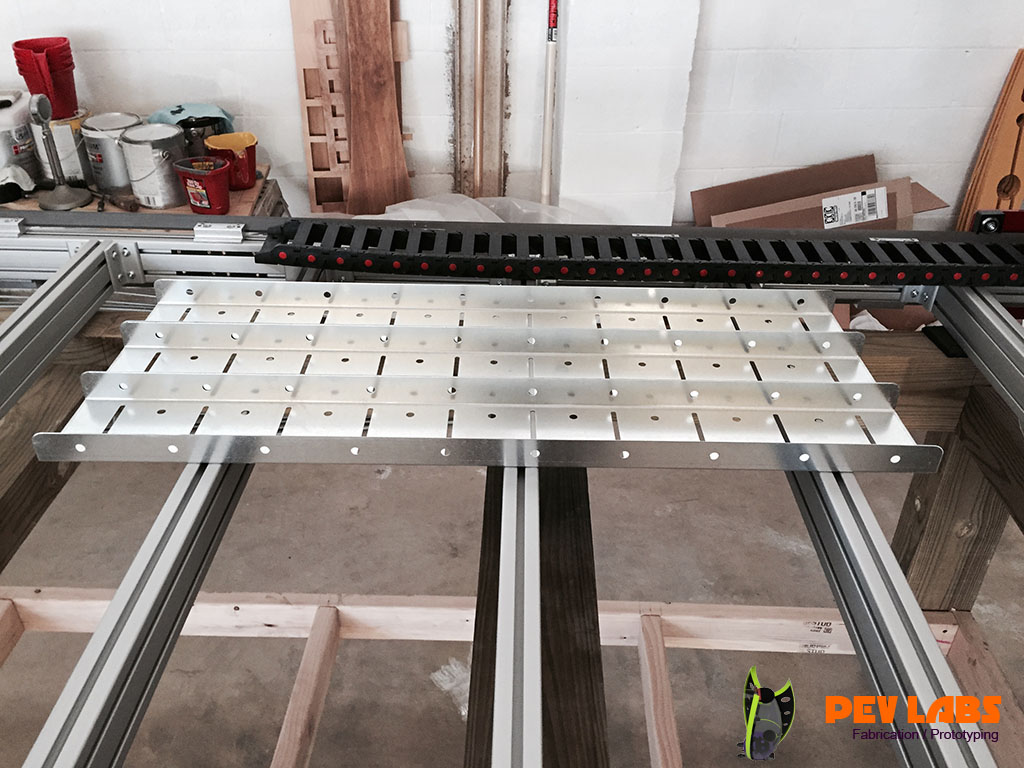

Parts for the Wire Carrier Cables
Parts for the Wire Carrier Cables
Wire Drag Chains and Trays
Wire Drag Chains and Trays

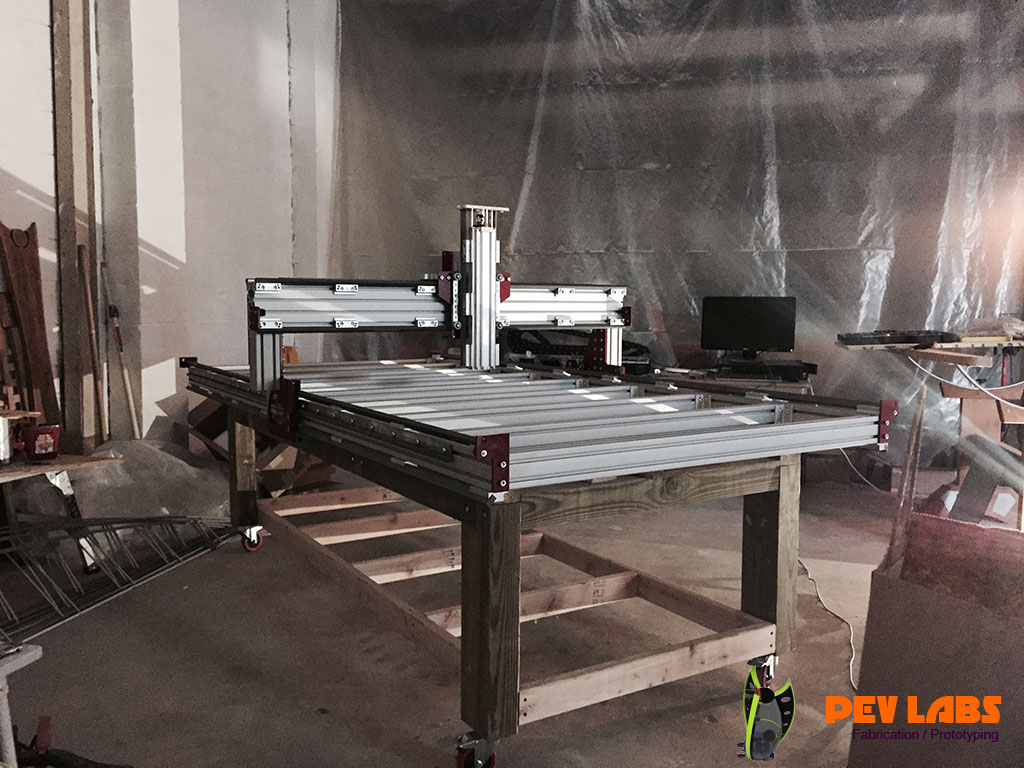

Gantry Z-Axis Looking Good
Gantry Z-Axis Looking Good
Detail of Gantry on CNC Build
Detail of Gantry on CNC Build

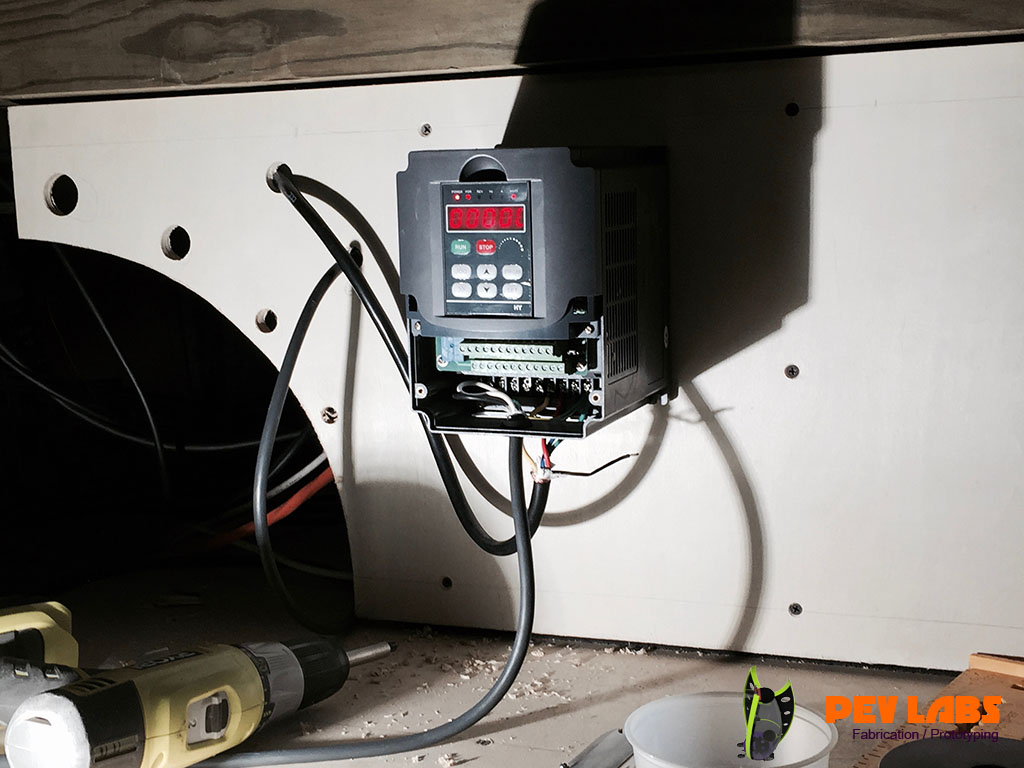

CNC Machine VFD Wiring
CNC Machine VFD Wiring

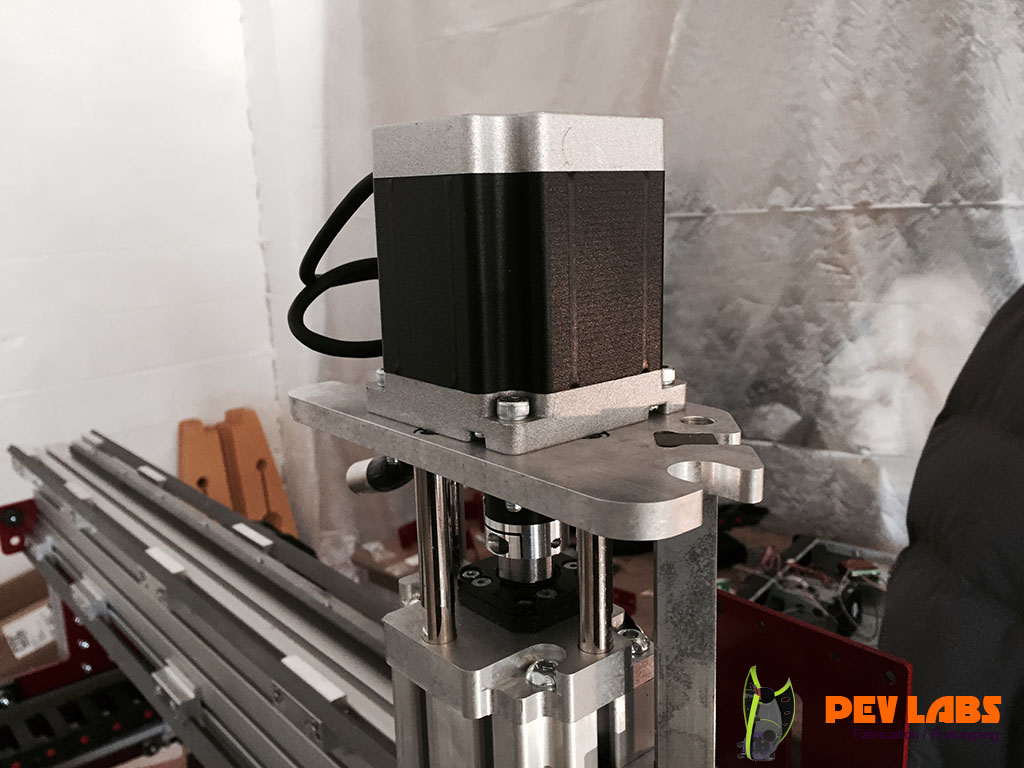

Nema 34 Stepper Motor
Nema 34 Stepper Motor

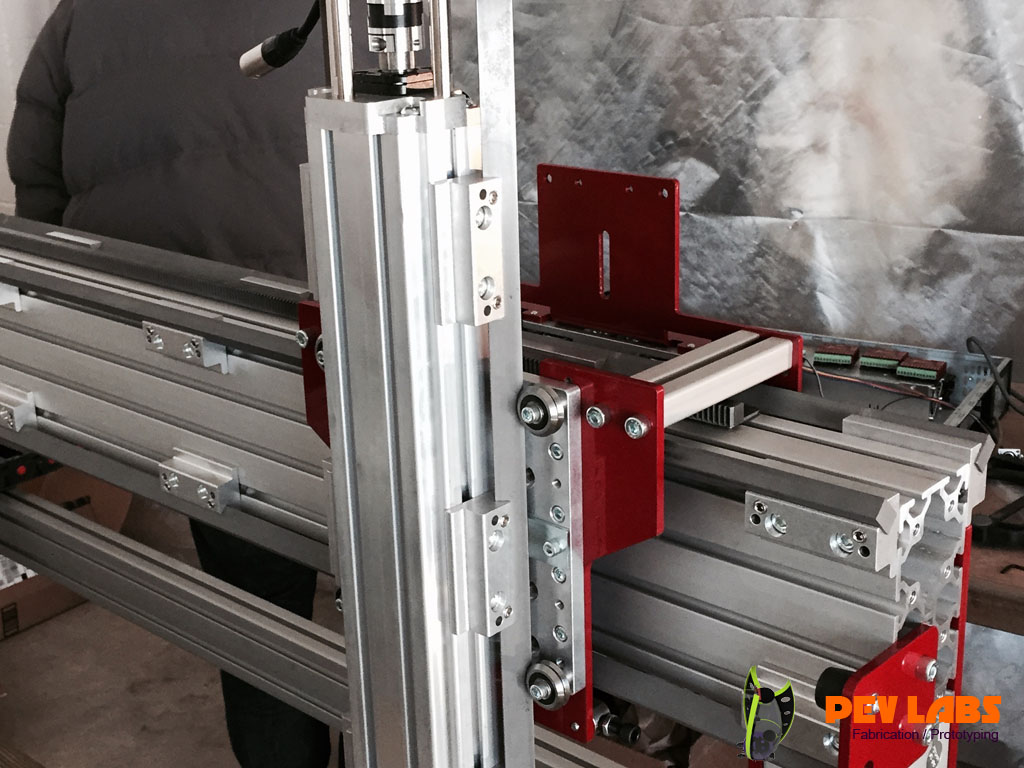

CNC Extruded Aluminum Z Axis Installation
CNC Extruded Aluminum Z Axis Install

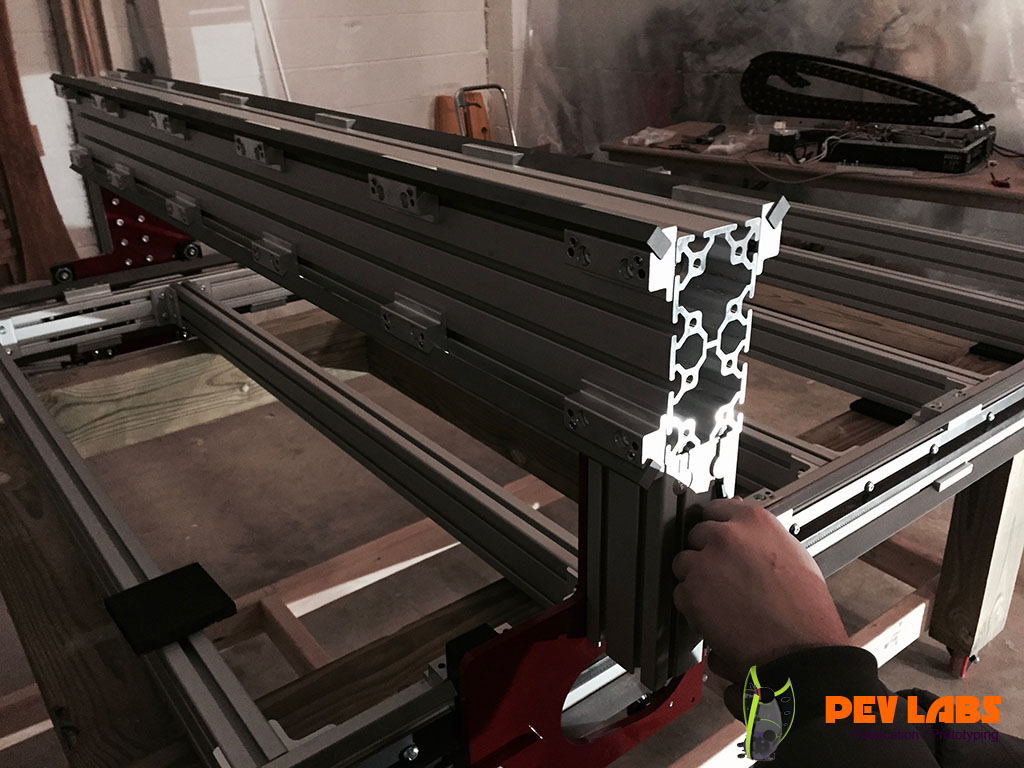

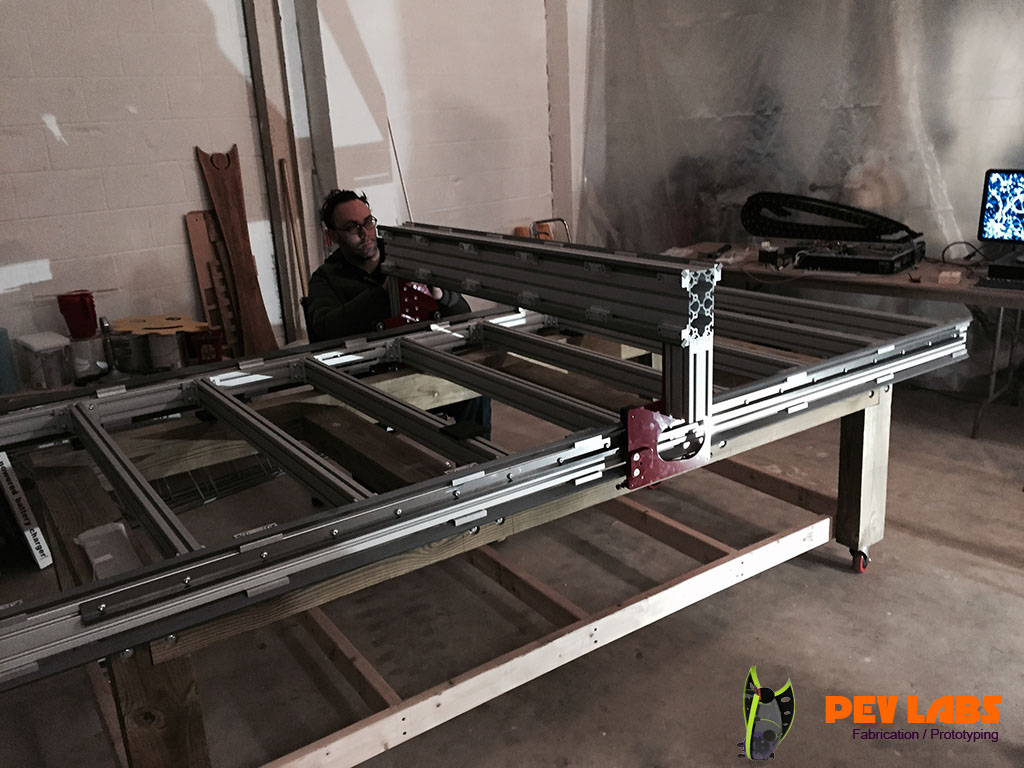

CNC Extruded Aluminum Gantry Installed
CNC Extruded Aluminum Gantry Detail
CNC Extruded Aluminum Gantry Installation
CNC Extruded Aluminum Gantry Install

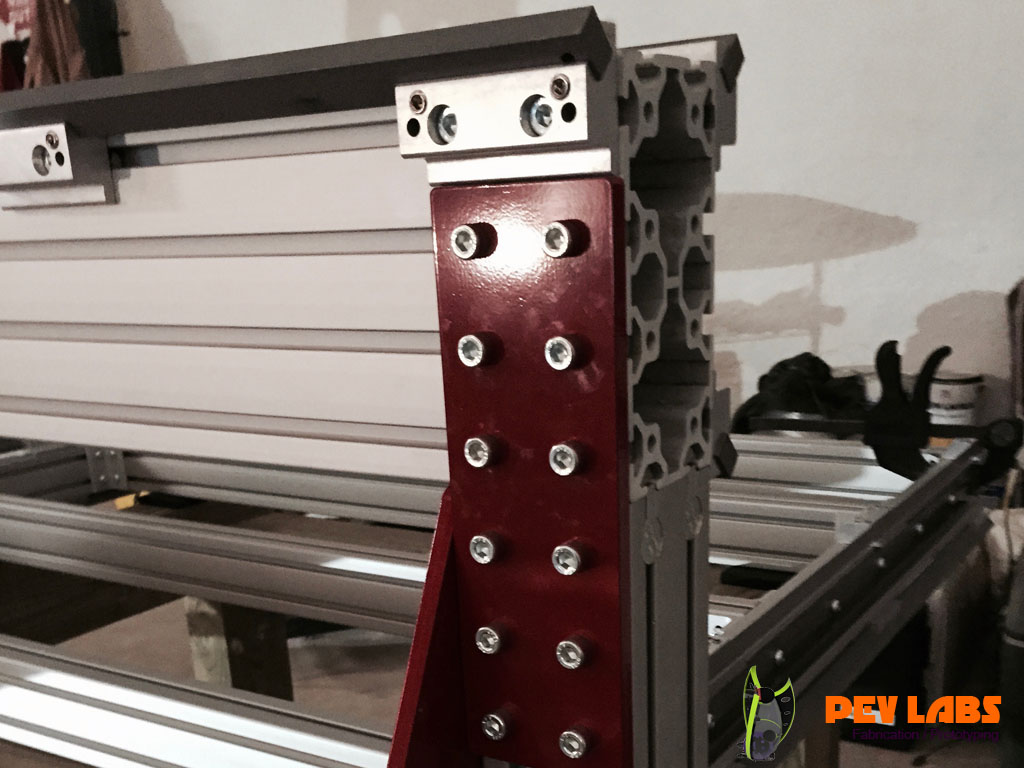

CNC Extruded Aluminum Gantry Bracket
CNC 8020 T Slot Gantry Bracket

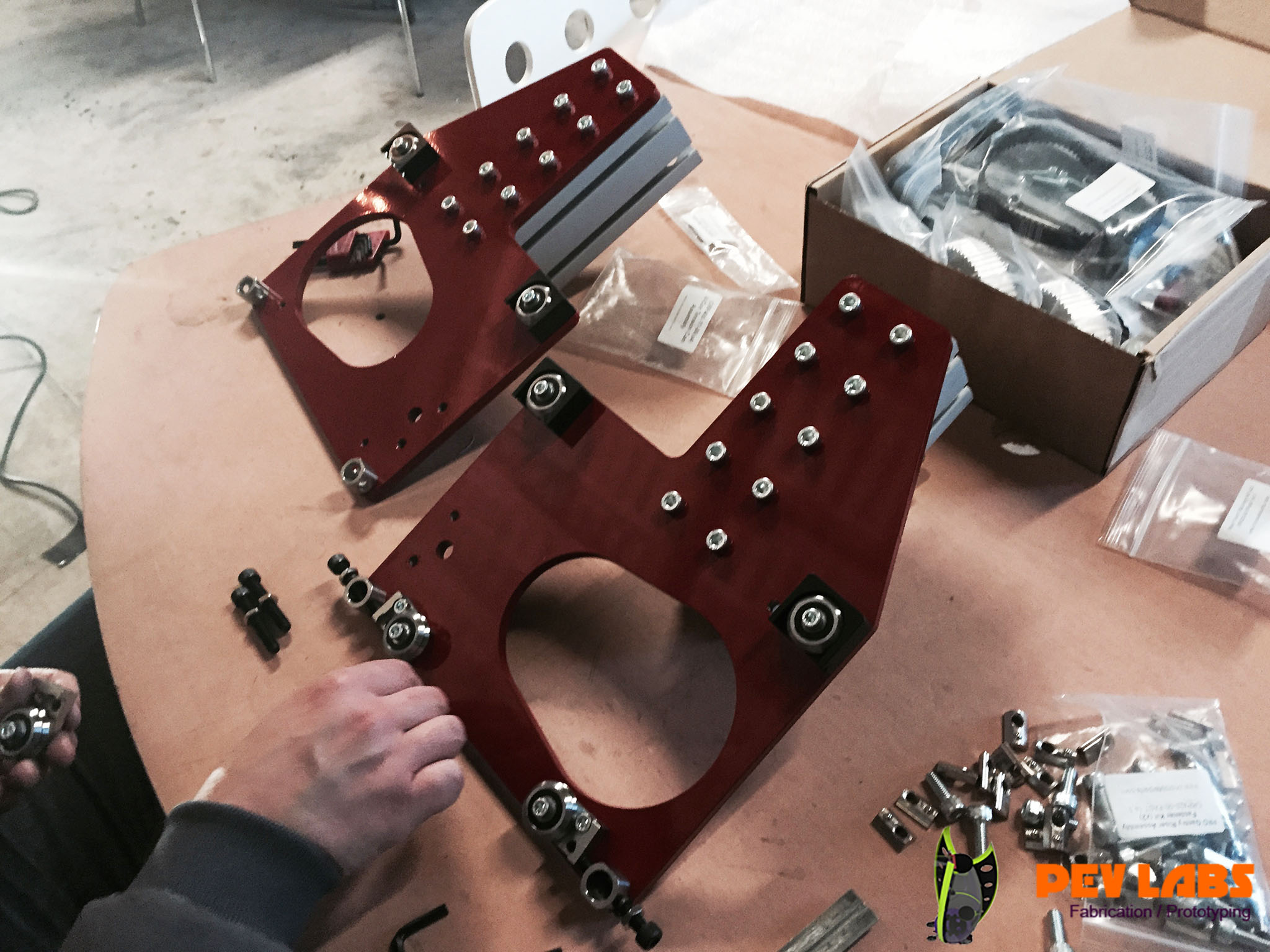

CNC Carriage Stepper Supports
CNC Carriage Stepper Supports

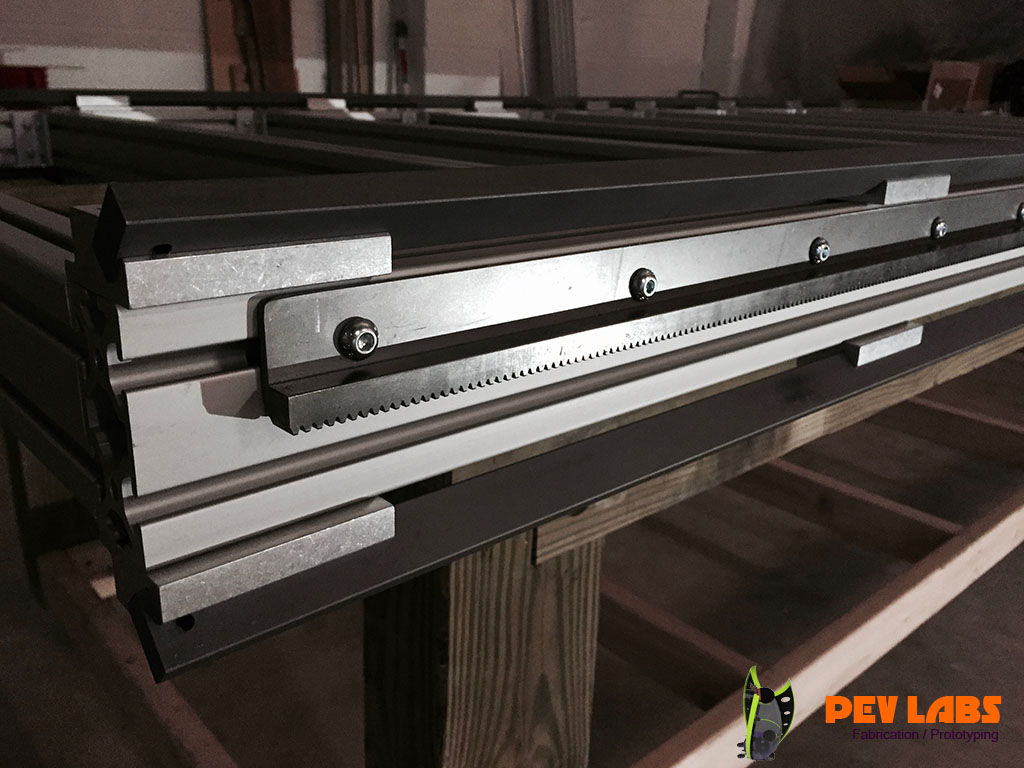

CNC Rack Gear for Stepper Pinion Gear
CNC Rack Gear for Stepper Pinion Gear

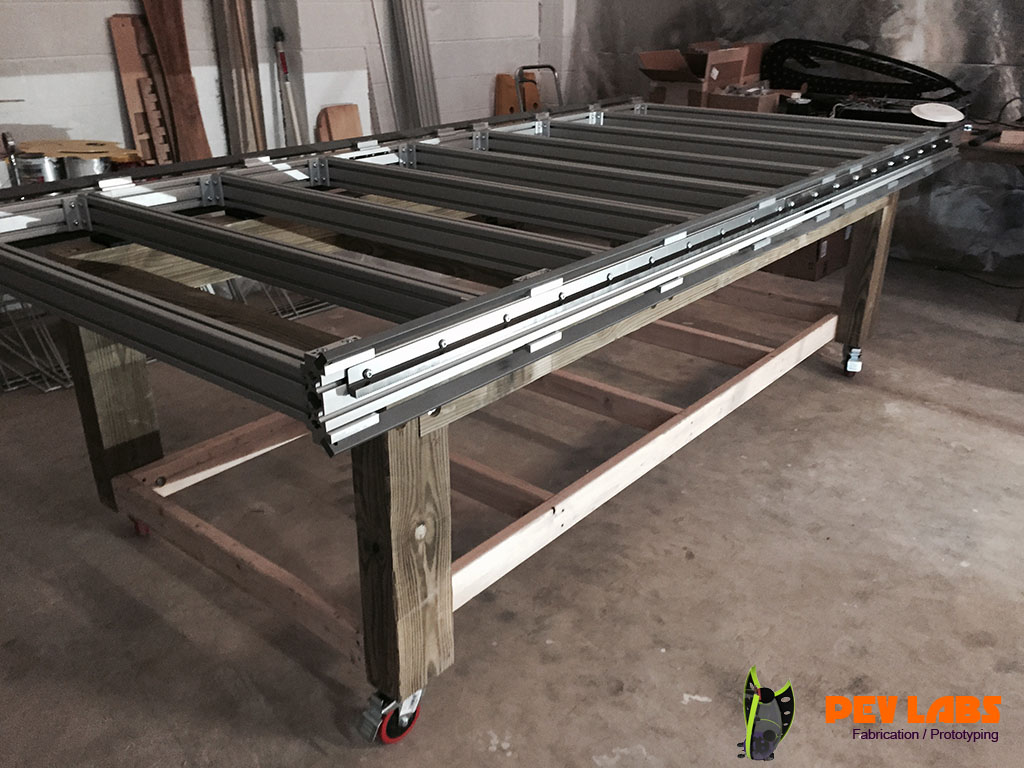

CNC Steel Guide Rails Top and Bottom
CNC Steel Guide Rails Top and Bottom

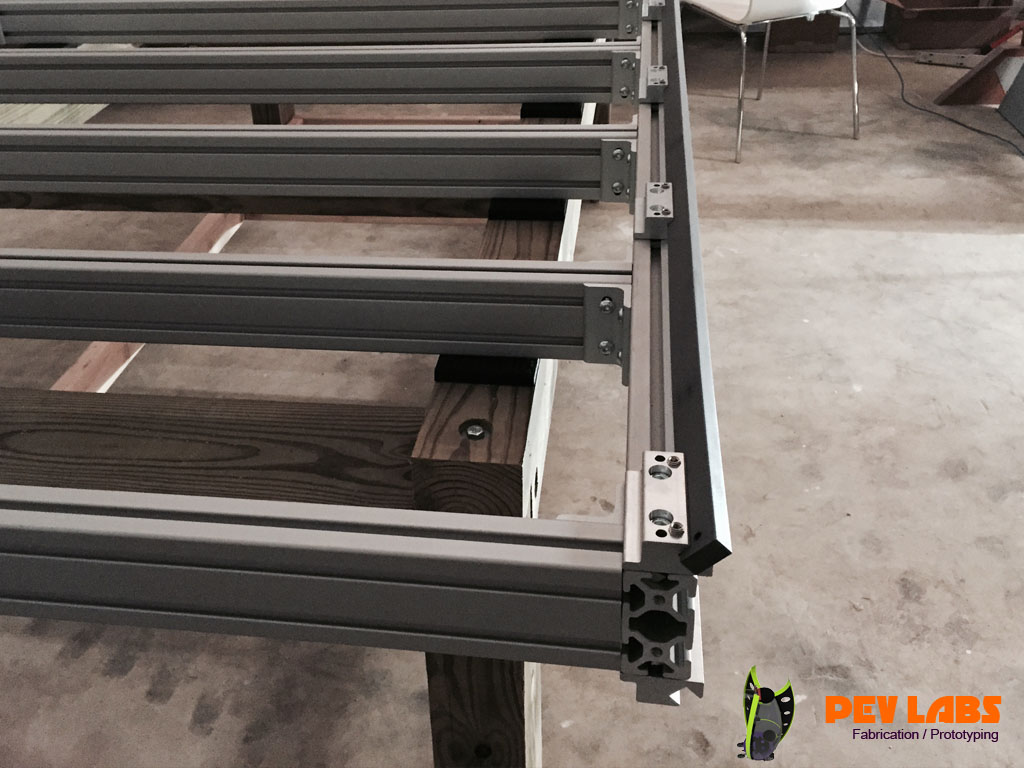

CNC Cold Rolled Steel Gantry Rail
CNC Cold Rolled Steel Gantry Rail

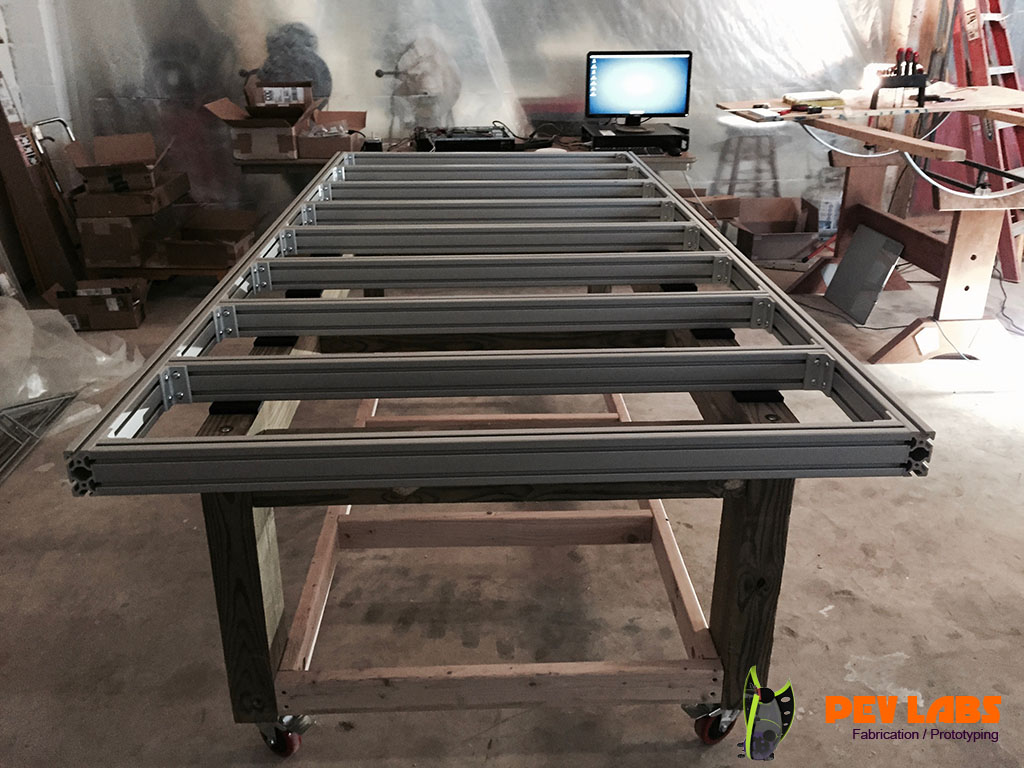

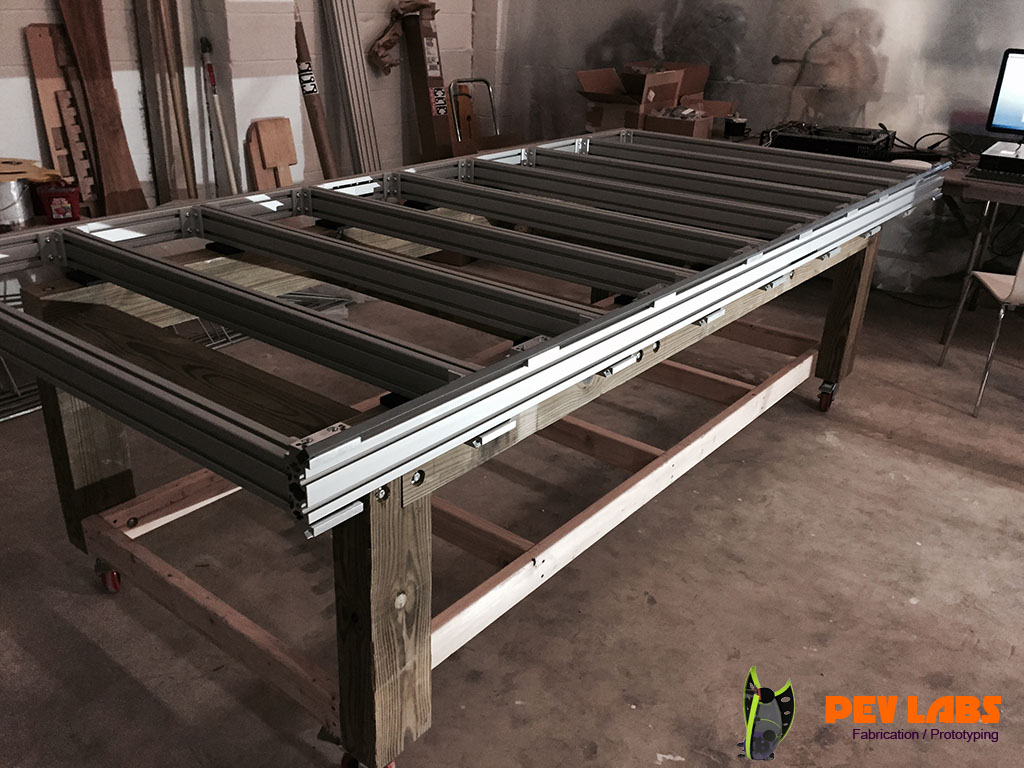

CNC Extruded T Slot Framing
CNC Extruded T Slot Framing

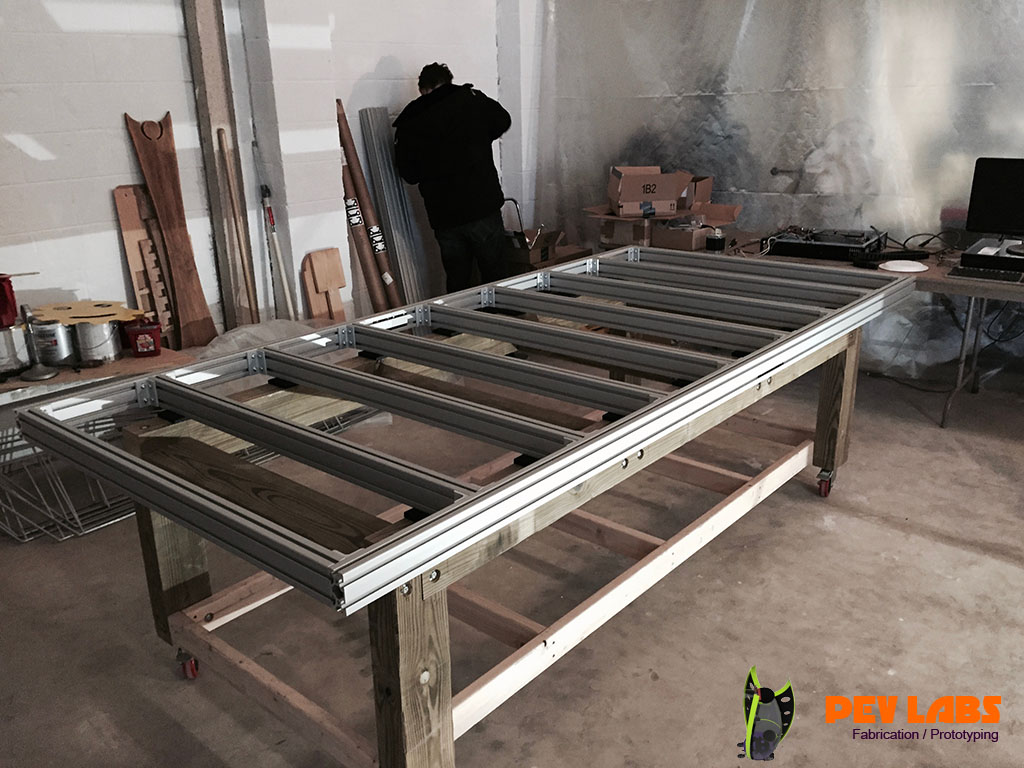

CNC 8020 Extruded Frame Assembled
CNC 8020 Extruded Frame Assembled

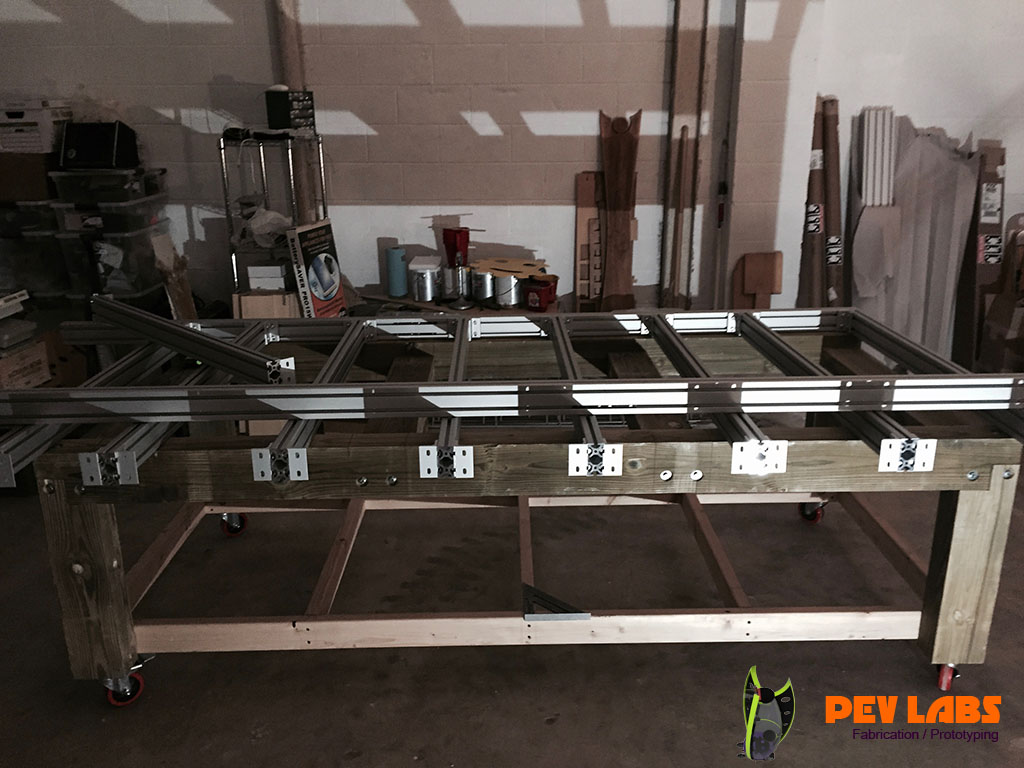

8020 T Slot Crossbars Spacing
8020 T Slot Crossbars Spacing

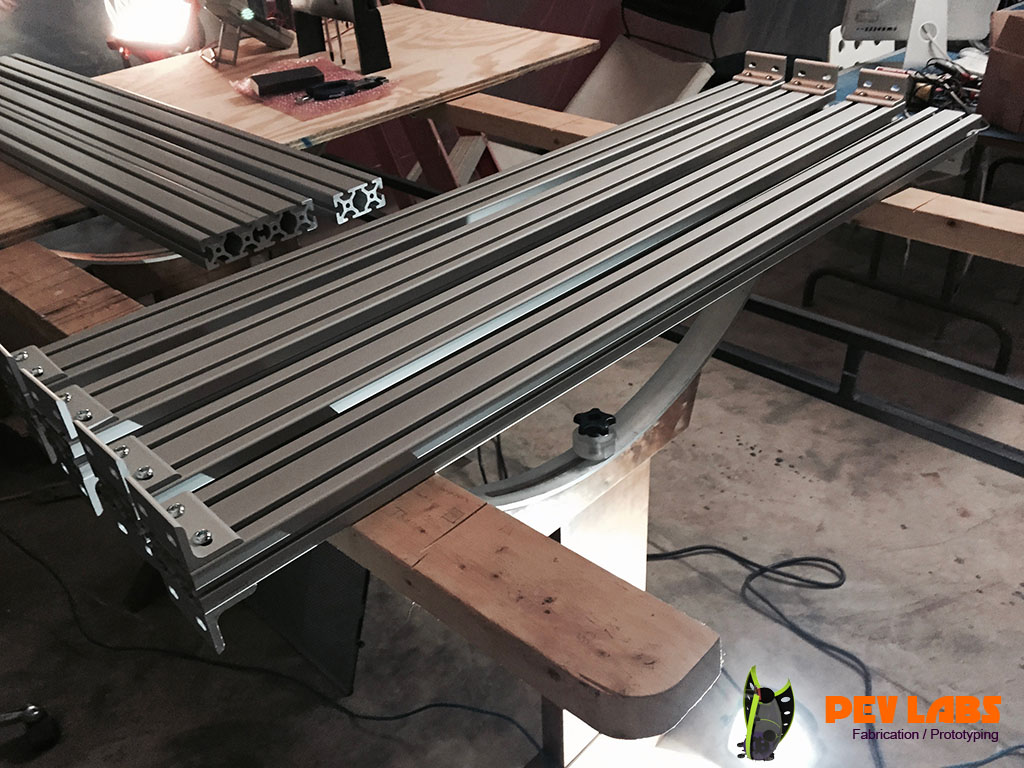

80/20 T Slot Extruded Aluminum
80/20 T Slot Extruded Aluminum

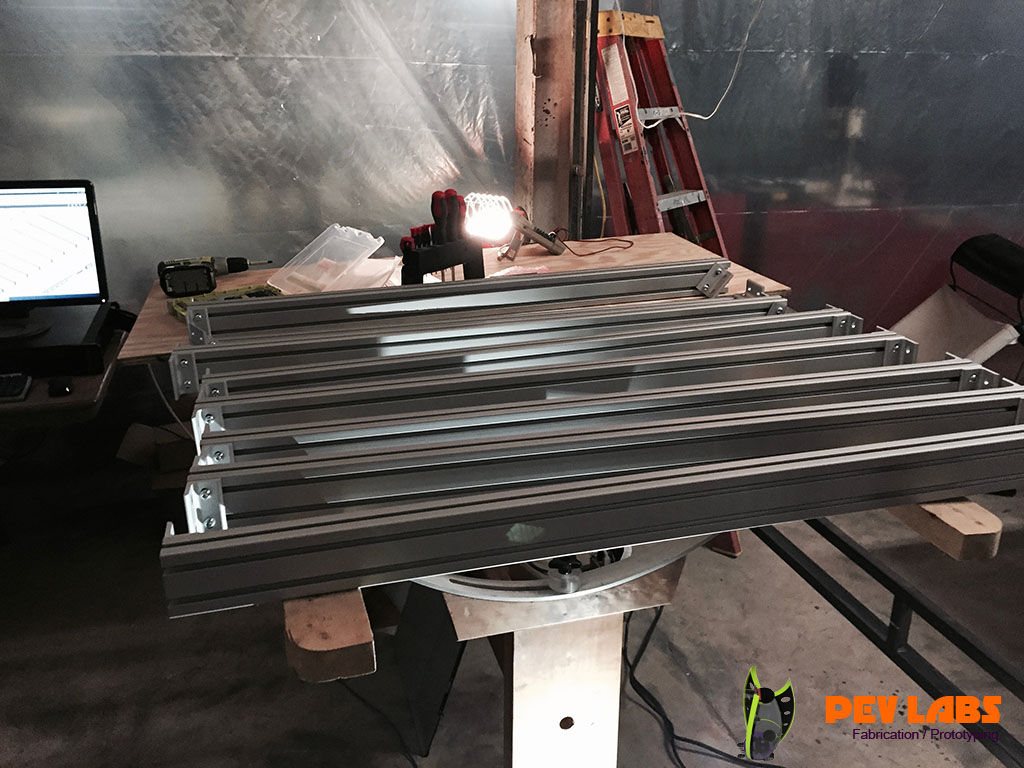

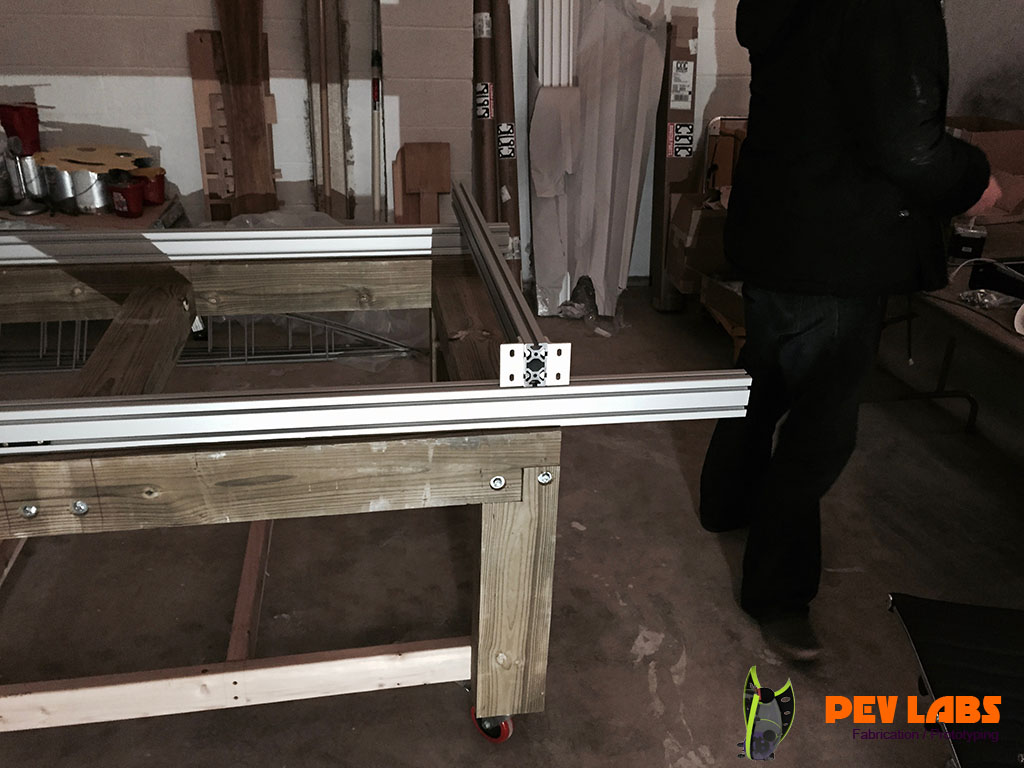

80-20 tslot Aluminum Crossbars
80-20 tslot Aluminum Crossbars

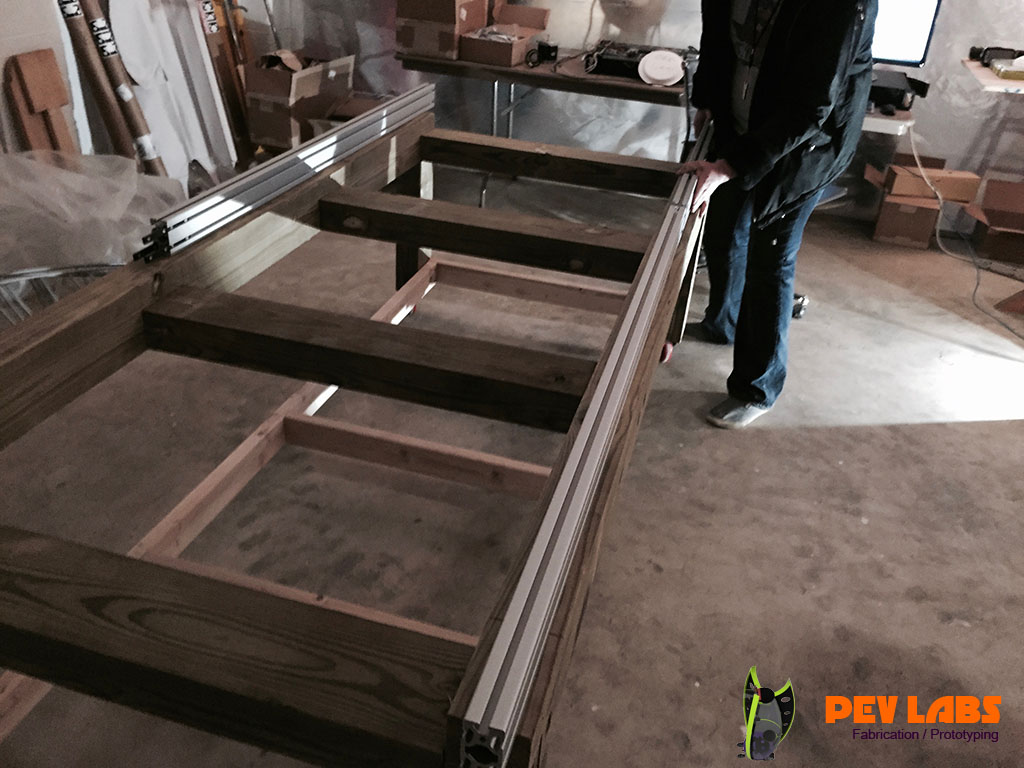

CNC Machine T-Slot Assembly on Stand
CNC Machine T-Slot Assembly

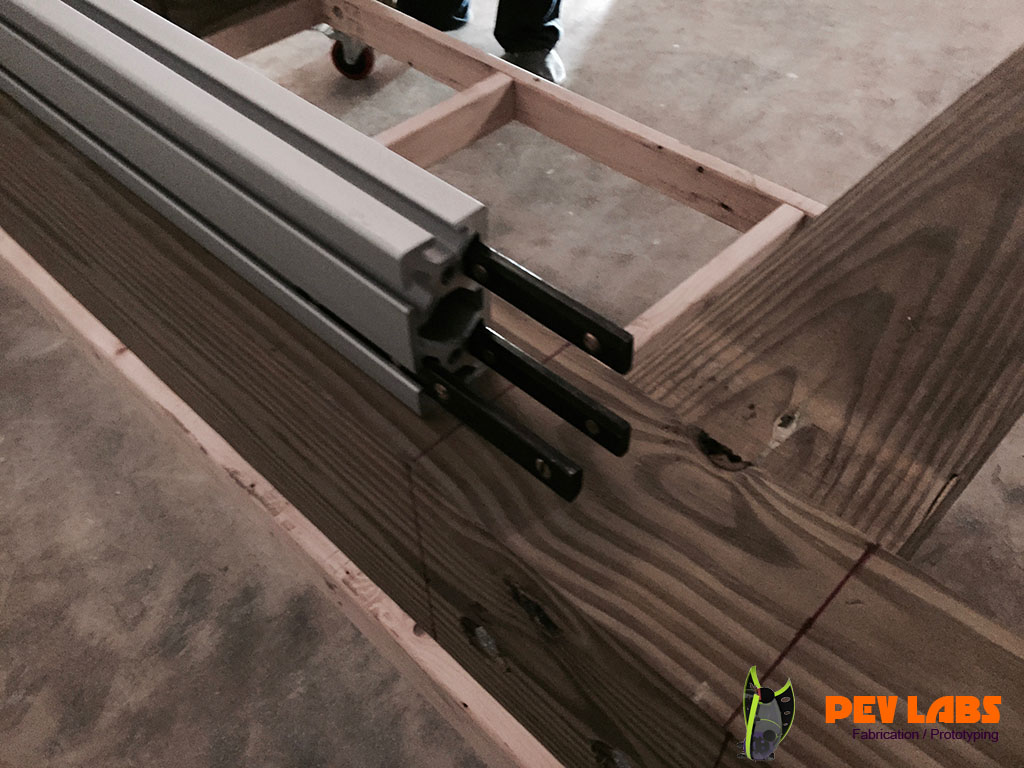

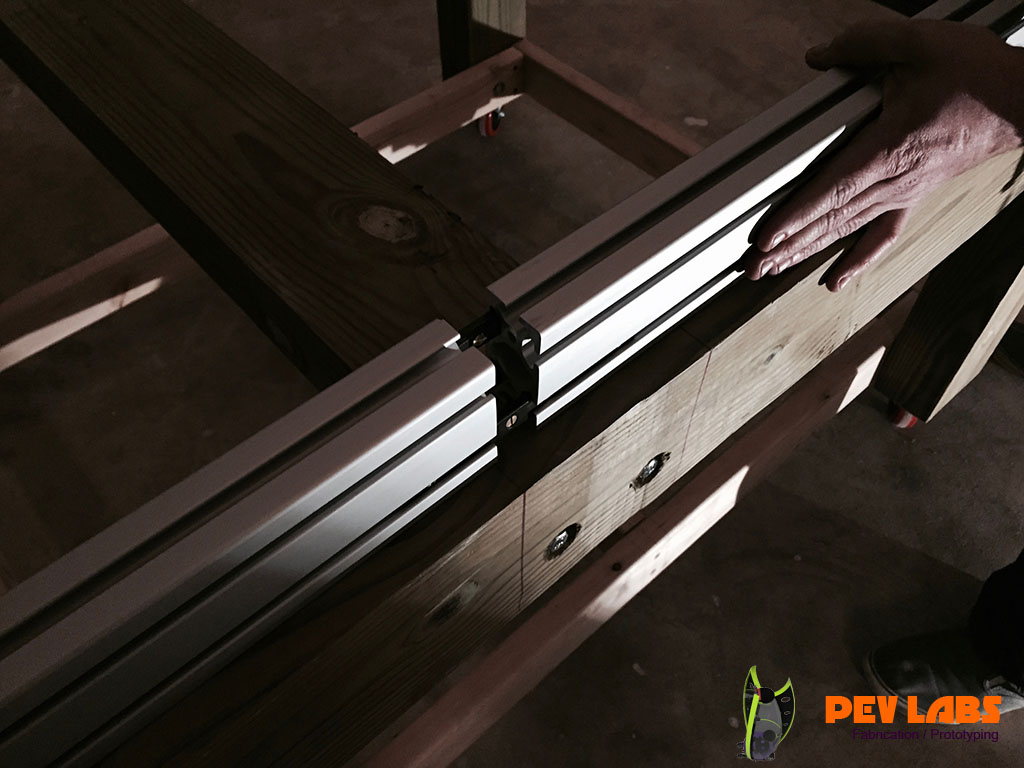

CNC Machine T-Slot Joint
CNC Machine T-Slot Joint

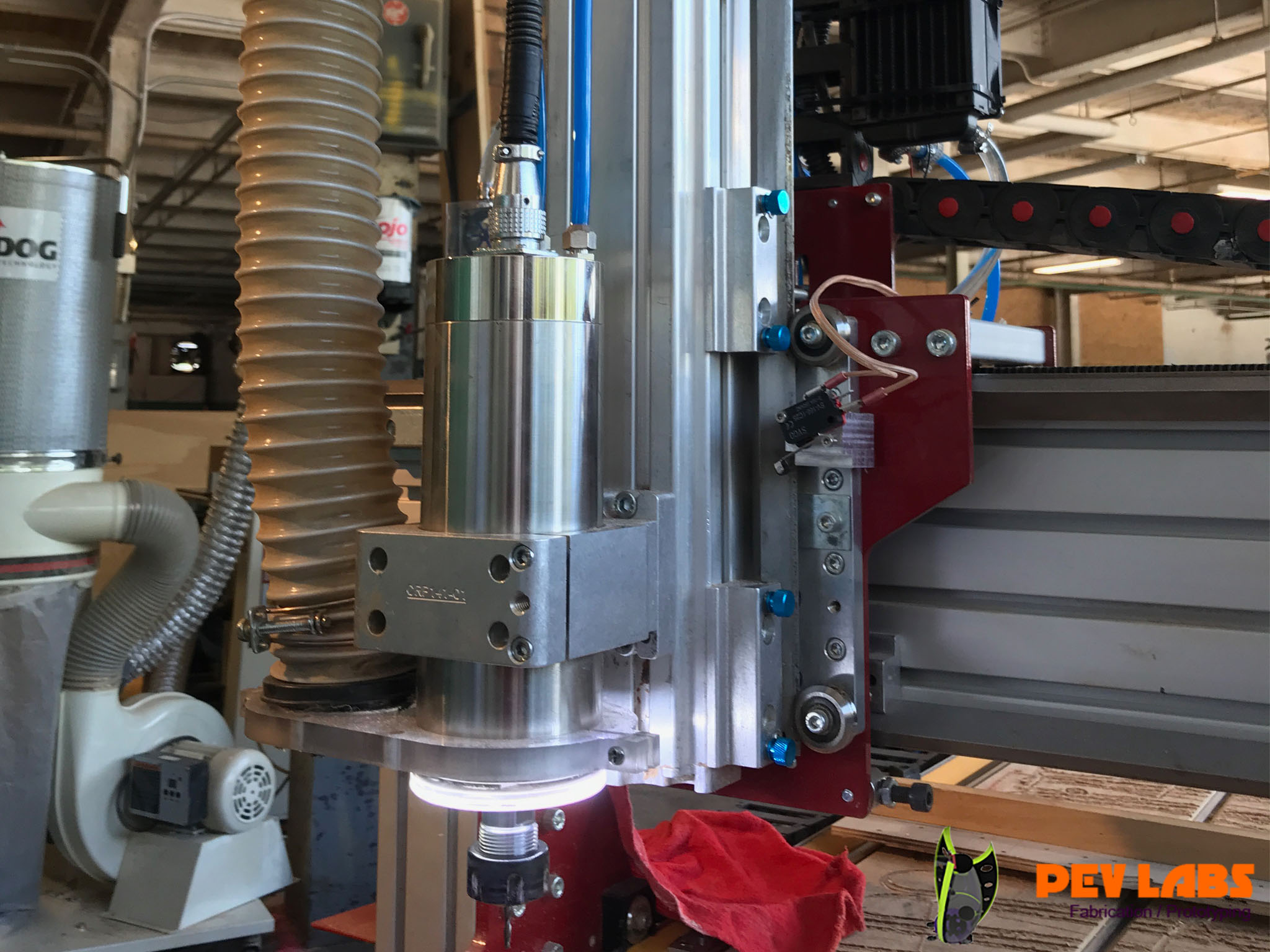

Water Cooled Spindle Upgrade
CNC Machine Build Water Cooled Spindle Upgrade with PC Style Cooling
