Chris Stapleton Backlit Display - Music Merchandising Sign Fabrication

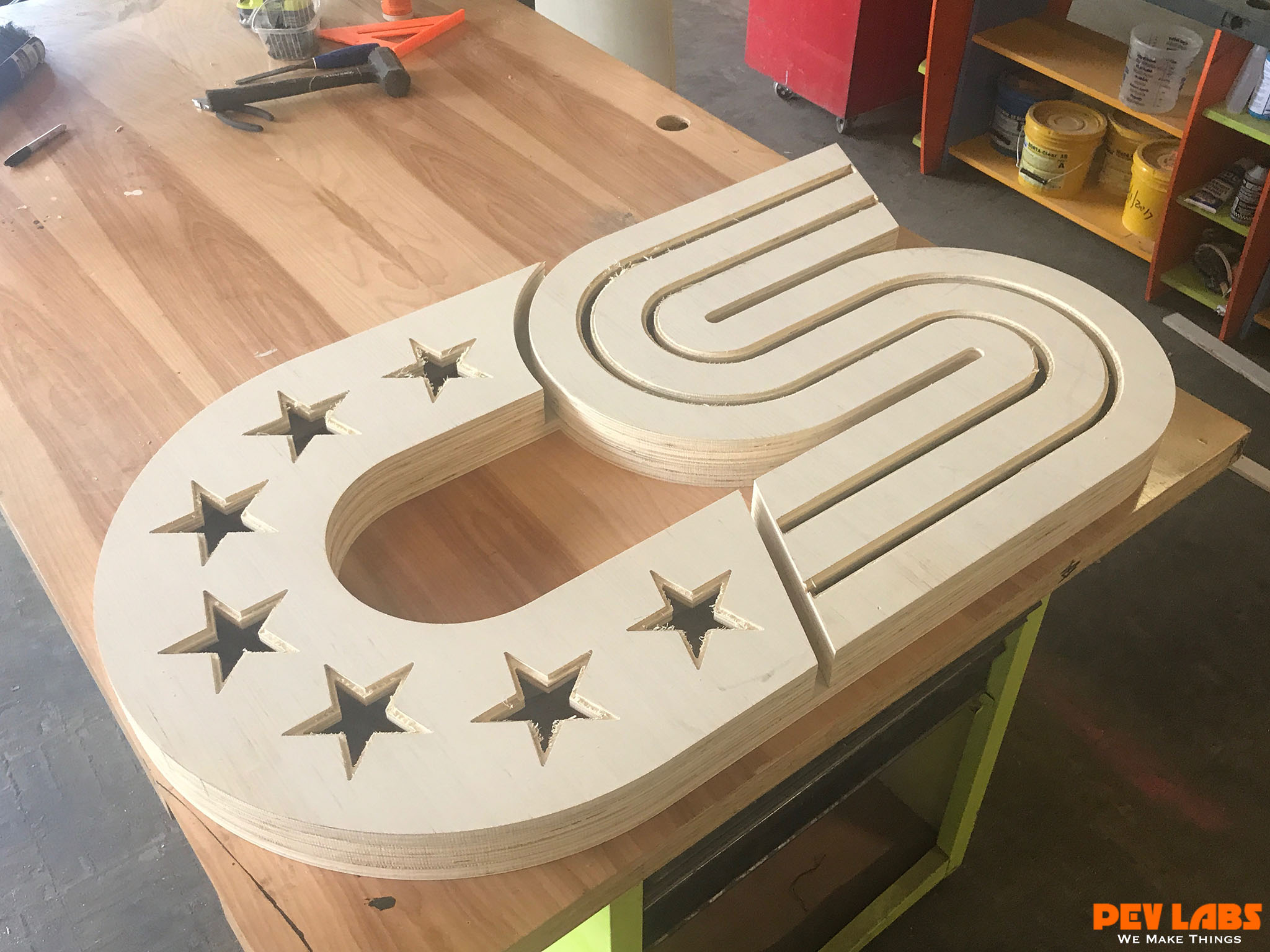

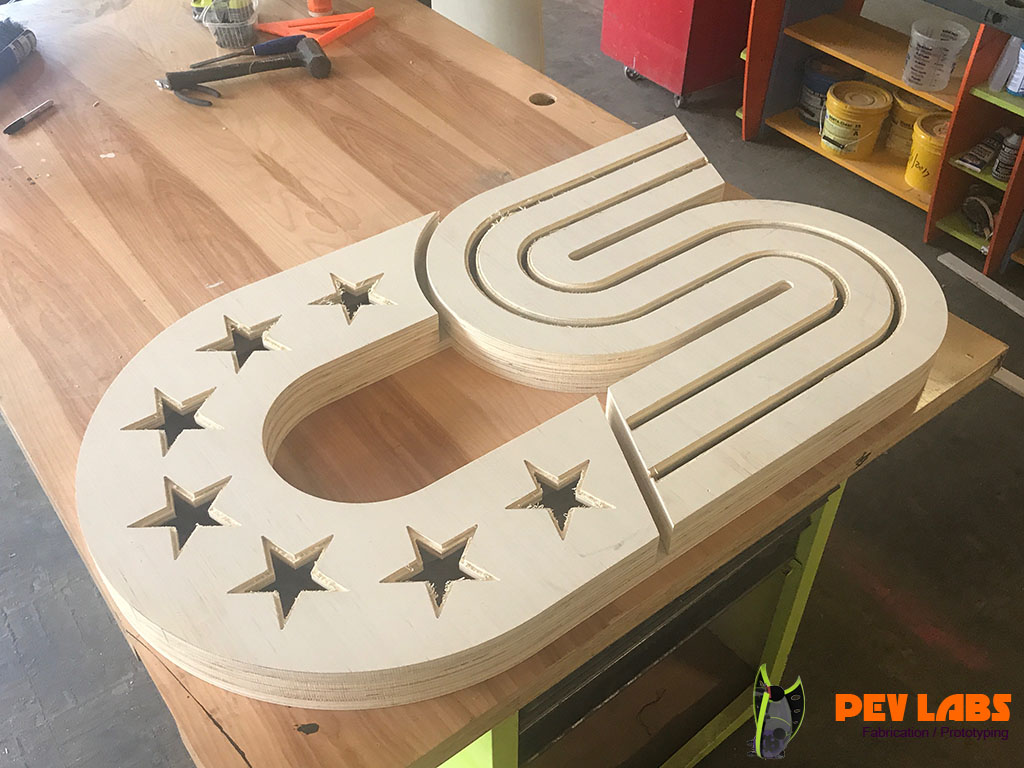

Backlit sign display for Chris Stapleton. Four layers of CNC milled 3/4 plywood laminated to make the display three inches thick. The top layer as pockets for the acrylic stars and stripes inlay that will let the backlight though the front. Two center layers support the LED strip lighting. The bottom layer hold the C and the S together and has some opening to backlight the same with the same lights. We planned to do a resin inlay but major rain events kept the humidity to high, so plastic insets were another good option.

Custom Branded Merchandise Display Systems are a favorite of ours to design and make.

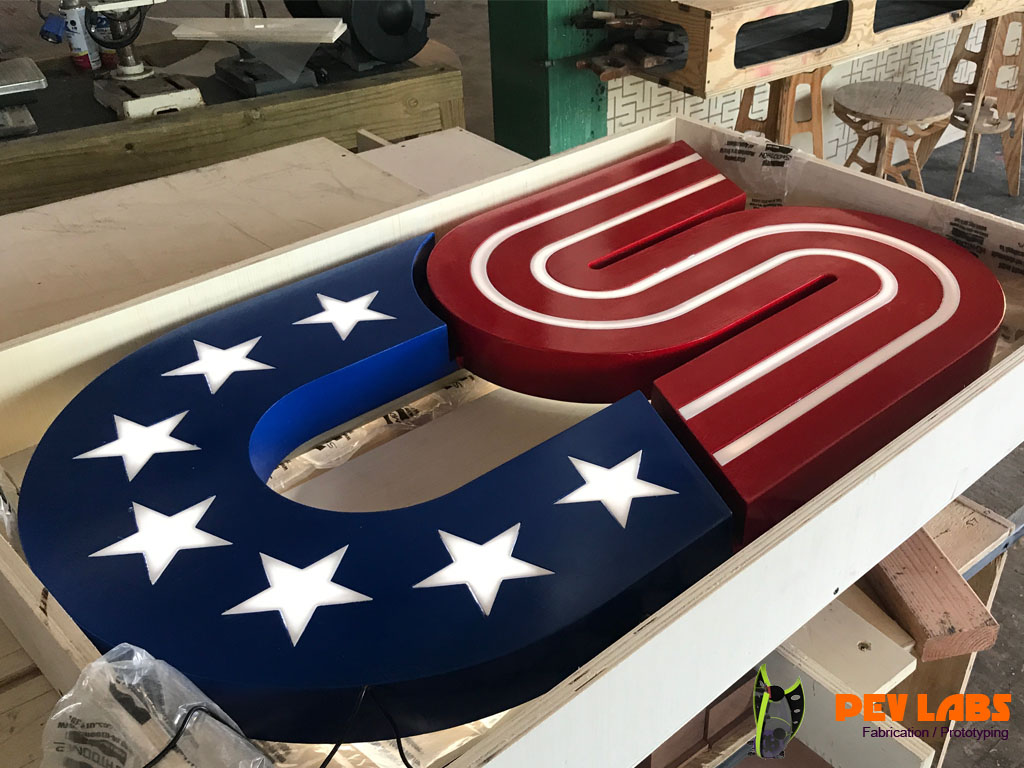

Chris Stapleton Lit Up
Chris Stapleton Lit Up
Chris Stapleton Sign Stars and Stripes Inlay
Sign Stars and Stripes Inlay

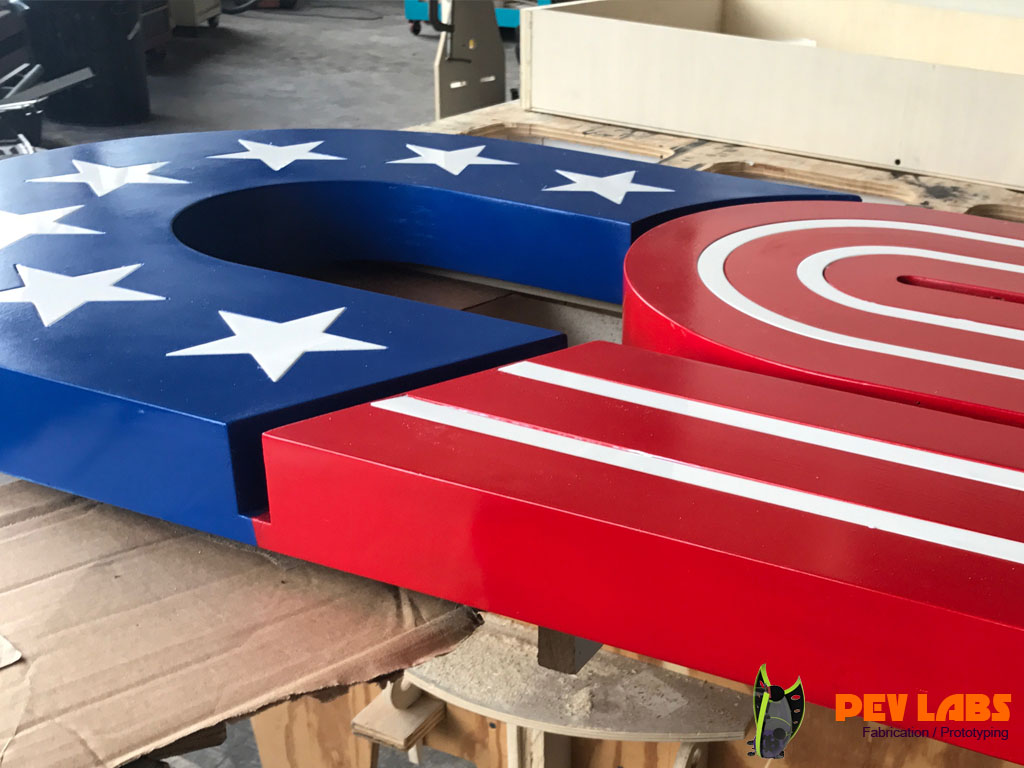

Inlay to be Illuminated
Inlay to be Illuminated
>Acrylic Inlay in Painted Sign
Acrylic Inlay in Painted Sign

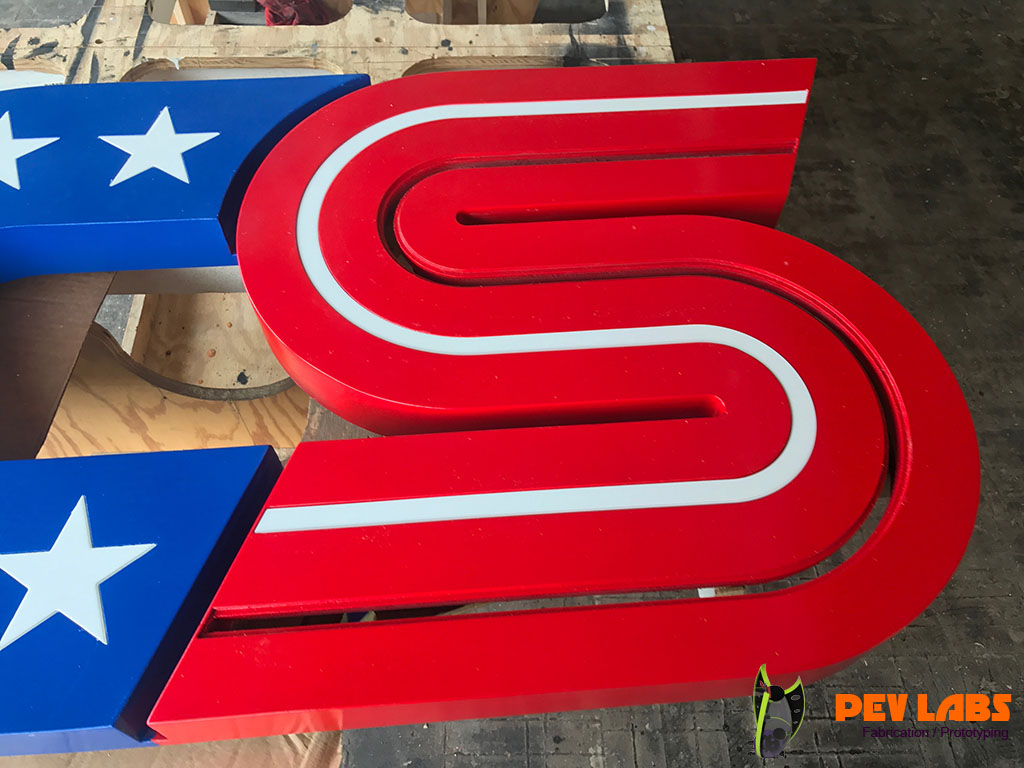

Sign Stripes Plastic Inlay
Sign Stripes Plastic Inlay

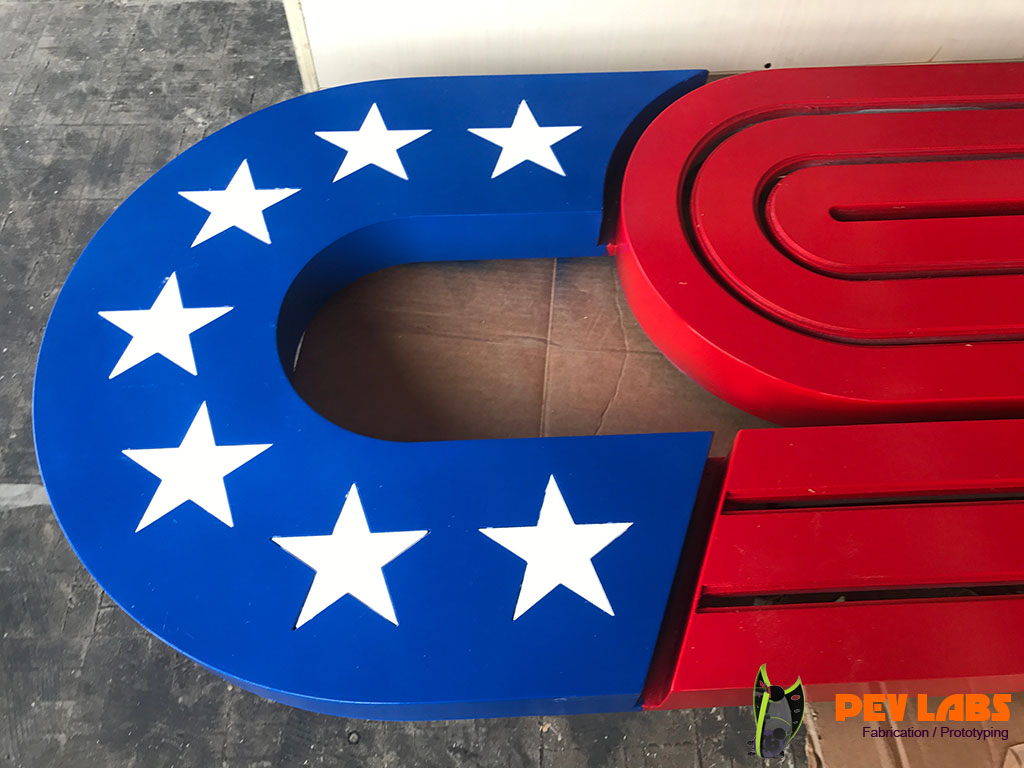

Sign Stars Plastic Inlay
Sign Stars Plastic Inlay

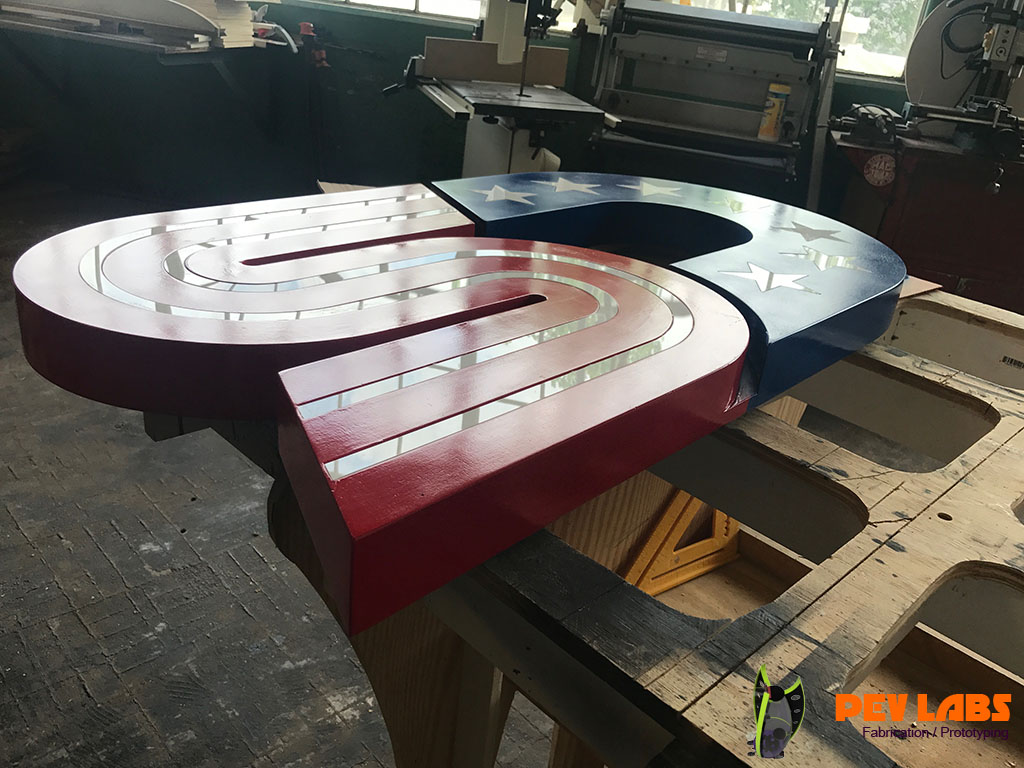

Display Stars and Stripes Inlay
Display Stars and Stripes Inlay

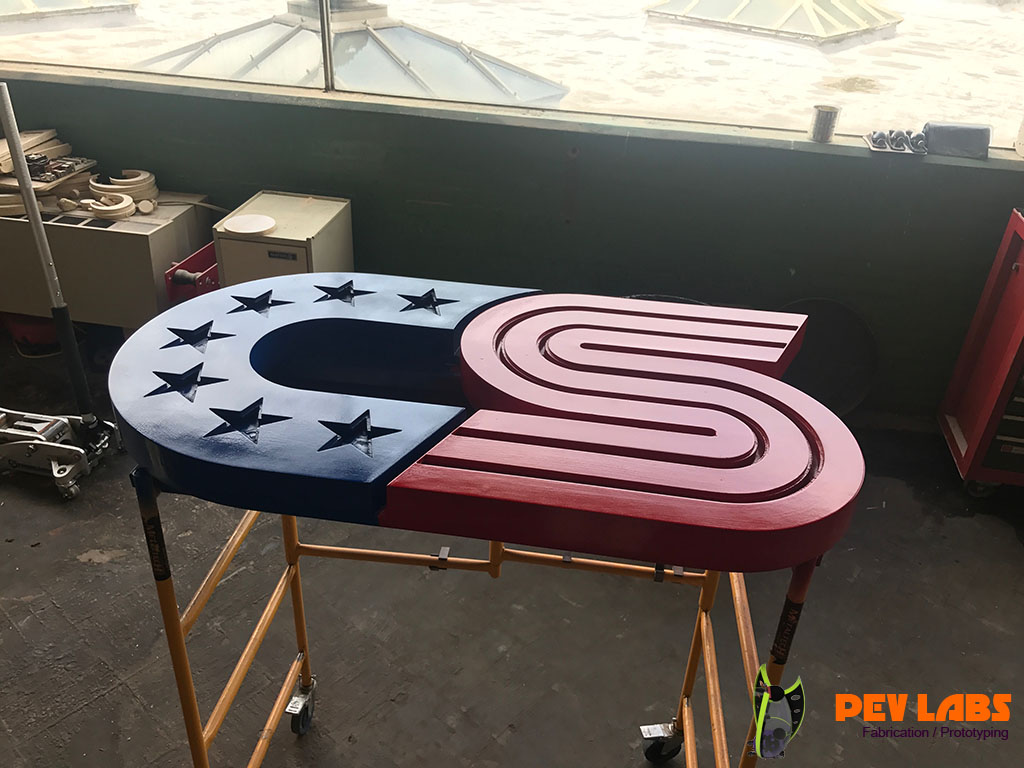

Chris Stapleton Display Before Insets
Chris Stapleton Display Pre-Insets
Chris Stapleton Sign with First Coat of Paint
Chris Stapleton First Coat

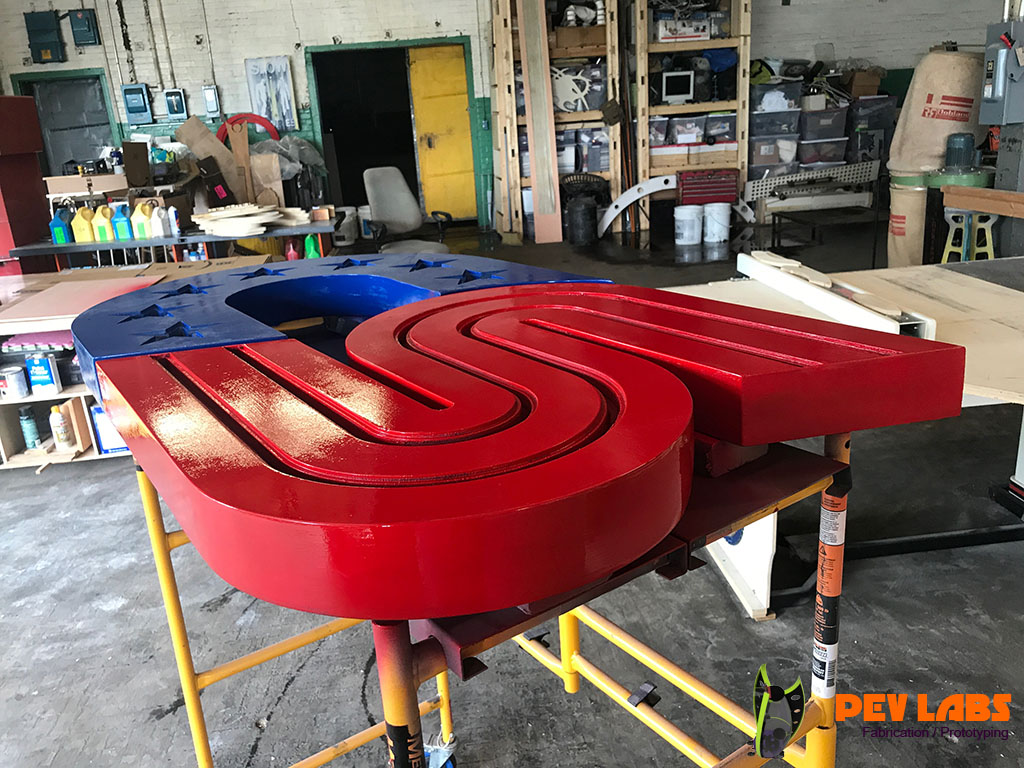

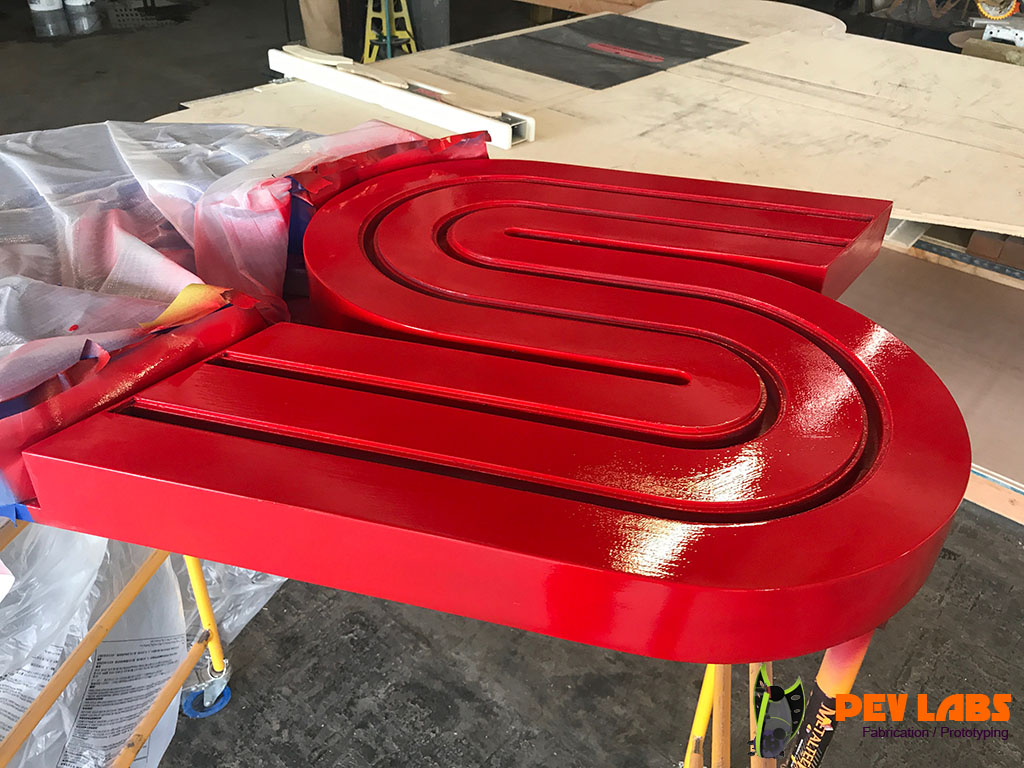

Sign Red Stripes Painting
Sign Red Stripes Painting

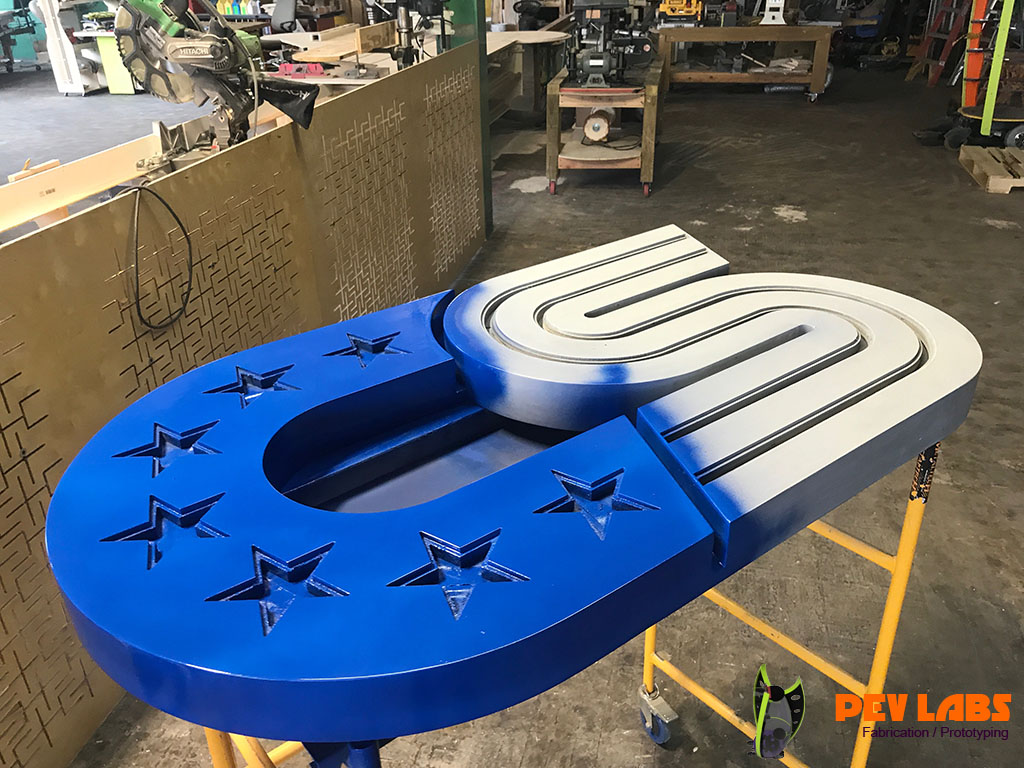

Sign Blue Stars Painting
Sign Blue Stars Painting

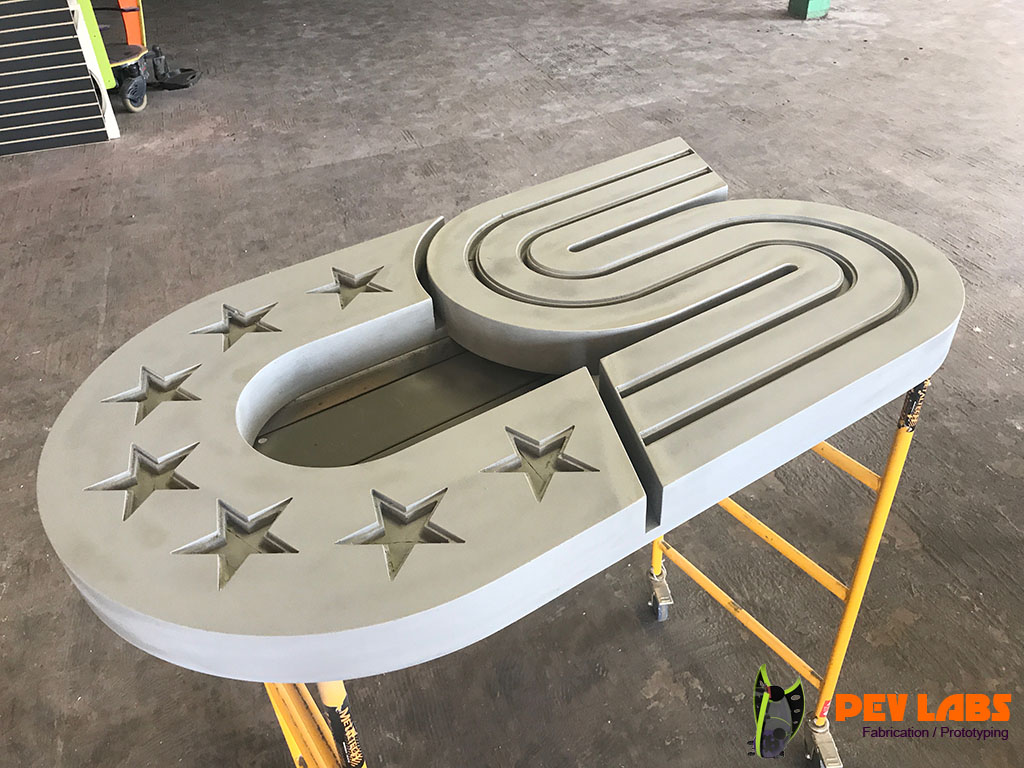

Sign Primed Before Painting
Sign Primed Before Painting
Chris Stapleton Sign Display With Lights On
Chris Stapleton Lights On

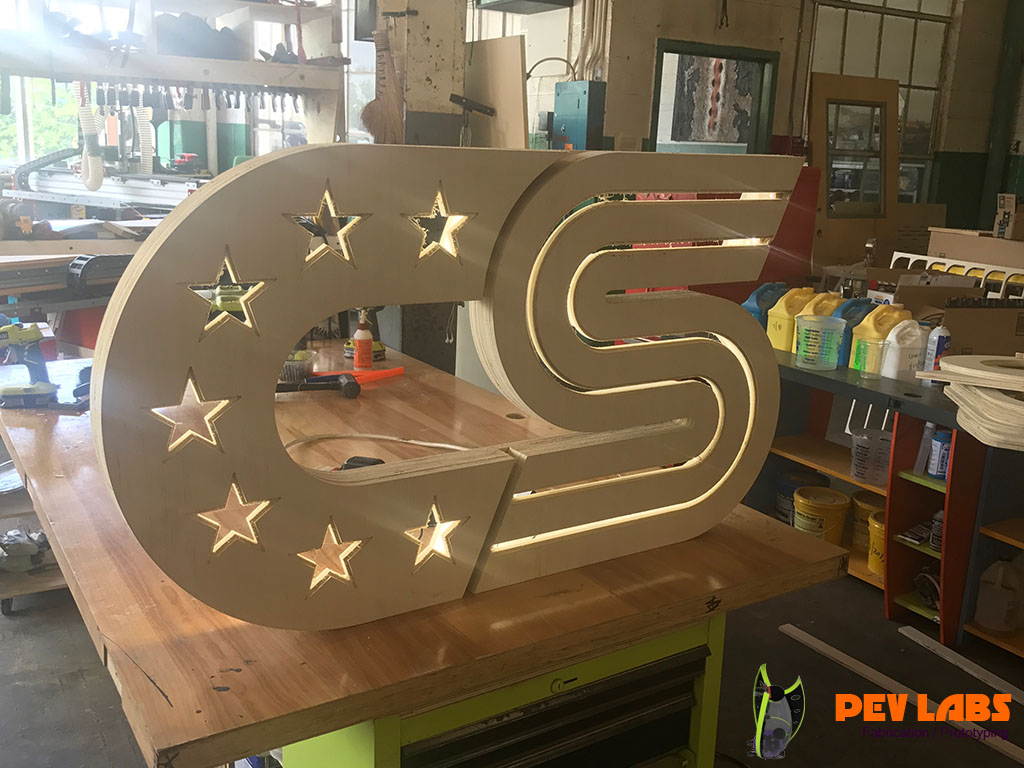

Chris Stapleton Plywood Sign Front View
Chris Stapleton Plywood Front

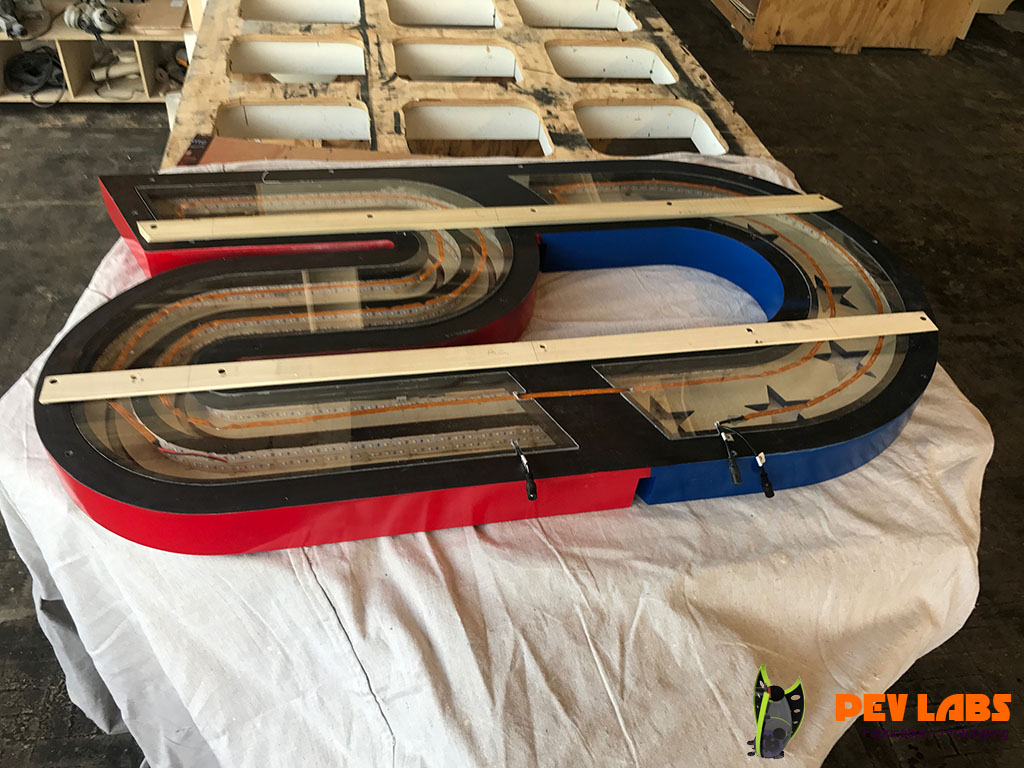

Clear Acrylic LED Back Lighting
Clear Acrylic LED Back Lighting

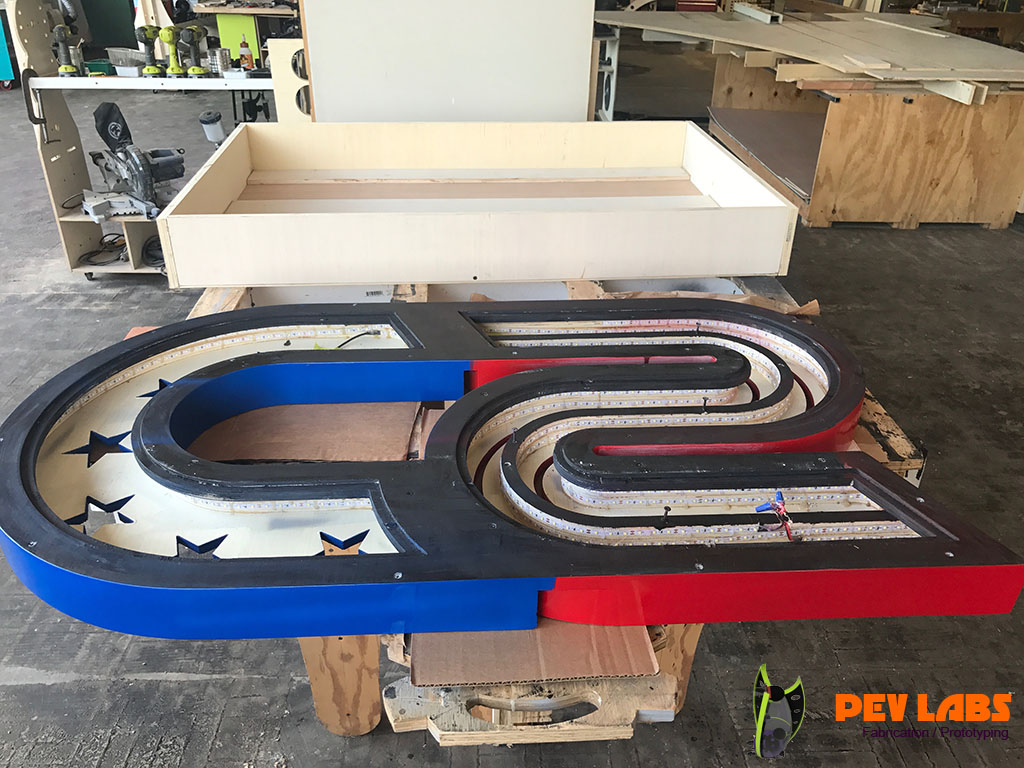

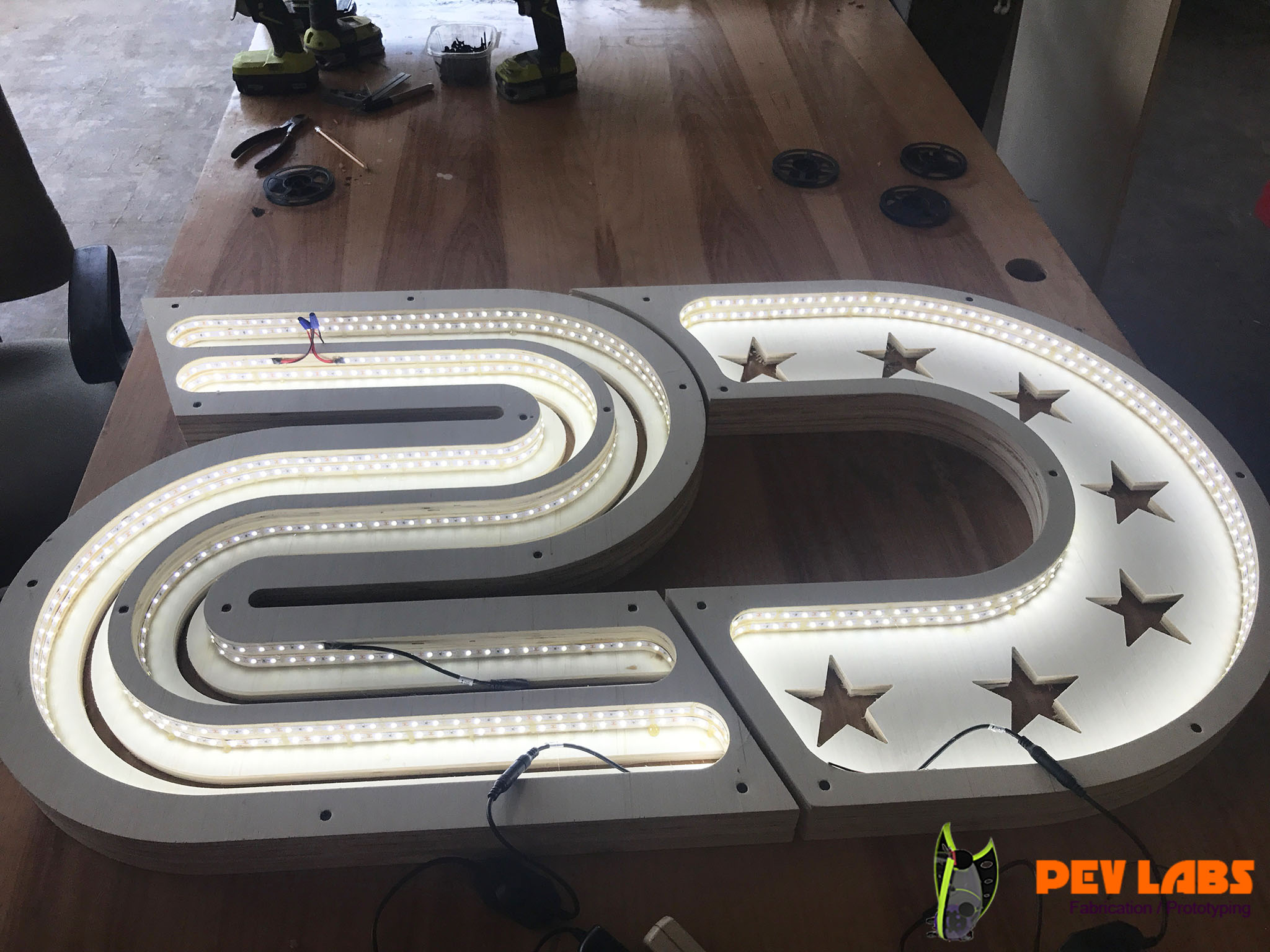

LED Strip Lighting Inside Sign
LED Strip Lighting Inside Sign

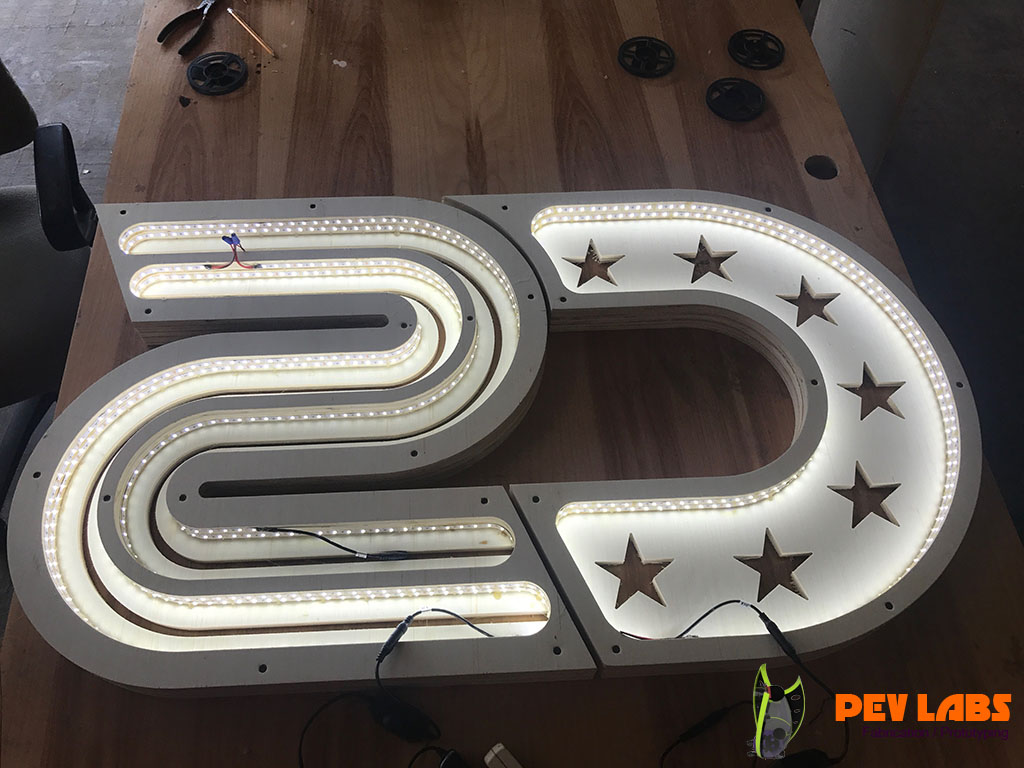

Testing LED Strip Lights
Testing LED Strip Lights

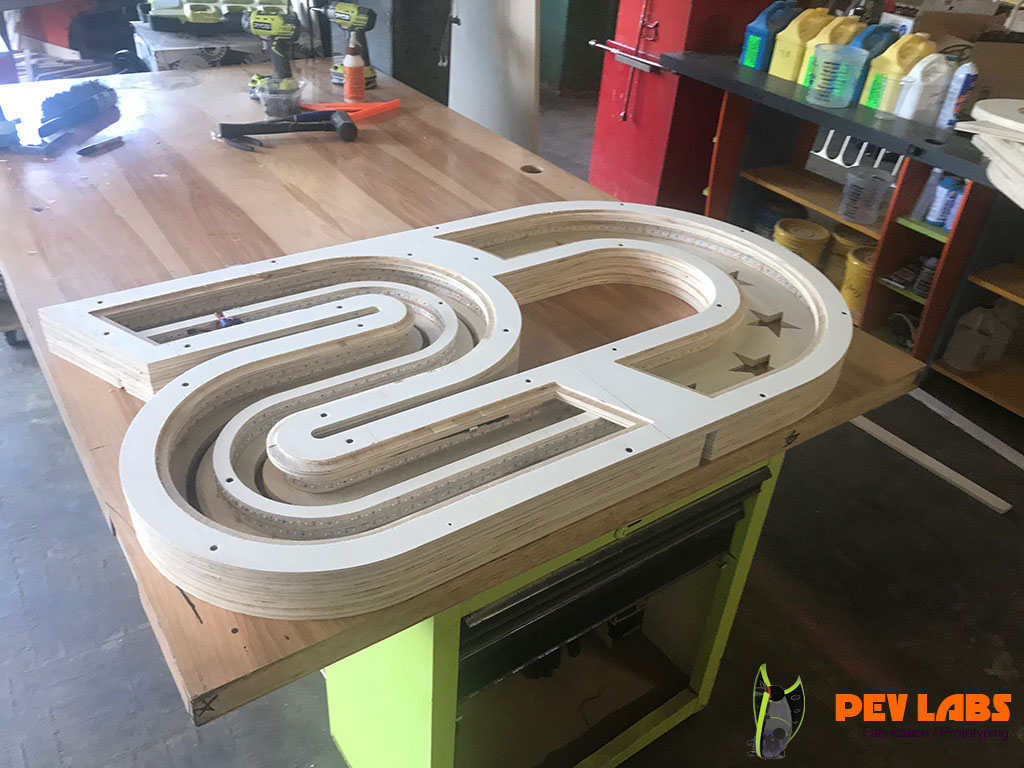

Installing LED Light Strips
Installing LED Light Strips

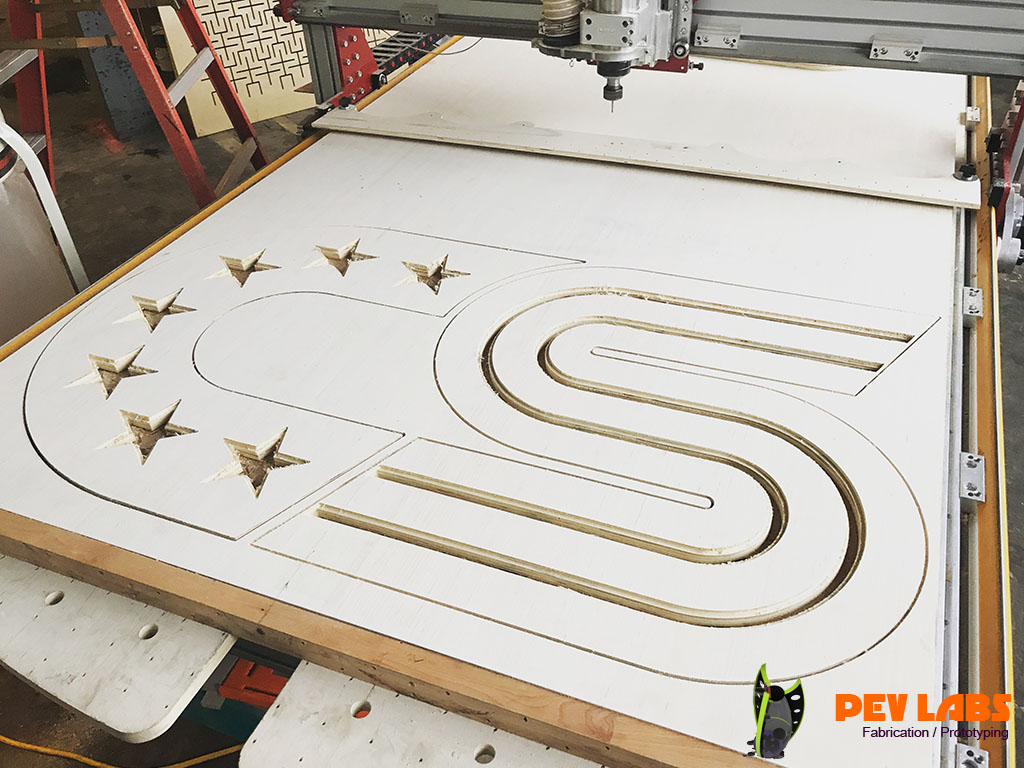

Stars and Strips Sign Milling
Stars and Strips Sign Milling

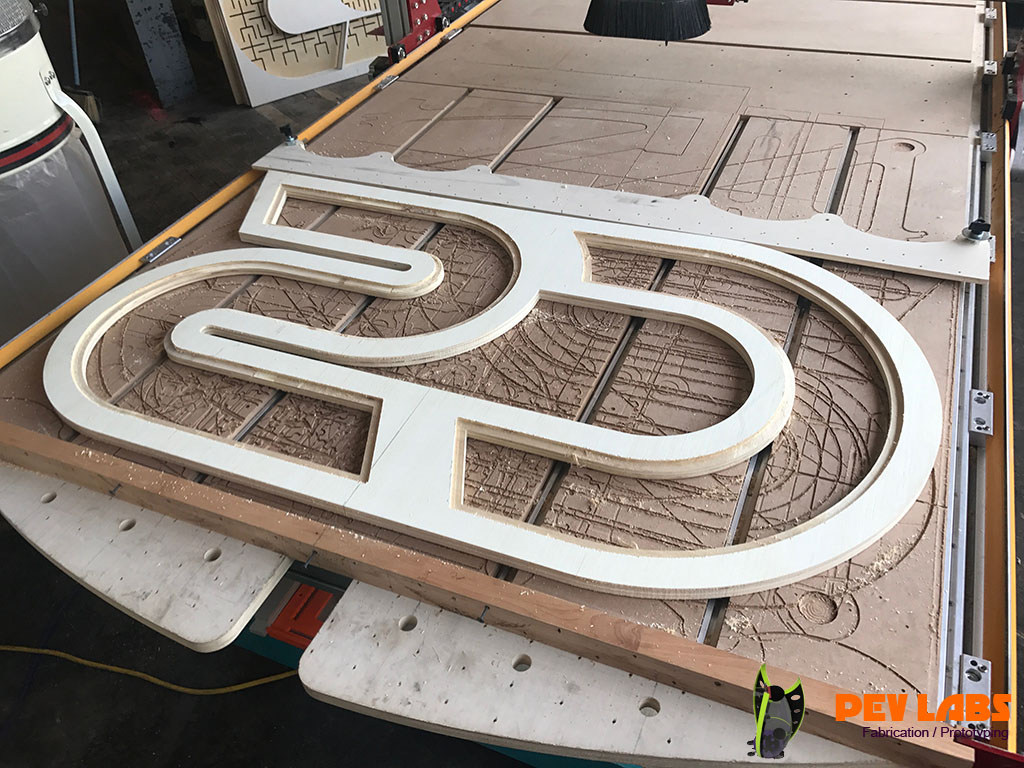

Stapleton Sign Back Indent
Stapleton Sign Back Indent

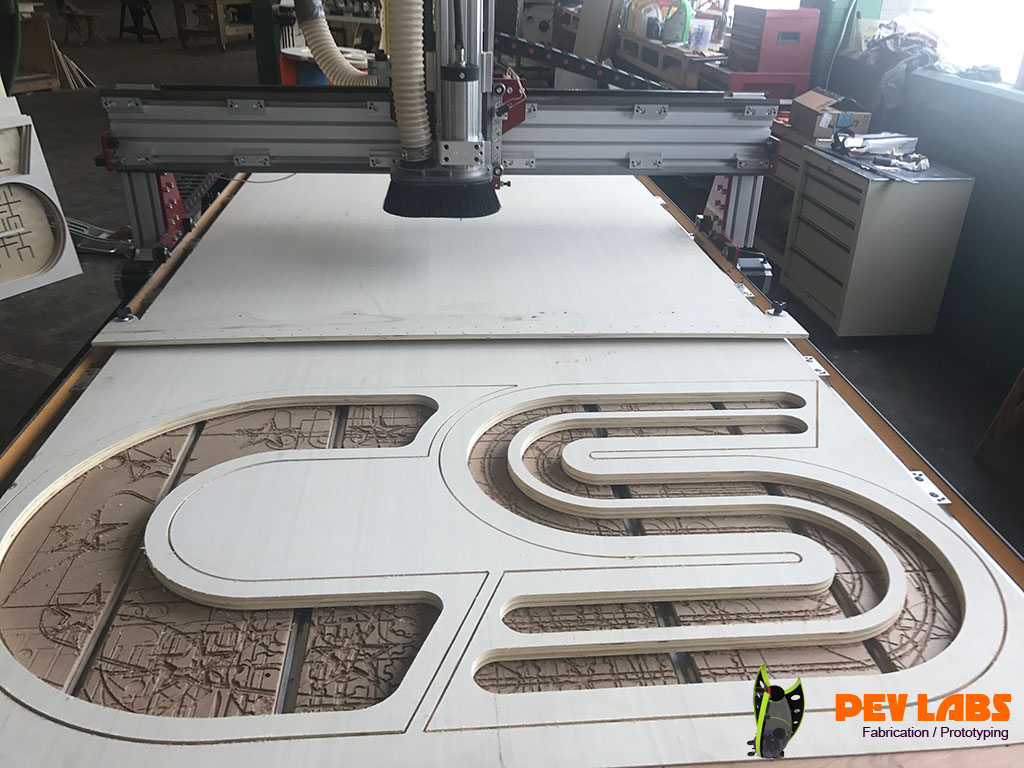

CNC Cutting Chris Stapleton Display Middle Layers
CNC Cutting Display Middle Layers

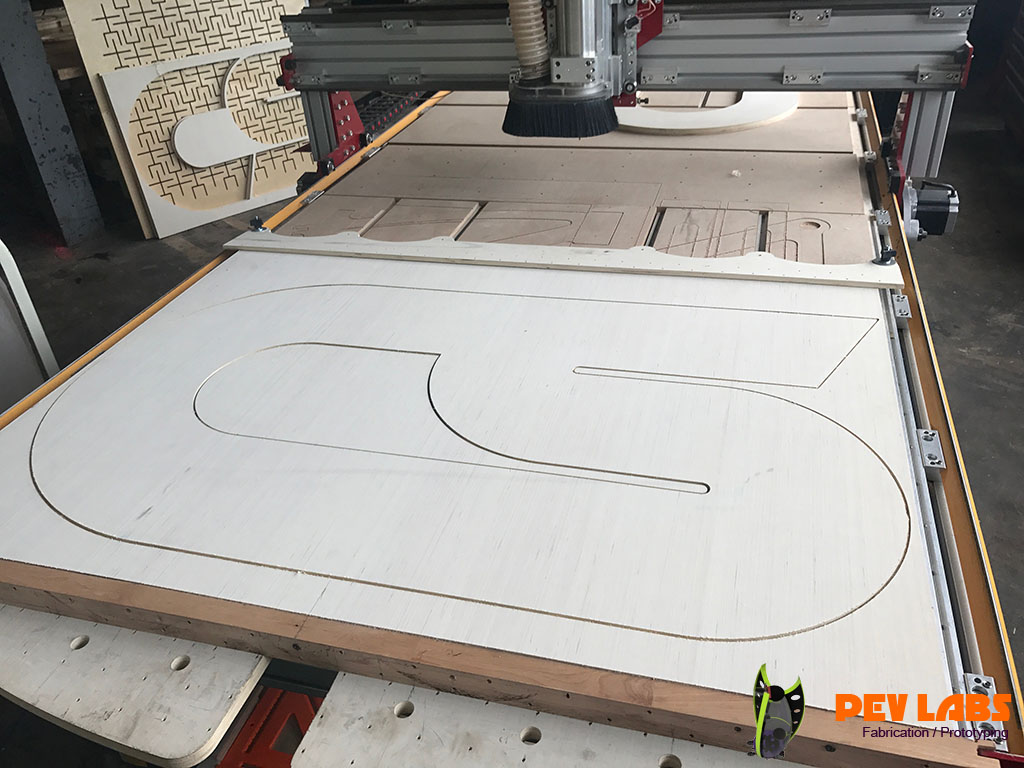

CNC Milling of Chris Stapleton Display Back Layer
CNC Milling Back Layer

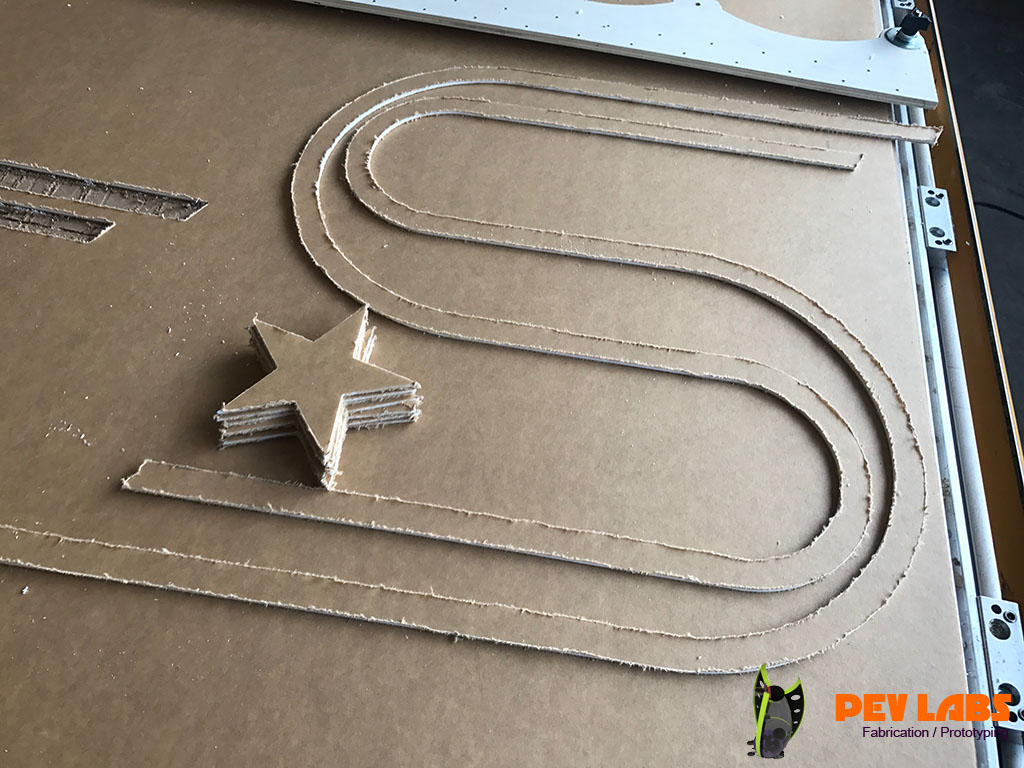

CNC Milling of Acrylic Plastic
CNC Milling of Acrylic Plastic

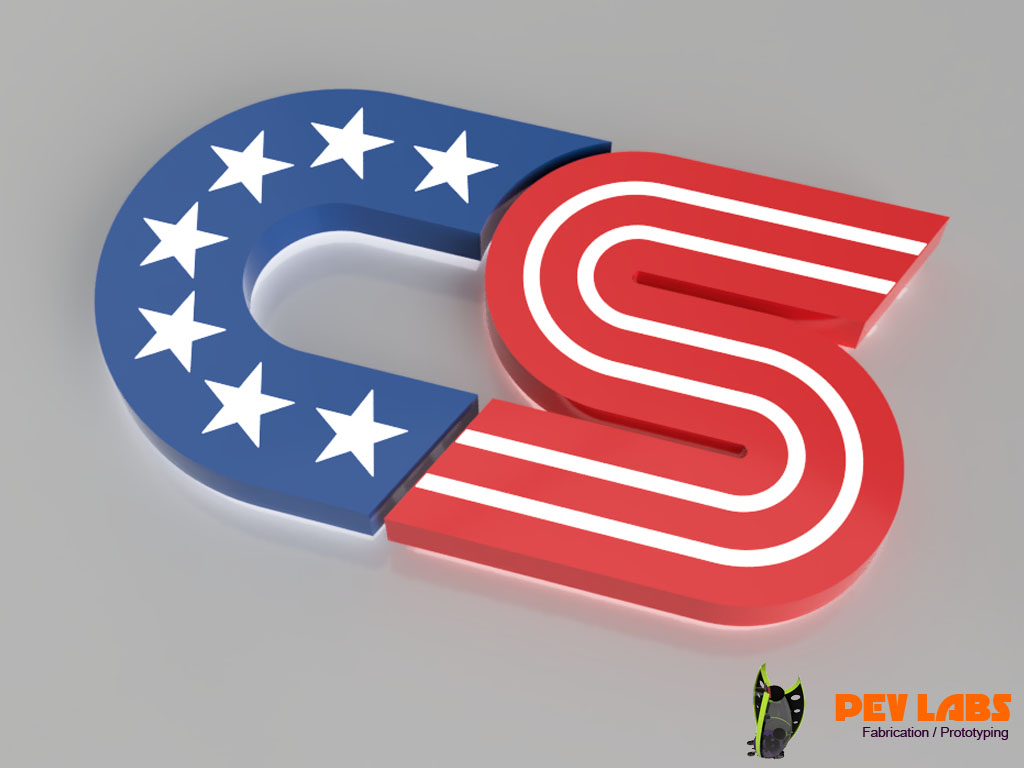

Chris Stapleton Industrial Design Rendering
Industrial Design Rendering (CAD)
